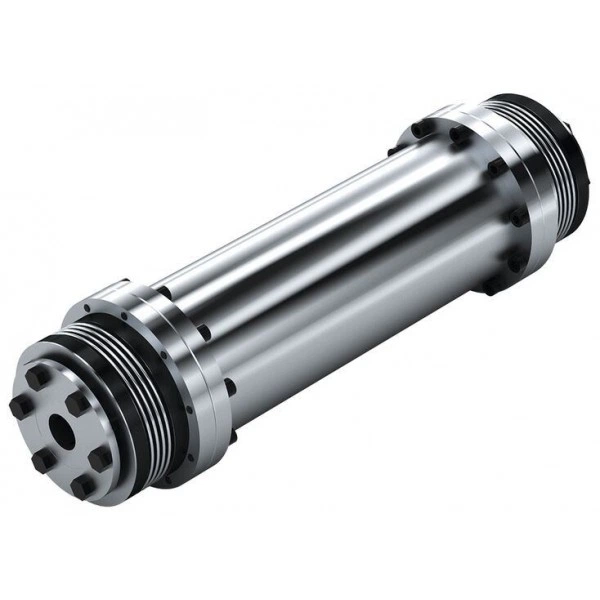

Steel connecting shafts with disk-pack coupling for Linear Modules MKR 080, 110, 165
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
Technical data
Technische Daten
| Size | ∆ka | ∆kw | Torque | m | Mass moment of inertia |
| mm | ° | Nm | kg | 10–6 kgm2 | |
| -165 | 2.6 | 1 | 400 | 12,8 + 0,0115 x (Lcs – 180) | 32320 + 38,5 x (Lcs – 180) |
| -80/-110 | 1.8 | 100 | 4,2 + 0,008 x (Lcs – 160) | 6480 + 8,5 x (Lcs – 160) |
Legend
| Symbol | Description | Unit |
| ∆ka | axial flexibility | mm |
| ∆kw | angled flexibility | ° |
| Lcs | Overall length of the connecting shaft | mm |
| m | Mass | kg |
Diagrams/characteristic curves

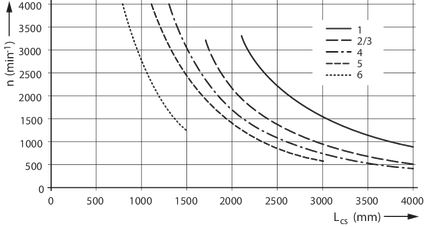

Bending-critical rotary speed depending on the overall length
| 1) | Lcs = overall length of the connecting shaft (mm) |
| 2) | n = rotary speed (min-1) |

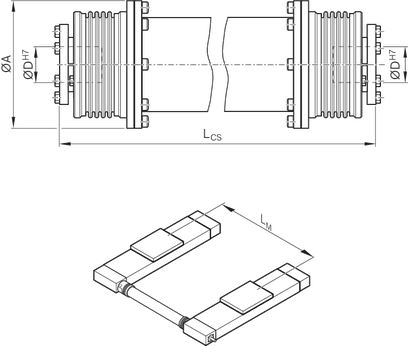

Dimensions
Dimensions
| Size | A | D | Lcs | Lcs | Lcs |
| min. | max. | ||||
| mm | mm | mm | mm | mm | |
| -165 | 149 | 35 | LM – 220 mm | 280 | 4000 |
| -80/-110 | 110 | 18 | LM – 140 mm 1) | 250 |
| 1) | Value applies to size -110; size -080 is LM – 120 mm |
Legend
| Symbol | Description | Unit |
| Lcs | Overall length of the connecting shaft | mm |
| LM | Centerline-to-centerline distance of the linear module | mm |
Mounting
Notes for horizontal installation positions (vertical installation positions on request)
Subject to alternative version with unchanged technical data.
Information
Protect rotating parts from contact during operation!
Comply with the Equipment Safety Act and machinery safety regulations!
Ordering codes
Order
Please state the part number and length L when orderingcs .
Subject to alternative version with unchanged technical data.
Material numbers
| Size | Part number | Shaft | CAD data | Buy |
| -165 | R039151011 | 1 | ||
| -80/-110 | R039151012 | 2 |
