Артикул: RX7764

Все товары Bosch Rexroth

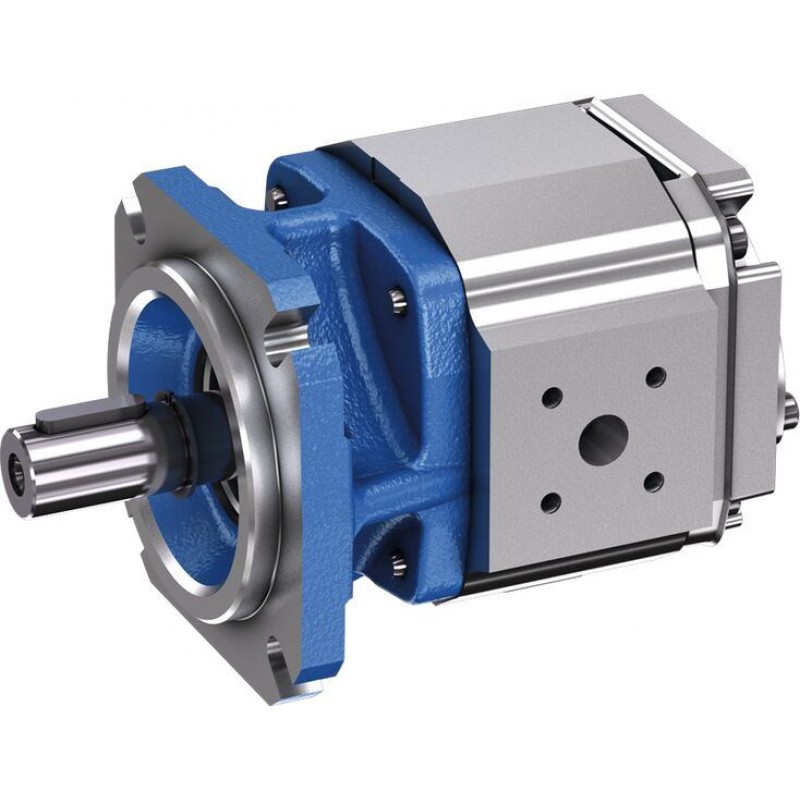

Internal gear pump PGP

Доступно к заказу

Цена по запросу

Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Description

  • Fixed displacement
  • Frame size 2, 3
  • Size 6.3 … 32
  • Maximum pressure 350 bar
  • Displacement 6.5 … 32.5 cm³

Features

  • Low operating noise
  • Low flow pulsation
  • High efficiency even at low viscosity due to sealing gap compensation
  • Long service life due to slide bearings and sealing gap compensation
  • Suitable for a wide viscosity and speed range
  • Excellent suction characteristics
  • Can be combined with PGH and PGF internal gear pumps, vane pumps and axial piston pumps
  • Use:
    For drives with high operating pressure up to 106 load cycles, for example trimming presses

Product description

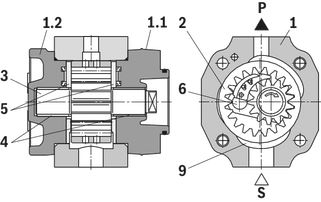

Design

PGP hydraulic pumps are leak-gap-compensated internal gear pumps with a fixed displacement.

They consist basically of: housing (1), bearing cover (1.1), cover (1.2), ring gear (2), pinion shaft (3), slide bearings (4), axial discs (5) and stop pin (6) as well as the segment assembly (7) which is composed of a segment (7.1), segment carrier (7.2) and the sealing rolls (7.3).

Suction and displacement process

The hydrodynamically supported pinion shaft (3) drives the internally toothed ring gear (2) in the direction of rotation shown.

During rotation, the volume is increased in the suction area over an angle of approx. 180°. A negative pressure is generated and fluid flows into the chambers.

The sickle-shaped segment assembly (7) separates the suction chamber from the pressure chamber. Within the pressure chamber, the teeth of the pinion shaft (3) mesh with the tooth spaces of the ring gear (2). The fluid is then displaced through the pressure channel (P).

Axial compensation

The axial compensation force FA acts in the area of the pressure chamber and is generated by the pressure zone (8) in the axial discs (5). The axial, longitudinal gaps between rotating and fixed parts are therefore extremely small and ensure optimum axial sealing of the pressure chamber.

Radial compensation

The radial compensation force FR acts on the segment (7.1) and segment carrier (7.2).

The area ratios and the position of the sealing rolls (7.3) between the segment and segment carrier are designed to provide virtually gap-free sealing between the ring gear (2), the segment assembly (7) and the pinion shaft (3).

Spring elements under the sealing rolls (7.3) ensure adequate contact pressure, even at very low pressures.

Hydrodynamic and hydrostatic bearing

The forces acting on the pinion shaft (3) are absorbed by hydrodynamically lubricated radial slide bearings (4) while those acting on the ring gear (2) are absorbed by the hydrostatic bearing (9).

Splines

Involute splining was selected for the gear. Their long length of contact results in a low flow and pressure pulsation; these low pulsation rates contribute greatly to the low-noise operation.

Used materials

Housing (1), bearing cover (1.1), cover (1.2) and axial discs (5): Steel-aluminum compound material

Ring gear (2), pinion shaft (3) and stop pin (6): Steel

Slide bearing (4): Copper-tin with steel back

Segment (7.1) and segment carrier (7.2): Brass alloy

Sealing rolls (7.3): Plastic

Type code

01

02

03

04

05

06

07

08

09

10

11

12

PG

P

/

R

V

*

Type

01

Internal gear pump, fixed displacement, gap-compensated

PG

Series

02

High-pressure pump, maximum pressure 350 bar

P

Frame size BG

03

BG2

2

BG3

3

Series

BG2

BG3

04

Series 20 to 29 (20 to 29: unchanged installation and connection dimensions)

-

2X

Series 30 to 39 (30 to 39: unchanged installation and connection dimensions)

-

3X

Size

NG

05

BG2

6.3

006

8.0

008

11.0

011

13.0

013

16.0

016

BG3

20.0

020

25.0

025

32.0

032

Direction of rotation

06

When looking at the drive shaft

right

R

Drive shaft

07

Cylindrical shaft with fitting key, ISO 3019-2 with through-drive

E

Splined shaft SAE J744 with involute tooth system according to ANSI B92.1a

J

Line connections

08

Suction and pressure port according to SAE J518

07

Square flange connection, metric mounting thread

20

Seal material

09

FKM (fluor-caoutchouc)

V

Mounting flange

10

4-hole mounting flange according to ISO 3019-2 and VDMA 24560 part 1

E4

2-hole mounting flange according to ISO 3019-1

U2

Option

11

End cover for attachment of the next smaller frame size

K

12

Further details in the plain text

*

Not all of the variants according to the ordering code are possible! Please select the desired pump with the help of the selection table (see dimensions) or after consultation with Bosch Rexroth!

Special options are available on request, e.g., integrated pressure-relief valves.

Multiple pumps

01

02

03

04

05

06

07

08

09

10

P2

PGP

/

+

PGF

/

R

+

Type

01

2-fold

P2

02

Series of the first pump

PGP

03

Size of the first pump

​1)

04

Series of the second pump

PGF

05

Size of the second pump

2)

Direction of rotation

06

Viewed on drive shaft

clockwise

R

Drive shaft of the first pump

07

Parallel keyed shaft, ISO 3019-2 with through drive

E

Splined shaft SAE J744 with involute tooth system according to ANSI B92.1a

J

Wire connections of the first pump

08

Suction and pressure port according to SAE J518

07

Square flange port according to DIN 3901 and DIN 3902, metric fastening thread

20

Line connection of the 2nd pump

09

Suction and pressure port according to SAE J518

07

Square flange port according to DIN 3901 and DIN 3902, metric fastening thread

20

Mounting flange of the 1st pump

10

4-hole mounting flange according to ISO 3019-2 and VDMA 24560 part 1

E4

2-hole mounting flange according to ISO 3019-1

U2

1)PGP see type code
2)PGF see data sheet 10213

Technical data

Frame size

23

Size

6.38111316202532

Displacement

geometric

Vg

cm³

6.58.21113.31620.625.432.5

Drive speed

nmin

rpm

600

nmax

rpm

1800

Operating pressure, absolute

Inlet

p

bar

0.8 ... 2

Outlet

continuous

pN

bar

250

intermittent

Maximum 1 s, up to 10 % of duty cycle, maximum 1 x 106 load cycles 1)

pmax

bar

350

Maximum 6 s, up to 15 % of duty cycle, maximum 10 x 106 load cycles 1)

pmax

bar

315

Flow 2)

qV

l/min

9.411.91619.323.229.936.847.1

Power consumption

Minimum drive power required 3)

pzu

kW

0.751.11.5

Weight

m

kg

33.13.33.53.64.35.15.5

Shaft loading

Radial and axial forces (e.g., belt pulley) only after consultation

Type of mounting

Flange mounting
1)Attention! This value must not be exceeded even by a pressure peak.
2)at n = 1450 rpm, p = 10 bar, v = 30 mm2/s
3)at p ≈ 1 bar

Hydraulic fluid

Permissible hydraulic fluid 1)

HL mineral oil according to DIN 51524 part 1/HLP, mineral oil according to DIN 51524 part 2
HEES fluids according to DIN ISO 15380
HEPR fluids according to DIN ISO 15380

Operating temperature range

°C

-20 … +80

Ambient temperature range

°C

-20 … +60

Viscosity range

mm²/s

10 … 300

Permissible starting viscosity

mm²/s

2000

Maximum admissible degree of contamination of the hydraulic fluid 2)

Class 20/18/15 according to ISO 4406 (c)
1)Other hydraulic fluids on request
2)Cleanliness levels specified for the components must be maintained in the hydraulic systems. Effective filtration prevents malfunctions and simultaneously extends the service life of the components.

Note

  • Please contact us if the unit is to be used outside the specified values.
  • Observe our specifications according to data sheet 90220.

Diagrams/characteristic curves

Frame size 2

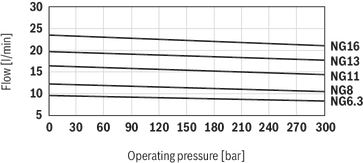

Flow

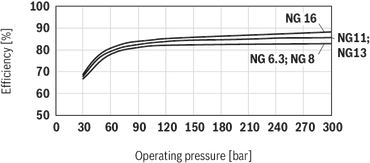

Efficiency

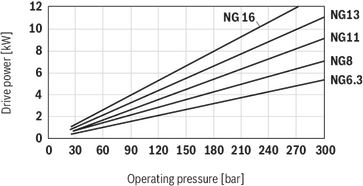

Drive power

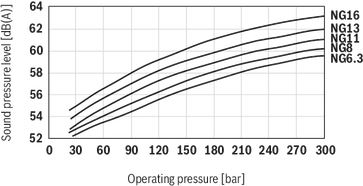

Sound pressure level

Frame size 3

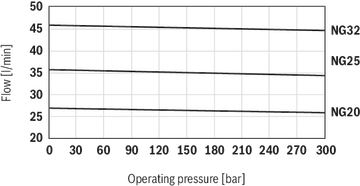

Flow

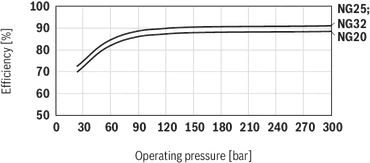

Efficiency

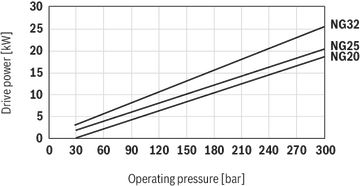

Drive power

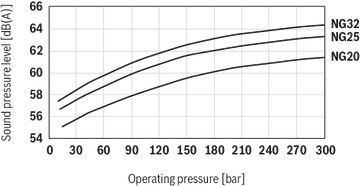

Sound pressure level

Note

Characteristics measured at n = 1450 rpm; ν = 46 mm2/s; θ = 40 °C

Sound pressure level measured in acoustic room according to DIN 45635, Sheet 26; Distance: microphone ‒ pump = 1 m

Symbols/Circuit diagrams

Symbol

Dimensions

Frame size 2

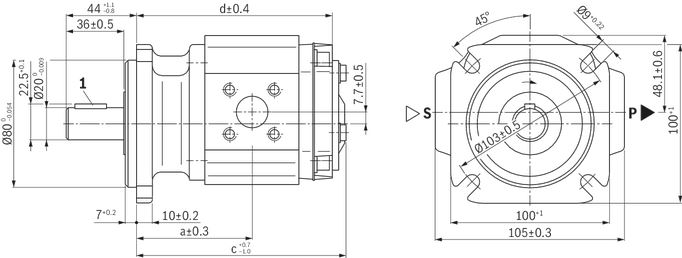

Parallel keyed shaft, DIN 6885, with through drive

Dimensions in mm

1

Shaft key B6 × 6 × 25

Type

a

c

d

S 1) 2)

P 2) 3)

mm

mm

mm

mm

mm

PGP2-2X/006RE20VE4 63115.2104.1Ø20, TK Ø40Ø6, TK Ø35
PGP2-2X/008RE20VE4 64.8118.7107.6Ø8, TK Ø35
PGP2-2X/011RE20VE4 67.5124.2113.1Ø12, TK Ø35
PGP2-2X/013RE20VE4 70129.2118.1
PGP2-2X/016RE20VE4 72.5134.2123.1
1)Fastening thread M6; 10 deep
2)See line connections
3)Fastening thread M6; 12 deep

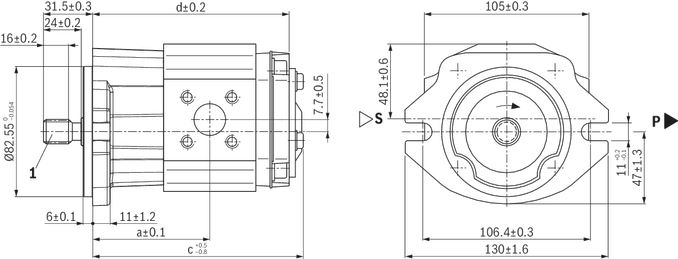

Splined shaft, with through-drive

Dimensions in mm

1

SAE J744 16-4(A) 9T 16/32 DP
Involute splining according to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

Type

a

c

d

S 1) 2)

P 2) 3)

mm

mm

mm

mm

mm

PGP2-2X/006RJ20VU2 65117.2106.1Ø20, TK Ø40Ø6, TK Ø35
PGP2-2X/008RJ20VU2 66.8120.7109.6Ø8, TK Ø35
PGP2-2X/011RJ20VU2 69.5126.2115.1Ø12, TK Ø35
PGP2-2X/013RJ20VU2 72131.2120.1
PGP2-2X/016RJ20VU2 74.5136.2125.1
1)Fastening thread M6; 10 deep
2)See line connections
3)Fastening thread M6; 12 deep

TK = Pitch circle

Frame size 3

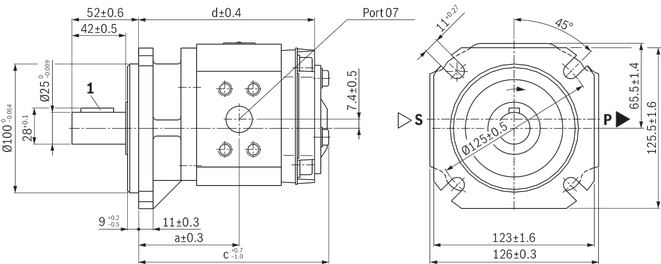

Parallel keyed shaft, DIN 6885, with through drive

Dimensions in mm

1

Shaft key B8 × 7 × 30

Type

a

c

d

S 2)

P 2)

mm

mm

mm

mm

mm

PGP3-3X/020RE20VE4 71137.1126Ø26, TK Ø55 1)Ø12, TK Ø35 4)
PGP3-3X/025RE20VE4 74143.1132
PGP3-3X/032RE07VE4 78.5152.1141SAE 1 1/4 in S 3)SAE 3/4 in S 3)
1)Fastening thread M8; 12 deep
2)See line connections
3)Standard pressure series
4)Fastening thread M6; 12 deep

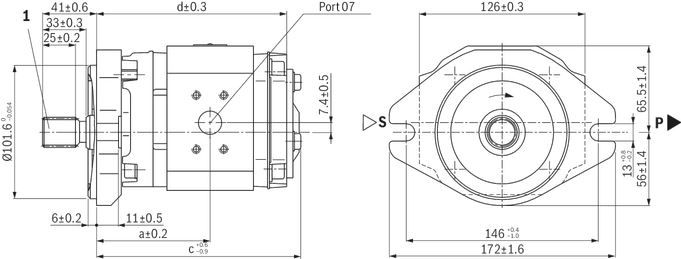

Splined shaft, with through-drive

Dimensions in mm

1

SAE J744 22-4(B) 13T 16/32 DP
Involute splining according to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

Type

a

c

d

S 2)

P 2)

mm

mm

mm

mm

mm

PGP3-3X/020RJ20VU2 79.5145.6134.5Ø26, TK Ø55 1)Ø12, TK Ø35 4)
PGP3-3X/025RJ20VU2 82.5151.6140.5
PGP3-3X/032RJ07VU2 92160.6149.5SAE 1 1/4 in S 3)SAE 3/4 in S 3)
1)Fastening thread M8; 12 deep
2)See line connections
3)Standard pressure series
4)Fastening thread M6; 12 deep

TK = Pitch circle

Line connections

Port type 20 square flange port

Suction port S

Dimensions in mm

Pressure port P

Dimensions in mm

Size

Pitch circle

G

t

e

f

M

mm

mm

mm

mm

Nm

6.340M61062010
88
1112
13
16
2055M8122625
25
32------

Port type 07, SAE flange port, for Size 32

Suction port S SAE 1 1/4 in

Dimensions in mm

Pressure port P SAE 3/4 in

Dimensions in mm

Project planning information

Intended use

Internal gear pumps are intended for the assembly of hydraulic drive systems in machine and system construction.

Technical data

The system or machine manufacturer must ensure compliance with the permissible technical data and operating conditions. The pump itself does not contain a device to prevent operation outside the permissible data. It is possible to operate the pump outside of the permissible technical data to a certain extent; the express written consent from Bosch Rexroth is, however, required.

All specified technical performance features are median values and apply with the specified general conditions. In case of modifications to the general conditions (e.g., viscosity), the technical data may change as well. Scatter corresponding to the relevant state of technology is possible.

Hydraulic project planning

Air bleeding option for commissioning

For Rexroth PGP2-2X internal gear pumps, a manual or switchable air bleeding option for the initial commissioning or any recommissioning after maintenance and repair work is to be provided. The air bleeding point is to be set in the pressure line before the first valve or check valve. Air bleeding may be performed with a maximum counter pressure of 0,2 bar.

Examples of air bleeding circuits

Switchable bleeding

Manually operated bleeding

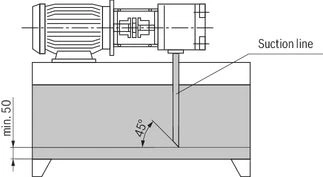

Suction line

The line cross sections are to be dimensioned for the specified flows such that an ideal suction speed of 0.6 to 1.2 m/s is achieved on average. The suction speed should not exceed a maximum value of 2 m/s.

The suction cross sections at the pump itself are designed for the maximum flow and therefore serve only as reference. In case of continuous operation at rotational speeds lower than the permissible maximum speed, the suction tube diameter is also to be dimensioned smaller than the suction port of the pump depending on the actual suction speed.

Overall, the suction line is to be designed so that the permissible inlet operating pressure is maintained. Bends and a combination of suction pipes from several pumps are to be avoided. If the use of a suction filter is unavoidable, it must be ensured on the system side that the lowest permissible inlet operating pressure is not exceeded even if the filter is contaminated.

Ensure the air tightness of the transitions and the pressure resistance of the suction hose with respect to the external air pressure.

The immersion depth of the suction pipe should be selected as large as possible (at least 100 mm at the lowest fluid level). Depending on the internal reservoir pressure, the viscosity of the operating medium and the flow conditions within the reservoir, no vortex may form even at maximum flow. There is otherwise a risk of air being drawn in. Return fluid and case drain fluid must not be immediately be drawn in again.

Dimensions in mm

Pressure line

Sufficient burst resistance of the pipes, hoses and connecting elements must be ensured for pressure lines. The cross sections should be based on the maximum flow in order to avoid additional excessive loading of the pump due to back-pressure. Here, you must also take into account the pipe losses over the entire pressure line length and other line resistances (e.g., bends, pressure filters).

Pressure safeguarding

The PGP internal gear pump does not include any devices for adherence to the maximum operating pressure. The setting and safeguarding of the permissible operating pressure must be ensured on the system side.

The pressure-relief valves necessary for this purpose are to be designed with consideration given to the maximum flow and the rate of pressure increase that will occur such that the permissible intermittent operating pressure is not exceeded.

Pressure holding function

In the variable-speed drive, the pump can also be temporarily operated in the pressure holding function below the specified minimum rotational speed. The holding time and the rotational speed necessary for this purpose are a function of the operating viscosity and the pressure level. For the design, please contact Bosch Rexroth‘s technical sales department.

In the deactivated state (rotational speed = 0), a leakage flow flows through the pump back into the reservoir, depending on the load pressure. If this is to be prevented, a check valve is to be used.

When using a check valve, please observe the note on the air bleeding option for commissioning.

Mechanical project planning

Mounting

On the machine side, the screws are to be accessible in such a way that the required tightening torque can be applied. The screw tightening torque is oriented towards the operating conditions and elements involved in the screw connection and is to be specified by the manufacturer during project planning of the power unit, the machine, or the system.

Reservoir

When designing the reservoir or selecting a suitable standard reservoir, the following requirements are to be observed:

  • Select the largest possible reservoir volume, depending on the continuous or average flow, which is needed in order to allow separation of air bubbles by means of sufficient dwell time of the medium in the reservoir. The air separation ability of the used hydraulic fluid is also of importance here.
  • Provide settling zones for the hydraulic fluid in the reservoir in order to allow for air separation.
  • Provide guiding plates in order to allow contamination at the reservoir bottom to be deposited outside the pump suction area.
  • Generously dimension the reservoir surfaces depending on the heat output to be dissipated via the reservoir walls.

Required power unit functions

At a minimum, the hydraulic power units should be equipped with the following features:

  • Reservoirs that are designed so that the internal pressure corresponds to the ambient pressure should be equipped with ventilation filters for pressure compensation purposes.
  • The hydraulic fluid should only be filled using filling nozzles that eliminate the possibility of filling with unfiltered fluid.
  • The ingress of contamination or moisture must be avoided. If used in highly contaminated environments, the reservoir must, for this purpose, be precharged by means of air pressure. If cleaning of the reservoir exterior is planned or anticipated during the period of use, reservoir bushings for pipes, lines, or hoses are to be selected so that a secure seal is ensured against external pressurization with a water jet.

Place of installation and ambient conditions

With places of installation at a geodetic height of more than 1000 m, the pump is to be arranged in or below the reservoir or the reservoir is to be precharged by means of compressed air in order to ensure the permissible minimum inlet pressure. A short suction line with large cross section is to be selected; bends should not be used.

When installing the pump more than 10 m below the reservoir, the reduction of the inlet pressure to the maximum permissible value must be ensured by means of additional measures.

If operating the pump in salt-containing or corrosive environments or if there is a possibility of pressurization with strongly abrasive substances, it must be ensured on the system side that the shaft seal ring and the sealing area of the shaft do not make direct contact with the environment.

Drive

Electric motor + pump support + coupling + pump

  • No radial or axial forces permissible on the pump drive shaft!
  • Motor and pump must be exactly aligned!
  • Always use a coupling that is suitable for compensating for shaft offsets!

Installation positions

B3

B5

V1

Pump combinations

  • With pump combinations, make sure that the operating data approved for the pump type concerned can be complied with in every step.
  • Combined pumps must all have the same direction of rotation.
  • The pump with the highest torque, variable pumps or pumps with intermittent pressure loading should be specified as the first step in the pump combination.
  • The engineer must verify the maximum through-drive torque for every application. This also applies for existing (coded) pump combinations.
  • The sum of all input torques in a pump combination may not exceed the permissible input torque of the first pump.

Maximum input torques

Shaft version E

140 Nm

Shaft version J

90 Nm

Formula for drive torque

Key

T​

Drive torque [Nm]

Δp

Operating pressure [bar]

V

Displacement [cm³]

η

Hydraulic-mechanical efficiency

Maximum output torques

Shaft version E

70 Nm

Shaft version J

70 Nm

  • Common suction is not possible.
  • For reasons of strength and stability, we recommend using ISO 4-hole mounting flanges according to VDMA “E4” for combinations of three or more pumps.
  • Before operating pump combinations with different media, please consult Bosch Rexroth.
  • PGF combinations are installed without combination parts and are not sealed against each other.

Selection

  • The front pump must have shaft version E or J.
  • The middle pump must have shaft version L.
  • The rear pump must have shaft version N.
  • If a pump of the next smaller frame size is to be mounted, the designation of the first pump must end with “K” (e.g., PGP3 + PGF2 ⇒ front pump: PGP3-3X/032RE07VE4K)

Dimensions

  • The dimensions of the ports are the same as for single pumps (see dimensions).
  • The total length of the pump combination is calculated by adding up dimensions “d” of the single pumps (see dimensions).
  • With the combination of PGP2 and PGF1, the installation length of the PGP2 (dimension d) increases by 4.5 mm.

Maintenance

Maintenance schedule and operational safety

For safe operation and a long service life of the pump, a maintenance schedule must be prepared for the power unit, the machine, or the system. The maintenance schedule must ensure that the specified or permissible operating conditions of the pump are complied with over the entire period of use.

In particular, compliance with the following operating parameters is to be ensured:

  • The required oil cleanliness
  • The operating temperature range
  • The filling level of the operating medium

Furthermore, the pump and the system are to be checked for changes to the following parameters on a regular basis:

  • Vibrations
  • Noise
  • Temperature difference between pump – fluid in the reservoir
  • Foaming in the reservoir
  • Leak-proofness

Changes to these parameters indicate component wear (e.g., diesel engine, coupling, pump, etc.). The reason is to be determined and remedied immediately.

In order to achieve high operational safety of the pump in the machine or system, we recommend checking the aforementioned parameters continuously and automatically and the automatic shut-down in case of changes exceeding the usual fluctuations in the specified operating range.

Plastic components of drive couplings should be replaced regularly, though after no more than 5 years. The corresponding manufacturer’s specifications are paramount.

For preventive maintenance of the pump, we recommend having the seals replaced after an operating period of no more than 5 years by an authorized Bosch Rexroth service company.

Accessories

Pump safety block

For limiting the operating pressure and for the pump circulation at zero pressure, we recommend our pump safety blocks of type DBA... according to data sheet 25890.

Automatic air bleeding during commissioning is, however, not possible via DBA blocks. In this case, we recommend separate, manual air bleeding.

Downloads

Internal gear pump PGP, fixed displacement
Data Sheet | RE10231 | 2014-07-31 | English | PDF | 1.6MB

Product Groups: Internal gear pumps
Frame sizes 2 and 3, Sizes 6,3 to 32, Series 2X (BS2), 3X (BS3) Maximum operating pressure 350 bar, Maximum flow 6 to 32 cm3

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.


Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

  • Окажет профессиональную консультацию.
  • Сообщит вашу цену на продукцию.
  • Сообщит информацию об актуальных акциях и скидках.
  • Подскажет ближайшее к вам отделение с наличием нужной продукции.
  • Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
НовостиВсе новости
Bosh Rexort представило двухходовой патронный клапан!

Двухходовой патронный клапан с активным управлением LC2A Bosch Rexroth представляет собой прецизионное гидравлическое устройство, разработанное для контроля и регулирования потока рабочей жидкости в системах гидравлики. Этот клапан работает по принципу двухпозиционного управления потоком, обеспечива..

17 Июля, 2024
Bosch Rexroth - надежный партнер для вашего бизнеса в области гидравлики!

Компания Bosch Rexroth предлагает широкий спектр продукции, включая гидронасосы, гидромоторы, гидроклапана, гидроцилиндры, пневмоцилиндры, клапаны, регуляторы, датчики и многое другое. Благодаря высокому качеству продукции и многолетнему опыту работы в отрасли, Bosch Rexroth является предпочтит..

20 Июня, 2024
Как правильно выбрать насос от BOSCH REXROTH?

В мире мобильной и промышленной гидравлики, где надежность и качество стоят на первом месте, насосы Bosch Rexroth выделяются как эталон долговечности и технического совершенства. Эти изделия, зарекомендовавшие себя в России и за её пределами, стали символом немецкого качества и профессионального под..

30 Мая, 2024
Bosch Rexroth – гидравлические шестерённые насосы серии AZPF

Гидравлические шестерённые насосы серии AZPF - это оборудование, которое обеспечивает преобразование механической энергии в гидравлическую с высоким КПД. Они обладают длительным сроком службы благодаря уплотнению зазоров и высокоточной технологии производства. Приводные валы в соответствии с межд..

8 Апреля, 2024
Bosch Rexroth на выставке LogiMAT

На выставке LogiMAT компания Bosch Rexroth представила передовые компоненты, подсистемы и системные решения для автоматизации и оптимизации логистики. Среди предложений компании - практические решения для трансмиссии и рабочих функций промышленных грузовиков и автономных мобильных роботов (AMR), вкл..

22 Марта, 2024
Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024
Bosch Rexroth и TotalEnergies объединяют свои усилия для продвижения альтернативных и экологичных гидравлических жидкостей

Bosch Rexroth и TotalEnergies (французская нефтегазовая компания) 18 декабря 2023 года подписали соглашение сотрудничестве, направленном на разработку, внедрение и маркетинг гидравлических жидкостей на водной основе, с акцентом на экологичность, огнестойкость и производительность. Данный союз отр..

11 Января, 2024
Bosch Rexroth представляет Интеллектуальный функциональный набор для обработки данных Smart Function Kit for Handling

Компания Bosch Rexroth является одним из ведущих мировых производителей и поставщиков технологий и услуг в области промышленной автоматизации. Это производитель рад представить вам свой интеллектуальный функциональный набор для обработки данных. Это инновационное оборудование, с помощью которого п..

4 Декабря, 2023
Бренд Bosch Rexroth представил миру свою разработку - оборудование IndraDrive CDB02 - BASIC для двухосевого блока управления

Bosch Rexroth, являясь ведущим производителем промышленного оборудования, не стоит на месте и разрабатывает новое оборудование. Одним из изобретений этой компании является IndraDrive CDB02 - BASIC. Это двухосевой блок управления, который предназначен для использования в различных промышленных сект..

1 Декабря, 2023
Bosch Rexroth: высокоскоростной асинхронный двигатель 1MB140

Производитель Bosch Rexroth представил свою разработку - высокоскоростной асинхронный двигатель 1MB140. Этот продукт обладает рядом уникальных характеристик и предназначен для различных применений в промышленности. Основным назначением двигателя 1MB140 является обеспечение высокой скорости вращ..

30 Ноября, 2023
Bosch Rexroth рассказывает о характеристиках электрогидравлических насосов

Bosch Rexroth представляет электрогидравлические насосы, которые объединяют в себе преимущества электрической и гидравлической технологий. Данные насосы могут использоваться в различных отраслях промышленности, включая машиностроении, автомобильной промышленности, энергетике и других. Основная ..

29 Ноября, 2023
Bosch Rexroth представил серию высокоэффективных синхронных моментных двигателей МВТ130

Синхронные моментные двигатели МВТ130 применяются в различных отраслях промышленности: машиностроение, автомобильной и энергетической промышленности. Это оборудование используют как дополнение к насосам, компрессорам, приводам конвейеров и другим механизмам, требующим точного управления и высокой ..

28 Ноября, 2023

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
