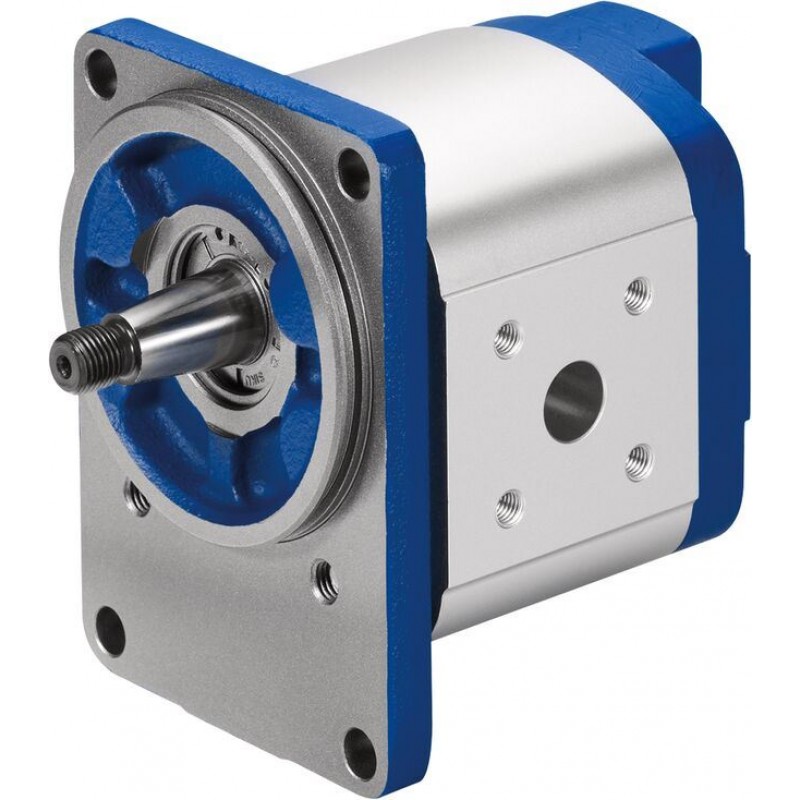

External gear pump High Performance AZPN

Артикул: RX7751

В наличии

External gear pump High Performance AZPN

Name: External gear pump High Performance AZPN
Brand: Bosch Rexroth
SKU: RX7751

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Platform N
Fixed displacement
Size 20 … 36
Continuous pressure up to 250 bar
Intermittent pressure up to 280 bar

Features

Consistent high quality based on large-volume production
Long service life
Slide bearings for high loads
Drive shafts according to ISO or SAE and customer-specific solutions
Line ports: connection flange or screw thread
Combination of several pumps possible

Product description

General information

It is the central task of external gear pumps to convert mechanical energy (torque and speed) into hydraulic energy (flow and pressure). To reduce heat losses, Rexroth’s external gear units offer very high efficiencies. They are realized by pressure-dependent gap sealing and highly precise production technology.

Rexroth external gear pumps are built in four frame sizes: Platform B, F, N and G. Within each platform different sizes can be realized by different gear widths. The pumps are available in the versions Standard, High-Performance, SILENCE und SILENCE PLUS. Further configuration variants are given by different flanges, shafts, valve arrangements and multiple pump combinations.

Construction

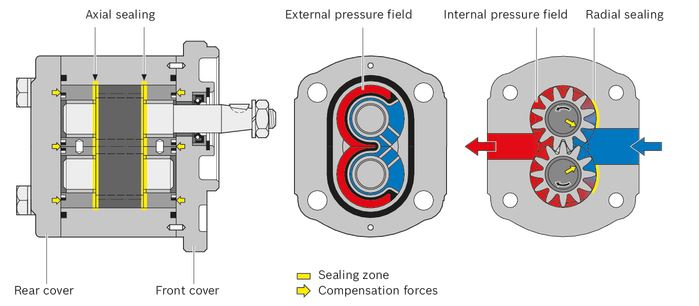

The external gear pump consists essentially of a pair of gear wheels supported in bearing bushings and the housing with a front cover and an end cover.

The drive shaft protrudes from the front cover where it is usually sealed by the shaft seal. The bearing forces are absorbed by slide bearings. These bearings were designed for high pressures and have excellent emergency running properties, especially at low rotational speeds.

The gear wheels have 12 teeth. This keeps both flow pulsation and noise emission to a minimum. The sealing of the pressure chambers is achieved by forces depending on the working pressure. This ensures optimum efficiency. The working pressure generated in the gear chambers is transferred to the outside of the bearing bushings in specifically designed pressure fields in such a way that they are pressed against the gears and seal them up. The pressurized compression areas are limited by special seals. The seal in the area between the gear teeth and the housing is ensured by the smallest of gaps that are set depending on the pressure between the gear teeth and housing.

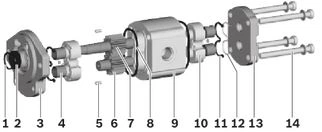

External gear pump layout

1	Retaining ring	8	Housing seal ring
2	Shaft seal	9	Pump housing
3	Front cover	10	Bearing bushing
4	Slide bearings	11	Axial field seal
5	Centering pin	12	Supporting element
6	Gear wheel	13	Rear cover
7	Drive shaft	14	Torx screws

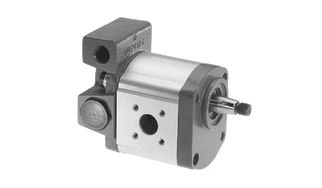

Gear pumps with integrated valves

In order to reduce piping complexity, a flow control valve or pressure-relief valve can be integrated in the cover of the gear pump. Such solutions are used, for instance, for the hydraulic oil supply of power steering systems. The pump delivers a constant flow or maximum

pressure irrespective of the rotational speed. The residual flow distributed externally to other consumers.

3-way flow control valve, residual flow returned in suction line

qconst = 2 to 30 l/min

3-way flow control valve, residual flow distributed externally, loadable

qconst = 2 to 30 l/min

3-way flow control valve with pressure relief valve, residual flow returned in suction line

qconst = 2 to 30 l/min; p1 = 100 to 180 bar

Pressure relief valve, pressure discharge into suction line

p1 = 5 to 250 bar

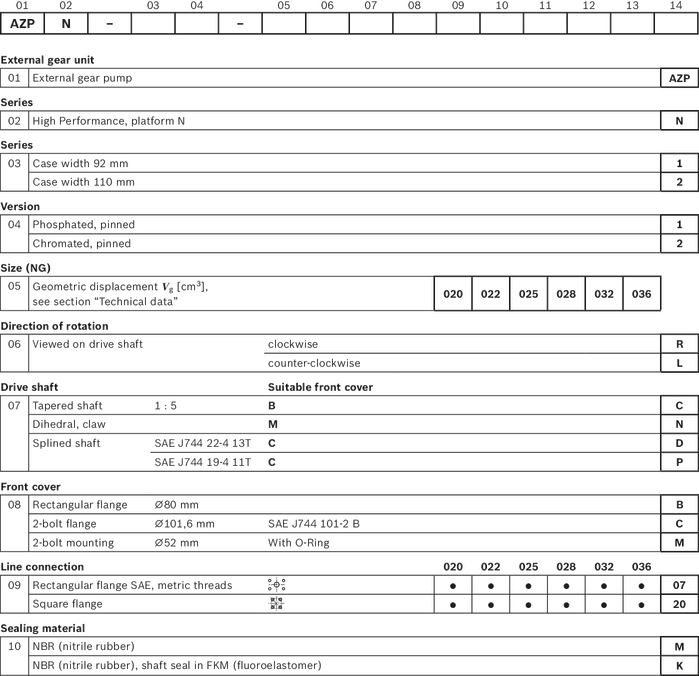

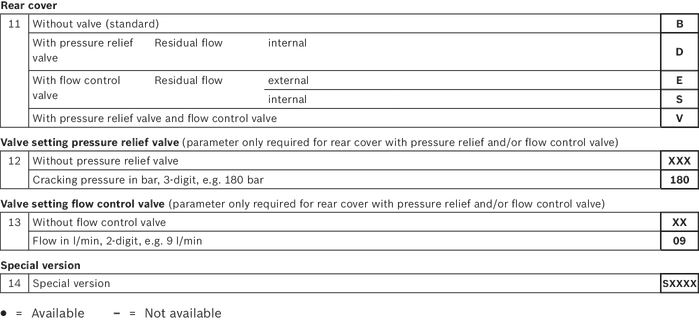

Type code

Note

Not all of the variants according to the type code are possible.

Please select the desired pump with the help of the selection table (preferred types ) or after consultation with Bosch Rexroth.

Special options are available on request.

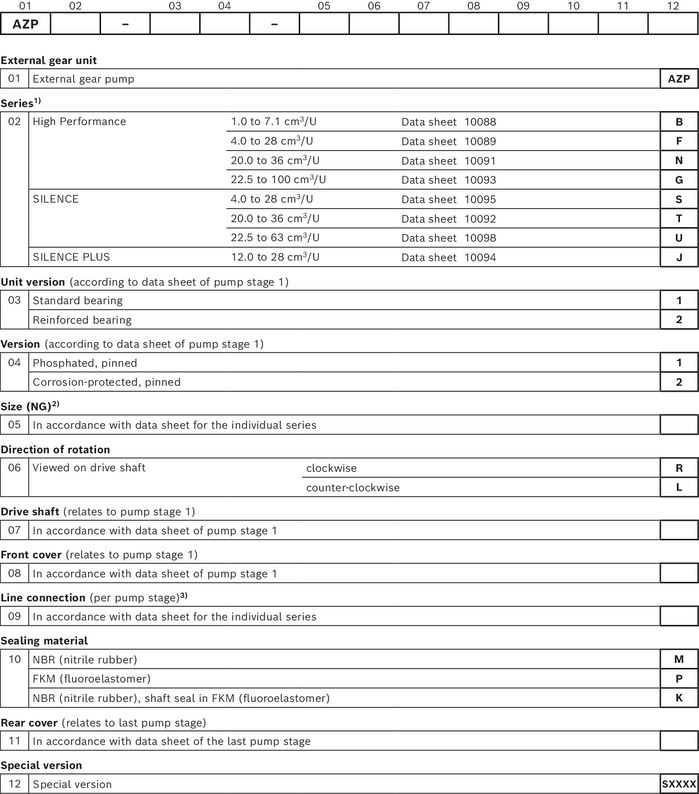

Type code multiple pump

1)	A letter is to be selected for each pump stage, e.g. 3-way pump AZPJ + AZPJ + AZPB: JJB
2)	A numerical value is to be selected for each pump stage, e.g.3-way pump 028/016/2.0
3)	A numerical value is to be selected for each pump stage, e.g.3-way pump 202020

Note

Not all of the variants according to the type code are possible.

Please select the desired pump with the help of the selection table (preferred types ) or after consultation with Bosch Rexroth.

Special options are available on request.

Example 4-way pump:

AZPG…032… + AZPG…022… + AZPJ…016… + AZPJ…012…

Technical data

Table of values

Size					20	22	25	28	32	36	20	22	25	28	32	36
Series					Series 1x						Series 2x
Displacement geometric, per revolution			Vg	cm³	20	22.5	25	28	32	36	20	22.5	25	28	32	36
Pressure at suction port S 1)		absolute	pe	bar	0.7 ... 3
Maximum continuous pressure			p1	bar	230	230	230	210	180	160	250	250	250	230	210	180
Maximum intermittent pressure			p2	bar	250	250	250	230	200	180	280	280	280	260	240	210
Maximum pressure peaks			p3	bar	270	270	270	250	220	200	300	300	300	280	260	230
Minimum speed at	ν = 12 mm²/s	p < 100 bar	nmin	rpm	500	500	500	500	500	500	500	500	500	500	500	500
		p = 100 bar … 180 bar	nmin	rpm	600	600	600	600	600	600	600	600	600	600	600	600
		p = 180 bar … p2	nmin	rpm	800	800	800	800	800	800	800	800	800	800	800	800
	ν = 25 mm²/s	at p2	nmin	rpm	500	500	500	400	400	400	500	500	500	500	500	500
Maximum speed		at p2	nmax	rpm	3000	3000	3000	2800	2800	2800	3000	3000	3000	2800	2800	2800

1)	In the case of tandem pumps, the suction-side pressure difference between the individual pump stages must not exceed 0.5 bar.

Note

Safety requirements pertaining to the whole systems are to be observed.

Please contact us for applications with frequent load changes.

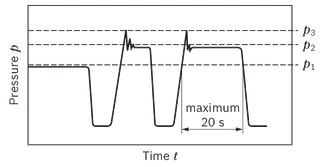

Pressure definition

	p1: Continuous pressure max.
	p2: Intermittent pressure max.
	p3: Pressure peaks max.

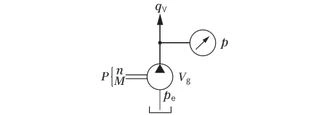

Determining the operating characteristics
Flow		[l/min]
Torque		[Nm]
Power		[kW]

Key
Vg	Displacement per revolution [cm3]
Δp	Differential pressure [bar]
n	Rotational speed [rpm]
ηv	Volumetric efficiency
ηhm	Hydraulic-mechanical efficiency
ηt	Total efficiency (ηt = ηv • ηhm)

Note

You can find diagrams for a rough calculation in chapter "Diagrams / Characteristic curves".

General technical data

Weight	m	kg	See chapter Dimensions
Installation position			No restrictions
Mounting type			Flange or through-bolting with spigot
Line connections			See chapter Dimensions
Direction of rotation, viewed on drive shaft			Clockwise or counter-clockwise, the pump may only be driven in the direction indicated
Drive shaft loading			Axial and radial forces only after consultation
Ambient temperature range	t	°C	-30 to +80 with NBR seals (NBR = nitrile rubber)
Ambient temperature range	t	°C	-20 to +110 with FKM seals (FKM = fluoroelastomer)

Hydraulic fluids

The external gear unit is designed for operation with HLP mineral oil according to DIN 51524, 1-3. Under higher load, however, Bosch Rexroth recommends at least HLP compliant with DIN 51524 Part 2.

See the following data sheet for application instructions and requirements for selecting hydraulic fluid, behavior during operation as well as disposal and environmental protection before you begin project planning:

90220: Hydraulic fluids based on mineral oils and related hydrocarbons

Other hydraulic fluids on request.

Selection of hydraulic fluid

Bosch Rexroth evaluates hydraulic fluids on the basis of the Fluid Rating according to the technical data sheet 90235.

Hydraulic fluids with positive evaluation in the Fluid Rating are provided in the following technical data sheet:

90245: Bosch Rexroth Fluid Rating List for Rexroth hydraulic components (pumps and motors)

The hydraulic fluid should be selected so that the operating viscosity in the operating temperature range is within the optimum range (νopt; see selection diagram).

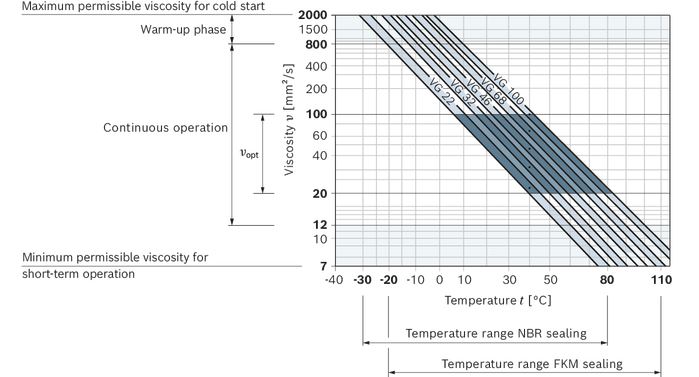

Viscosity and temperature of hydraulic fluids

Viscosity range
Permissible in continuous operation	ν = 12 … 800 mm²/s
Recommended in continuous operation	νopt = 20 … 100 mm²/s
Permissible for cold start	νmax ≤ 2000 mm²/s
Temperature range
With NBR seals (NBR = nitrile rubber)	t = -30 °C … +80 °C
With FKM seals (FKM = fluoroelastomer)	t = -20 °C … +110 °C

Observe the instructions for the filtration of the hydraulic fluid (see chapter Project planning information).

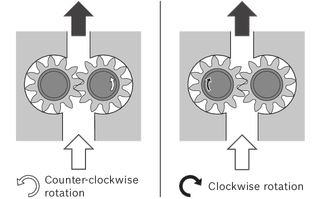

Direction of rotation

The dimensional drawings in the chapter Dimensions represent pumps for clockwise rotation. The position of the drive shaft or the position of suction and pressure port changes for counter-clockwise rotation.

Direction of rotation, viewed on drive shaft

Drives

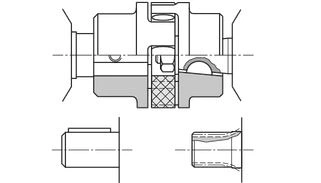

1. Elastic couplings

The coupling must not transfer any radial and axial forces onto the pump.

The maximum admissible radial run-out deviation from the shaft to the fitting slot is 0.2 mm.

Admissible shaft shifting see installation information of the coupling manufacturers.

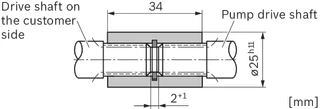

2. Coupling sleeve

To be used on splined shaft profile according to DIN and SAE.

Attention: No radial or axial forces are permitted on the pump shaft or coupling sleeve. The coupling sleeve must be free to move axially.

The distance between the pump drive shaft and drive shaft on the customer side must 2+1 mm.

Provide installation space for the snap ring.

Oil-bath or oil-mist lubrication is required.

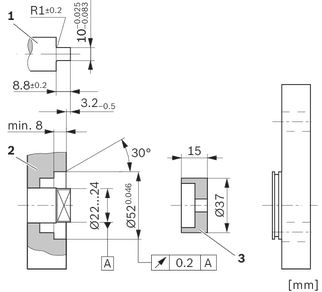

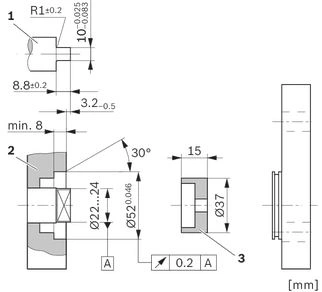

3. Tang drive coupling

For direct attachment of the pump at electric or combustion motor, gears, etc.

Pump drive shaft with special tang drive and driver (3)

No shaft sealing

Installation on drive side and sealing according to the following recommendations and dimensions

Customer-side drive shaft (1)
- Case-hardened steel DIN EN 10084, e.g. 20MnCrS5 case-hardened 1.0 mm deep; HRA 83±2
- Seal ring sliding surface ground without twist Rmax ≤ 4 μm

Customer-side radial shaft seal ring (2)
- Provide with rubber sheathing (see DIN 3760, form AS, or double-lip ring)
- Provide installation edges with 15° incline and/or assemble shaft seal ring with protective sleeve

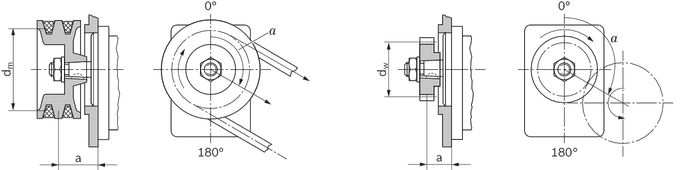

4. V-belts and straight gear wheels or helical toothed gear drives without outrigger bearing

For V-belt or gear wheel drives, please contact us specifying the application and mounting conditions (dimensions a, dm, dw and angle α). For helical toothed gear drives, details of the helix angle β are also required.

Maximum transferable drive torques

Splined shafts

Drive shaft		Mmax	Size	p2 max Serie 1x	p2 max Serie 2x
Code	Designation	Nm		bar	bar
P	SAE J744 19-4 11T	180	20 … 25	250	280
			28	230	260
			32	200	240
			36	180	210
D	SAE J744 22-4 13T	320	20 … 25	250	280
			28	230	260
			32	200	240
			36	180	210

Tapered shafts

Drive shaft		Mmax	Size	p2 max Serie 1x	p2 max Serie 2x
Code	Type	Nm		bar	bar
C	1 : 5	200	20 … 25	250	280
			28	230	260
			32	200	240
			36	180	210

Tang drive

Drive shaft		Mmax	Size	p2 max
Code	Designation	Nm		bar
N	Tang drive	95	20	250
			22	230
			25	210
			28	190
			32	160
			36	140

Multiple gear pumps

Gear pumps are well-suited to multiple arrangements, whereby the drive shaft of the first pump stage is extended to a second and possibly third pump stage. The shaft of the individual pump sections are normally connected via a driver or via a splined coupling (reinforced

through drive).

The individual pump stages are usually hydraulically isolated and have separate suction ports. On request a common suction port or separated but hydraulically connected suction ports are available.

For the configuration of multiple pumps, Bosch Rexroth recommends arranging the pump stage with the largest displacement on the drive side.

Note

Basically, the parameters of the single pumps apply, however certain restrictions need to be observed:

Maximum rotational speed: This is determined by the largest pump stage used.

Pressures: These are restricted by the maximum transmissible torques of the drive shaft, the through drive and the driver.

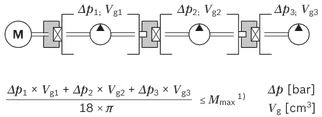

Addition of drive torques

Please note, that in multiple pump arrangements the drive torques of the single pumps stages will add up according to the following formula:

1)	Mmax: see table above "Maximum transferable drive torques"

This may result in pressure restrictions for the respective pump stages.

Standard through drive (coupling dog)

In the case of pumps of the platform N (AZPN,AZPT), the driver for the following pump stage can carry a load of up to Mmax = 95 Nm. Please note possibly resulting pressure restrictions for the following pump stages.

Following pump		Mmax [Nm]
Platform N	AZPN	95
Platform N	AZPT	95
Platform F	AZPF	65
	AZPS	65
	AZPJ	65
Platform B	AZPB-3x	25

Reinforced through drives

For applications with higher transfer torques or torsional vibrations reinforced through drives up to Mmax = 160 Nm are available. Lay out design on request.

Diagrams/characteristic curves

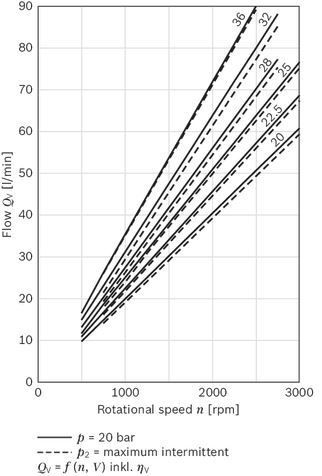

Flow characteristic curves

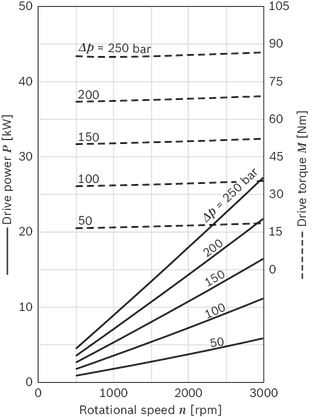

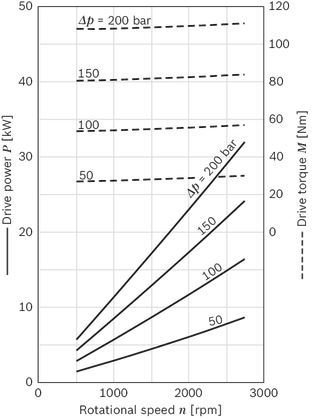

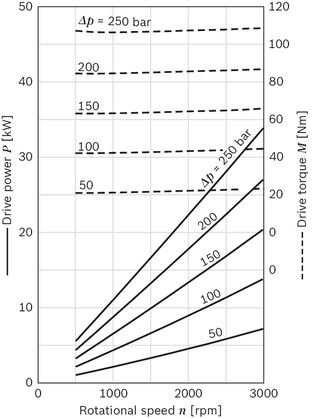

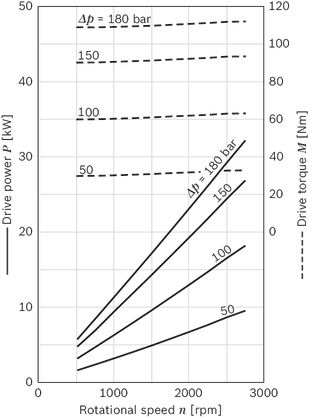

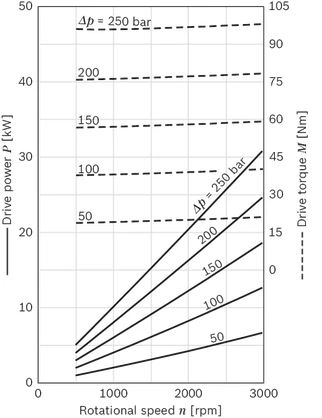

Power diagrams

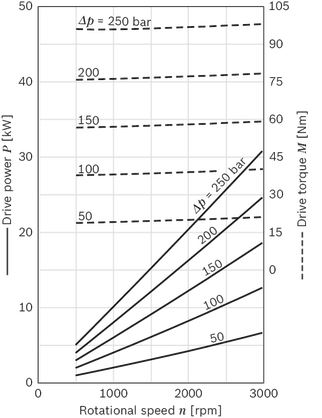

Size 20

Size 22

Size 25

Size 28

Size 32

Size 36

Note

Characteristic curves measured at ν = 32 mm²/s and t = 50 °C.

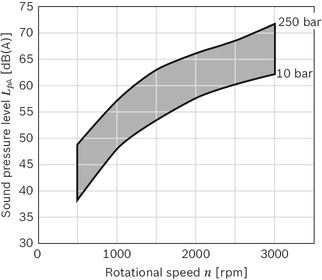

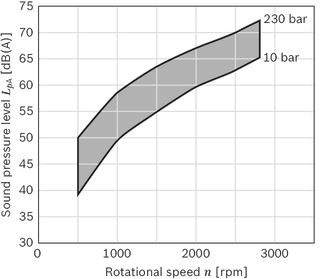

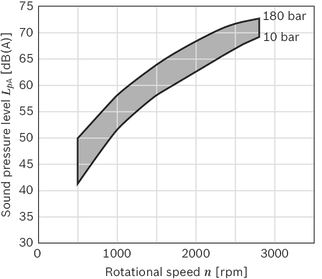

Noise charts

Noise levels dependent on the rotational speed, pressure range between 10 bar and pressure value p2 (see chapter "Technical data").

These are typical characteristic values for the respective size. They describe the airborne sound emitted solely by the pump.

Ambient influences (installation site, piping, other system components) were not taken into account.

The values refer to one individual pump.

Note

Characteristic curves measured at ν = 32 mm²/s and t = 50 °C.

Sound pressure level calculated from noise measurements made in the low reflection measuring room according to DIN 45635, Part 26.

Distance from measuring sensor to pump: 1 m.

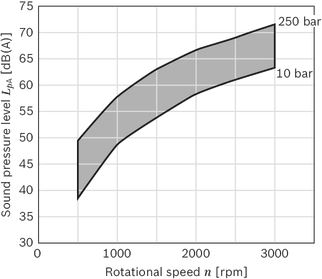

Size 20

Size 22

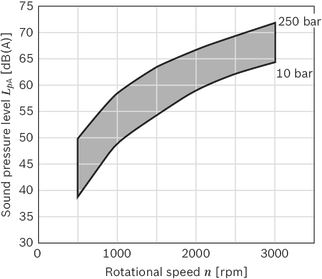

Size 25

Size 28

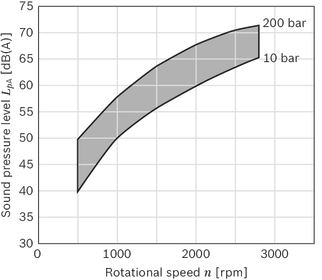

Size 32

Size 36

Dimensions

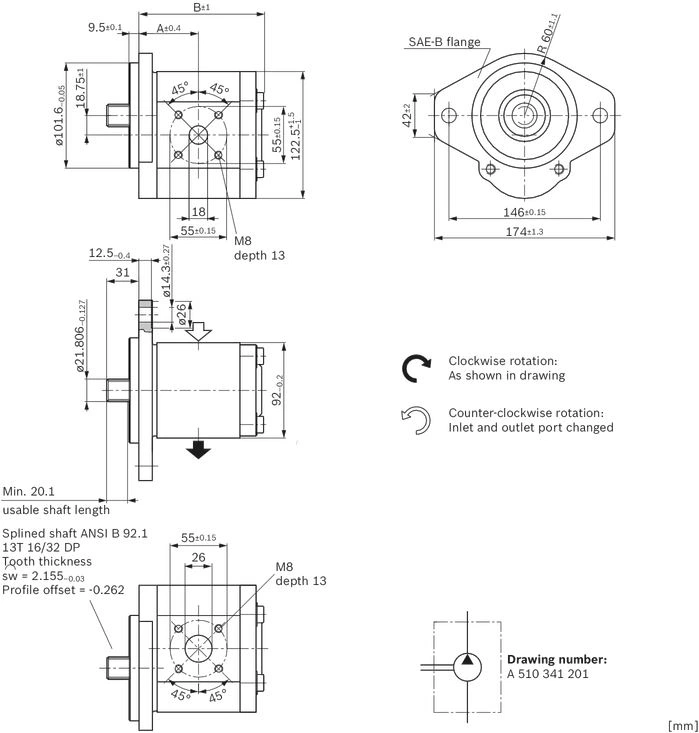

Drive shafts

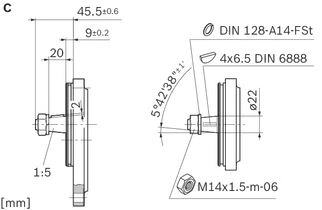

Tapered shaft 1:5

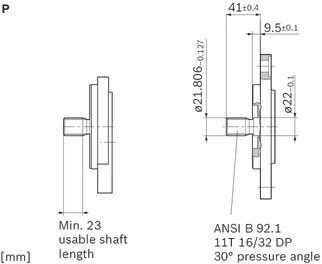

Splined shaft (SAE J744 19-4 11T)

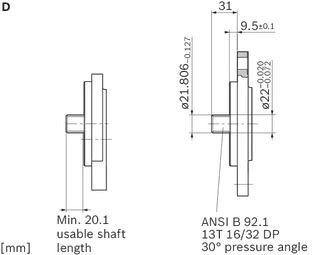

Splined shaft (SAE J744 22-4 13T)

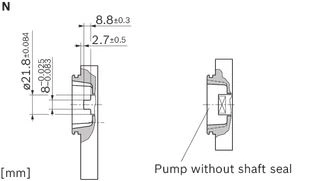

Tang drive

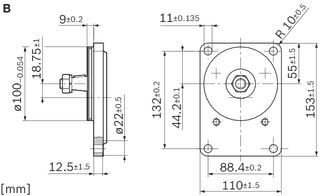

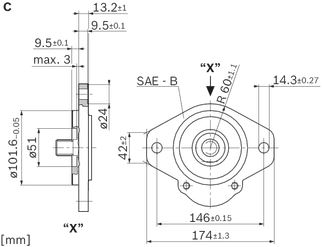

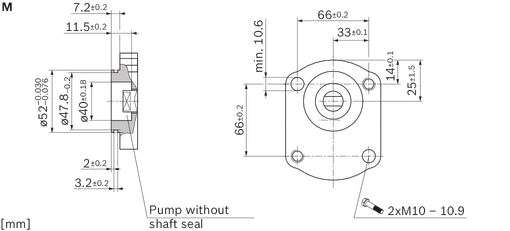

Front cover

Rectangular flange ⌀100 mm

2-bolt flange ⌀101.6mm, SAE J744 101-2 (B)

2-bolt mounting ⌀52mm, with O-ring

Line connections

Rectangular flange SAE, with metric threads

NG	Pressure side				Suction side
	C	D	E	F	C	D	E	F
	mm	mm	mm		mm	mm	mm
20	18	47.6	22.2	M10; 14 mm deep	18	47.6	22.2	M10; 14 mm deep
22 … 36	18	47.6	26.2	M10; 14 mm deep	26	52.4	26.2	M10; 14 mm deep

Square flange

NG	Pressure side			Suction side
	C	D	E	C	D	E
	mm	mm		mm	mm
20 … 36	18	55	M8; 13 mm deep	26	55	M8; 13 mm deep

Preferred program

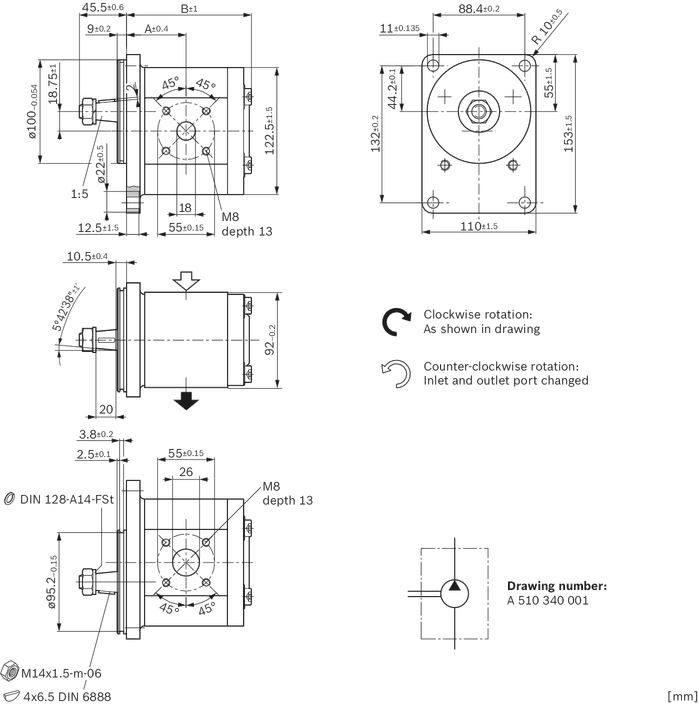

Tapered shaft 1:5 with rectangular flange ⌀100 mm

AZPN – 11 – … CB20MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions
	Direction of rotation		p2	nmax	m	A	B
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
20	0 510 625 335	0 510 625 035	250	3000	5.4	52	109.8
22			250	3000		53.1	112.8
25	0 510 725 352	0 510 725 047	250	3000	5.6	55	115.8
28	0 510 725 364	0 510 725 055	230	2800	5.7	56.5	118.8
32	0 510 725 353	0 510 725 048	200	2800	5.9	59	123.3

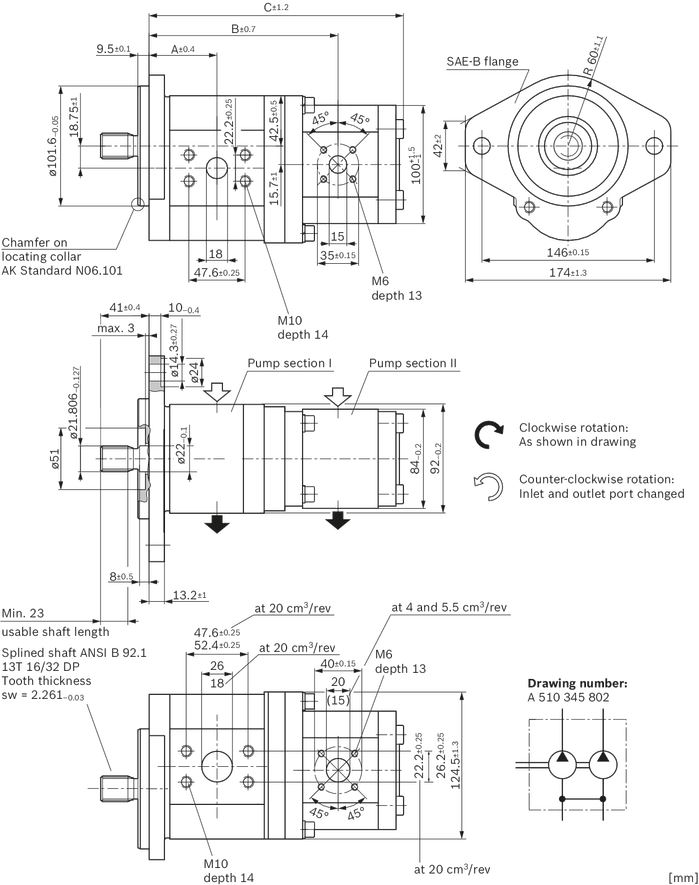

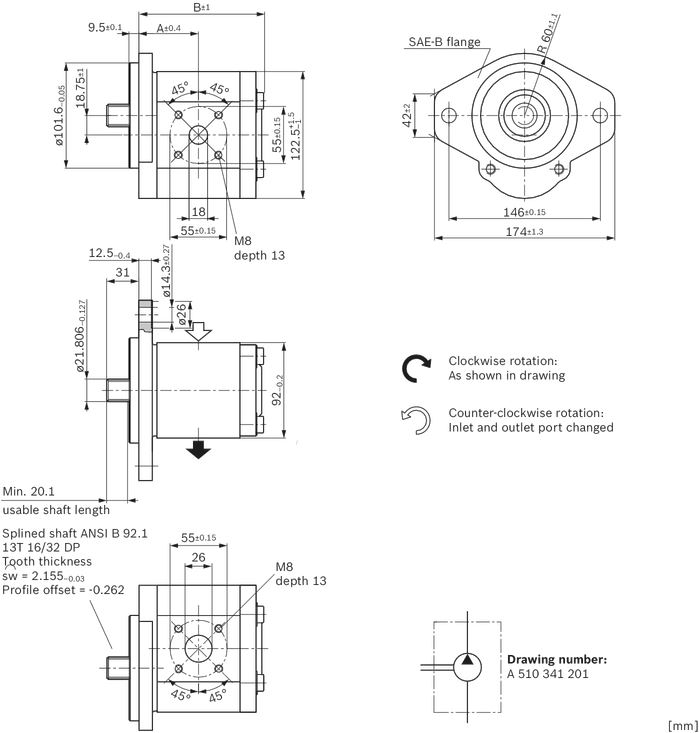

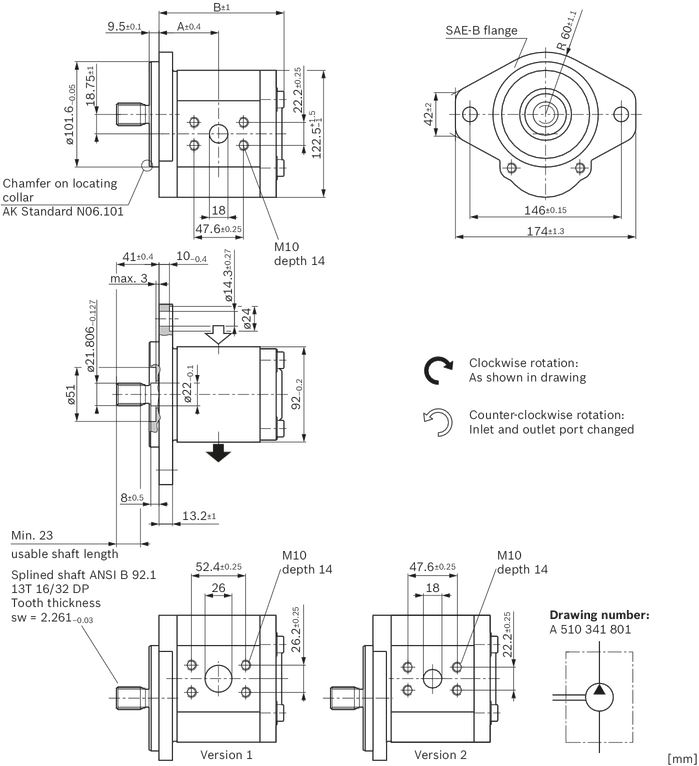

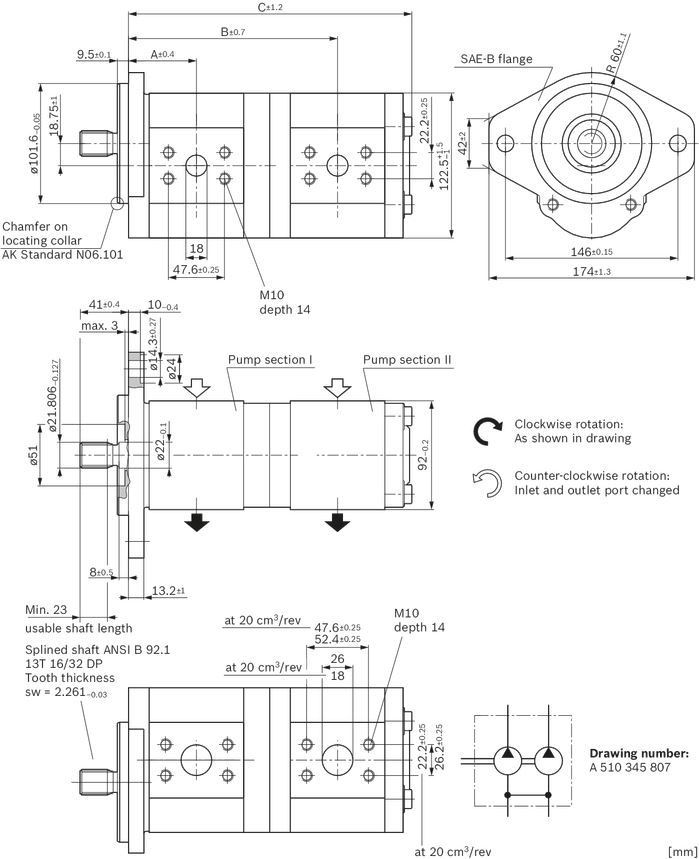

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange ⌀101.6 mm

AZPN – 1X – … DC20MB
AZPN – 1X – … DC20KB

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions
	Direction of rotation		p2	nmax	m	A	B
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
20			250	2500		52	110.1
22			250	2500		53.5	112.6
25	0 510 725 377	0 510 725 057	250	2500	5.5	55	115.3
25		0 510 725 094	250	2500	5.5	55	115.3
28	0 510 725 431	0 510 725 058	230	2500	5.7	56.5	118.3
36	0 510 725 363	0 510 725 155	180	2500	6	61	123.3

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange ⌀101.6 mm

AZPN – 11 – … DC07KB S0023

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions		Version
	Direction of rotation		p2	nmax	m	A	B	Version
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
20	0 510 625 380	0 510 625 073	250	3000	5.3	52	109.8	2
22	0 510 725 404	0 510 725 103	250	3000	5.4	52	112.8	1
25	0 510 725 405	0 510 725 104	250	3000	5.5	55	115.8
28	0 510 725 406	0 510 725 105	230	2800	5.7	56.5	118.8
32	0 510 725 407	0 510 725 106	200	2800	5.8	59	123.3
36			180	2600		61	127.8

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange ⌀101.6 mm

AZPNN – 11 – … DC0707KB S0023

NG		Material number		Maximum pressure intermittend		Maximum speed	Weight	Dimensions
PI	PII	Direction of rotation		p2 I	p2 II	nmax	m	A	B	C
PI	PII	counter-clockwise	clockwise	bar	bar	rpm	kg	mm	mm	mm
20	20	0 510 665 461	0 510 665 149	250	250	2000	9.9	52	160.7	217.9
22	20	0 510 765 369		250	250	2000	10	53.5	163.6	222.7
22	22	0 510 765 380	0 510 765 086	250	230	3000	10.1	53.5	165.2	225.7
25	20		0 510 765 067	250	250	2000	10.1	55	166.6	225.7
25	22		0 510 765 068	250	230	3000	10.2	55	168.2	228.7
25	25	0 510 766 315	0 510 765 069	250	200	3000	10.3	55	169.7	229.9
32	32	0 510 765 370	0 510 768 034	200	160	2500	10.9	29	181.2	244.9

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange ⌀101.6 mm

AZPNF – 1X – … DC0720KB S0023
AZPNF – 1X – … DC0720KB S0081
AZPNF – 1X – … DC0720MB S0081

NG		Material number		Maximum pressure intermittend		Maximum speed	Weight	Dimensions
PI	PII	Direction of rotation		p2 I	p2 II	nmax	m	A	B	C
PI	PII	counter-clockwise	clockwise	bar	bar	rpm	kg	mm	mm	mm
20	4		0 510 665 181	250	280	3000		52	141.5	184.2
22	8	0 510 765 387	0 510 765 078	250	280	3000	8.4	53.5	147.9	193.8
22	11	0 510 765 381	0 510 765 062	250	280	3000	8.5	53.5	151.7	200.6
25	4	0 510 766 316		250	280	3000		55	147.6	190.2
25	11	0 510 765 377	0 510 765 079	250	280	3000	8.6	55	154.7	203.6
25	14		0 510 766 014	250	250	3000	8.7	55	155.2	206.8
25	16		0 510 765 080	250	230	3000	8.8	55	155.2	210.2
28	11		0 510 765 092	230	280	2800	8.7	56.5	157.7	206.6
28	16	0 510 765 384	0 510 765 063	230	230	2800	8.9	56.5	158.2	213.2
28	19	0 510 766 314	0 510 767 058	200	200	2800	9	56.5	158.2	219.8
28	22		0 510 767 045	230	200	2100	9.2	56.5	165.8	223.6
28	22	0 510 767 332		230	150	2100	9.3	56.5	165.8	223.6
32	8		0 510 765 064	200	280	2500	8.8	59	158.4	204.3
32	11	0 510 768 320	0 510 765 065	200	280	2500	8.9	59	162.2	211.1
32	14	0 510 765 378		200	250	2500	9	59	162.7	216.1
32	16		0 510 765 066	200	230	2500	9.1	59	162.7	217.7
32	22	0 510 768 318		200	150	2100		59	170.3	229.9

Project planning information

Technical data

All mentioned technical data are dependent on manufacturing tolerances and are applicable for certain boundary conditions.

Note that certain deviations are therefore possible and that technical data may vary when certain boundary conditions (e.g., viscosity) change.

Pumps delivered by Bosch Rexroth are tested for function and performance.

The pump may only be operated with the permissible data (see chapter "Technical data").

Characteristic curves

When dimensioning the gear pump, observe the maximum possible application data on the basis of the characteristic curves shown.

Filtration of the hydraulic fluid

Since the majority of premature failures in gear pumps occur due to contaminated hydraulic fluid, filtration should maintain a cleanliness level of 20/18/15 as defined by ISO 4406. Thus contamination can be reduced to an acceptable degree in terms of particle size and concentration.

Bosch Rexroth generally recommends full-flow filtration. The basic contamination of the hydraulic fluid filled in should not exceed class 20/18/15 as defined by ISO 4406. New fluids are often above this value. In such instances, a filling device with a special filter should be used.

Bosch Rexroth is not liable for wear due to contamination.

For hydraulic systems or devices with function-related, critical failure effects, such as steering and brake valves, the type of filtration selected must be adapted to the sensitivity of these devices.

Notice

When used as an auxiliary steering pump, the vehicle manufacturer should make sure that the steering system continues to operate safely as per ECE R-79 even if the auxiliary steering pump fails.

Further information

Installation drawings and dimensions are valid at date of publication, subject to modifications.

Further information and notes on project planning can be found in the “General instruction manual for external gear units” (07012-B, chapter 5.5).

Information

AZ configurator

With our practical product selector, it will take you next to no time to find the right solution for your applications, no matter whether it is SILENCE PLUS or another external gear unit.

The selector guides you through a selection of features to all of the products available for order. By clicking on the order number, you can view and download the following product information: Data sheet, dimension sheet, operating conditions, and tightening torques.

You can order your selection directly via our online shop and at the same time benefit from an additional discount of 2%. And if you need something really quickly, simply use our fast delivery and preferred programs (GoTo). Then the goods will be sent within 10 working days.

You also have the possibility to easily and conveniently configure your individual external gear unit with our AZ configurator. All the necessary data that you need for the project planning of external gear units is requested by means of the menu navigation.

For an already existing configuration you receive as a result the order number, the type code, as well as further information. If your configuration does not lead to a product that is available for order, our online tools provide you with the possibility of sending a project request directly to Bosch Rexroth. We will then get in contact with you.

Link: www.boschrexroth.com/az-configurator

Fit4SILENCE app

You want to quickly determine the noise level of an application but don’t have a measuring device at hand? No problem with Fit4SILENCE! Our new noise measurement app for all Android devices can be immediately downloaded free of charge. After calibration, you can start using it straight away and conduct fast, accurate noise measurements with different weightings in no time at all. An additional measuring device is no longer necessary, because calibrated smartphones using the app can achieve an accuracy that approximates professional measuring devices.

Last but not least, the app contains interesting information about the SILENCE PLUS technology, including an audio sample.

Link: www.boschrexroth.com/silence-plus

Further information

Extensive notes and suggestions can be found in the Hydraulic Trainer, volume 3: “Planning and Design of Hydraulic Power Systems”, order number R900018547.

Accessories

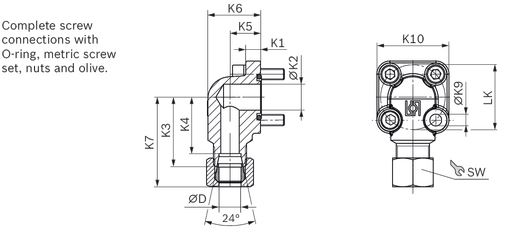

90° angle flange, for square flange 20

LK	D	Series 1)	Material number	pmax	K1	K2	K3	K4	K5	K6	K7	K9	K10	SW	Screws		O-ring	Weight
mm	mm			bar	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	2 ×	2 ×	NBR	kg
55	20	S	1 515 702 004	250	13	18.2	45	34.5	24	38	57	8.4	58	36	M8 × 25	M8 × 50	32 × 2.5	0.62
55	30	S	1 545 719 006	250	12	26.5	49	38.5	32	51	63.5	8.4	58	50	M8 × 25	M8 × 50	32 × 2.5	0.63
55	35	L	1 515 702 005	100	12	26.5	49	38.5	32	52	61	8.4	58	50	M8 × 25	M8 × 60	32 × 2.5	0.77
55	42	L	1 515 702 019	100	12	26.5	49	38	40	64	61.5	8.4	58	60	M8 × 25	M8 × 70	32 × 2.5	1.04

1)	See DIN EN ISO 8434-1

Note

Permissible tightening torques can be found in the “General Operating Instructions for External Gear Units” (07012-B).

Ordering codes

Currently eShop is not available. Please try again later.

Downloads

	General instruction manual for external gear units Manual \| RE07012-B \| 2020-11-18 \| English \| PDF \| 713k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Instruction manual
	Manuel d'utilisation général pour unités à engrenages extérieurs Manual \| RF07012-B \| 2020-11-18 \| French \| PDF \| 734k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manuel d'utilisation
	Manuale d’uso generale per unità a ingranaggi esterni Manual \| RI07012-B \| 2020-11-18 \| Italian \| PDF \| 730k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manuale d’uso
	Общее руководство по эксплуатации шестеренных агрегатов с внешним зацеплением Manual \| R-RS07012-B \| 2020-11-18 \| Russian \| PDF \| 753k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Инструкция по эксплуатации
	Manual de instrucciones generales para unidades a engranajes con dentado exterior Manual \| RS07012-B \| 2020-11-18 \| Spanish \| PDF \| 726k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manual de instrucciones
	Allgemeine Betriebsanleitung für Außenzahnradeinheiten Manual \| RD07012-B \| 2020-11-18 \| German \| PDF \| 705k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Betriebsanleitung
	Ogólna instrukcja obsługi jednostek o zazębieniu zewnętrznym Manual \| R-PL07012-B \| 2020-11-18 \| Polish \| PDF \| 1.3MB Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Instrukcja obsługi
	Außenzahnradpumpen Baureihe N Data Sheet \| RD10091 \| 2012-02-01 \| German \| PDF \| 1.1MB Product Groups: External gear pumps, External gear pumps
	Pompes à engrenage extérieur - Série N Data Sheet \| RF10091 \| 2012-02-01 \| French \| PDF \| 1.4MB Product Groups: External gear pumps, External gear pumps
	External Gear Pumps - Series N Data Sheet \| RE10091 \| 2012-02-01 \| English \| PDF \| 1.4MB Product Groups: External gear pumps, External gear pumps
	外啮合齿轮泵，N 系列 Data Sheet \| RC10091 \| 2012-02-01 \| Chinese \| PDF \| 1.9MB Product Groups: External gear pumps, External gear pumps 定量泵

Отзывы о товаре

Нет отзывов об этом товаре.

	General instruction manual for external gear units Manual \| RE07012-B \| 2020-11-18 \| English \| PDF \| 713k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Instruction manual
	Manuel d'utilisation général pour unités à engrenages extérieurs Manual \| RF07012-B \| 2020-11-18 \| French \| PDF \| 734k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manuel d'utilisation
	Manuale d’uso generale per unità a ingranaggi esterni Manual \| RI07012-B \| 2020-11-18 \| Italian \| PDF \| 730k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manuale d’uso
	Общее руководство по эксплуатации шестеренных агрегатов с внешним зацеплением Manual \| R-RS07012-B \| 2020-11-18 \| Russian \| PDF \| 753k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Инструкция по эксплуатации
	Manual de instrucciones generales para unidades a engranajes con dentado exterior Manual \| RS07012-B \| 2020-11-18 \| Spanish \| PDF \| 726k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manual de instrucciones
	Allgemeine Betriebsanleitung für Außenzahnradeinheiten Manual \| RD07012-B \| 2020-11-18 \| German \| PDF \| 705k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Betriebsanleitung
	Ogólna instrukcja obsługi jednostek o zazębieniu zewnętrznym Manual \| R-PL07012-B \| 2020-11-18 \| Polish \| PDF \| 1.3MB Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Instrukcja obsługi
	Außenzahnradpumpen Baureihe N Data Sheet \| RD10091 \| 2012-02-01 \| German \| PDF \| 1.1MB Product Groups: External gear pumps, External gear pumps
	Pompes à engrenage extérieur - Série N Data Sheet \| RF10091 \| 2012-02-01 \| French \| PDF \| 1.4MB Product Groups: External gear pumps, External gear pumps
	External Gear Pumps - Series N Data Sheet \| RE10091 \| 2012-02-01 \| English \| PDF \| 1.4MB Product Groups: External gear pumps, External gear pumps
	外啮合齿轮泵，N 系列 Data Sheet \| RC10091 \| 2012-02-01 \| Chinese \| PDF \| 1.9MB Product Groups: External gear pumps, External gear pumps 定量泵
