Proportional pressure reducing valve, pilot-operated DRE(M) 10, DRE(M) 20
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 10, 25
- Component series 6X
- Max. operating pressure 315 bar
- Flow, max. 300 l/min
Features
- Valve for reducing a system pressure
- Operation by means of a proportional solenoid
- Proportional solenoid with rotatable and detachable coil
- For subplate mounting: porting pattern according to ISO 5781
- Third way A to Y (Ø 7.5 mm)
- Linearized pressure/command value characteristic curve
- Good transient response
- Optional check valve between A and B
- Optional maximum pressure limitation
Product description
Valves of type DRE(M) are pilot-operated pressure reducing valves. They are used for operating pressure reduction.
These valves basically consist of a pilot control valve (1) with proportional solenoid (2), a main valve (3) with main spool insert (4), as well as an optional check valve (5).
Type DRE...
The pressure in channel A is set in a command value-dependent form via the proportional solenoid (2).
In rest position – no pressure in channel B –, the spring (17) holds the main spool (4) in its initial position. The connection from channel B to A is closed. A start-up jump is thereby prevented.
The pressure in channel A acts on the surface (7) of the main spool via the bore (6). The pilot oil is taken from channel B and flows through the bore (8) to the constant-current control (9) that keeps the pilot flow constant independent of the pressure drop between channel A and B. From
the constant-current control (9), the pilot flow flows in den spring chamber (10), through the bores (11) and (12) via the valve seat (13) into channel Y (14, 15, 16) and from there to the return flow. The pressure required in channel A is preset at the related amplifier. The proportional solenoid moves the valve poppet (20) in the direction of the valve seat (13) and limits the pressure in the spring chamber (10) to the set value. If the pressure in channel A is lower than the preset command value, the higher pressure in the spring chamber (10) moves the main spool to the right. The connection from B to A is opened. If the set pressure in A is reached, the forces at the main spool are balanced – the main spool is in control position.
Pressure in channel A • Spool face (7) = pressure in spring chamber (10) • Spool face – spring force (17)
If in a standing hydraulic fluid column (e. g. cylinder piston at stop), the pressure in A is to be reduced, (e. g.) a lower command value is preset at the control electronics and in this way a lower pressure is preselected which is present immediately in the spring chamber (10). The higher pressure in A which acts on the surface (7) of the main spool pushes the main spool to the stop against the plug screw (18). The connection A to B is blocked and A to Y is open. The force of the spring (17) now counteracts the hydraulic force acting on the surface (7) of the main spool. In this main spool position, the hydraulic fluid can flow from channel A via the control edge (19) to Y into the return flow.
When the pressure in A has dropped to the pressure in the spring chamber (10) plus ∆p from spring (17), the main spool closes the large control bores in the socket at the control edge A to Y.
The residual pressure differential of approx. 10 bar to the new command value pressure in A is now only unloaded via the fine control bore (21). In this way, a favorable transient response without pressure undershoot is achieved. For the free flow back from channel A to B, a check valve (5) can optionally be installed. Part of this flow from channel A simultaneously flows into the return flow via the open control edge (19) of the main spool A to Y.
Type DREM...
For hydraulic protection against an inadmissibly high electric control current at the proportional solenoid, which imperatively results in excessive pressures in port A, you can optionally install a spring-loaded pressure relief valve as maximum pressure limitation (22). The maximum pressure limitation is pre-set based on the relevant pressure rating (see table).

Type code
01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | ||
DRE | ‒ | 6X | / | Y | G24 | K4 | * |
01 | Proportional pressure reducing valve, pilot-operated, with external control electronics | DRE |
02 | Without maximum pressure limitation | no code |
With maximum pressure limitation | M 1) | |
03 | Size 10 | 10 |
Size 25 | 20 | |
04 | Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) | 6X |
Pressure rating | ||
05 | 50 bar | 50 |
100 bar | 100 | |
200 bar | 200 | |
315 bar | 315 | |
06 | Pilot oil return always external, separate and depressurized to the tank | Y |
07 | With check valve between A and B | no code |
Without check valve | M | |
Supply voltage of the control electronics | ||
08 | Direct voltage 24 V | G24 |
09 | 1600 mA version | no code |
800 mA version | -8 2) | |
Electrical connection | ||
10 | Without mating connector; connector DIN EN 175301-803 | K4 |
Seal material | ||
11 | NBR seals | M |
FKM seals | V | |
12 | Further details in the plain text | * |
1) | The maximum pressure limitation only serves as protection against overpressure in case of an error in the pilot valve (e. g. in case of contamination or over-current). | |
2) | Replacement for series 5X. (Attention! External amplifiers only suitable for G24 = 1.6 A solenoid), |
Technical data
general
Type | DRE(M) | ||
Size | 10 | 25 | |
Component series | 6X | ||
Installation position | Any | ||
Weight | kg | 4.7 | 6 |
Storage temperature range | °C | -20 … +80 | |
Ambient temperature range | °C | -20 … +70 |
hydraulic
Type | DRE(M) | |||
Size | 10 | 25 | ||
Maximum operating pressure | bar | 315 | ||
Maximum operating pressure | Anschluss A | bar | 315 | |
Port B | bar | 315 | ||
Port T 1) | separate and depressurized to the tank | |||
Maximum set pressure in port A | Pressure rating 50 bar | bar | 50 | |
Pressure rating 100 bar | bar | 100 | ||
Pressure rating 200 bar | bar | 200 | ||
Pressure rating 315 bar | bar | 315 | ||
Minimum set pressure 2) | bar | 2 | ||
Maximum pressure relief function | Pressure rating 50 bar 3) | bar | 70 | |
Pressure rating 100 bar | bar | 130 | ||
Pressure rating 200 bar | bar | 230 | ||
Pressure rating 315 bar | bar | 350 | ||
Pilot flow | l/min | 0.8 | ||
Maximum flow | l/min | 200 | 300 | |
Hydraulic fluid | see table | |||
Hydraulic fluid temperature range | °C | -20 … +80 | ||
Viscosity range | mm²/s | 15 … 380 | ||
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 4) | Class 20/18/15 according to ISO 4406 (c) | |||
Hysteresis 5) | % | ± 3.5 | ||
Repetition accuracy 5) | % | < ± 2 | ||
Linearity 5) | % | ± 2 | ||
Manufacturing tolerance of the command value pressure characteristic curve 6) | % | ± 3.5 | ||
Step response | 10 ... 90% 7) | ms | ≈ 130 | |
90 ... 10% 7) | ms | ≈ 160 | ||
10 ... 90% 8) | ms | ≈ 150 | ||
90 ... 10% 8) | ms | ≈ 150 |
1) | Internal pipe Ø ≥ 5 mm; pipe length < 2500 mm |
2) | in channel A with command value 0 |
3) | set at the factory |
4) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
5) | from maximum set pressure; does not apply to types "G24-8" |
6) | of the maximum set pressure, related to the hysteresis characteristic curve, pressure increasing; does not apply to types “G24-8” |
7) | measured with standing hydraulic fluid column, 1.0 liters at port A |
8) | measured with standing hydraulic fluid column, 5 liters at port A |
Hydraulic fluid | Classification | Suitable sealing materials | Standards |
Mineral oils and related hydrocarbons | HL, HLP, HLPD, HLPP | NBR / FKM | DIN 51524 |
Flame-resistant - water-free | HFDU, HFDR | FKM | ISO 12922 |
Flame-resistant - containing water | HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) | NBR | ISO12922 |
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. Flame-resistant - containing water: |
electrical
Type | DRE(M) | |||
Minimum solenoid current | with 1600 mA - coil | mA | ≤ 100 | |
with 800 mA - coil | mA | ≤ 100 | ||
Maximum solenoid current | with 1600 mA - coil | mA | 1760 | |
with 800 mA - coil | mA | 840 | ||
Solenoid coil resistance | Cold value at 20 °C | with 1600 mA - coil | Ω | 5.5 |
with 800 mA - coil | Ω | 20.6 | ||
Solenoid coil resistance | Maximum hot value | with 1600 mA - coil | Ω | 8.05 |
with 800 mA - coil | Ω | 33 | ||
Duty cycle | % | 100 |
Diagrams/characteristic curves
(measured with HLP46, ϑOil = 40 ±5 °C)

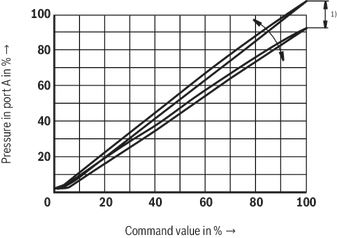

Pressure in port A dependent on the command value (flow = 0.8 l/min)
DRE(M)

1) | With type DRE(M), the manufacturing tolerance at the external analog amplifier can be adjusted using the command value attenuator potentiometer "Gw". With the digital amplifier, the setting is made using the "Limit" parameter. In this connection, the control current according to the technical data must not be exceeded! In order to match several valves to the same characteristic curve, at a command value of 100%, the pressure must not exceed the maximum set pressure of the relevant pressure rating at no valve. |

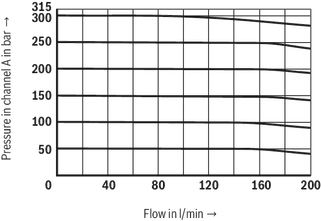

Pressure in channel A dependent on the flow qv
(characteristic curves with constant Δp)
Size 10

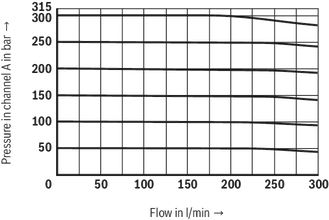

Pressure in channel A dependent on the flow qv
(characteristic curves with constant Δp)
NG25

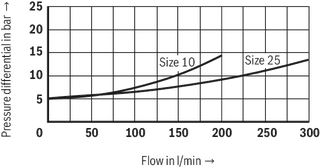

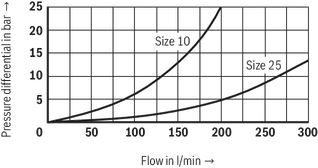

Pressure differential from A to B via the check valve

Pressure differential from B to A

Pressure in channel A dependent on the command value

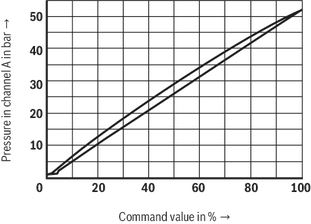

Pressure rating 50 bar

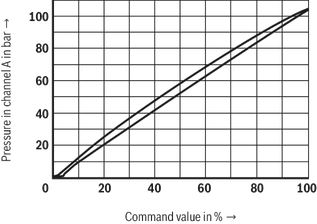

Pressure rating 100 bar

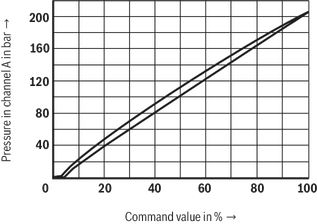

Pressure rating 200 bar

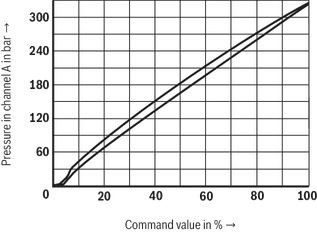

Pressure rating 315 bar

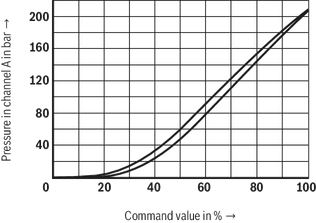

Pressure rating 200 bar (with VT-SSPA1)

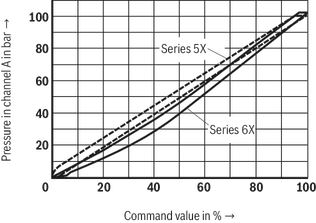

Comparison series 5X-6X / pressure rating 100 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)

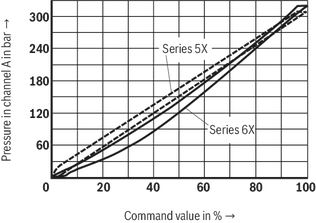

Comparison series 5X-6X / pressure rating 315 bar (with amplifier VT-VSPA1-1-1X with 800 mA coil)

Symbols/Circuit diagrams
load errorElectrical connection
load errorDimensions
load errorDownloads
![]() | proportional pressure reducing valve, pilot operated Data Sheet | RE29276 | 2011-03-10 | English | PDF | 726k Product Groups: Pilot operated type DRE(M) and DRE(M)E |
