Meter-out check-Q-meter, sandwich plate design SCA 32, SCB 32
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Size 32
- Component series 1X
- Maximum operating pressure 350 bar
- Maximum flow 700 l/min
Features
- Sandwich plate design
- Flow control load-compensated optionally in channel A and B and/or only A or only B together with pilot-operated proportional directional valve (only W control spool)
- Leakage oil-free blocking, optionally of one or two actuator ports
- Porting pattern according to DIN 24340 form A and ISO 4401
- Braking valve function optionally in channel A and B and/or only A or only B together with pilot-operated proportional directional valve and with or without supply pressure compensator
Product description
The discharge locking pressure compensator type SCA... can be used together with a proportional directional valve as flow controller for the load-compensated control of positive and negative loads.
The discharge locking pressure compensator type SCB... can be used as braking valve with a proportional directional valve to control negative loads. With an additional supply pressure compensator, the actuator is controlled in a load-compensated manner. Leak-free blocking for load support in the actuator ports A2 and B2.
Size and direction of the flow are specified at the command value potentiometer of the proportional directional valve.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | |
| 32 | Z | 1X | / | * |
| Discharge locking pressure compensator | ||
| 01 | for load compensation | SCA |
| as braking valve | SCB | |
| 02 | Size 32 | 32 |
| 03 | Function in channel A | A |
| Function in channel B | B | |
| Function in channel A and B | C | |
| 04 | Sandwich plate design | Z |
| 05 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10 | 1X |
| Seal material | ||
| 06 | NBR seals | M |
| FKM seals | V | |
| 07 | Further details in the plain text | * |
Technical data
allgemein
| Nenngröße | 32 | |
| Geräteserie | 1X | |
| Einbaulage | Any | |
hydraulisch
| Maximaler Betriebsdruck | bar | 350 |
| Maximum flow | l/min | 700 |
Diagrams/characteristic curves
(measured at ν = 41 mm²/s and t = 50 °C)

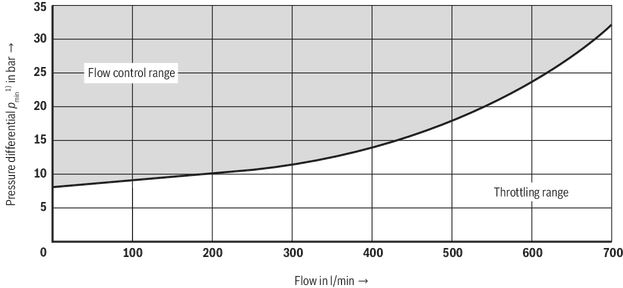

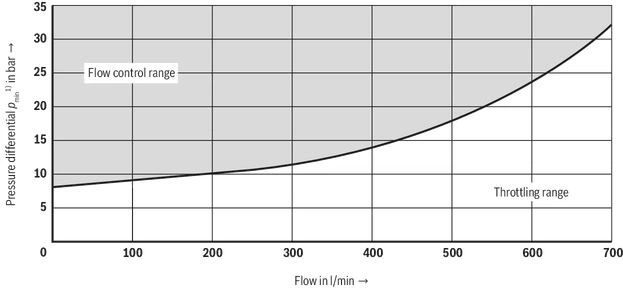

Minimum pressure differential Δp =f (qV)Beginning of control

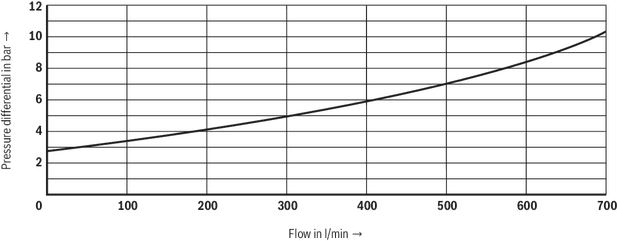

Pressure differential Δp = f (qv)

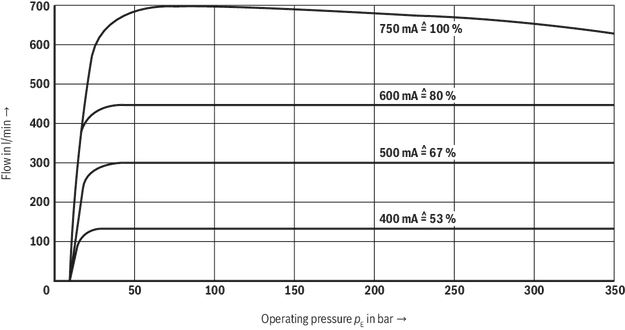

Pressure-flow dependence qv = f (pe + command value); the command value is constant

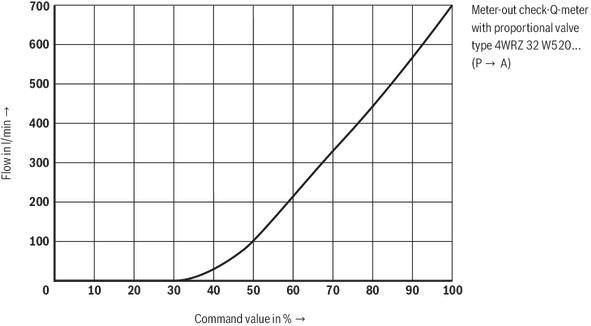

Command value, flow qv = f (command value)
Flow control
Symbols/Circuit diagrams
Dimensions

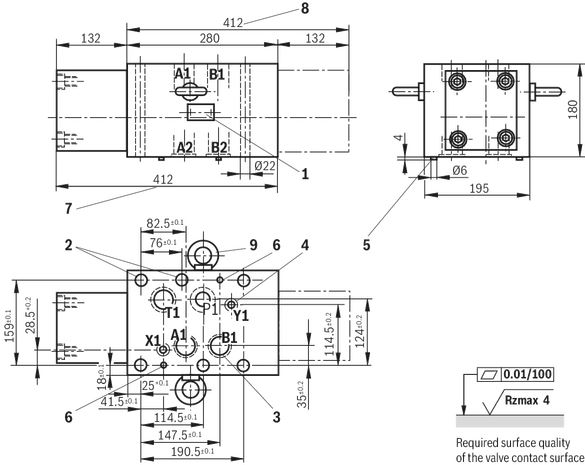

SCA32AZ1X/...
SCB32AZ1X/...
SCA32BZ1X/...
SCB32BZ1X/...
Dimensions in mm
| 1 | Name plate |
| 2 | 6 through holes for valve mounting |
| 3 | R-ring 42.5 x 3 x 3 (ports P2, T2, A2, B2) |
| 4 | R-ring 19 x 3 x 3 (ports X2, Y2) |
| 5 | Locating pins |
| 6 | Bore for locating pin |
| 7 | Valve with function in channel A (type SC.32A1X/...) |
| 8 | Valve with function in channel B (type SC.32B1X/...) |
| 9 | Ring bolt |

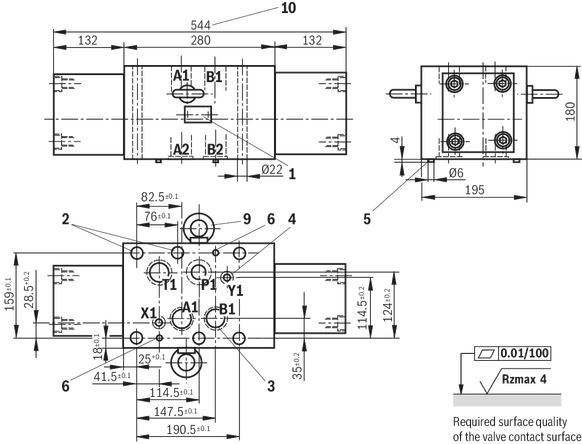

SCA32CZ1X/...
SCB32CZ1X/...
Dimensions in mm
| 1 | Name plate |
| 2 | 6 through holes for valve mounting |
| 3 | R-ring 42.5 x 3 x 3 (ports P2, T2, A2, B2) |
| 4 | R-ring 19 x 3 x 3 (ports X2, Y2) |
| 5 | Locating pins |
| 6 | Bore for locating pin |
| 9 | Ring bolt |
| 10 | Valve with function in channel A and B (type SC.32C1X/...) |
Downloads
 | Meter-out Check-Q-Meter Sandwich plate Data Sheet | RE29249 | 1996-02-01 | English | PDF | 110k Product Groups: Proportional, high-response and servo valve accessories |
