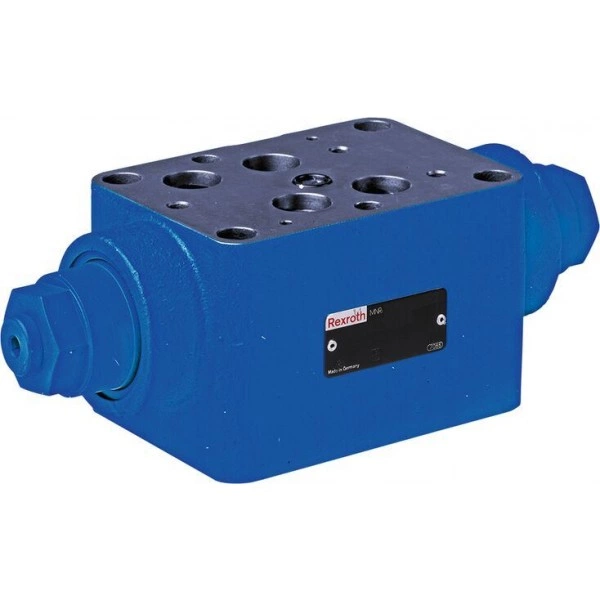

Meter-out check-Q-meter, sandwich plate design SCA 16, SCA 25

Description

• Size 16, 25
• Component series 2X
• Maximum operating pressure 315 bar
• Maximum flow 325 l/min

Features

• Sandwich plate design
• Flow control load-compensated optionally in channel A and B and/or only A or only B together with pilot-operated proportional directional valve
• Leakage oil-free blocking, optionally of one or two actuator ports
• Porting pattern according to DIN 24340 form A and ISO 4401

Product description

The discharge locking pressure compensator type SCA... can be used together with a proportional directional valve as flow controller for the load-compensated control of positive and negative loads.

Leakage oil-free blocking for load support in the actuator ports A2 and B2.

Size and direction of the flow are specified at the command value potentiometer of the proportional directional valve.

Type code

Technical data

allgemein

hydraulisch

Diagrams/characteristic curves

(measured at ν = 41 mm²/s and t = 50 °C)

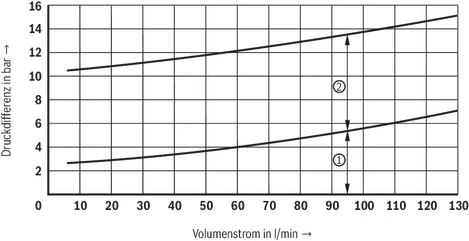

Pressure differential Δp = f (qv)

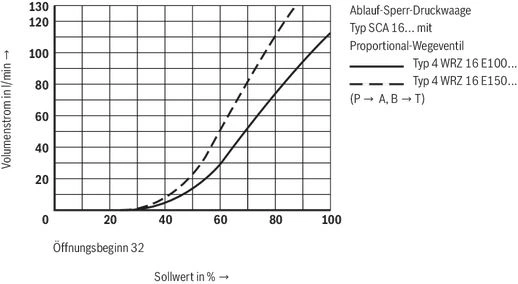

Flow control command value flow qv = f (command value)

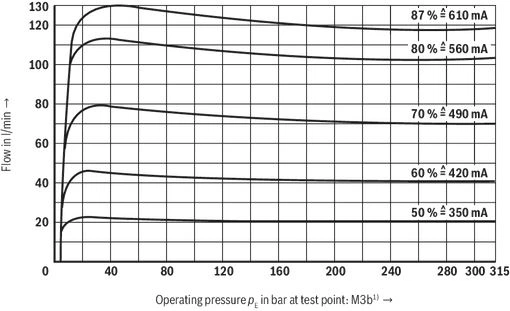

Pressure-flow dependence qv = f (pe + command value); the command value is constant

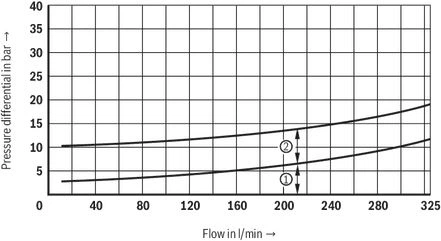

Pressure differential Δp = f (qv)

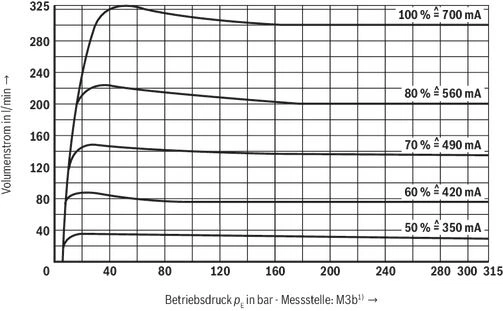

Pressure-flow dependence qv = f (pe + command value); the command value is constant

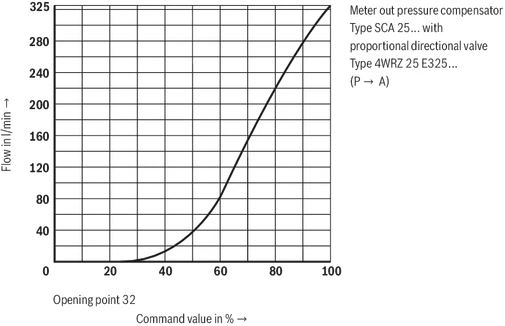

Flow control command value flow qv = f (command value)

Downloads

Meter out pressure compensator Sandwich plate design Data Sheet | RE29247 | 1996-02-01 | English | PDF | 100k Product Groups: Proportional, high-response and servo valve accessories
