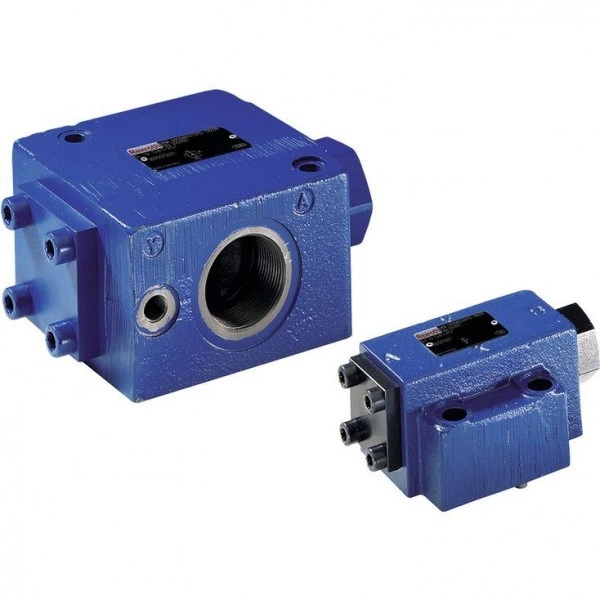

Description
- Size 10 … 32
- Component series 4X
- Maximum operating pressure 315 bar
- Maximum flow 550 l/min
Features
- For subplate mounting
- Porting pattern according to ISO 5781-06-07-0-00 (NG10), ISO 5781-08-10-0-00 (NG20), ISO 5781-10-13-0-00 (NG32)
- For threaded connection
- For the leakage-free blocking of one actuator port
- Pilot oil return, internal
- Version with pre-opening for dampened release, optional
- Various cracking pressures, optional
- Check valve installation sets available individually
- Corrosion-protected design
Product description
The isolator valve type SV is a releasable check valve for subplate mounting or threaded connection. It is used for the leakage-free blocking of one actuator port, also in case of longer standstill times.

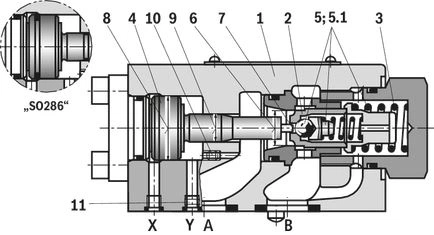

The valve basically consists of a housing (1), a seat poppet (2), a compression spring (3), a control spool (4) as well as of an optional pre-opening as ball seat valve (5).
The seat valve can be flown through from A to B without external pilot pressure. In the opposite direction, the seat valve closes hydraulically tight.
Condition: pA > pB + cracking pressure (compression spring).
A sufficiently high pilot pressure at port X moves the control spool (4) in the direction of the ball seat valve (5) (version "A") and pushes the seat poppet (2) out of its seat. This allows for a free flow in both directions (active keeping open).
In order to ensure that the seat valve actively opens, the pressure ratios on both sides of the control spool (4) are just as important as the area ratios at the control spool (4) or seat poppet (2).
This results in the versions with pre-opening "A" and without pre-opening "B” for type SV (large annulus area). A3 (8); with pA connected).
Version "A" (with pre-opening)
This valve is provided with an additional pre-opening. By pressurization at the X port, the control spool (4) is moved to the right. As a result, the ball (5) is pushed off the seat first and the seat poppet (2) afterwards.
Notes:
- Version "A”:
- The two-stage set-up with an increased control open ratio means even low pilot pressure can be unloaded securely.
- Avoidance of switching shocks due to dampened decompression of the pressure volume on the actuator side.
- Version "B”:
- In case of valves without pre-opening, the included pressure volume may be unloaded suddenly. Resulting switching shocks may lead to premature wear on installed components, as well as noise formation.
| 6 | Area A1 (seat poppet) |
| 7 | Area A2 (ball) |
| 8 | AreaA 3 (control spool) |
| 9 | Area A4 (control spool) |
Notice:
The modification of type SV to type SL is possible by exchange of plugs (10) and (11). One of the both plugs must always be installed.
| NG | Plug (10) | Plug (11) |
| 10 | M3 | M6 |
| 20 | M4 | M6 |
| 30 | M4 | M6 |
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | |||
| S | V | – | 4X | / | – | * |
| 01 | Check valve | S |
| 02 | Pilot oil return, internal | V |
| 03 | Size 10 | 10 |
| Size 20 | 20 | |
| Size 32 | 30 | |
| Type of connection | ||
| 04 | Subplate mounting | P |
| Threaded connection | G | |
| 05 | With pre-opening | A |
| Without pre-opening | B | |
| Cracking pressure | ||
| 06 | See characteristic curves (A → B) | 1 |
| 2 | ||
| 3 | ||
| 4 | ||
| 07 | Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) | 4X |
| Spool position monitoring | ||
| 08 | Without position switch | no code |
| With position switch 1) | QMG24 | |
| For more information see "Electrical connection" | ||
| Orifice fitting channel Y | ||
| 09 | Channel Y closed (standard) | Y99 |
| Orifice Ø** in channel Y 2) | Y** | |
| Seal material | ||
| 10 | NBR seals | N |
| FKM seals | V | |
| Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||
| Corrosion resistance | ||
| 11 | None | no code |
| Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 | |
| 12 | Standard | no code |
| Pilot pressure ppilot from channel X | SO168 | |
| Control open spool with shaft sealing (between channel X–Y and Y–A) | SO286 | |
| Connection thread (versions with threaded connection "G" only) | ||
| 13 | Pipe thread "G" according to ISO 228-1 | no code |
| Pipe thread “UNF/UN” according to ANSI/ASME B 1.1 | /12 | |
| 14 | Further details in the plain text | * |
| 1) | Only version "B3" |
| 2) | Order example: ** = dimension in mm x 10 – e.g. orifice Ø1,2 mm in channel Y = "Y12" |
Technical data
general
| Size | 10 | 20 | 32 | ||
| Weight | Subplate mounting | kg | 1.8 | 4.7 | 7.8 |
| Threaded connection | kg | 2.1 | 5.4 | 10 | |
| Installation position | any | ||||
| Ambient temperature range | NBR seals | °C | -30 … +80 | ||
| FKM seals | °C | -20 … +80 | |||
| MTTFD values according to EN ISO 13849 1) | Years | 150 | |||
| Maximum storage time 2) | Months | 12 | |||
| 1) | For further details, see data sheet 08012 |
| 2) | If the storage conditions are observed; refer to the operating instructions 07600-B |
hydraulic
| Size | 10 | 20 | 32 | ||
| Maximum operating pressure | bar | 315 | |||
| Cracking pressure | bar | 1.5 / 3 / 6 / 10 | 2.5 / 5 / 7.5 / 10 | 2.5 / 5 / 8 / 10 | |
| Minimum pilot pressure | bar | 5 | |||
| Maximum pilot pressure | bar | 315 | |||
| Maximum flow | See characteristic curves | ||||
| Direction of flow | Free from A → B, from B → A by opening | ||||
| Hydraulic fluid | see table below | ||||
| Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 | ||
| FPM seals | °C | -20 … +80 | |||
| Viscosity range | mm²/s | 2.8 … 500 | |||
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Class 20/18/15 | ||||
| Pilot volume | Port X | cm³ | 2.5 | 10.8 | 19.27 |
| Control area A1 2) | cm² | 1.33 | 3.46 | 5.72 | |
| Control area A2 2) | cm² | 0.33 | 0.7 | 1.33 | |
| Control area A3 2) | cm² | 3.8 | 10.17 | 16.61 | |
| Control area A4 2) | cm² | 0.79 | 1.13 | 1.54 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | Areas according to sectional drawing, see "Product description" |
| Hydraulic fluid | Classification | Suitable sealing materials | Standards | Data sheet | |
| Mineral oils | HL, HLP, HLPD, HVLP, HVLPD | NBR, FKM | DIN 51524 | 90220 | |
| Bio-degradable | Insoluble in water | HETG 1) | NBR, FKM | ISO 15380 | 90221 |
| HEES 1) | FKM | ||||
| Soluble in water | HEPG 1) | FKM | ISO 15380 | ||
| Flame-resistant | Water-free | HFDU (glycol base) | FKM | ISO 12922 | 90222 |
| HFDU (ester base) 1) | FKM | ||||
| HFDR | FKM | ||||
| Containing water | HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) 1) | NBR | ISO 12922 | 90223 | |
| Important information on hydraulic fluids:
| |||||
| 1) | Not recommended for corrosion-protected version "J3" (contains zinc) |
(For applications outside these values, please consult us!)
Diagrams/characteristic curves
(measured with HLP46, ϑOil = 40 ±5 °C)
Subplate mounting

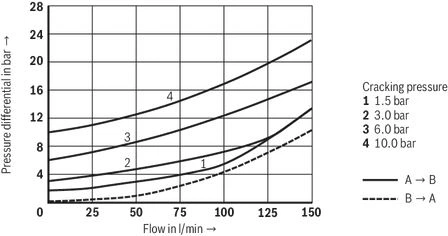

Δp-qV characteristic curves
Size 10

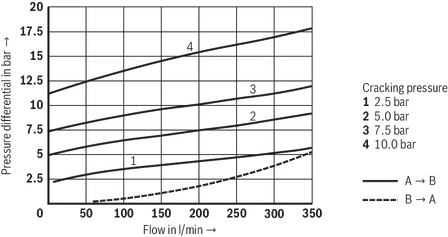

Δp-qV characteristic curves
Size 20

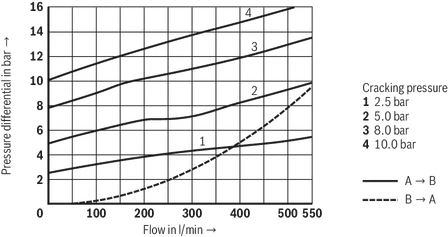

Δp-qV characteristic curves
Size 32
Pilot pressure/load pressure characteristic curves
Without pre-opening
Pilot pressure/load pressure characteristic curves
With pre-opening
Threaded connection

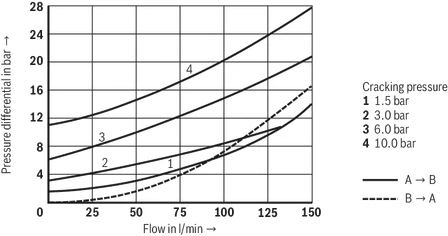

Δp-qV characteristic curves
Size 10
Δp-qV characteristic curves
Size 20
Δp-qV characteristic curves
Size 32

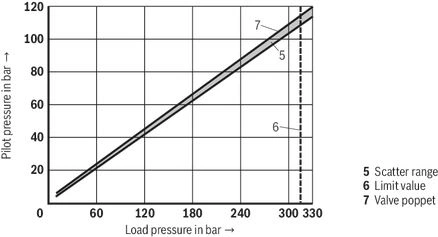

Pilot pressure/load pressure characteristic curves
Without pre-opening

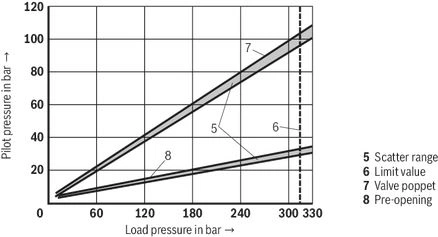

Pilot pressure/load pressure characteristic curves
With pre-opening
Calculation of the pilot pressure pSt dependent on pA and pB
Version “A” (with pre-opening)
Balance of forces:
- Detailed formula
- Simplified formula (Assumption pA = 0)
Version "B" (without pre-opening)
Balance of forces:
- Simplified formula (Assumption pA = 0)
| pA* | Type-dependent (for type SL: pA* = 0) |
| pSt | Pilot pressure |
| pA | Working pressure in A |
| pB | Working pressure in B |
| pF | Cracking pressure (spring) |
| A1 – A4 | For areas see sectional drawing below "product description" and control area ratios below "technical data" |
Symbols/Circuit diagrams
Pilot oil return, internal
Version "SO168"
Circuit examples
Function: "Load locking"; inlet side unloading
Function: Unlocking with external pilot pressure (version "SO168")
Electrical connection
Inductive position switch type QM
The electrical connection is realized via a 4-pole mating connector (separate order, see "Accessories") with connection thread M12 x 1.
| Connection voltage | 24 V +30 %/-15 %, direct voltage | |
| Admissible residual ripple | ≤ 10 % | |
| Load capacity | maximum 400 mA | |
Switching outputs | PNP transistor outputs, load between switching outputs and GND | |
Pinout | 1 | +24 V |
| 2 | Switching output: 400 mA | |
| 3 | 0 V, GND | |
| 4 | Switching output: 400 mA | |
Switching logics
Dimensions

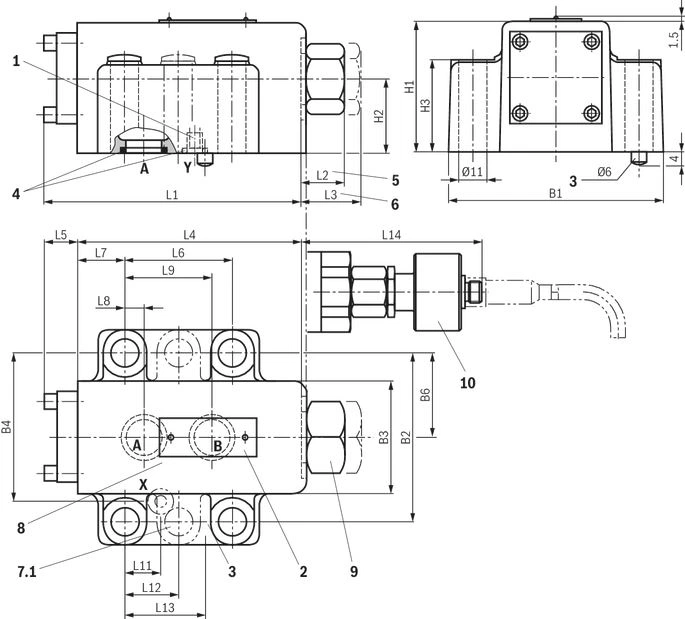

Subplate mounting
Dimensions in mm
 |
| Required surface quality of the valve contact surface |
| 1 | Port Y closed |
| 2 | Name plate |
| 3 | Locking pin |
| 4 | Identical seal rings for ports A and B |
| 5 | Valve with cracking pressure Version "1" and "2" (dimension L2) |
| 6 | Valve with cracking pressure version "3" and "4" (dimension L3) |
| 7.1 | 6 valve mounting bores at NG32 |
| 8 | Porting pattern according to ISO 5781 |
| 9 | Version without position switch |
| 10 | Version with position switch "QMG24" (circuitry see "Electrical connection") |
| NG | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L11 | L12 | L13 | L14 | B1 | B2 | B3 | B4 | B6 | H1 | H2 | H3 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 10 | 100.8 | 15.5 | 15.5 | 87.8 | 13 | 42.9 | 18.5 | 7.2 | 35.8 | 21.5 | - | 31.8 | 105 | 84 | 67.7 | 44 | 58.8 | 33.3 | 51 | 29 | 36 |
| 20 | 135 | 17.7 | 47.7 | 117 | 18 | 60.3 | 27.5 | 11.1 | 49.2 | 20.6 | - | 44.5 | 96.5 | 100 | 79.4 | 67 | 73 | 39.7 | 81 | 45 | 55 |
| 32 | 156.1 | 36.1 | 46.1 | 134 | 22.1 | 84.2 | 39 | 16.7 | 67.5 | 24.6 | 42.1 | 62.7 | 117 | 118 | 96.8 | 75 | 92.8 | 48.4 | 85 | 42.5 | 70 |
Valve mounting screws (separate order)
| Size | Quantity | Hexagon socket head cap screws | Material number |
| 10 | 4 | ISO 4762 - M10 x 50 - 10.9 Tightening torque MA = 75 Nm ±20 % | - |
| 20 | 4 | ISO 4762 - M10 x 70 - 10.9 Tightening torque MA = 75 Nm ±20 % | - |
| 32 | 6 | ISO 4762 - M10 x 85 - 10.9 Tightening torque MA = 75 Nm ±20 % | - |
Notice:
The specified tightening torques were calculated with total friction coefficient μtotal = 0.09 ... 0.14; adjust in case of modified surfaces.
Subplates (separate order)
with porting pattern according to ISO 5781-06-07-0-00 (NG10), ISO 5781-08-10-0-00 (NG20), ISO 5781-10-13-0-00 (NG32) see data sheet 45100.

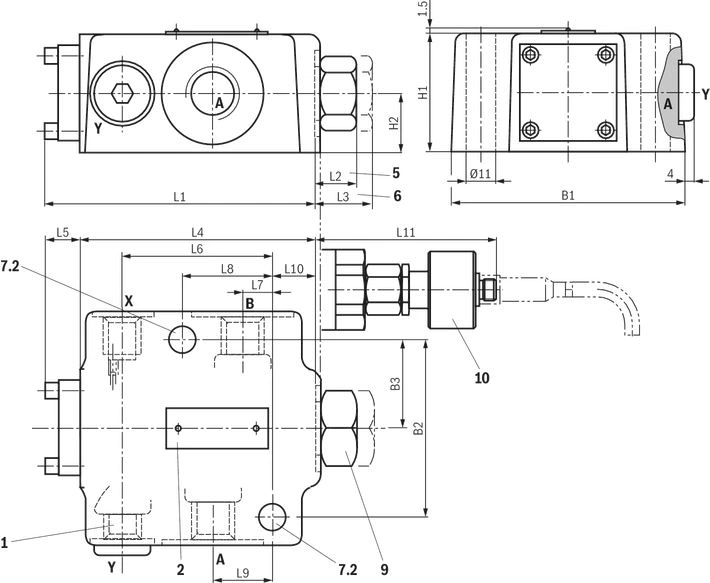

Threaded connection
Dimensions in mm
| 1 | Port Y closed |
| 2 | Name plate |
| 5 | Valve with cracking pressure Version "1" and "2" (dimension L2) |
| 6 | Valve with cracking pressure version "3" and "4" (dimension L3) |
| 7.2 | 2 valve mounting bores |
| 9 | Version without position switch |
| 10 | Version with position switch "QMG24" (circuitry see "Electrical connection") |
Ports
| NG | A | B | X | Y |
| "G" | "UNF/UN" | "G" | "UNF/UN" | |
| 10 | G1/2 | 3/4-16 UNF | G1/4 | 7/16-20 UN |
| 20 | G1 | 1 5/16-12 UN | G1/4 | 7/16-20 UN |
| 32 | G1 1/2 | 1 7/8-12 UN | G1/4 | 7/16-20 UN |
Valve mounting screws (separate order)
| Size | Quantity | Hexagon socket head cap screws | Material number |
| 10 | 2 | ISO 4762 - M10 x 60 - 10.9 | - |
| 20 | 2 | ISO 4762 - M10 x 85 - 10.9 | - |
| 32 | 2 | ISO 4762 - M10 x 100 - 10.9 | - |
Connection adapter / reducing pieces
| Material number | Male thread | Internal thread | Seal (separate order) | |
| NBR | FKM | |||
| R900173685 | G1 | G3/4 | R900012475 | R900012509 |
| R900173689 | G1 1/2 | G1 1/4 | R900012477 | R900012511 |
Accessories
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1
4P Z24
- For sensors and valves with connector “K24”, “K35” and “K72”
- Mating connectors M12, 4-pole, line cross-section 0.75 mm2
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line
4P Z24 +
Mating connectors for sensors and valves with connector “K24”, “K35” and “K72”, M12 x 1, with assembled connection line
4P Z24 +
- For sensors and valves with connector “K24”, “K35” and “K72”
- Mating connectors M12, 4-pole, line cross-section 0.75 mm2
