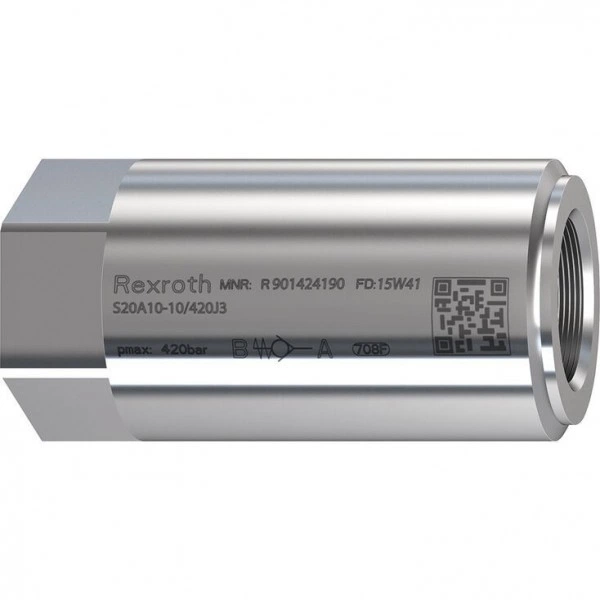

Description
- Size 6 … 30
- Component series 1X
- Maximum operating pressure 450 bar
- Maximum flow 450 l/min
Features
- For threaded connection (screw-in thread)
- Leakage-free blocking in one direction
- Various cracking pressures, optional
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | ||
| S | A | - | 1X | / |
| Type | ||
| 01 | Isolator valve | S |
| Size | ||
| 02 | Size 6 | 6 |
| Size 8 | 8 | |
| Size 10 | 10 | |
| Size 15 | 15 | |
| Size 20 | 20 | |
| Size 25 | 25 | |
| Size 30 | 30 | |
| Connection | ||
| 03 | Threaded connection | A |
| Cracking pressure (see characteristic curves) | ||
| 04 | 0 bar (without spring) | 00 |
| 0,2 bar | 02 | |
| 0.5 bar (standard) | 05 | |
| 1.5 bar | 15 | |
| 3,0 bar | 30 | |
| 5 bar | 50 | |
| 8 bar (only NG25 and 30) | 80 | |
| Component series | ||
| 05 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| Maximum operating pressure | ||
| 06 | Maximum operating pressure 420 bar (Nominal size 25 and 30) | 420 |
| Maximum operating pressure 450 bar (Nominal size 6 ... 20) | 450 | |
| Corrosion resistance | ||
| 07 | Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 |
| High corrosion protection (720 h salt spray test according to EN ISO 9227) | J5 | |
| Piston bore (orifice in channel B) | ||
| 08 | Without piston bore | no code |
| Thread M4; not fitted | B00 | |
| Orifice Ø1.0 mm | B10 | |
| Orifice Ø1.2 mm | B12 | |
| Orifice Ø1.5 mm | B15 | |
| Connection thread 1) | ||
| 09 | Pipe thread "G" according to ISO 228-1 | no code |
| Pipe thread "M" according to ISO 261 | /2 | |
| Pipe thread “UNF/UN” according to ANSI/ASME B 1.1 | /12 | |
| 1) | Other versions available on request |
Technical data
general
| Size | 6 | 8 | 10 | 15 | 20 | 25 | 30 | |
| Weight | kg | 0.1 | 0.2 | 0.3 | 0.5 | 1 | 2 | 2.5 |
| MTTFD values according to EN ISO 13849 | Years | 150 1) | ||||||
| 1) | Not for version "00"; Certificate "Assumed exclusion of faults according to EN ISO 13849-2:2012-10 tab. C4" available upon request. For further details, see data sheet 08012 |
hydraulic
| Size | 6 | 8 | 10 | 15 | 20 | 25 | 30 | |
| Maximum operating pressure 1) | bar | 450 | 420 | |||||
| Cracking pressure | See characteristic curves | |||||||
| Maximum flow | See characteristic curves | |||||||
| Hydraulic fluid | see table | |||||||
| Hydraulic fluid temperature range | °C | -30 … +80 | ||||||
| Viscosity range | mm²/s | 2.8 … 500 | ||||||
| Maximum admissible degree of contamination of the hydraulic fluid 2) | Class 20/18/15 according to ISO 4406 (c) | |||||||
| 1) | Maximum operating pressures up to 1000 bar upon request. |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| Hydraulic fluid | Classification | Standards | Data sheet | |
| Mineral oils | HL,HLP, HLPD, HVLP, HVLPD | DIN 51524 | 90220 | |
| Bio-degradable 1) | Insoluble in water | HETG | ISO 15380 | 90221 |
| HEES | ||||
| Soluble in water | HEPG | ISO 15380 | ||
| Flame-resistant | Water-free | HFDU (glycol base) | ||
| HFDU (ester base) 1) | ISO 12922 | 90222 | ||
| Containing water 1) | HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) | ISO 12922 | 90223 | |
| Important information on hydraulic fluids:
| ||||
| 1) | Small amounts of dissolved zinc may get into the hydraulic system during use. |
(For applications outside these values, please consult us!)
Diagrams/characteristic curves
(measured with HLP46, ϑOil = 40 ±5 °C)
∆p-qV characteristic curves with cracking pressure
Size 6
Size 8
Size 10
Size 15
Size 20
Size 25
Size 30
Symbols/Circuit diagrams
Without spring
With spring
With piston bore/orifice

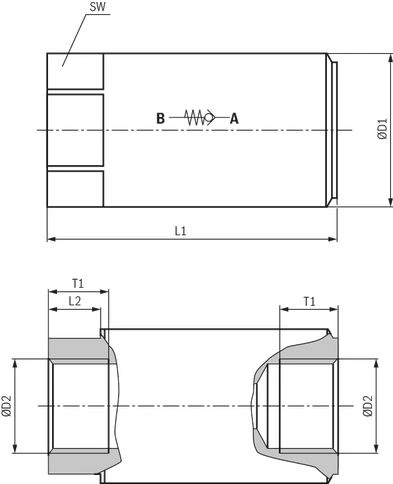

Dimensions
Dimensions in mm
| NG | 6 | 8 | 10 | 15 | 20 | 25 | 30 | |||
| ØD1 | mm | 22.5 | 28 | 34 | 34 | 42 | 52 | 68 | 74.5 | |
| D2 | G | G1/4 | G3/8 | - | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | |
| M | M14 x 1,5 | M18 x 1,5 | - | M22 x 1.5 | M27 x 2 | M33 x 2 | M42 x 2 | M48 x 2 | ||
| UNF/UN | - | - | 3/4-16 UNF | 3/4-16 UNF | 1 1/6-12 UN | 1 5/16-12 UN | 1 5/8-12 UN | 1 7/8-12 UN | ||
| L1 | G | mm | 58 | 58 | - | 72 | 88 | 98 | 120 | 132 |
| M | mm | 58 | 58 | - | 72 | 88 | 98 | 120 | 132 | |
| UNF/UN | mm | - | - | 66 | 72 | 92 | 105 | 120 | 132 | |
| L1 | mm | - | 160 1) | 168 1) | ||||||
| L2 | mm | 10.5 | 11.5 | 13 | 13 | 15.5 | 19 | 25 | 28 | |
| T1 | G | mm | 13 | 13 | - | 15 | 18 | 19 | 22 | 22.5 |
| M | mm | 12 | 12 | - | 14 | 16 | 18 | 20 | 22 | |
| UNF/UN | mm | - | - | 15 | 15 | 20 | 20 | 20 | 20 | |
| SW | G | mm | 19 | 24 | 30 | 30 | 36 | 46 | 60 | 65 |
| 1) | Version "...A80..." |
