2-way cartridge valves, pressure functions LFA..DB (standard)
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 16 … 100
- Maximum operating pressure 420 bar
- Size 16 … 100
Product description
General
2-way cartridge valves for pressure functions are pilot-operated valves in seat or spool design. The power section designed as cartridge valve (1) is installed into a receiving hole standardized according to DIN ISO 7368 and closed with a control cover (2).
The pilot control valve (4) for manual or electrically proportional pressure adjustment is integrated into the control cover (2) or is installed on the control cover (2) as pilot valve with mounting dimensions according to DIN 24 340.
By combination of cartridge valves with the control covers, different pressure functions can be realized. .
Pressure relief function

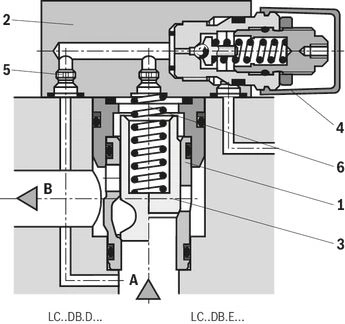

The cartridge valve (1) for the pressure relief function (type LC . DB...) is designed as seat valve without area difference (no effective area at port B). The effective pressure at port A is directed via the pilot oil supply orifice (5) to the spring side (6) of the element. Under the pressure set at the pilot control valve (4), the spool (3) is pressure-compensated and closed by the spring force.
On reaching the set pressure, the spool (3) is opened and the pressure at port A is limited according to the pressure-flow characteristics.
Pressure reducing function
Rest position open
The cartridge valve for the pressure reducing function is designed as spool valve without area difference (no effective areas at port B).
As pilot control valve, identical cover types as for the pressure relief function are applied (type LFA..DB...).
The effective pressure at port A is directed via the pilot oil supply orifice to the spring side of the spool. Under the performance limit and the pressure set at the pilot control valve, the spool is pressure-compensated and retained in open position by the spring force to enable free flow from port B to port A.
On reaching the set pressure, the spool is closed and the pressure at port A is reduced according to the pressure-flow characteristics.
Size | Pilot control valve | manual pressure adjustment | ||
16 to 32 | 40 to 63 | 80 and 100 | ||
• | • | • | Without directional valve | |
• = available |
Type code
01 | 02 | 03 | 04 | 05 | 06 | 07 | ||
LFA | DB | ‒ | / |
Type | ||
01 | Control cover LFA | LFA |
Size | ||
02 | NG 16 | 16 |
NG 25 | 25 | |
NG 32 | 32 | |
NG 40 | 40 | |
NG 50 | 50 | |
NG 63 | 63 | |
NG 80 | 80 | |
NG 100 | 100 | |
Version | ||
03 | With manual pressure adjustment | DB |
Adjustment type for pressure adjustment | ||
04 | Rotary knob | 1 |
Sleeve with internal hexagon | 2 | |
Lockable rotary knob with scale (H-locking according to automotive standard) | 3 | |
Rotary knob with scale | 4 | |
Component series | ||
05 | Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions) 1) | 7X |
Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 2) | 6X | |
Pressure rating | ||
06 | Set pressure up to 25 bar | 025 |
Set pressure up to 50 bar | 050 | |
Set pressure up to 100 bar | 100 | |
Set pressure up to 200 bar | 200 | |
Set pressure up to 315 bar | 315 | |
Set pressure up to 400 bar | 400 | |
Set pressure up to 420 bar 3) | 420 | |
Seal material | ||
07 | NBR seals | no code |
FKM seals | V |
1) Component series 7X for sizes 16…63. | |
2) Component series 6X for sizes 80 and 100. | |
3) NG 16 ... 32 only |
General information on the ordering codes for control covers: Pilot control valves (maximum operating pressure)
Pilot control valve | Control cover | Maximum operating pressure in bar Y, T | included in type | separate order | |||
Type | Catalog sheet no. | NG | |||||
X | at pressure control | static | |||||
DBD. 2 K2X/… 1) | upon request | 16 to 32 | 420 | depressurized (up to ≈ 2 bar) | 315 | ● | |
DBD. 6 K1X/… 2) | 25 402 | 40 to 63 | 400 | 315 | ● | ||
DBD. 10 K1X/… 2) | 25 402 | 80, 100 | 400 | 315 | ● |
1) Possible pressure ratings: 25, 50, 100, 200, 315, 420 | |
2) Possible pressure ratings: 25, 50, 100, 200, 315, 400 |
Notice:
By combination of a 2-way cartridge valve with a pilot control valve, various valve functions can be realized.
In particular, the following devices come into question in porting pattern form A6 (up to NG 63) and form A10 (NG 80 to 100) DIN 24 340.
Valve mounting screws are included in the scope of delivery of the control cover.
Orifice symbol | Symbol in ordering code | |||
A** | A** | This orifice is designed as screw-type orifice. If an orifice is to be installed, the respective code letter with the orifice Ø in 1/10 mm has to be entered in the type designation. Example: A12 = Orifice with Ø1.2 mm in channel A. | ||
Ø1,2 | This orifice is designed as bore. No specifications are made in the type designation. (Orifice Ø in mm) | |||
Z12 | This orifice is designed as screw-type orifice. This is a standard orifice. No specifications are made in the type designation. (Orifice Ø in 1/10 mm) |
Additional preferred types and standard units are specified in the EPS (standard price list).
Technical data
general
Size | 16 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
hydraulic
Size | 16 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
Maximum operating pressure 1) | bar | 420 | ||||||||
Hydraulic fluid | Mineral oil (HL, HLP) according to DIN 51524, other hydraulic fluids on request | |||||||||
Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 | |||||||
FKM seals | °C | -20 … +80 | ||||||||
Viscosity range | mm²/s | 2.8 … 380 | ||||||||
Maximum admissible degree of contamination of the hydraulic fluid 2) | Class 20/18/15 according to ISO 4406 (c) |
1) | Attention: Observe pmax of the pilot control valves! |
2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
Mineral oil | HL, HLP | FKM, NBR | DIN 51524 | |
Bio-degradable | Insoluble in water | HEES (synthetic esters) | FKM | VDMA 24568 |
HETG (rape seed oil) | FKM, NBR | |||
Soluble in water | HEPG (polyglycols) | FKM | VDMA 24568 | |
Other hydraulic fluids on request |
(For applications outside these values, please consult us!)

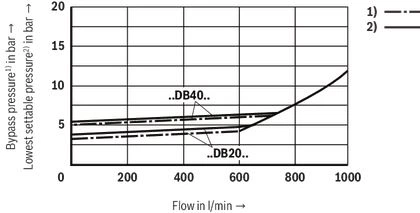

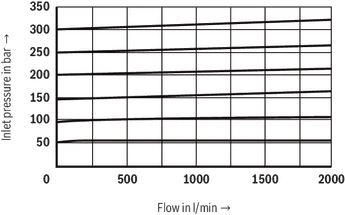

Diagrams/characteristic curves
(measured with HLP46, ϑOil = 40 ±5 °C)
The characteristic curves were measured with external, depressurized pilot oil return. Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port B.
manual pressure adjustment
Type LC 16 DB.E… (with seat piston)
manual pressure adjustment
Type LC 16 DB.E… (with seat piston)
manual pressure adjustment
Type LC 16 DB.D… (seat-spool valve)
manual pressure adjustment
Type LC 16 DB.D… (seat-spool valve)
(measured with HLP46, ϑOil = 40 ±5 °C)
The characteristic curves were measured with external, depressurized pilot oil return. Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port B.
manual pressure adjustment
Type LC 25 DB.E… (with seat piston)
manual pressure adjustment
Type LC 25 DB.E… (with seat piston)
manual pressure adjustment
Type LC 25 DB.D… (with seat-spool piston)
manual pressure adjustment
Type LC 25 DB.D… (with seat-spool piston)
(measured with HLP46, ϑOil = 40 ±5 °C)
The characteristic curves were measured with external, depressurized pilot oil return. Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port B.
manual pressure adjustment
Type LC 32 DB.E… (with seat piston)
manual pressure adjustment
Type LC 32 DB.E… (with seat piston)
manual pressure adjustment
Type LC 32 DB.D… (with seat-spool piston)
manual pressure adjustment
Type LC 32 DB.D… (with seat-spool piston)
(measured with HLP46, ϑOil = 40 ±5 °C)
The characteristic curves were measured with external, depressurized pilot oil return. Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port B.
manual pressure adjustment
Type LC 40 DB.E… (with seat piston)
manual pressure adjustment
Type LC 40 DB.E… (with seat piston)
manual pressure adjustment
Type LC 40 DB.D… (with seat-spool piston)
manual pressure adjustment
Type LC 40 DB.D… (with seat-spool piston)

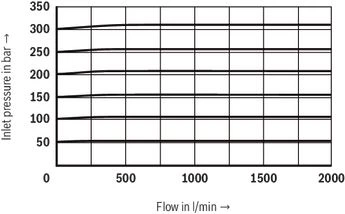

(measured with HLP46, ϑOil = 40 ±5 °C)
The characteristic curves were measured with external, depressurized pilot oil return. Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port B.
manual pressure adjustment
Type LC 50 DB.E… (with seat piston)
manual pressure adjustment
Type LC 50 DB.E… (with seat piston)
manual pressure adjustment
Type LC 50 DB.D… (with seat-spool piston)
manual pressure adjustment
Type LC 50 DB.D… (with seat-spool piston)
(measured with HLP46, ϑOil = 40 ±5 °C)
The characteristic curves were measured with external, depressurized pilot oil return. Due to the internal pilot oil return, the inlet pressure increases by the output pressure present in port B.
manual pressure adjustment
Type LC 63 DB.E… (with seat piston)
manual pressure adjustment
Type LC 63 DB.E… (with seat piston)
manual pressure adjustment
Type LC 63 DB.D… (with seat-spool piston)
manual pressure adjustment
Type LC 63 DB.D… (with seat-spool piston)

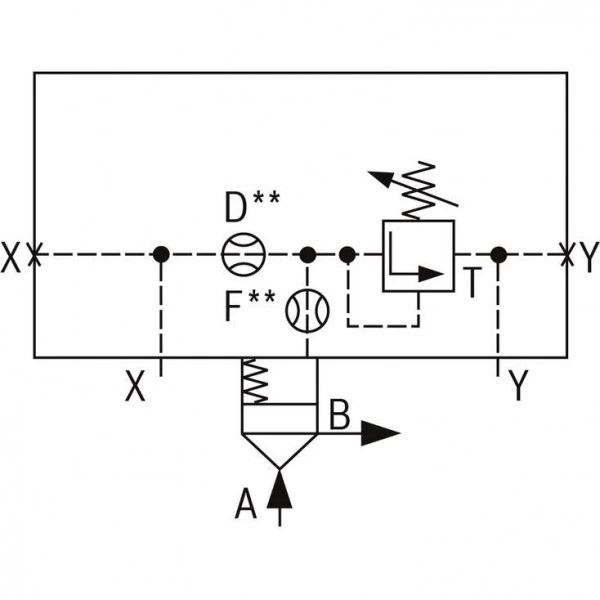

Symbols/Circuit diagrams
LFA..DB.-7X/..NG 16, 25, 32
LFA..DB.-7X/..NG 40, 50, 63
LFA...DB.-6X/...NG 80, 100
The control covers are equipped with standard orifice fitting – optimized in our test area. Orifice specification in the type key is not necessary. Deviating operating conditions may require respective adjustment of the orifice size. The orifices are designed as screw-type orifices.
Orifice representation in symbol
Dimensions

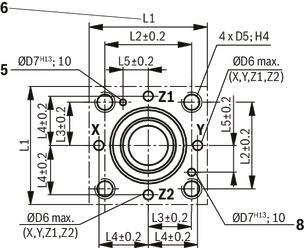

Installation bore and connection dimensions according to ISO 7368
NG16 ... 63
Dimensions in mm
5 | Bore for locating pin (cover pin assembled according to DIN 24 342) |
6 | Information on porting pattern NG 16: Length L1 (axis x–y bores) is 80 mm |
8 | Bore for locating pin at function as main pressure relief valve (reposition cover pin for assembly accordingly) |
NG 80, 100
Dimensions in mm
5 | Bore for locating pin (cover pin assembled according to DIN 24 342) |
Mounting screws (included in the scope of delivery) | |||
Hexagon socket head cap screw according to DIN 912-10.9 | |||
NG | Quantity | Dimensions | Tightening torque in Nm |
16 | 4 | M 8 x 45 | 32 |
25 | 4 | M 12 x 50 | 110 |
32 | 4 | M 16 x 60 | 270 |
40 | 4 | M 20 x 70 | 520 |
50 | 4 | M 20 x 80 | 520 |
63 | 4 | M 30 x 100 | 1800 |
80 | 8 | M 24 x 120 | 900 |
100 | 8 | M 30 x 120 | 1800 |
Thread dimensions of orifice | |||
D orifices at type ..DBE.. NG 25 to 63 | M8 x 1 conical | ||
Orifices for NG 80, 100 | M8 x 1 conical (A**, B**, P**, D**) or G 1/4 (X**, F**) | ||
other installed orifices | M6 conical |

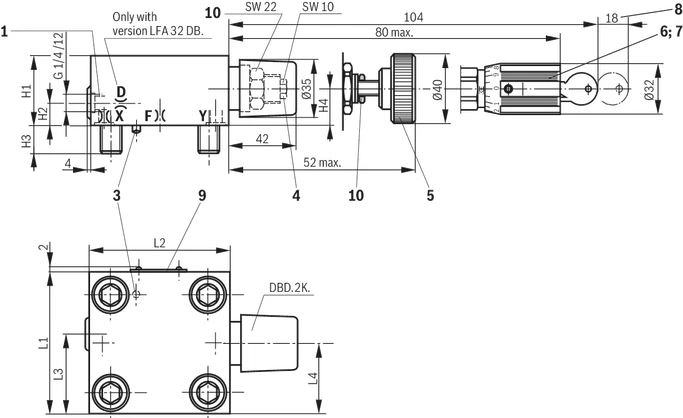

Dimensions in mm
1 | Port X optionally as threaded port |
2 | Port Y optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |
1 | Port X optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |
1 | Port X optionally as threaded port |
2 | Port Y optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |
1 | Port X optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |

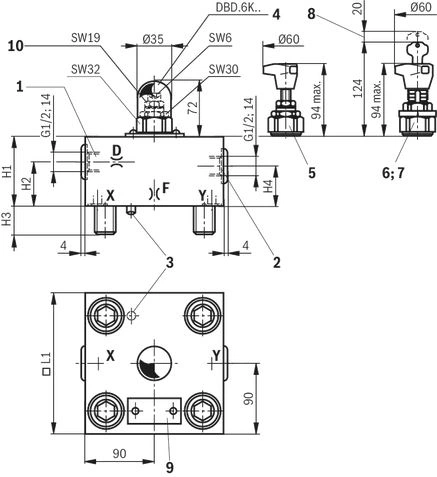

Dimensions in mm
1 | Port X optionally as threaded port |
2 | Port Y optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |
1 | Port X optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |

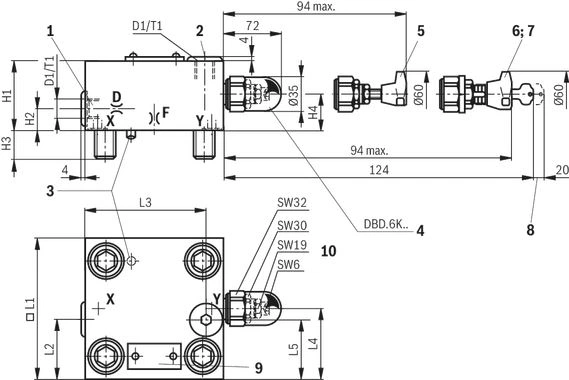

Dimensions in mm
1 | Port X optionally as threaded port |
2 | Port Y optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |
1 | Port X optionally as threaded port |
3 | Locating pin |
4 | Adjustment type "2" |
5 | Adjustment type "1" |
6 | Adjustment type "3" |
7 | Adjustment type "4" |
8 | Space required to remove the key |
9 | Name plate |
10 | Lock nut |
NG | ØD1H7 | ØD2 | ØD3/(ØD3*) 1) | ØD4H7 | ØD5 2) | ØD6 | ØD7H13 | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | L1 | L2 | L3 | L4 | L5 | W | Ro 3) | Ru 3) | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
16 | 32 | 16 | 16 25 | 25 | M8 | 4 | 4 | 42.5 | 56 | + 0.1 | 43 | + 0.2 | 20 | 11 | 2 | 20 | 2 | 0.5 | 65 80 | 46 | 23 | 25 | 10.5 | 0.05 | 2 | 1 |
25 | 45 | 25 | 25 32 | 34 | M12 | 6 | 6 | 57 | 72 | + 0.1 | 58 | + 0.2 | 25 | 12 | 2.5 | 30 | 2.5 | 1 | 85 | 58 | 29 | 33 | 16 | 0.05 | 2 | 1 |
32 | 60 | 32 | 32 40 | 45 | M16 | 8 | 6 | 68.5 | 85 | + 0.1 | 70 | + 0.2 | 35 | 13 | 2.5 | 30 | 2.5 | 1.5 | 102 | 70 | 35 | 41 | 17 | 0.1 | 2 | 1 |
40 | 75 | 40 | 40 50 | 55 | M20 | 10 | 6 | 84.5 | 105 | + 0.1 | 87 | + 0.3 | 45 | 15 | 3 | 30 | 3 | 2.5 | 125 | 85 | 42.5 | 50 | 23 | 0.1 | 4 | 1 |
50 | 90 | 50 | 50 63 | 86 | M20 | 10 | 8 | 97.5 | 122 | + 0.1 | 100 | + 0.3 | 45 | 17 | 3 | 35 | 4 | 2.5 | 140 | 100 | 50 | 58 | 30 | 0.1 | 4 | 1 |
63 | 120 | 63 | 63 80 | 90 | M30 | 12 | 8 | 127 | 155 | + 0.1 | 130 | + 0.3 | 65 | 20 | 4 | 40 | 4 | 3 | 180 | 125 | 62.5 | 75 | 38 | 0.1 | 4 | 1 |
80 | 145 | 80 | 80 100 | 110 | M24 | 16 | 10 | 170.5 | 205 | + 0.1 | 175 | + 0.4 | 50 | 25 | 5 | 40 | 5 | 4.5 | 250 | 200 | - | - | - | 0.1 | 4 | 1 |
1) | Due to the use of a bore with ØD3*, port B protrudes over the upper limit of the area intended in ISO 7368. This is, however, possible due to the sealing concept and reduces the pressure loss during flow through the valve. Thus, we recommend a bore with ØD3*. |
2) | Mounting thread for version "/12" see data sheet 08936 |
3) | Maximum dimension |
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
NG | Ø Orifice X** 1) | Ø Orifice F** 1) | Ø Orifice D** | H1 | H2 | H3 | H4 | L1 | L2 | L3 | L4 |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
16 | 0.8 | 1 | - | 40 | 17 | 15 | 19 | 65 | 80 | 36.5 | 32.5 |
25 | 0.8 | 1 | - | 40 | 19 | 24 | 19 | 85 | 85 | 49 | 45.5 |
32 | - | 1.2 | 0.8 1) | 50 | 26 | 28 | 26 | 100 | 100 | 56.5 | 53 |
1) | Orifice Ø, orifice M6 conical |
Dimensions in mm
NG | Ø Orifice F** 1) | Ø Orifice D** 1) | D1 | H1 | H2 | H3 | H4 | ▢ L1 | L2 | L3 | L4 | L5 | T1 |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
40 | 1.2 | 1 | G1/4 | 60 - | 28 - | 32 | 27 | 125 | 69 | 89 | 76 | 60 | 12 |
50 | 1.5 | 2 | G1/2 | 68 - | 19.5 - | 34 | 35 | 140 | 80 | 105 | 84 | 70 | 14 |
63 | 2 | 2.5 | - | 82 - | 30 - | 50 | 45.5 | 180 | - | - | - | - | - |
1) | Orifice Ø, orifice M6 conical |
NG | Ø Orifice X** 1) | Ø Orifice F** 1) | D2 | H1 | H2 | H3 | H4 | L8 |
mm | mm | mm | mm | mm | mm | mm | mm | |
80 | 3 | 2.5 | 250 | 100 | 38 | 45 | 58 | 50 |
100 | 3 | 2.5 | 300 | 100 | 38 | 51 | 58 | 50 |
1) | Orifice Ø, orifice G 1/4 conical |
Downloads
2-way cartridge valves, pressure functions Data Sheet | RE21050 | 2003-02-01 | English | PDF | 893k Product Groups: Logic elements - pressure function Type LC (cartridge valves), type LFA (control cover) |
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.
Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.
Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.
Если у вас возникнут вопросы по оформлению заказа, вы можете обратиться к нам, позвонив по телефону +7 495 137-07-02 или связавшись по электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.
Мы предоставляем официальную гарантию на всю поставляемую продукцию Bosch Rexroth.
Гарантийный сервис включает в себя:
- Приемку продукции в сервисный центр для выполнения диагностики дефекта.
- Ремонт продукции.
- Доставку продукции до объекта заказчика.
- Телефон: +7 495 137-07-02
- E-mail: support@boschrexroth-russia.ru
Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.
Специалист по решениям Bosch Rexroth:
- Окажет профессиональную консультацию.
- Сообщит вашу цену на продукцию.
- Сообщит информацию об актуальных акциях и скидках.
- Подскажет ближайшее к вам отделение с наличием нужной продукции.
- Согласует с вами возможную дату и время доставки.
Нет отзывов об этом товаре.
