Valve amplifiers for high-response valves VT-VRPA2-537-1X/V0/RTP
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Component series 1X
- Analog, Euro-card format
- For valves: 4WRP 10
Features
- Controlled output stage
- Closed-loop position control with PID characteristics
- Fast energization and fast deletion for short actuating times
- Enable input
- Short-circuit-proof outputs
- Adjustable ramp time, sensitivity and zero point
- Cable break detection for actual value cable
Type code
| 01 | Valve amplifier for high-response valves with two solenoids, analog, euro-card format | VT-VRPA2 |
| 02 | For valves: 4WRP 10 | 537 |
| 03 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| 04 | Version: standard | V0 |
| 05 | Adjustable ramp that can be switched off | RTP |
| 01 | Valve amplifier for high-response valves with two solenoids, analog, euro-card format | VT-VRPA2 |
| 02 | For valves: 4WRP 10 | 537 |
| 03 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| 04 | Version: standard | V0 |
| 05 | Adjustable ramp that can be switched off | RTP |
Technical data
General
| Component series | 1X | ||
| Material number | Data sheet | 1819929075 | |
| Type of electronics | Analog | ||
| Design | Euro-card | ||
Voltage supply
| Operating voltage | Nominal | U | V | 24 |
| Lower limit value | UB(t)min | V | 21 | |
| Upper limit value | UB(t)max | V | 40 | |
| Ripple 1) | % | < 10 | ||
| Power consumption | P | VA | 60 | |
| Current consumption | max. | Imax | A | 2.5 |
| 1) | In case of ripple > 10 %, an upstream smoothing capacitor is required (recommendation: capacitor module VT 11110) |
Analog inputs
| Command value source | Potentiometer 10 kΩ supplied with 10 V internal reference voltage, external signal source | ||||
| Command value | Voltage | Differential input | U | V | 0 ... ±10 |
| Input resistance | R | kΩ | ≥ 100 | ||
| grounded on one side, first input | Ucommand | V | 0 … ±10 | ||
| grounded on one side, second input | Ucommand | V | 0 … ±10 | ||
| Actual value valve | Voltage | U | V | 10.2 (7.8 kHz) | |
Digital inputs
| Enable 1) | On (active) | U | V | 8.5 ... 40 |
| Ramp switch-off | U | V | 8.5 ... 40 | |
| 1) | RE = 100 kΩ |
Analog outputs
| Test point 1) | Actual value | U | V | 0 ... ±10 |
| 1) | Values for potentiometers in end position (cw) and for "zero potentiometer" in central position |
Digital outputs
| Cable break error message | No error 1) | UB | V | 24 |
| Error | UB | V | 0 | |
| Ramp | timeout 1) | UB | 24 V | |
| no timeout | UB | 0 V |
| 1) | Imax = 100 mA |
Solenoid outputs
| Solenoid current | max. | Imax | A | 3.7 |
| Solenoid output | Other properties | Clocked current controller | ||
| Cable length | for 1.5 mm2 | L | m | 20 |
| for 2.5 mm2 | L | m | 50 |
Position transducer
| Cable length | Position transducer | L | 50 m at 100 pF/m |
Adjustment options
| Zero point calibration setting range | % | ± 10 | |
| Zero point calibration information | Set at Ue = ±0,3 ... ±0,5 V | ||
| Range sensitivity adjustment | % | 50 ... 100 |
Displays
| LED display | Green 1 | Enable | |
| Yellow 1 | Cable break actual value | ||
| Yellow 2 | Ramp off | ||
| Red | UB too low |
Other information
| Reference voltage | Potentiometer supply | U | V | ±10 (Imax = 50 mA) |
| Special features | Short-circuit-proof output, cable break detection for actual value line, position control with PID behavior, pulsed output stage, fast energization and fast deletion for short actuating times, ramps with quadrant recognition, compensation of the dead zone in central valve position, ramps that can be switched off | |||
| Anschlussart | 32-pin male connector, DIN 41612, form F | |||
| Ambient temperature range | ϑ | °C | 0 … 70 | |
| Storage temperature range | ϑ | °C | -20 … 70 | |
| Weight | m | kg | 0.35 | |
(For applications outside these values, please consult us!)
Operating and display elements

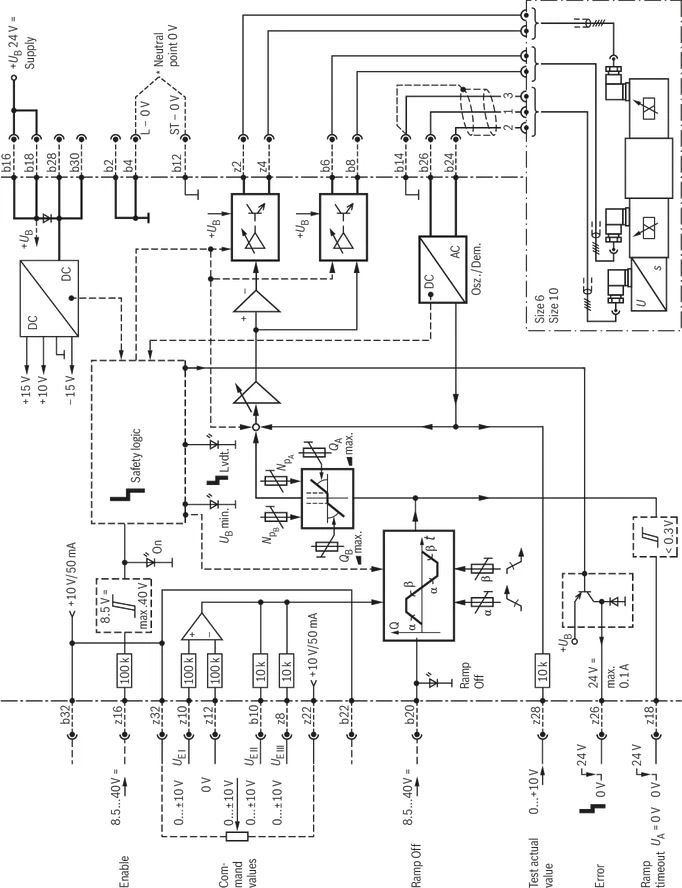

Symbols/Circuit diagrams

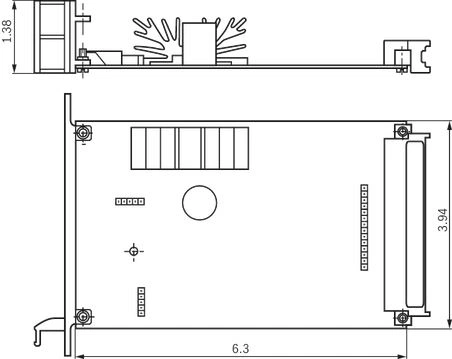

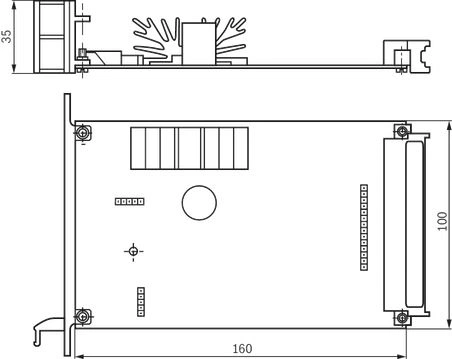

Dimensions
Type E-4SE 6 …BG12-12X.Z2/...
Dimensions in mm
Dimensions in mm
Project planning information
The amplifier card may only be unplugged and plugged when de-energized.
The distance to aerial lines, radios, and radar systems has to be at least 1 m.
Do not lay solenoid and signal lines near power cables.
For signal lines and solenoid conductors, we recommend using shielded cables.
The cable shield must be connected to the control cabinet extensively and as short as possible.
The valve solenoid must not be connected to free-wheeling diodes or other protection circuits.
The cable lengths and cross-sections specified in the technical data must be complied with.
