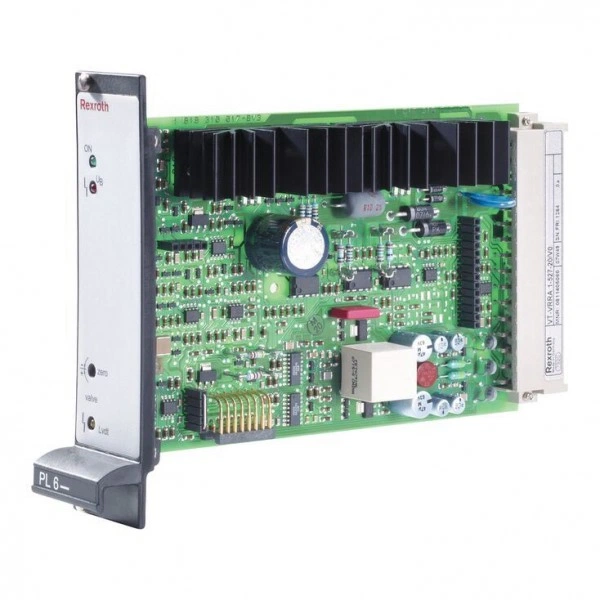

Valve amplifiers for high-response valves VT-VRPA1-537-2X/V0
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Component series 2X
- Analog, Euro-card format
- For valves: 5WRP10...L-2X
Features
- Controlled output stage
- Closed-loop position control with PID characteristics
- Fast energization and fast deletion for short actuating times
- Enable input
- Short-circuit-proof outputs
- Adjustable zero point
- Cable break detection for actual value cable
Type code
| 01 | Valve amplifier for high-response valves with one solenoid, analog, euro-card format | VT-VRPA1 |
| 02 | For valves: 5WRP10...L-2X | 537 |
| 03 | Component series 20 ... 29 (20 ... 29: unchanged technical data and pin assignment) | 2X |
| 04 | Version: standard | V0 |
| 01 | 02 | 03 | 04 | |||
| VT-VRPA1 | ‒ | 537 | ‒ | 2X | / | V0 |
Technical data
General
| Component series | 2X | ||
| Material number | Data sheet | 1819929035 | |
| Type of electronics | Analog | ||
| Design | Euro-card | ||
Voltage supply
| Operating voltage | Nominal | U | V | 24 |
| Lower limit value | UB(t)min | V | 21 | |
| Upper limit value | UB(t)max | V | 40 | |
| Ripple 1) | % | < 10 | ||
| Power consumption | P | VA | 55 | |
| Current consumption | max. | Imax | A | 2.7 |
| 1) | In case of ripple > 10 %, an upstream smoothing capacitor is required (recommendation: capacitor module VT 11110) |
Analog inputs
| Command value source | Potentiometer 10 kΩ supplied with 10 V internal reference voltage, external signal source | ||||
| Command value | Voltage | Differential input | U | V | 0 ... ±10 |
| Input resistance | R | kΩ | ≥ 100 | ||
| position value 1) | Voltage | U | V | 0 … ±10 | |
| 1) | RE = 20 kΩ |
Digital inputs
| Enable 1) | On (active) | U | V | 8.5 ... 40 |
| 1) | RE = 100 kΩ |
Digital outputs
| Cable break error message | No error 1) | UB | V | 24 |
| Error | UB | V | 0 |
| 1) | Imax = 100 mA |
Solenoid outputs
| Solenoid current | max. | Imax | A | 3.7 |
| Solenoid output | Other properties | Clocked current controller | ||
| Cable length | for 1.5 mm2 | L | m | 20 |
| for 2.5 mm2 | L | m | 60 |
Position transducer
| Line cross-section | Position transducer line | A | 4 x 0.5 mm2 (shielded) | |
| Position transducer supply | U | V | ±15 | |
Adjustment options
| Zero point calibration setting range | % | ± 5 |
Displays
| LED display | Green 1 | Enable | |
| Yellow 1 | Cable break actual value | ||
| Red | UB too low |
Other information
| Reference voltage | Potentiometer supply | U | V | ±10 (Imax = 10 mA) |
| Special features | Short-circuit-proof outputs, cable break detection for actual value line, position control with PID behavior, fast energization and fast deletion for short actuating times | |||
| Anschlussart | 32-pin male connector, DIN 41612, form F | |||
| Ambient temperature range | ϑ | °C | 0 … 70 | |
| Storage temperature range | ϑ | °C | -20 … 70 | |
| Weight | m | kg | 0.37 | |
(For applications outside these values, please consult us!)

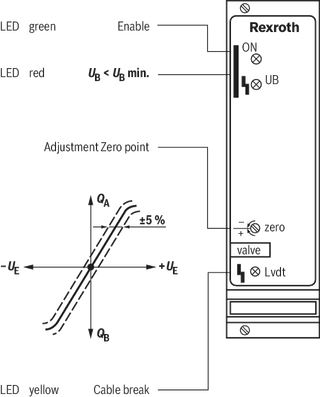

Operating and display elements
Symbols/Circuit diagrams

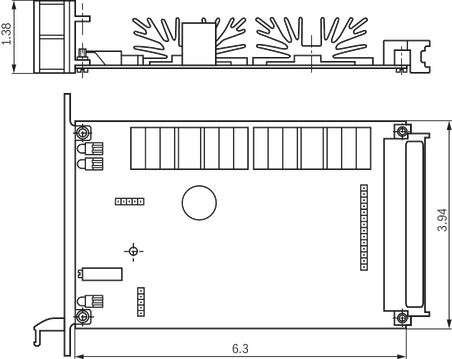

Dimensions
Project planning information
load errorMounting
load errorDownloads
 | 电气放大器 Data Sheet | RC30041 | 2012-02-29 | Chinese | PDF | 557k Product Groups: Valve amplifiers VT-VRRA1，VT-VRPA1 |
| Elektrische Verstärker Data Sheet | RD30041 | 2012-02-28 | German | PDF | 367k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0, VT-VRPA1-5...-2X/V0 |
| Electric amplifiers Data Sheet | RE30041 | 2012-02-28 | English | PDF | 361k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0, VT-VRPA1-5...-2X/V0 |
| Amplificateurs électriques Data Sheet | RF30041 | 2012-02-28 | French | PDF | 363k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0, VT-VRPA1-5...-2X/V0 |
| Amplificador eléctrico Data Sheet | RS30041 | 2012-02-28 | Spanish | PDF | 360k Product Groups: Valve amplifiers VT-VRRA1-5...-2X/V0, Tipo VT-VRPA1-5...-2X/V0 |
