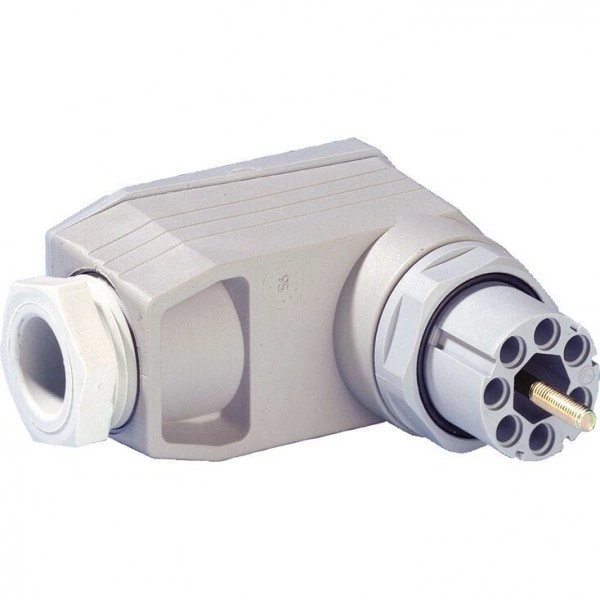

Mating connectors for mechanical position switches, mechanical pressure switches and valves with central connection with connector “K6” and “DK6L”, 6-pole + PE 7P Z6

Артикул: RX7045

В наличии

Mating connectors for mechanical position switches, mechanical pressure switches and valves with central connection with connector “K6” and “DK6L”, 6-pole + PE 7P Z6

Name: Mating connectors for mechanical position switches, mechanical pressure switches and valves with central connection with connector “K6” and “DK6L”, 6-pole + PE 7P Z6
Brand: Bosch Rexroth
SKU: RX7045

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Mating connectors for mechanical position switches, mechanical pressure switches and valves with central connection with connector “K6”

Technical data

Mating connector	Short designation		7PZ6
	Design		no code (see unit dimensions)
	Ambient temperature	°C	-40 … +90
	Protection class according to EN 60529		IP65 with mating connector mounted and fitted
	Number of poles		6 + PE
	Terminal area for line diameter	mm	7 … 9
	Wire cross-section, max.	mm²	1.5
	Anschlussart		Crimping connection (crimping contacts included in the scope of delivery)
	Standard		DIN EN175201-804
	Certification/conformity		-
	Derating		-

(For applications outside these values, please consult us!)

Symbols/Circuit diagrams

6-pole + PE

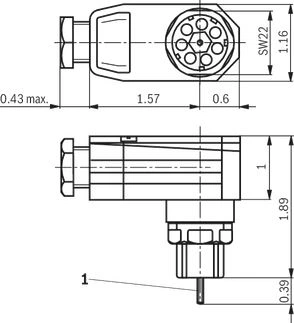

Dimensions

Dimensions in mm

3/2 directional seat valve – version "CK"

Dimensions in mm

1	Mounting screw M3, tightening torque MA = 0.5 Nm

Downloads

	Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet \| RD08006 \| 2021-05-01 \| German \| PDF \| 1.4MB Product Groups: Mating connectors and cable sets
	Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet \| RE08006 \| 2021-05-01 \| English \| PDF \| 1.5MB Product Groups: Mating connectors and cable sets
