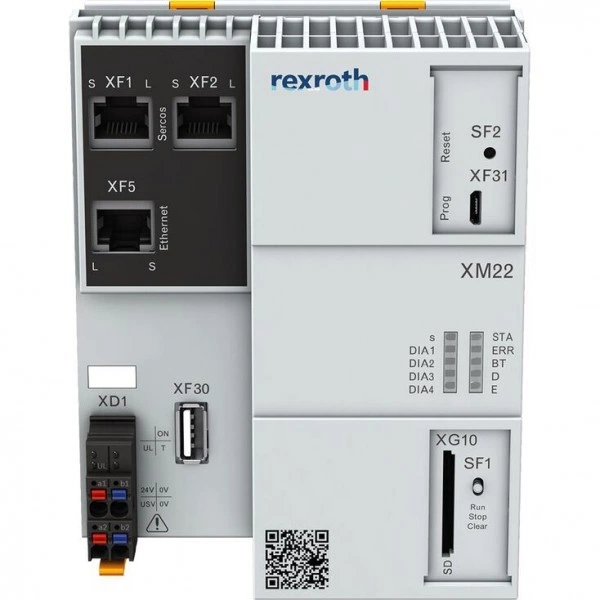

Embedded Controls XM22
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- CPU: Intel ATOM E660 1300 MHz
- On-board Sercos master with 250 μs cycle time
- Gigabit Ethernet, USB host and device, SD card slot, diagnostic LED
- Modular expansion options with extension and I/O modules
- Ideal for centralized and decentralized controller topologies
- Scaled in the scope of performance and functions based on the latest chip technology
- Robust design with extended temperature range
- Simple, flexible I/O integration
- Optionally expandable with extension modules (communication, safety)
- Protection type IP20
Features
- Simple commissioning with First Touch web server
- Protection type IP20
- Extended temperature range from -25 °C to +60 °C
- Robust and shock-resistant electromechanics up to 30 g
Product description
The XM control platform is available for a variety of Motion Logic applications. The local connection of the modules from the new I/O family S20 expands the control flexibly for high-performance process connection. Decentralized I/Os, drives and other system peripherals come connected standard via Sercos. Optional extension modules open up further integration options. The service-friendly design is an easy way to reduce installation and commissioning costs.
Technical data
Processor
| Type | XM2200.01-01 | |
| CPU | CPU: Intel ATOM E620 600 MHz | |
| Clock | MHz | 1300 |
Memory
| Type | XM2200.01-01 | |
| Integrated hard disk | GB | 1 |
| Application (RAM) | MB | 512 |
| Remanent memory | kB | 128 |
Connection data
| Type | XM2200.01-01 | ||
| Function extension | Connection of XM extension modules XFE01-1-FB-xx via controller bus base module XA-BS02 (included in scope of delivery) | ||
| I/O extension | Connection of S20 modules via controller bus base module XA-BS01 or XA-BS02 (included in scope of delivery) | ||
Interfaces
| Type | XM2200.01-01 | ||
| Type | Engineering port (RJ45) | 1 x gbit Ethernet | |
| USB | 1 x USB host 1 x USB device | ||
| SD card | 1 x slot for SD card | ||
| GB | 1 | ||
| Fieldbus system and safety | On-board (2 x RJ45) | Sercos (Master) Alternativ: EtherCAT I/O (Master) | |
| Via extension modules | Sercos (Cross communication) PROFINET RT (Controller/Device) EtherNet/IP (Scanner/Adapter) PROFIBUS DP (Master/Slave) SafeLogic | ||
Electrical data
| Type | XM2200.01-01 | |
| Supply voltage U | V DC 1) | 24 |
| -25/+30 % | ||
| 1) | Including all tolerances, including ripple |
Mechanical tests
| Type | XM2200.01-01 | |
| Vibration resistance | g | 5 |
| Shock | g | 30 |
General data
| Type | XM2200.01-01 | |
| Ambient temperature (operation) | °C | -25 ... +60 |
| Ambient temperature (storage) | °C | -30 ... +85 |
| Permissible relative humidity (operation) | 5 % ... 95 % acc. to DIN EN 61131-2 | |
| Protection type | IP20 | |
| Protection class | III | |
| Operating elevation | m | 4700 |
| Weight | kg | 0.48 |
Components
S20 (IP20)
I/O system for the control cabinet
S20 (IP20)
I/O system for the control cabinet
- Compact, modular, and simple
- Space-saving I/O technology for DIN rail mounting
- Individually combinable modules
- Innovative assembly and installation concept
I/O system for intelligent field installation
S67E (IP65/IP67)
I/O system for intelligent field installation
S67E (IP65/IP67)
- Robust and reliable
- IO-Link according to specification V1.1
- Gateways for all relevant fieldbus systems
- Fast and perfect installation
- Easy assembly
Extension modules
XFE
Extension modules
XFE
- Expansion of connectivity with additional interfaces
- Expansion of the standard control to the SafeLogic safety controller
Systems
Motion control system MLC, based on embedded control XM
MLC – XM
Motion control system MLC, based on embedded control XM
MLC – XM
- Sercos Onboard, PROFIBUS and Multi-Ethernet optional
- Easy extension of functions with extension modules (communication, technology)
- Simple I/O integration through direct connection of S20 I/O modules or by integrating decentralized I/O stations via different fieldbuses
- Fast I/O real-time data processing in various operating modes (asynchronous, isochronous, cycle-synchronous)
- PLC cycle times up to 250 µs
PLC system ILC, based on embedded control XM
ILC – XM
PLC system ILC, based on embedded control XM
ILC – XM
- EtherCAT IO and Sercos on-board
- PROFINET IO, EtherNet/IP, PROFIBUS andMultiEthernet optional
- Easy extension of functions with extension modules (communication, technology)
- Simple I/O integration through direct connection of S20 I/O modules or by integrating decentralized I/O stations via different fieldbuses
- Fast I/O real-time data processing in various operating modes (asynchronous, isochronous, cycle-synchronous)

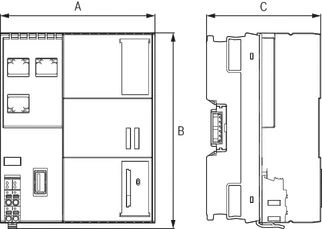

Dimensions
Dimensions
| Type | XM2200.01-01 | |
| A | mm | 100 |
| B | mm | 126.3 |
| C | mm | 74.1 |
Certification
Certificates
| Type | XM2200.01-01 | |
| Norms and Standards | CE, UL, CSA, RoHS2 | |
| Marine and offshore 1) | Certificates DNV Certificates RINA | |
| 1) | Available for all systems and solutions from Rexroth |
