Description
- RT Ethernet (PROFINET, EtherNet/IP)
- Modular expansion of an XM control
- Extended temperature range from -25 °C to +60 °C
- Application in marine areas and areas at risk from explosion
- Protection type IP20

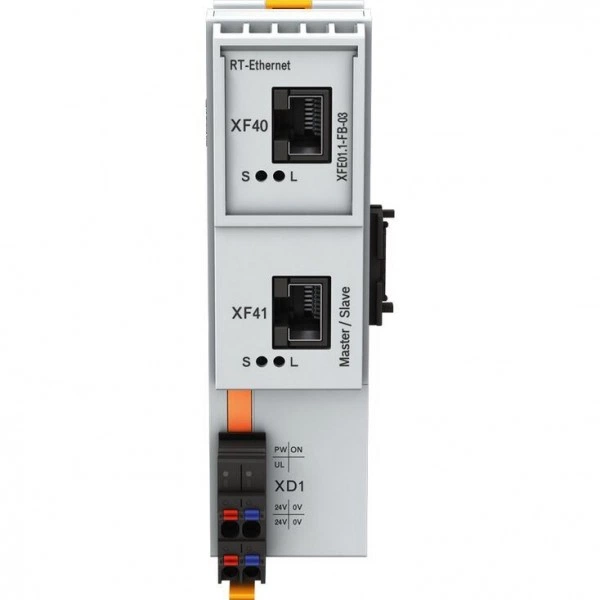

Product description
With the extension modules, it is possible to extend an XM control with additional communication interfaces. The extension modules can be easily connected to the control side by side.
Technical data
General data
| Type | XFE01.1-FB-03 | XFE01.1-FB-04 | |
| Ambient temperature (operation) | °C | -25 ... +60 | -25 ... +60 |
| Permissible relative humidity (operation) | 5 % ... 95 % acc. to DIN EN 61131-2 | ||
| Protection type | IP20 | ||
| Weight | g | 120 | 120 |
Interfaces
| Type | XFE01.1-FB-03 | XFE01.1-FB-04 | |
| Fieldbus system | PROFINET RT (Controller/Device) EtherNet/IP (Scanner/Adapter) | PROFINET RT (device) EtherNet/IP (adapter) | |
Electrical data
| Type | XFE01.1-FB-03 | XFE01.1-FB-04 | |
| Supply voltage U | V DC | 24 | 24 |
| Umin ... Umax | 18 V ... 31.2 V (including all tolerances, including ripple) | ||
| Residual ripple | % | 5 | 5 |
Mechanical tests
| Type | XFE01.1-FB-03 | XFE01.1-FB-04 | |
| Vibration resistance | g | 5 | 5 |
| Shock | g | 30 | 30 |
Components
Embedded Controls
XM21
Embedded Controls
XM21
- CPU: Intel ATOM E620 600 MHz
- On-board Sercos master with 250 μs cycle time
- Gigabit Ethernet, USB host and device, SD card slot, diagnostic LED
- Modular expansion options with extension and I/O modules
- Ideal for centralized and decentralized controller topologies
- Scaled in the scope of performance and functions based on the latest chip technology
- Robust design with extended temperature range
- Simple, flexible I/O integration
- Optionally expandable with extension modules (communication, safety)
- Protection type IP20
Embedded Controls
XM22
Embedded Controls
XM22
- CPU: Intel ATOM E660 1300 MHz
- On-board Sercos master with 250 μs cycle time
- Gigabit Ethernet, USB host and device, SD card slot, diagnostic LED
- Modular expansion options with extension and I/O modules
- Ideal for centralized and decentralized controller topologies
- Scaled in the scope of performance and functions based on the latest chip technology
- Robust design with extended temperature range
- Simple, flexible I/O integration
- Optionally expandable with extension modules (communication, safety)
- Protection type IP20
Dimensions
Dimensions
| Type | XFE01.1-FB-03 | XFE01.1-FB-04 | |
| A | mm | 35 | 35 |
| B | mm | 126.3 | 126.3 |
| C | mm | 52 | 52 |
Certification
Certificates
| Type | XFE01.1-FB-03 | XFE01.1-FB-04 | |
| Norms and Standards | CE/UL/CSA Marine | ||
Ordering codes
Downloads
