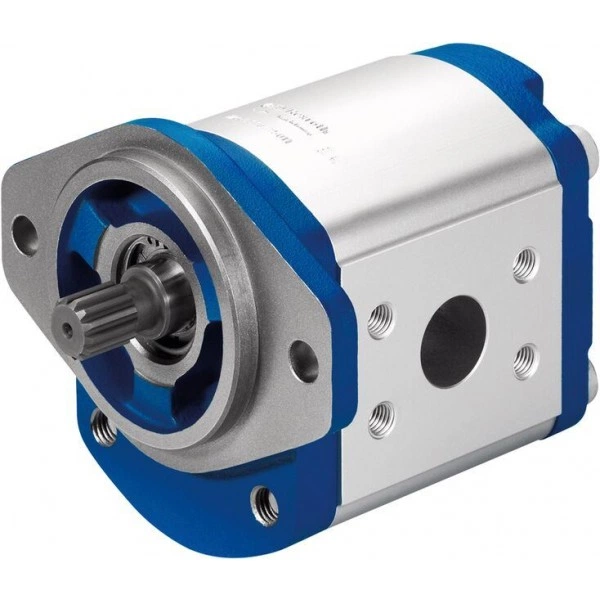

External gear pump High Performance AZPG

Затрудняетесь с выбором?

Оставьте ваш телефон, и наш специалист перезвонит вам

Артикул: RX9975

External gear pump High Performance AZPG

Name: External gear pump High Performance AZPG
Brand: Bosch Rexroth
SKU: RX9975
Price: 2850 RUB
Availability: InStock

Доступно к заказу

Цена по запросу

Запросить КП

Получи КП от 5 лучших поставщиков

С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Description

Platform G
Fixed displacement
Size 22 … 100
Continuous pressure up to 250 bar
Intermittent pressure up to 280 bar

Features

Consistent high quality based on large-volume production
Long service life
Slide bearings for high loads
Drive shafts according to ISO or SAE and customer-specific solutions
Line ports: connection flange or screw thread
Combination of several pumps possible

Product description

General information

It is the central task of external gear pumps to convert mechanical energy (torque and speed) into hydraulic energy (flow and pressure). To reduce heat losses, Rexroth’s external gear units offer very high efficiencies. They are realized by pressure-dependent gap sealing and highly precise production technology.

Rexroth external gear pumps are built in four frame sizes: Platform B, F, N and G. Within each platform different sizes can be realized by different gear widths. The pumps are available in the versions Standard, High-Performance, SILENCE und SILENCE PLUS. Further configuration variants are given by different flanges, shafts, valve arrangements and multiple pump combinations.

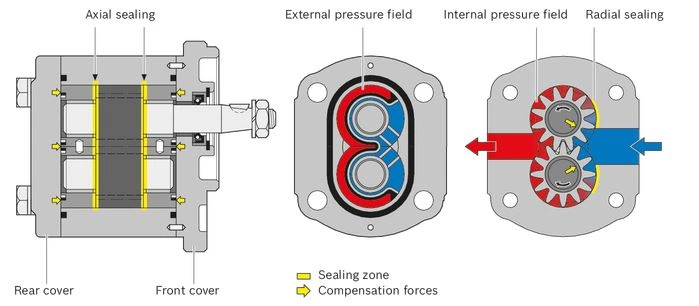

Construction

The external gear pump consists essentially of a pair of gear wheels supported in bearing bushings and the housing with a front cover and an end cover.

The drive shaft protrudes from the front cover where it is usually sealed by the shaft seal. The bearing forces are absorbed by slide bearings. These bearings were designed for high pressures and have excellent emergency running properties, especially at low rotational speeds.

The gear wheels have 12 teeth. This keeps both flow pulsation and noise emission to a minimum. The sealing of the pressure chambers is achieved by forces depending on the working pressure. This ensures optimum efficiency. The working pressure generated in the gear chambers is transferred to the outside of the bearing bushings in specifically designed pressure fields in such a way that they are pressed against the gears and seal them up. The pressurized compression areas are limited by special seals. The seal in the area between the gear teeth and the housing is ensured by the smallest of gaps that are set depending on the pressure between the gear teeth and housing.

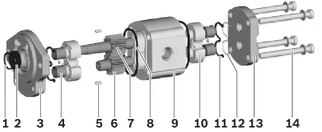

External gear pump layout

1	Retaining ring	8	Housing seal ring
2	Shaft seal	9	Pump housing
3	Front cover	10	Bearing bushing
4	Slide bearings	11	Axial field seal
5	Centering pin	12	Supporting element
6	Gear wheel	13	Rear cover
7	Drive shaft	14	Torx screws

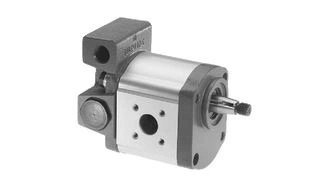

Gear pumps with integrated valves

In order to reduce piping complexity, a flow control valve or pressure-relief valve can be integrated in the cover of the gear pump. Such solutions are used, for instance, for the hydraulic oil supply of power steering systems. The pump delivers a constant flow or maximum

pressure irrespective of the rotational speed. The residual flow distributed externally to other consumers.

3-way flow control valve, residual flow returned in suction line

qconst = 2 to 30 l/min

3-way flow control valve, residual flow distributed externally, loadable

qconst = 2 to 30 l/min

3-way flow control valve with pressure relief valve, residual flow returned in suction line

qconst = 2 to 30 l/min; p1 = 100 to 180 bar

Pressure relief valve, pressure discharge into suction line

p1 = 5 to 250 bar

Type code

Note

Not all of the variants according to the type code are possible.

Please select the desired pump with the help of the selection table (preferred types ) or after consultation with Bosch Rexroth.

Special options are available on request.

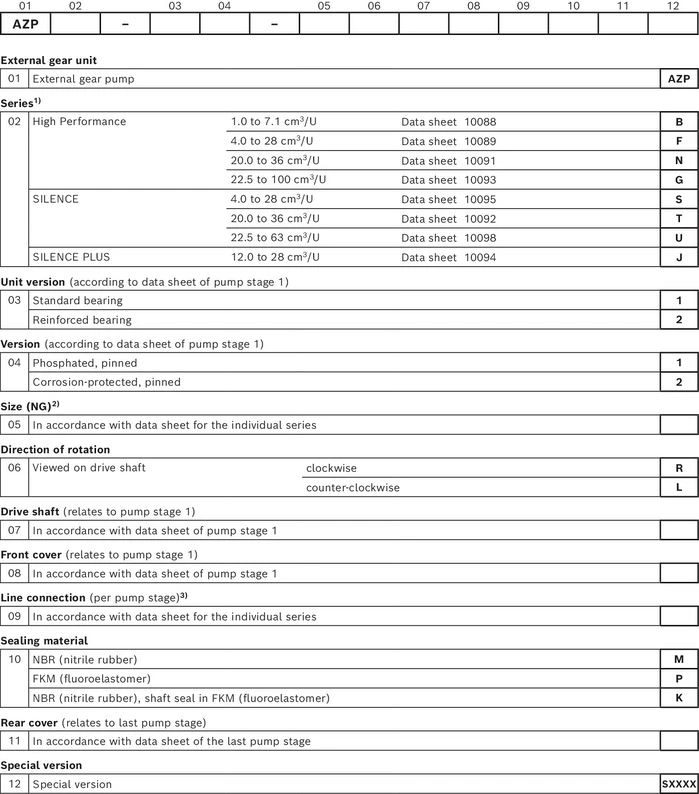

Type code multiple pump

1)	A letter is to be selected for each pump stage, e.g. 3-way pump AZPJ + AZPJ + AZPB: JJB
2)	A numerical value is to be selected for each pump stage, e.g.3-way pump 028/016/2.0
3)	A numerical value is to be selected for each pump stage, e.g.3-way pump 202020

Note

Not all of the variants according to the type code are possible.

Please select the desired pump with the help of the selection table (preferred types ) or after consultation with Bosch Rexroth.

Special options are available on request.

Example 4-way pump:

AZPG…032… + AZPG…022… + AZPJ…016… + AZPJ…012…

Technical data

Table of values

Size					22	25	28	32	36	40	45	50	56	63	70	80	100
Series					Series 2x
Displacement geometric, per revolution			Vg	cm³	22.5	25	28	32	36	40	45	50	56	63	70	80	100
Pressure at suction port S 1)		absolute	pe	bar	0.7 ... 3
Maximum continuous pressure			p1	bar	250	250	250	250	250	250	250	220	195	170	120	90	80
Maximum intermittent pressure 2)			p2	bar	280	280	280	280	280	280	280	250	225	200	150	120	100
Maximum pressure peaks			p3	bar	300	300	300	300	300	300	300	280	250	230	180	150	120
Minimum speed at	ν = 12 mm²/s	p < 100 bar	nmin	rpm	500	500	500	500	500	500	500	500	500	500	500	500	500
		p = 100 bar … 180 bar	nmin	rpm	1200	1200	1000	1000	1000	800	800	800	800	800	800	800	800
		p = 180 bar … p2	nmin	rpm	1400	1400	1400	1400	1200	1200	1000	1000	1000	1000	1000	1000	1000
	ν = 25 mm²/s	at p2	nmin	rpm	600	600	500	500	500	500	500	500	500	500	500	600	800
Maximum speed		at p2	nmax	rpm	3000	3000	3000	2800	2800	2800	2600	2600	2300	2300	2200	2000	1700

1)	In the case of tandem pumps, the suction-side pressure difference between the individual pump stages must not exceed 0.5 bar.
2)	Limited service life with threaded line ports and p2 > 210 bar

Note

Safety requirements pertaining to the whole systems are to be observed.

Please contact us for applications with frequent load changes.

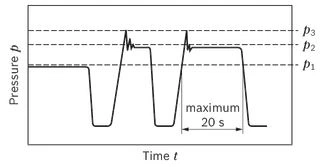

Pressure definition

	p1: Continuous pressure max.
	p2: Intermittent pressure max.
	p3: Pressure peaks max.

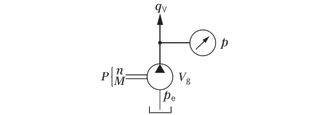

Determining the operating characteristics
Flow		[l/min]
Torque		[Nm]
Power		[kW]

Key
Vg	Displacement per revolution [cm3]
Δp	Differential pressure [bar]
n	Rotational speed [rpm]
ηv	Volumetric efficiency
ηhm	Hydraulic-mechanical efficiency
ηt	Total efficiency (ηt = ηv • ηhm)

Note

You can find diagrams for a rough calculation in chapter "Diagrams / Characteristic curves".

General technical data

Weight	m	kg	See chapter Dimensions
Installation position			No restrictions
Mounting type			Flange or through-bolting with spigot
Line connections			See chapter Dimensions
Direction of rotation, viewed on drive shaft			Clockwise or counter-clockwise, the pump may only be driven in the direction indicated
Drive shaft loading			Axial and radial forces only after consultation
Ambient temperature range	t	°C	-30 to +80 with NBR seals (NBR = nitrile rubber)
Ambient temperature range	t	°C	-20 to +110 with FKM seals (FKM = fluoroelastomer)

Hydraulic fluids

The external gear unit is designed for operation with HLP mineral oil according to DIN 51524, 1-3. Under higher load, however, Bosch Rexroth recommends at least HLP compliant with DIN 51524 Part 2.

See the following data sheet for application instructions and requirements for selecting hydraulic fluid, behavior during operation as well as disposal and environmental protection before you begin project planning:

90220: Hydraulic fluids based on mineral oils and related hydrocarbons

Other hydraulic fluids on request.

Selection of hydraulic fluid

Bosch Rexroth evaluates hydraulic fluids on the basis of the Fluid Rating according to the technical data sheet 90235.

Hydraulic fluids with positive evaluation in the Fluid Rating are provided in the following technical data sheet:

90245: Bosch Rexroth Fluid Rating List for Rexroth hydraulic components (pumps and motors)

The hydraulic fluid should be selected so that the operating viscosity in the operating temperature range is within the optimum range (νopt; see selection diagram).

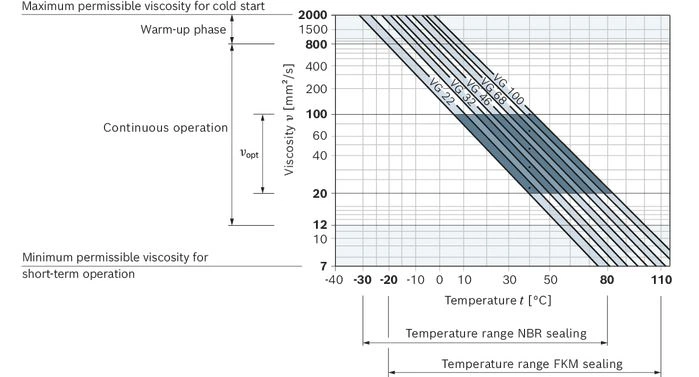

Viscosity and temperature of hydraulic fluids

Viscosity range
Permissible in continuous operation	ν = 12 … 800 mm²/s
Recommended in continuous operation	νopt = 20 … 100 mm²/s
Permissible for cold start	νmax ≤ 2000 mm²/s
Temperature range
With NBR seals (NBR = nitrile rubber)	t = -30 °C … +80 °C
With FKM seals (FKM = fluoroelastomer)	t = -20 °C … +110 °C

Observe the instructions for the filtration of the hydraulic fluid (see chapter Project planning information).

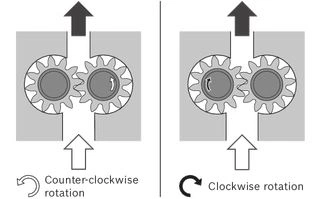

Direction of rotation

The dimensional drawings in the chapter Dimensions represent pumps for clockwise rotation. The position of the drive shaft or the position of suction and pressure port changes for counter-clockwise rotation.

Direction of rotation, viewed on drive shaft

Drives

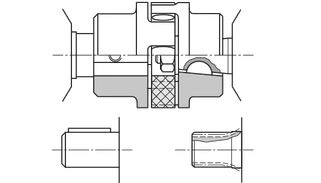

1. Elastic couplings

The coupling must not transfer any radial and axial forces onto the pump.

The maximum admissible radial run-out deviation from the shaft to the fitting slot is 0.2 mm.

Admissible shaft shifting see installation information of the coupling manufacturers.

2. Coupling sleeve

To be used on splined shaft profile according to DIN and SAE.

Attention: No radial or axial forces are permitted on the pump shaft or coupling sleeve. The coupling sleeve must be free to move axially.

The distance between the pump drive shaft and drive shaft on the customer side must 3,5+1,5 mm.

Provide installation space for the snap ring.

Oil-bath or oil-mist lubrication is required.

3. Tang drive coupling

For direct attachment of the pump at electric or combustion motor, gears, etc.

Pump drive shaft with special tang drive and driver (3)

No shaft sealing

Installation on drive side and sealing according to the following recommendations and dimensions

Customer-side drive shaft (1)
- Case-hardened steel DIN EN 10084, e.g. 20MnCrS5 case-hardened 1.0 mm deep; HRA 83±2
- Seal ring sliding surface ground without twist Rmax ≤ 4 μm

Customer-side radial shaft seal ring (2)
- Provide with rubber sheathing (see DIN 3760, form AS, or double-lip ring)
- Provide installation edges with 15° incline and/or assemble shaft seal ring with protective sleeve

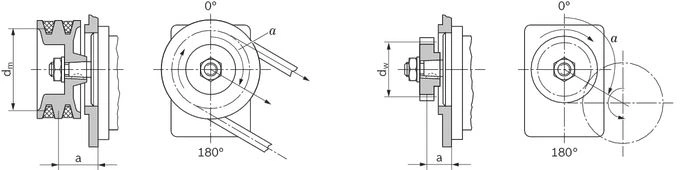

4. V-belts and straight gear wheels or helical toothed gear drives without outrigger bearing

For V-belt or gear wheel drives, please contact us specifying the application and mounting conditions (dimensions a, dm, dw and angle α). For helical toothed gear drives, details of the helix angle β are also required.

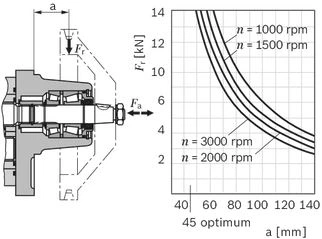

5. Outrigger bearing

Outrigger bearing are offered to eliminate possible problems when the pumps are driven by V-belts or gear wheels. The diagrams show the radial and axial load capacity in relation to a bearing service life of LH = 1000 h.

Front cover G (type 3)

Maximum transferable drive torques

Splined shafts

Drive shaft		Mmax	Size	p2 max
Code	Designation	Nm		bar
D	SAE J744 22-4 13T	300	22 … 45	280
			50	250
			56	225
			63	200
			70	150
			50	120
			100	100
E	SAE J744 25-4 15T	450	22 … 45	280
			50	250
			56	225
			63	200
			70	150
			80	120
			100	100

Tapered shafts

Drive shaft		Mmax	Size	p2 max
Code	Type	Nm		bar
C	1 : 5	290	22 … 45	280
			50	250
			56	225
			63	200
			70	150
			80	120
			100	100
H	1 : 8	240	22 … 45	280
			50	250
			56	225
			63	200
			70	150
			80	120
			100	100

Parallel keyed shafts

Drive shaft		Mmax	Size	p2 max
Code	Designation	Nm		bar
Q	SAE J744 22-1	180	22 … 36	280
			40	250
			45	225
			50	200
			56	180
			63	160
			70	140
			80	120
			100	100

Multiple gear pumps

Gear pumps are well-suited to multiple arrangements, whereby the drive shaft of the first pump stage is extended to a second and possibly third pump stage. The shaft of the individual pump sections are normally connected via a driver or via a splined coupling (reinforced

through drive).

The individual pump stages are usually hydraulically isolated and have separate suction ports. On request a common suction port or separated but hydraulically connected suction ports are available.

For the configuration of multiple pumps, Bosch Rexroth recommends arranging the pump stage with the largest displacement on the drive side.

Note

Basically, the parameters of the single pumps apply, however certain restrictions need to be observed:

Maximum rotational speed: This is determined by the largest pump stage used.

Pressures: These are restricted by the maximum transmissible torques of the drive shaft, the through drive and the driver.

Addition of drive torques

Please note, that in multiple pump arrangements the drive torques of the single pumps stages will add up according to the following formula:

1)	Mmax: see table above "Maximum transferable drive torques"

This may results in pressure restrictions in the relevant pump stages.

Standard through-drive (coupling dog)

In the case of pumps on platform G, the driver for the following pump stage can be loaded up to Mmax = 130 Nm. Possible pressure restrictions must be observed for the following pump stages.

For the following pumps in a smaller series, these determine the maximum transferable torque.

Following pump		Mmax [Nm]
Platform F	AZPF	65
Platform F	AZPS	65
Platform G	AZPG	130
Platform G	AZPU	130

Reinforced through drives

For applications with higher transfer torques or torsional vibrations reinforced through drives up to Mmax = 320 Nm are available. Lay out design on request.

Diagrams/characteristic curves

Flow characteristic curves

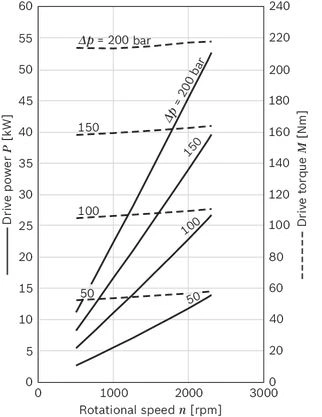

Power diagrams

Size 22

Size 25

Size 28

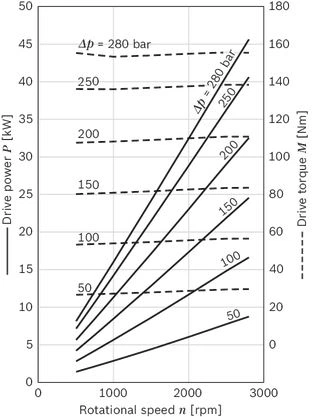

Size 32

Size 36

Size 40

Size 45

Size 50

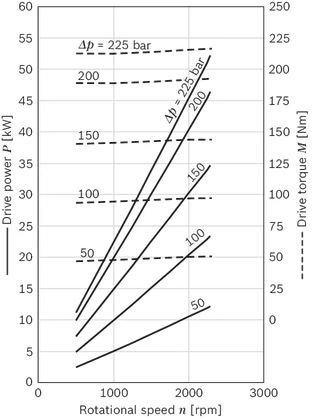

Size 56

Size 63

Note

Characteristic curves measured at ν = 32 mm²/s and t = 50 °C.

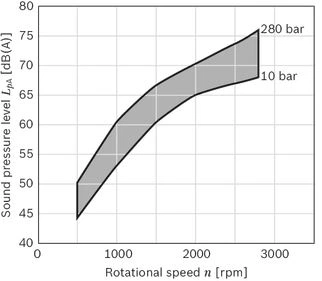

Noise charts

Noise levels dependent on the rotational speed, pressure range between 10 bar and pressure value p2 (see chapter "Technical data").

These are typical characteristic values for the respective size. They describe the airborne sound emitted solely by the pump.

Ambient influences (installation site, piping, other system components) were not taken into account.

The values refer to one individual pump.

Note

Characteristic curves measured at ν = 32 mm²/s and t = 50 °C.

Sound pressure level calculated from noise measurements made in the low reflection measuring room according to DIN 45635, Part 26.

Distance from measuring sensor to pump: 1 m.

Size 22

Size 25

Size 28

Size 32

Size 36

Size 40

Size 45

Size 50

Size 56

Size 63

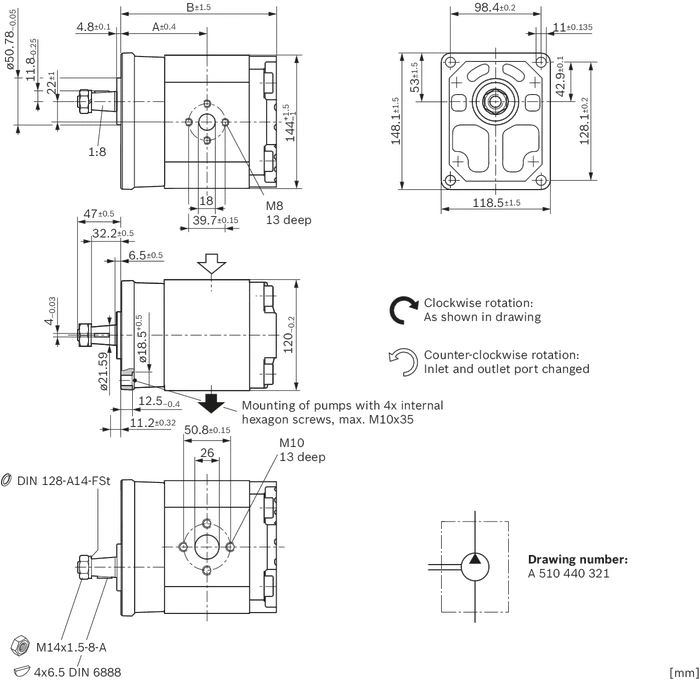

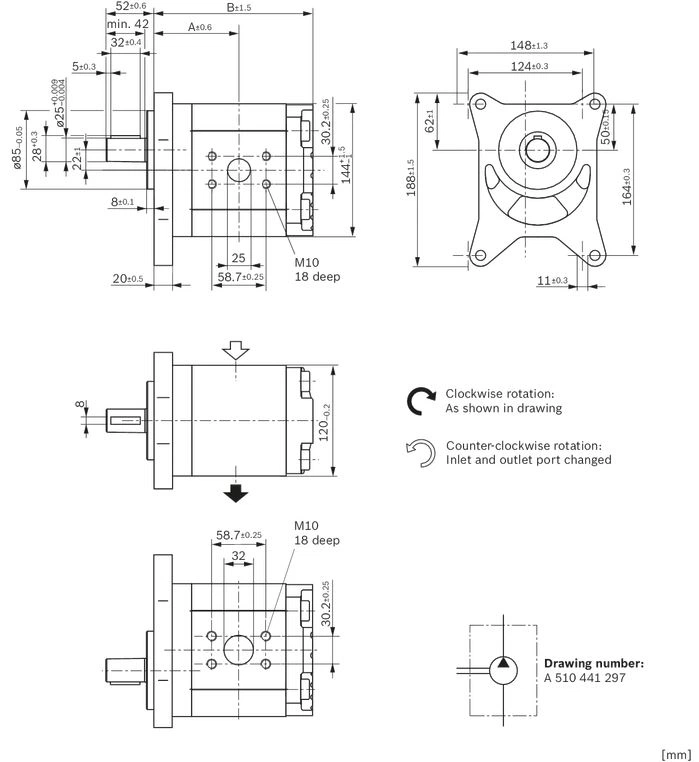

Dimensions

Drive shafts

Tapered shaft 1:5

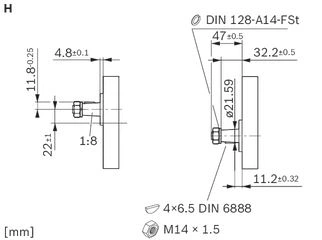

Tapered shaft 1:8

Splined shaft (SAE J744 22-4 13T)

Splined shaft (SAE J744 25-4 15T)

Parallel keyed shaft (SAE J744 22-1)

Front cover

Rectangular flange ⌀105 mm

Rectangular flange ⌀50.78mm

2-bolt flange ⌀101.6mm, SAE J744 101-2 (B)

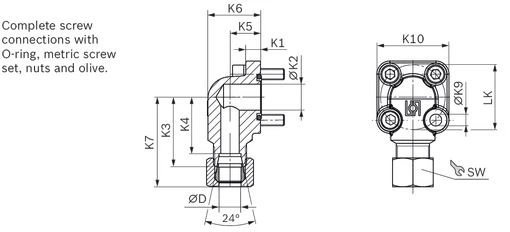

Line connections

Rectangular flange SAE, with metric threads

NG	Pressure side				Suction side
	C	D	E	F	C	D	E	F
	mm	mm	mm		mm	mm	mm
22 … 28	18	47.6	22.2	M10; 18 mm deep	25	52.4	26.2	M10; 18 mm deep
32 … 50	25	52.4	26.2		32	58.7	30.2	M10; 18 mm deep
56 … 70	32	58.7	30.2		38	69.8	35.8	M12; 23 mm deep
80 … 100	38	69.8	35.8	M12; 23 mm deep	50	77.8	42.8	M12; 23 mm deep

UN-thread according to ISO 11926-1 / ASME B 1.1, O-ring

NG	Pressure side				Suction side
	P	D	E	F	S	D	E	F
		mm	mm	mm		mm	mm	mm
22 … 28	1 1/16-12 UN-2B	45	0.5	19	1 5/16-12 UN-2B	50	0.5	19
32 … 45	1 5/16-12 UN-2B	50			1 5/8-12 UN-2B	58
50 … 63	1 5/8-12 UN-2B	58			1 7/8-12 UN-2B	68

Line connections in the rear cover

NG	Pressure side			Suction side
	P	E	F	S	E	F
		mm	mm		mm	mm
22 … 28	1 1/16-12 UN-2B	1	19	1 5/16-12 UN-2B	1	19
32 … 63	1 5/16-12 UN-2B	1	19	1 5/8-12 UN-2B	1	19

Square flange

NG	Pressure side			Suction side
	C	D	E	C	D	E
	mm	mm		mm	mm
22 … 63	18	55	M8; 13 mm deep	26	55	M8; 13 mm deep

Square flange

NG	Pressure side			Suction side
	C	D	E	C	D	E
	mm	mm		mm	mm
22 … 56	18	39.7	M8; 13 mm deep	26	50.8	M10; 13 mm deep
63	26	50.8	M10; 13 mm deep	36	62	M10; 13 mm deep

Rectangular flange SAE, threads UNC

NG	Pressure side				Suction side
	C	D	E	F	C	D	E	F
	mm	mm	mm		mm	mm	mm
22 … 36	19	47.6	22.2	3/8-16 UNC-2B; 18 mm deep	25	52.4	26.2	3/8-16 UNC-2B; 18 mm deep
40 … 50	25	52.4	26.2	3/8-16 UNC-2B; 18 mm deep	32	58.7	30.2	7/16-14 UNC-2B; 18 mm deep
56 … 63	32	58.7	30.2	7/16-14 UNC-2B; 18 mm deep	38	69.8	35.8	1/2-13 UNC-2B; 18 mm deep

Preferred program

Tapered shaft 1:5 with rectangular flange ⌀105 mm

AZPG – 22 – … CB20MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions
	Direction of rotation		p2	nmax	m	A	B
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
22	0 510 725 441	0 510 725 164	280	3000	10.3	60.9	124.6
25	0 510 725 442	0 510 725 165	280	3000	10.4	61.9	126.6
28	0 510 725 443	0 510 725 166	280	3000	10.5	63.2	129.1
32	0 510 725 444	0 510 725 167	280	2800	10.7	64.8	132.4
36	0 510 725 445	0 510 725 168	280	2800	10.9	66.4	135.7
40	0 510 725 446	0 510 725 169	280	2800	11	68.1	139
45	0 510 725 447	0 510 725 170	280	2600	11.2	70.1	143.1
50	0 510 825 324	0 510 825 024	250	2600	11.4	72.2	147.2
56	0 510 825 325	0 510 825 025	225	2300	11.7	74.7	152.2
63	0 510 825 326	0 510 825 026	200	2300	12	77.6	158

Tapered shaft 1:8 with rectangular flange ⌀50,78 mm

AZPG – 22 – … HO30MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions
	Direction of rotation		p2	nmax	m	A	B
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
22	0 510 725 448	0 510 725 171	280	3000	9.6	63.9	147.8
25	0 510 725 449	0 510 725 172	280	3000	9.7	84.9	149.8
28	0 510 725 450	0 510 725 173	280	3000	9.8	86.2	152.3
32	0 510 725 451	0 510 725 174	280	2800	10	87.8	155.6
36	0 510 725 452	0 510 725 175	280	2800	10.1	89.4	158.9
40	0 510 725 453	0 510 725 176	280	2800	10.3	91.1	162.3
45	0 510 725 454	0 510 725 177	280	2600	10.5	93.1	166.3
50	0 510 825 327	0 510 825 027	250	2600	10.7	95.2	170.5
56	0 510 825 328	0 510 825 028	225	2300	11	97.7	175.4
63	0 510 825 329	0 510 825 029	200	1800	11.2	100.6	181.3

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC07KB

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions
	Direction of rotation		p2	nmax	m	A	B
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
22	0 510 725 434	0 510 725 157	280	3000	9.6	66.4	130.1
25	0 510 725 435	0 510 725 158	280	3000	9.7	67.4	132.1
28	0 510 725 436	0 510 725 159	280	3000	9.8	68.7	134.6

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC07KB

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions
	Direction of rotation		p2	nmax	m	A	B
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
32	0 510 725 437	0 510 725 160	280	2800	10	70.3	137.9
36	0 510 725 438	0 510 725 161	280	2800	10.1	71.9	141.2
40	0 510 725 439	0 510 725 162	280	2800	10.3	73.6	144.5
45	0 510 725 440	0 510 725 163	280	2600	10.5	75.6	148.6
50	0 510 825 321	0 510 825 021	250	2600	10.7	77.7	152.7

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC07KB

NG	Material number		Maximum pressure intermittend	Maximum speed	Weight	Dimensions
	Direction of rotation		p2	nmax	m	A	B
	counter-clockwise	clockwise	bar	rpm	kg	mm	mm
56	0 510 825 322	0 510 825 022	225	2300	11	80.2	157.7
63	0 510 825 323	0 510 825 023	200	2300	11.3	83.1	163.5

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … QC12MB - S0662

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
22	9 510 490 132	9 510 490 122	250	3000	66.4	130.3
25	9 510 490 133	9 510 490 123	250	3000	67.4	132.3
28	9 510 490 134	9 510 490 124	250	3000	68.7	134.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … QC12MB - S0662

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
32	9 510 490 135	9 510 490 125	250	2800	70.3	138.1
36	9 510 490 136	9 510 490 126	250	2800	71.9	141.5
40	9 510 490 137	9 510 490 127	250	2800	73.6	144.8
45	9 510 490 138	9 510 490 128	250	2800	75.6	148.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … QC12MB - S0662

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
50	9 510 490 139	9 510 490 129	220	2600	77.7	153
56	9 510 490 140	9 510 490 130	195	2300	80.2	157.9
63	9 510 490 141	9 510 490 131	170	2300	83.1	163.8

Parallel keyed shaft (ISO ⌀25 mm) with special version of the front cover

AZPG – 22 – … AX07KB - S0303

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
40	0 510 725 432	0 510 725 147	280	2800	85.1	157.7
50	0 510 825 314	0 510 825 015	250	2600	89.2	165.9

Parallel keyed shaft (ISO ⌀25 mm) with special version of the front cover

AZPG – 22 – … AX07KB - S0303

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
63	0 510 825 315	0 510 825 016	200	2300	94.6	176.7
70	0 510 825 316	0 510 825 017	150	2200	97.5	182.5

Parallel keyed shaft (ISO ⌀25 mm) with special version of the front cover

AZPG – 22 – … AX07KB - S0303

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
80	0 510 825 317	0 510 825 018	120	2200	100.6	190.7
100	0 510 825 318	0 510 825 019	100	1700	109.8	207.2

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC07KB - S0039

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
40	0 510 725 421	0 510 725 136	280	2800	73.6	144.8
50	0 510 725 420	0 510 725 135	250	2600	77.7	153

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC07KB - S0039

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
63	0 510 825 313	0 510 825 011	200	2300	83.1	163.8
70	0 510 825 312	0 510 825 014	150	2200	86	169.5

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC07KB - S0039

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
80	0 510 825 311	0 510 825 012	120	2200	90.1	177.8
100	0 510 825 310	0 510 825 013	100	1700	98.3	194.3

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC12MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
22	9 510 490 011	9 510 490 001	250	3000	66.4	130.3
25	9 510 490 012	9 510 490 002	250	3000	67.4	132.3
28	9 510 490 013	9 510 490 003	250	3000	68.7	134.8

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC12MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
32	9 510 490 014	9 510 490 004	250	2800	70.3	138.1
36	9 510 490 015	9 510 490 005	250	2800	71.9	141.5
40	9 510 490 016	9 510 490 006	250	2800	73.6	144.8
45	9 510 490 017	9 510 490 007	250	2600	75.6	148.8

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC12MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
50	9 510 490 018	9 510 490 008	220	2600	77.7	153
56	9 510 490 019	9 510 490 009	195	2300	80.2	157.9
63	9 510 490 020	9 510 490 010	170	2300	63.1	163.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … QC12MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	clockwise	bar	rpm	mm	mm
22	9 510 490 021	250	3000	66.4	130.3
25	9 510 490 022	250	3000	67.4	132.3
28	9 510 490 023	250	3000	68.7	134.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … QC12MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
32	9 510 490 034	9 510 490 024	250	2800	70.3	138.1
36	9 510 490 035	9 510 490 025	250	2800	71.9	141.5
40		9 510 490 026	250	2800	73.6	144.8
45	9 510 490 037	9 510 490 027	250	2600	75.6	148.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … QC12MB

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation		p2	nmax	A	B
	counter-clockwise	clockwise	bar	rpm	mm	mm
50	9 510 490 038	9 510 490 028	220	2600	77.7	153
56	9 510 490 039	9 510 490 029	195	2300	80.2	157.9
63	9 510 490 040	9 510 490 030	170	2300	63.1	163.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – clockwise rotation

AZPG – 22 – … RQC12MA

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions	Version
	Direction of rotation	p2	nmax	C	Version
	clockwise	bar	rpm	mm
22	9 510 490 101	250	3000	141.2	A
25	9 510 490 102	250	3000	143.2
28	9 510 490 103	250	3000	145.7
32	9 510 490 104	250	2800	149	B
36	9 510 490 105	250	2800	152.4
40	9 510 490 106	250	2800	155.7
45	9 510 490 107	250	2600	159.7
50	9 510 490 108	220	2600	163.9
56	9 510 490 109	195	2300	169.8
63	9 510 490 110	170	2300	174.7

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – counter-clockwise rotation

AZPG – 22 – … LQC12MA

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions	Version
	Direction of rotation	p2	nmax	C	Version
	counter-clockwise	bar	rpm	mm
22	9 510 490 111	250	3000	141.2	A
25	9 510 490 112	250	3000	143.2
28	9 510 490 113	250	3000	145.7
32	9 510 490 114	250	2800	149	B
36	9 510 490 115	250	2800	152.4
40	9 510 490 116	250	2800	155.7
45	9 510 490 117	250	2600	159.7
50	9 510 490 118	220	2600	163.9
56	9 510 490 119	195	2300	169.8
63	9 510 490 120	170	2300	174.7

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B) – counter-clockwise rotation

AZPG – 22 – … LDC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	counter-clockwise	bar	rpm	mm	mm
22	9 510 490 051	250	3000	66.4	130.3
25	9 510 490 052	250	3000	67.4	132.3
28	9 510 490 053	250	3000	68.7	134.8
32	9 510 490 054	250	2800	70.3	138.1
36	9 510 490 055	250	2800	71.9	141.5

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B) – counter-clockwise rotation

AZPG – 22 – … LDC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	counter-clockwise	bar	rpm	mm	mm
40	9 510 490 056	250	2800	73.6	144.8
45	9 510 490 057	250	2600	75.6	148.8
50	9 510 490 058	220	2600	77.7	153

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B) – counter-clockwise rotation

AZPG – 22 – … LDC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	counter-clockwise	bar	rpm	mm	mm
56	9 510 490 059	195	2300	80.2	157.9
63	9 510 490 060	170	2300	83.1	163.8

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B) – clockwise rotation

AZPG – 22 – … RDC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	clockwise	bar	rpm	mm	mm
22	9 510 490 041	250	3000	66.4	130.3
25	9 510 490 042	250	3000	67.4	132.3
28	9 510 490 043	250	3000	68.7	134.8
32	9 510 490 044	250	2800	70.3	138.1
36	9 510 490 045	250	2800	71.9	141.5

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B) – clockwise rotation

AZPG – 22 – … RDC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	clockwise	bar	rpm	mm	mm
40	9 510 490 046	250	2800	73.6	144.8
45	9 510 490 047	250	2600	75.6	148.8
50	9 510 490 048	220	2600	77.7	153

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B) – clockwise rotation

AZPG – 22 – … RDC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	clockwise	bar	rpm	mm	mm
56	9 510 490 049	195	2300	80.2	157.9
63	9 510 490 050	170	2300	83.1	163.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – counter-clockwise rotation

AZPG – 22 – … LQC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	counter-clockwise	bar	rpm	mm	mm
22	9 510 490 091	250	3000	66.4	130.3
25	9 510 490 092	250	3000	67.4	132.3
28	9 510 490 093	250	3000	68.7	134.8
32	9 510 490 094	250	2800	70.3	138.1
36	9 510 490 095	250	2800	71.9	141.5

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – counter-clockwise rotation

AZPG – 22 – … LQC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	counter-clockwise	bar	rpm	mm	mm
40	9 510 490 096	250	2800	73.6	144.8
45	9 510 490 097	250	2600	75.6	148.8
50	9 510 490 098	220	2600	77.7	153

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – counter-clockwise rotation

AZPG – 22 – … LQC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	counter-clockwise	bar	rpm	mm	mm
56	9 510 490 099	195	2300	80.2	157.9
63	9 510 490 100	170	2300	83.1	163.8

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – clockwise rotation

AZPG – 22 – … RQC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	clockwise	bar	rpm	mm	mm
22	9 510 490 081	250	3000	66.4	130.3
25	9 510 490 082	250	3000	67.4	132.3
28	9 510 490 083	250	3000	68.7	134.8
32	9 510 490 084	250	2800	70.3	138.1
36	9 510 490 085	250	2800	71.9	141.5

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – clockwise rotation

AZPG – 22 – … RQC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	clockwise	bar	rpm	mm	mm
40	9 510 490 086	250	2800	73.6	144.8
45	9 510 490 087	250	2600	75.6	148.8
50	9 510 490 088	220	2600	77.7	153

Parallel keyed shaft (SAE J744 22-1) with 2-bolt flange SAE J744 101-2 (B) – clockwise rotation

AZPG – 22 – … RQC40MB

NG	Material number	Maximum pressure intermittend	Maximum speed	Dimensions
	Direction of rotation	p2	nmax	A	B
	clockwise	bar	rpm	mm	mm
56	9 510 490 089	195	2300	80.2	157.9
63	9 510 490 090	170	2300	83.1	163.8

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPG – 22 – … DC12MA

NG	Material number		Maximum pressure intermittend	Maximum speed	Dimensions	Version
	Direction of rotation		p2	nmax	C	Version
	counter-clockwise	clockwise	bar	rpm	mm
22	9 510 490 071	9 510 490 061	250	3000	141.2	A
25	9 510 490 072	9 510 490 062	250	3000	143.2
28	9 510 490 073	9 510 490 063	250	3000	145.7
32	9 510 490 074	9 510 490 064	250	2800	149	B
36	9 510 490 075	9 510 490 065	250	2800	152.4
40	9 510 490 076	9 510 490 066	250	2800	155.6
45	9 510 490 077	9 510 490 067	250	2600	159.7
50	9 510 490 078	9 510 490 068	220	2600	163.9
56	9 510 490 079	9 510 490 069	195	2300	169.8
63	9 510 490 080	9 510 490 070	170	2300	174.6

Tapered shaft 1:5 with rectangular flange ⌀105 mm

AZPGG – 22 – … CB2020MB

NG		Material number		Maximum pressure intermittend		Maximum speed	Dimensions
PI	PII	Direction of rotation		p2 I	p2 II	nmax	A1	B	C
PI	PII	counter-clockwise	clockwise	bar	bar	rpm	mm	mm	mm
22	22	0 510 765 430	0 510 765 115	280	280	3000	60.9	186.4	250.4
32	22	0 510 767 337	0 510 767 079	280	280	2800	64.8	194.2	258.2
32	32	0 510 767 336	0 510 767 078	280	230	2800	64.8	198.1	266
40	22	0 510 768 332	0 510 768 051	260	280	2800	68.1	200.9	264.8
40	32	0 510 768 331	0 510 768 050	230	230	2800	68.1	204.8	272.6
40	40	0 510 768 330	0 510 768 049	230	180	2800	68.1	208.1	279.3
45	22		0 510 769 033	230	280	2600	70.1	204.9	268.9
45	32		0 510 769 032	200	230	2600	70.1	208.9	276.7
45	40		0 510 769 031	200	180	2600	70.1	212.2	283.3
45	45	0 510 769 325	0 510 769 030	200	160	2600	70.1	214.2	287.4
56	40		0 510 865 013	170	180	2300	74.7	221.3	292.4

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPGF – 22 – … DC2020MB

NG		Material number		Maximum pressure intermittend		Maximum speed	Dimensions
PI	PII	Direction of rotation		p2 I	p2 II	nmax	A1	B	C
PI	PII	counter-clockwise	clockwise	bar	bar	rpm	mm	mm	mm
22	16		0 510 765 118	250	230	3000	66.4	181.2	236.2
32	16		0 510 767 067	250	230	2800	70.3	189	244
56	16	0 510 665 320		200	230	2300	80.2	208.8	263.8
56	19	0 510 865 319		200	190	2300	80.2	208.8	268.8
56	22		0 510 865 016	200	160	2300	80.2	216.4	274.2

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPGG – 22 – … DC0707MB

NG		Material number	Maximum pressure intermittend		Maximum speed	Dimensions
PI	PII	Direction of rotation	p2 I	p2 II	nmax	A1	B	C
PI	PII	clockwise	bar	bar	rpm	mm	mm	mm
28	28	0 510 766 016	260	260	2500	68.7	198.7	269.2

Splined shaft (SAE J744 22-4 13T) with 2-bolt flange SAE J744 101-2 (B)

AZPGF – 22 – … DC2020MB (...KB)

NG		Material number		Maximum pressure intermittend		Maximum speed	Dimensions
PI	PII	Direction of rotation		p2 I	p2 II	nmax	A1	B	C
PI	PII	counter-clockwise	clockwise	bar	bar	rpm	mm	mm	mm
32	11	0 510 767 324 1)		280	280	1700	70.3	188.5	235.6
32	14		0 510 767 066	280	260	2800	70.3	189	240.6
32	16	0 510 767 330		280	230	2800	70.3	189	244
32	16	0 510 767 328 1)	0 510 767 064 1)	280	230	2800	70.3	189	244
40	14		0 510 768 043	280	260	2800	73.6	195.6	247.3
45	11	0 510 769 318 1)		250	280	1700	75.6	199.2	246.4
45	16	0 510 769 319 1)		250	230	1700	75.6	199.7	254.8
45	16		0 510 769 022	280	230	2600	75.6	199.7	254.8
45	19	0 510 769 321	0 510 769 023	280	190	2600	75.6	199.7	259.8

1)	Version with shaft seal ring in FKM (Type code - ...KB)

Project planning information

Technical data

All mentioned technical data are dependent on manufacturing tolerances and are applicable for certain boundary conditions.

Note that certain deviations are therefore possible and that technical data may vary when certain boundary conditions (e.g., viscosity) change.

Pumps delivered by Bosch Rexroth are tested for function and performance.

The pump may only be operated with the permissible data (see chapter "Technical data").

Characteristic curves

When dimensioning the gear pump, observe the maximum possible application data on the basis of the characteristic curves shown.

Filtration of the hydraulic fluid

Since the majority of premature failures in gear pumps occur due to contaminated hydraulic fluid, filtration should maintain a cleanliness level of 20/18/15 as defined by ISO 4406. Thus contamination can be reduced to an acceptable degree in terms of particle size and concentration.

Bosch Rexroth generally recommends full-flow filtration. The basic contamination of the hydraulic fluid filled in should not exceed class 20/18/15 as defined by ISO 4406. New fluids are often above this value. In such instances, a filling device with a special filter should be used.

Bosch Rexroth is not liable for wear due to contamination.

For hydraulic systems or devices with function-related, critical failure effects, such as steering and brake valves, the type of filtration selected must be adapted to the sensitivity of these devices.

Notice

When used as an auxiliary steering pump, the vehicle manufacturer should make sure that the steering system continues to operate safely as per ECE R-79 even if the auxiliary steering pump fails.

Further information

Installation drawings and dimensions are valid at date of publication, subject to modifications.

Further information and notes on project planning can be found in the “General instruction manual for external gear units” (07012-B, chapter 5.5).

Information

AZ configurator

With our practical product selector, it will take you next to no time to find the right solution for your applications, no matter whether it is SILENCE PLUS or another external gear unit.

The selector guides you through a selection of features to all of the products available for order. By clicking on the order number, you can view and download the following product information: Data sheet, dimension sheet, operating conditions, and tightening torques.

You can order your selection directly via our online shop and at the same time benefit from an additional discount of 2%. And if you need something really quickly, simply use our fast delivery and preferred programs (GoTo). Then the goods will be sent within 10 working days.

You also have the possibility to easily and conveniently configure your individual external gear unit with our AZ configurator. All the necessary data that you need for the project planning of external gear units is requested by means of the menu navigation.

For an already existing configuration you receive as a result the order number, the type code, as well as further information. If your configuration does not lead to a product that is available for order, our online tools provide you with the possibility of sending a project request directly to Bosch Rexroth. We will then get in contact with you.

Link: www.boschrexroth.com/az-configurator

Fit4SILENCE app

You want to quickly determine the noise level of an application but don’t have a measuring device at hand? No problem with Fit4SILENCE! Our new noise measurement app for all Android devices can be immediately downloaded free of charge. After calibration, you can start using it straight away and conduct fast, accurate noise measurements with different weightings in no time at all. An additional measuring device is no longer necessary, because calibrated smartphones using the app can achieve an accuracy that approximates professional measuring devices.

Last but not least, the app contains interesting information about the SILENCE PLUS technology, including an audio sample.

Link: www.boschrexroth.com/silence-plus

Further information

Extensive notes and suggestions can be found in the Hydraulic Trainer, volume 3: “Planning and Design of Hydraulic Power Systems”, order number R900018547.

Accessories

90° angle flange, for square flange 20

LK	D	Series 1)	Material number	pmax	K1	K2	K3	K4	K5	K6	K7	K9	K10	SW	Screws		O-ring	Weight
mm	mm			bar	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	2 ×	2 ×	NBR	kg
55	20	S	1 515 702 004	250	13	18.2	45	34.5	24	38	57	8.4	58	36	M8 × 25	M8 × 50	32 × 2.5	0.62
55	30	S	1 545 719 006	250	12	26.5	49	38.5	32	51	63.5	8.4	58	50	M8 × 25	M8 × 50	32 × 2.5	0.63
55	35	L	1 515 702 005	100	12	26.5	49	38.5	32	52	61	8.4	58	50	M8 × 25	M8 × 60	32 × 2.5	0.77
55	42	L	1 515 702 019	100	12	26.5	49	38	40	64	61.5	8.4	58	60	M8 × 25	M8 × 70	32 × 2.5	1.04

1)	See DIN EN ISO 8434-1

Note

Permissible tightening torques can be found in the “General Operating Instructions for External Gear Units” (07012-B).

Ordering codes

Downloads

	General instruction manual for external gear units Manual \| RE07012-B \| 2020-11-18 \| English \| PDF \| 713k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Instruction manual
	Manuel d'utilisation général pour unités à engrenages extérieurs Manual \| RF07012-B \| 2020-11-18 \| French \| PDF \| 734k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manuel d'utilisation
	Manuale d’uso generale per unità a ingranaggi esterni Manual \| RI07012-B \| 2020-11-18 \| Italian \| PDF \| 730k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manuale d’uso
	Общее руководство по эксплуатации шестеренных агрегатов с внешним зацеплением Manual \| R-RS07012-B \| 2020-11-18 \| Russian \| PDF \| 753k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Инструкция по эксплуатации
	Manual de instrucciones generales para unidades a engranajes con dentado exterior Manual \| RS07012-B \| 2020-11-18 \| Spanish \| PDF \| 726k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Manual de instrucciones
	Allgemeine Betriebsanleitung für Außenzahnradeinheiten Manual \| RD07012-B \| 2020-11-18 \| German \| PDF \| 705k Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Betriebsanleitung
	Ogólna instrukcja obsługi jednostek o zazębieniu zewnętrznym Manual \| R-PL07012-B \| 2020-11-18 \| Polish \| PDF \| 1.3MB Product Groups: External gear pumps, External gear pumps, External gear motors, External gear motors Instrukcja obsługi
	Шестеренный насос с внешним зацеплением, высокая производительность AZPG Data Sheet \| R-RS10093 \| 2019-09-27 \| Russian \| PDF \| 1.6MB Product Groups: External gear pumps Платформа G
	External gear pump High Performance AZPG Data Sheet \| RE10093 \| 2019-09-27 \| English \| PDF \| 1.1MB Product Groups: External gear pumps, External gear pumps
	Außenzahnradpumpe High Performance AZPG Data Sheet \| RD10093 \| 2019-09-27 \| German \| PDF \| 1.1MB Product Groups: External gear pumps, External gear pumps

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.

Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.

Мы предлагаем следующие способы оплаты товара:

Оплата наличными

Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.

Безналичная оплата

Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.

Электронные способы

Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.

Если у вас возникнут вопросы по оформлению заказа, вы можете обратиться к нам, позвонив по телефону +7 495 137-07-02 или связавшись по электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Запрос цены или КП

Мы предоставляем официальную гарантию на всю поставляемую продукцию Bosch Rexroth.

Гарантийный сервис включает в себя:

Приемку продукции в сервисный центр для выполнения диагностики дефекта.
Ремонт продукции.
Доставку продукции до объекта заказчика.

Контакты гарантийного отдела:

Телефон: +7 495 137-07-02
E-mail: support@boschrexroth-russia.ru

Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

Окажет профессиональную консультацию.
Сообщит вашу цену на продукцию.
Сообщит информацию об актуальных акциях и скидках.
Подскажет ближайшее к вам отделение с наличием нужной продукции.
Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация

Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

НовостиВсе новости

Bosh Rexort: насосы PGZ справляются с задачами

В промышленных и мобильных гидросистемах всё чаще обращают внимание на стабильность работы при низком давлении — особенно в контуре охлаждения, фильтрации и смазки. На этом фоне героторные насосы с постоянным объёмом, такие как тип PGZ, остаются незаменимыми участниками многих технологических ..

19 Апреля, 2025 Bosch rexroth панель управления для станков с экранами 15,6 дюймов

В последнее время в производственной сфере наблюдается растущий интерес к специализированным панелям управления, которые способны удовлетворить индивидуальные требования пользователей. Одним из ярких примеров является панель управления от компании Boschrexroth, разработанная для устройств с диагонал..

18 Марта, 2025 BOSCH REXORT Z1S 6: эффективность и надежность в гидравлике

Проверочный клапан BOSCH REXORT Z1S 6 вызывает интерес благодаря своим характеристикам, которые делают его ценным элементом в гидравлических системах. С размером 6 и компонентной серией 4X, этот клапан способен работать при максимальном давлении до 350 бар, что гарантирует его надежность даже в самы..

22 Февраля, 2025 Bosch Rexroth A4FO: надежность в условиях высокого давления

Гидравлическое оборудование остается важной частью современных промышленных и строительных систем. Аксиально-поршневой насос Bosch Rexroth A4FO демонстрирует, как сочетание универсальности, долговечности и инженерной точности помогает решать сложные задачи, связанные с подачей гидравлической жидкост..

17 Января, 2025 Bosh Rexroth: Эффективность и надежность в одном решении

Синхронные моментные двигатели MBT130, представляющие серию MST130+MRT130 от Bosh Rexroth, выделяются рядом особенностей, которые могут быть важны для самых различных применений в автоматизации и промышленности. Кратко о характеристиках: - Максимальный крутящий момент до 180 Нм, что позвол..

14 Декабря, 2024 Bosh Rexroth HED 5-3X: Надежный контроллер для современных систем

Гидроэлектрические реле давления поршневого типа HED 5-3X от производителя Bosh Rexroth завоевали признание среди специалистов благодаря своим выдающимся характеристикам и функциональности. Эти устройства обеспечивают надежный контроль давления в различных промышленных системах. Серия компонентов..

16 Ноября, 2024 Bosch Rexroth - новая эра измерения давления в гидравлических системах

В условиях современного производства всегда важно обеспечивать стабильность и безопасность работы гидравлических систем. Преобразователь давления HM20-2X становится эффективным решением для этой задачи. Среди ключевых характеристик HM20-2X стоит выделить следующие - Серия компонент..

14 Октября, 2024 Boschrexroth Датчик давления HED 8 OA-2X/100K14: надежность и точность в контроле давления

Датчик давления Boschrexroth HED 8 OA-2X/100K14 (арт. R901102706) используется в различных промышленных приложениях, обеспечивая высокую точность и надежность измерений давления. Он способен функционировать в строгих условиях, что делает его незаменимым инструментом для автоматизации и управления пр..

13 Сентября, 2024 Bosh Rexort - аккумуляторы HAD оптимизируют энергосистемы

В мире гидропневматических систем появилась новинка, которая уже привлекла внимание специалистов. Гидропневматические аккумуляторы серии HAD демонстрируют инновационный подход к управлению энергией и стабилизации давления в различных системах, как мобильных, так и стационарных. Высокая эффективно..

23 Августа, 2024 Bosh Rexort представило двухходовой патронный клапан!

Двухходовой патронный клапан с активным управлением LC2A Bosch Rexroth представляет собой прецизионное гидравлическое устройство, разработанное для контроля и регулирования потока рабочей жидкости в системах гидравлики. Этот клапан работает по принципу двухпозиционного управления потоком, обеспечива..

17 Июля, 2024 Bosch Rexroth - надежный партнер для вашего бизнеса в области гидравлики!

Компания Bosch Rexroth предлагает широкий спектр продукции, включая гидронасосы, гидромоторы, гидроклапана, гидроцилиндры, пневмоцилиндры, клапаны, регуляторы, датчики и многое другое. Благодаря высокому качеству продукции и многолетнему опыту работы в отрасли, Bosch Rexroth является предпочтит..

20 Июня, 2024 Как правильно выбрать насос от BOSCH REXROTH?

В мире мобильной и промышленной гидравлики, где надежность и качество стоят на первом месте, насосы Bosch Rexroth выделяются как эталон долговечности и технического совершенства. Эти изделия, зарекомендовавшие себя в России и за её пределами, стали символом немецкого качества и профессионального под..

30 Мая, 2024

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
