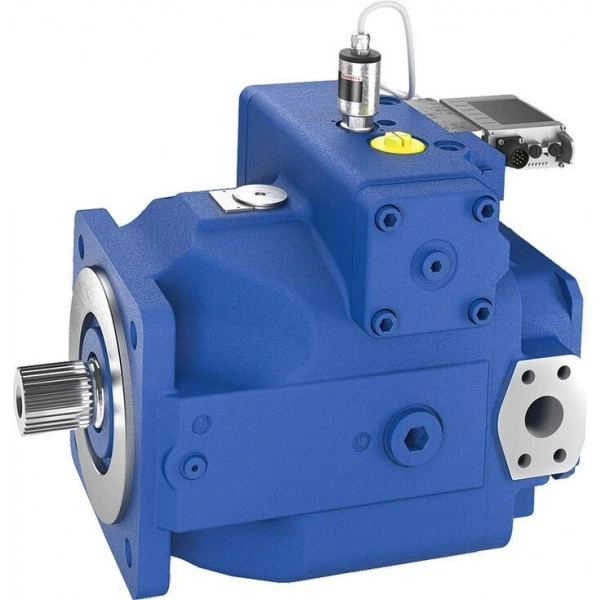

Pressure and flow control system SYHDFED-1X

Name: Pressure and flow control system SYHDFED-1X
Brand: Bosch Rexroth
SKU: RX9937
Price: 2850 RUB
Availability: InStock

Доступно к заказу

Цена по запросу

Запросить КП

Получи КП от 5 лучших поставщиков

С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Description

With axial piston variable displacement pump A4VSO
Size 40 … 355
Component series 1X
Maximum operating pressure 350 bar
Function: Swivel angle control, Pressure control,Torque limitation, Speed control function, Master-Slave
Communication: Sercos, PROFINET, EtherNET/IP, POWERLINK, VARAN, CAN over EtherCAT, ServoDrive over EtherCAT, analog

Features

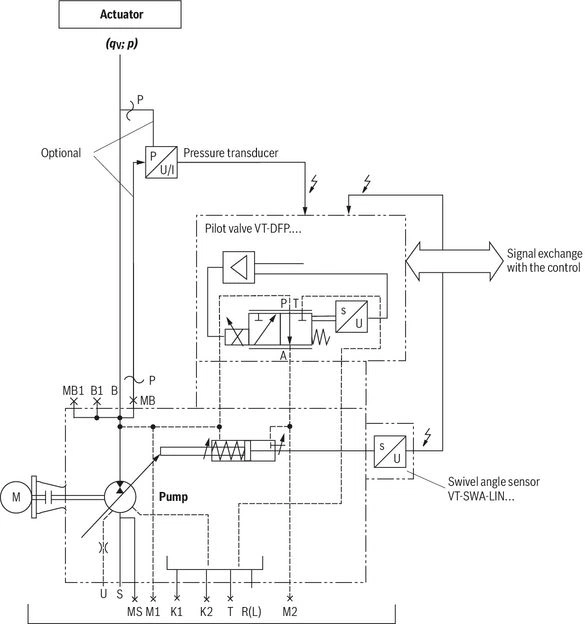

The control system is used for the electro-hydraulic control of swivel angle, pressure and power (partially optional) of an axial piston variable displacement pump.
It consists of the following components:
A4VSO axial piston variable displacement pump optimized for the operation in the control system
VT-DFP. proportional valve as pilot control valve with integrated electronics including inductive position transducer for valve position sensing.
Position transducer for sensing the swivel angle
Pressure transducer with suitable signal level and dynamics (optional)

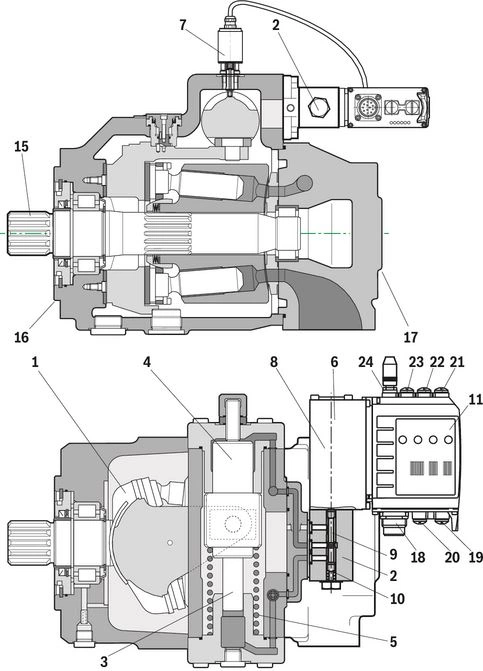

Product description

1	Swash plate
2	Pilot control valve
3	Counter piston
4	Actuating piston
5	Spring
6	Inductive position transducer for valve position
7	Swivel angle position sensor
8	Proportional solenoid
9	Valve spool
10	Spring
11	Integrated electronics
15	Drive shaft
16	Connection flange
17	Subplate, optionally with through-drive
18	Connector XH4

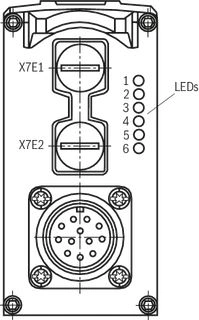

19	Multi Ethernet interface X7E1
20	Multi Ethernet interface X7E2
21	Configurable sensor interface X2M1
22	Configurable sensor interface X2M2
23	Reserved, X2N
24	Actual swivel angle value input X8A

Type code

01		02		03	04		05	06	07	08	09		10		11	12	13	14	15		16
SYHDFED	–	1X	/			–			B	25		–		–	A			0		–	*

Pump of the control system
Series
01	Control system with internal digital electronics (Ethernet-based bus systems)							SYHDFED
01	Pump combinations (see below)							SY2HDFED SY3HDFED
02	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)							1X
Size		040	071	125	180	250	355
03	Displacement cm³	40	71	125	180	250	355	e.g. 071
Direction of rotation looking at the drive shaft
04	Right	✔	✔	✔	✔	✔	✔	R
04	Left	✔	✔	✔	✔	✔	✔	L
Hydraulic fluid
05	Mineral oil according to DIN 51524 (HL/HLP)	✔	✔	✔	✔	✔	✔	V
05	HFC	–	✔	✔	✔	✔	✔	F
Drive shaft variant
06	Cylindrical with fitting key DIN 6885 (not in connection with through-drive)	✔	✔	✔	✔	✔	✔	P
06	Splined shaft profile DIN 5480	✔	✔	✔	✔	✔	✔	Z
Connection flange
07	ISO 4-hole	✔	✔	✔	✔	✔	✔	B
Port for working lines pressure port B and suction port S
08	Port B and S: SAE, laterally displaced by 90°, metric mounting thread, 2nd pressure port B1 vis-à-vis B – upon delivery closed by means of flange plate	✔	✔	✔	✔	✔	✔	25
Through-drive (All through-drives with single pumps come without a hub and are operationally safe, provided with an end cover)
09	Without through-drive	✔	✔	–	–	–	–	N00

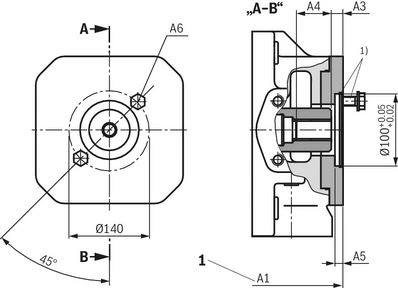

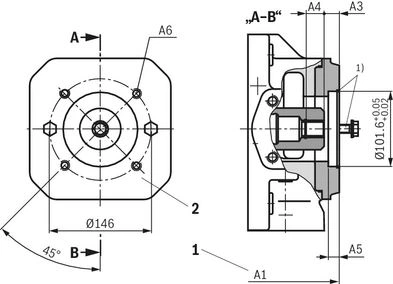

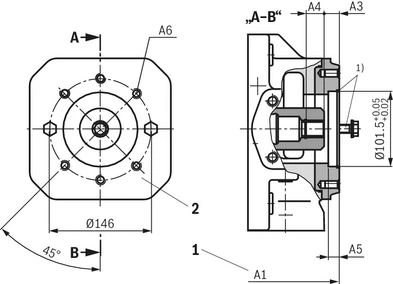

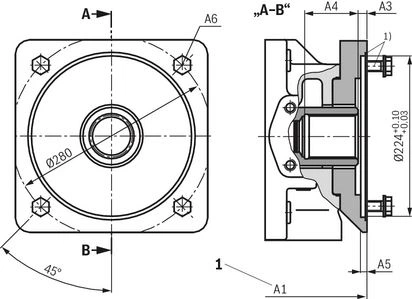

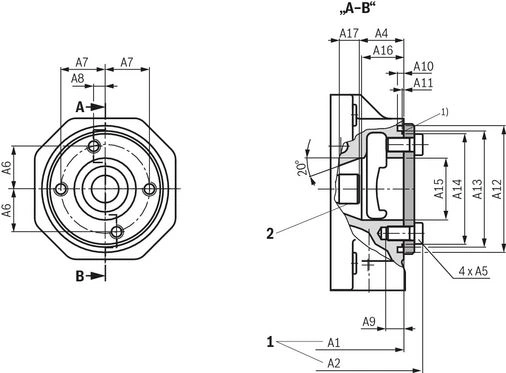

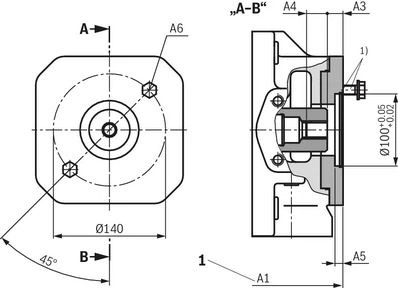

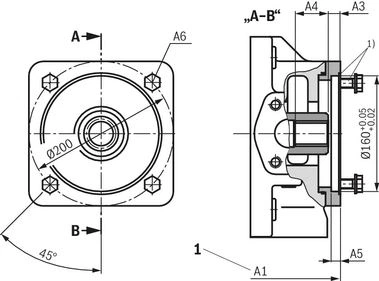

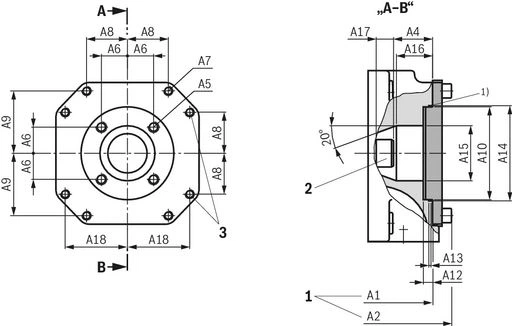

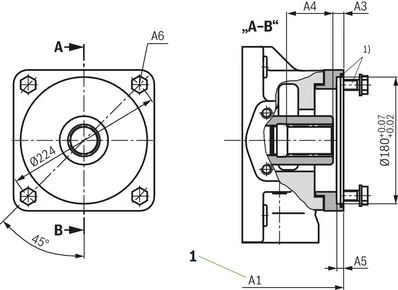

	Universal through-drive, closed operationally safe with end cover at the factory; for components for the adaptation of more pump stages, see "Accessories".	–	–	✔	✔	✔	✔	U99

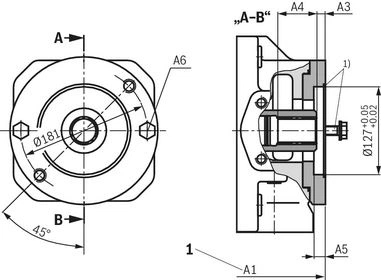

	Through-drive, closed operationally safe with end cover at the factory; for components for the adaptation of more pump stages, see "Accessories".	✔	✔	–	–	–	–	K99

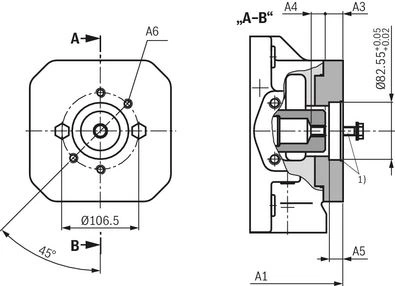

	Centering: SAE ⌀82,55 mm Attachment pump (examples): A10VSO..31 NG18, PGF2M, PGH2, PGH3, AZPF 1)	✔	✔	–	–	–	–	KC1
Base pump variant
10	Standard (internal pilot oil)	✔	✔	✔	✔	✔	✔	0000
10	External supply	✔	✔	✔	✔	✔	✔	0576

1)	Observe the conditions for the attachment pumps.

Pilot control and preload valve
Control spool design
11	Standard		A
Installation orientation of the integrated electronics (see below and "Dimensions")
12	Parallel to the pump axis		0
12	Vertical to the pump axis		1
Additional functions: Closed-loop control
13	Standard		A
13	For variable-speed operation		N
Fieldbus interface
14	Sercos III		S
	EtherCAT (Profil CANopen)		T
	EtherCAT (Servodrive profile)		D
	VARAN (servo drive profile)		V
	EtherNet/IP		E
	PROFINET RT		N
	Powerlink		W 1)
Actual pressure value input (freely configurable); Parameter setting upon delivery (see "Electrical connections")
15	Voltage input 0 … 10 V	Port XH4	V
15	Voltage input 0.5 … 5 V	Port X2M1	F
16	Further details in the plain text		*

1)	Upon request

Installation orientation of the valve electronics

Clockwise direction of rotation
Installation orientation "0"	Installation orientation "1"

Pump combinations

(Material numbers or type designations are to be connected by means of "+")

01		02		03		04		05		06
SY2HDFED	–	1X	/		–		/		+

01	Two-way pump	SY2HDFED
02	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
03	Size of the main pump 1)
04	Size of the attachment pump or pump abbreviation if the attachment pump is not SYHDFE (e.g. PGF) 1)
05	Material number without "R9" for the main pump or type designation if material number is not known
06	Material number without "R9" for the attachment pump or type designation if material number is not known

1)	Detailed information see type key

01		02		03		04		05
SY3HDFED	–	1X	/		+		+

01	Three-way pump	SY3HDFED
02	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
03	Material number without "R9" for the main pump or type designation if material number is not known
04	Material number without "R9" for the attachment pump or type designation if material number is not known
05	Material number without "R9" for the attachment pump or type designation if material number is not known

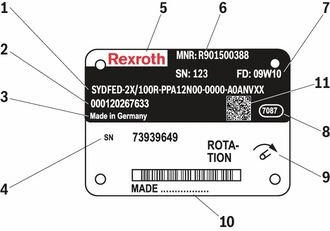

Example of name plate (single pump)

1	Material short text
2	Production order number
3	Designation of origin
4	Fabrication number
5	Word mark
6	Material number, serial number underneath
7	Date of production
8	Plant
9	Indication of direction of rotation
10	Production location
11	QR code

Notice:

Für Rückfragen zum Regelsystem sind Material-Nummer, Fertigungsauftragsnummer, Seriennummer und Fertigungsdatum notwendig.

Technical data

mechanic and hydraulic

Size			40	71	125	180	250	355
Displacement		cm³	40	71	125	180	250	355
Maximum speed 1)	Vg max	rpm	2600	2200	1800		1900	1700
Maximum speed 1)	Vg max and HFC fluids	rpm	-	2200	1800		1500
Minimum speed 2)		rpm	200
Maximum flow (displacement)	at n0 and Vg max	l/min	104	156	225	324	475	604
Maximum flow (displacement)	with nE = 1500 min-1 and Vg max	l/min	60	107	186	270	375	533
Maximum power (Δp = 350 bar)	at n0 and Vg max	kW	61	91	131	189	277	352
Maximum power (Δp = 350 bar)	with nE = 1500 min-1 and Vg max	kW	35	62	109	158	219	311
Maximum torque (Δp = 350 bar)		Nm	223	395	696	1002	1391	1976
Maximum drive torque	Fitting key	Nm	380	700	1392	1400	2300	3557
	Splined shaft "S" overall torque	Nm	446	790	1392	2004	2782	3952
	Maximum through-drive torque	Nm	223	395	696	1002	1391	1976
Drive shaft load	Maximum axial force	N	600	800	1000	1400	1800	2000
Drive shaft load	Maximum radial force 3)	N	1000	1200	1600	2000		2200
Weight (without filling quantity)		kg	39	53	88	102	184	207
Moment of inertia around drive axis		kg·m²	049	0.0121	0.03	0.055	0.0959	0.19
Filling quantity of the housing		l	2	2.5	5	4	10	8
Maximum operating pressure 4)		bar	350
Operating pressure, min. (without load)		bar	≥ 20
Admissible inlet pressure		bar	0.8 ... 30
Hydraulic fluid			Mineral oil (HL, HLP) according to DIN 51524; HFC optional
Hydraulic fluid temperature range		°C	-20 … +70
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c)			Class 18/16/13 (for particle size ≤ 4/6/14 μm)

1)	The values apply at an absolute pressure of 1 bar at suction opening S. With a reduction of the displacement or an increase in the inlet pressure, the speed can be increased accordingto the following characteristic curve. With a reduced inlet pressure, the speed is to be reduced.
2)	Does not apply to HFC fluid, formula for determination of the minimum speed see below
3)	In case of higher radial forces, please consult us. Not applicable for use of HFC fluids.
4)	When using HFC fluids, also see data sheet 92053.

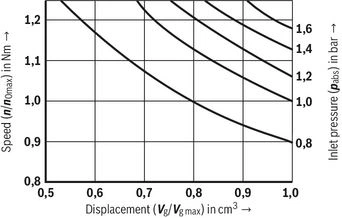

Determination of the minimum speed at HFC hydraulic fluid

Size			40	71	125	180	250	355
Speed	n0	rpm	-	750	850	600	550	450

Admissible load

Example 1:

The axial piston variable displacement pump A4VSO125 may be operated at ν = 16 mm2/s

as of n = 1328 rpm with nominal load

Example 2:

For the axial piston variable displacement pump A4VSO250, the admissible load with

n = 500 rpm and 10 mm2/s

→ x = 10/25*500/550 = 0.364 (= 127 bar at Vg max)

electrical

Power supply 1)	Nominal voltage	VDC	24
	Lower limit value	VDC	18
	Upper limit value	VDC	36
Maximum residual ripple 1)		Vpp	2.5
Maximum power consumption		W	40
Required fuse protection, external			4, time-lag
AD/DA resolution	Analog inputs	bits	12
AD/DA resolution	Analog outputs 2)	bits	10
Actual pressure value input XH4, pin 10 and 11	Analog voltage	V	0 … 10
Actual pressure value input XH4, pin 10 and 11	Analog current 3)	mA	0 … 20
Ambient temperature range at the pump		°C	0 … +60
Storage temperature range (pump + electronics)		°C	+5 … +40
Electronics design			Integrated at pilot control valve (OBE)
Protection class according to EN 60529	Pump incl. pilot control valve		IP65 with mounted and locked plug-in connectors

1)	Supply voltage is used directly for sensor connections X2M1, X2M2 and X8M (no internal voltage limitation)
2)	The outputs are parameterizable. For the condition as supplied, see "Electrical connection".
3)	With configuration on current input: Maximum input current 30 mA

Notice:

For information on the environment simulation testing for the areas EMC (electromagnetic compatibility), climate and mechanical load see data sheet 29016 (declarations on environmental compatibility).

Bearing flushing

With the following operating conditions, bearing flushing is necessary for safe continuous operation:

Applications with special fluids (not mineral fluids) due to limited lubricity and tight operating temperature range

Operation with boundary conditions of temperature and viscosity with mineral oil operation

With vertical installation (drive shaft upwards), bearing flushing is recommended for lubrication of the front bearing and the shaft seal ring.

The bearing is flushed using port "U" in the area of the front flange of the variable displacement pump. The flushing fluid flows through the front bearing and exits with the pump leakage at the leakage connection.

Recommended flushing quantity

Size		40	71	125	180	250	355
Recommended flushing quantity	l/min	3	4	5	7	10	15

The specified flushing quantities result in a pressure differential between port "U” (including fitting) and the leakage chamber of approx. 2 bar (series 1) and approx. 3 bar (series 3).

When using the external bearing flushing, the throttle screw in port U has to be screwed-in to the stop.

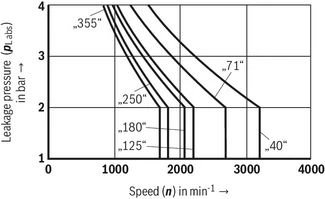

Leakage pressure

The admissible leakage pressure (housing pressure) depends on the speed (see diagram).

Maximum leakage pressure (housing pressure): 4 bar absolute

These specifications are guidelines; under special operating conditions, a limitation may become necessary.

Direction of flow: S → B

Control loop quality

	Swivel angle control	Pressure control 1)
Linearity tolerance	≤1.0 %	≤1.5 % (≤1.0 %) 2)
Temperature error	≤0.5 % / 10 K	≤0.5 % / 10 K
Hysteresis	≤0.2 %	≤0.2 %
Repetition accuracy	≤0.2 %	≤0.2 %

1)	Without considering the pump pulsation.
2)	Using the integrated calibration function.

Notices:

●The specified values are only valid when using the system-related components (see "Accessories").

At pressures <20 bar, higher tolerances have to be anticipated due to lower actuating forces.

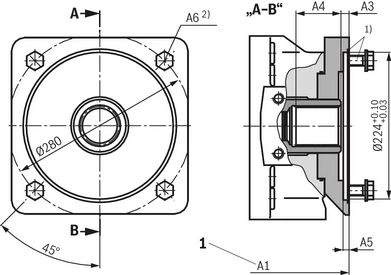

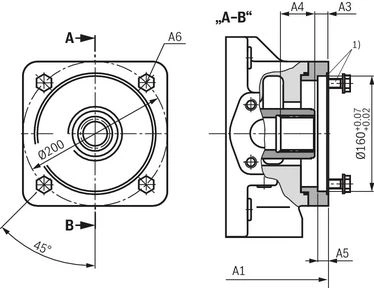

Through-drives : Drive and through-drive torques

Maximum drive and through-drive torques

Size			40	71	125	180	250	355
Splined shaft
Total drive torque at the shaft of pump 1 (pump 1 + pump 2)	TGes max	Nm	446	790	1392	2004	2782	3952
Through-drive torque A	TD1 max	Nm	223	395	696	1002	1391	1976
Through-drive torque A	TD2 max	Nm	223	395	696	1002	1391	1976
Through-drive torque B	TD1 max	Nm	223	395	696	1002	1391	1976
Through-drive torque B	TD2 max	Nm	223	395	696	1002	1391	1976
Fitting key
Total drive torque at the shaft of pump 1 (pump 1 + pump 2)	TGes max	Nm	380	700	1392	1400	2300	3557
Through-drive torque A	TD1 max	Nm	223	395	696	1002	1391	1976
Through-drive torque A	TD2 max	Nm	157	305	696	398	909	1581
Through-drive torque B	TD1 max	Nm	157	305	696	398	909	1581
Through-drive torque B	TD2 max	Nm	223	395	696	1002	1391	1976

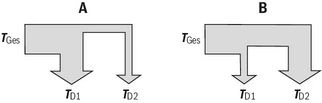

Distribution of through-drive torques

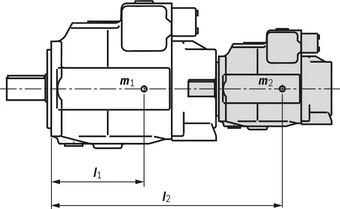

Mass torque (relates to mounting flange of main pump)

Size			40	71	125	180	250	355
Maximum mass torque	Tm zul.	Nm	1800	2000	4200	4200	9300	9300
Maximum mass torque with dynamic mass acceleration of 10 g = 98.1 m/s2	Tm zul.	Nm	180	200	420	420	930	930
Weight (SYHDFE or A4VSO...DR)	m	kg	39	53	88	102	184	207
Distance of the center of gravity	l1	mm	120	140	170	180	210	220

Tm [Nm]	Maximum mass torque
m1, m2 [kg]	Weight of the pump
l1, l2 [mm]	Distance of the center of gravity

(For applications outside these values, please consult us!)

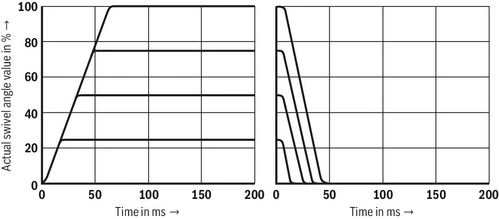

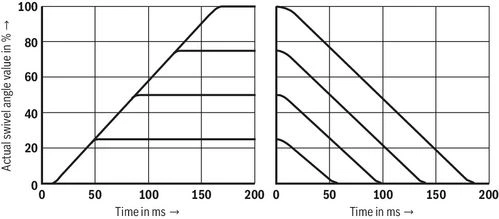

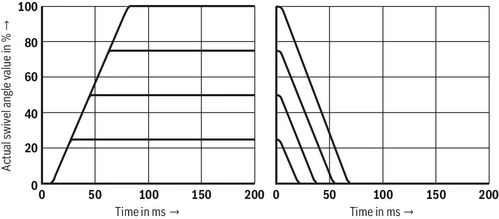

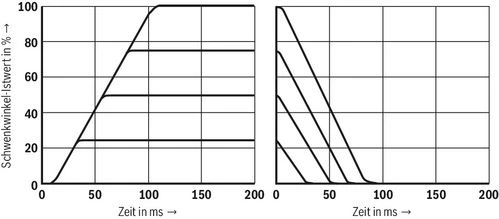

Diagrams/characteristic curves

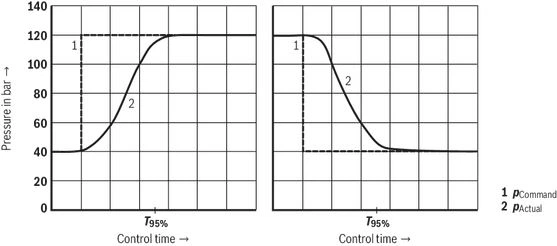

Transition function for pressure command value step (control spool version "A")

T95% in ms with a connected hydraulic fluid volume (lines and actuators)

Hydraulic fluid volume in l	T95% in ms
<5	150
5 … 10	200
15 … 25	250

Notices:

For pressures up to 40 bar, the values of the response times are greater.

The specified curve shapes and control times refer to a drive speed of 1500 rpm and are only reached with an optimization of the pressure controller.

Transition function with swivel angle command value step (control spool version "A")

Size 40, 71 (p = 100 bar)

Size 125 (p = 100 bar)

Size 180 (p = 100 bar)

Size 250 (p = 100 bar)

Size 355 (p = 100 bar)

Symbols/Circuit diagrams

Schematic diagram : Actuating system supplied internally

S	Suction port
K1, K2	Flushing port
T	Fluid drain
MB	Measuring port operating pressure (M14x1,5)
MS	Measuring port suction pressure
M1, M2	Measuring port control chamber pressure
R(L)	Fluid filling + bleeding (leakage connection)
U	Flushing port
B	Pressure port
B1	2nd Pressure port/additional port
MB1	Measuring port operating pressure NG250/355: G1/4 NG 40/71/125/180: Blind flange attached to B1 with pressure measuring port G1/4

Using the pressure transducer HM 20-2X/…C13

Installation in MB or MB1 (pump) in connection with electronic version for actual pressure value input "F"

For attachment of an HM20-2X/315-F-C13-0.5 in MB, an adapter from M14 x 1.5 to G1/4 (material no. R900695665) is required.

Due to the installation position, the HM20 cable version cannot be used for all sizes without restrictions (check use with M12 extension cable).

Using an external pressure transducer

Installation in line B (preferably close to the actuator) and electrical connection via central connection X1

Notice:

The actual pressure value at port B must not be less than 10 bar for more than 10 minutes (lubrication).

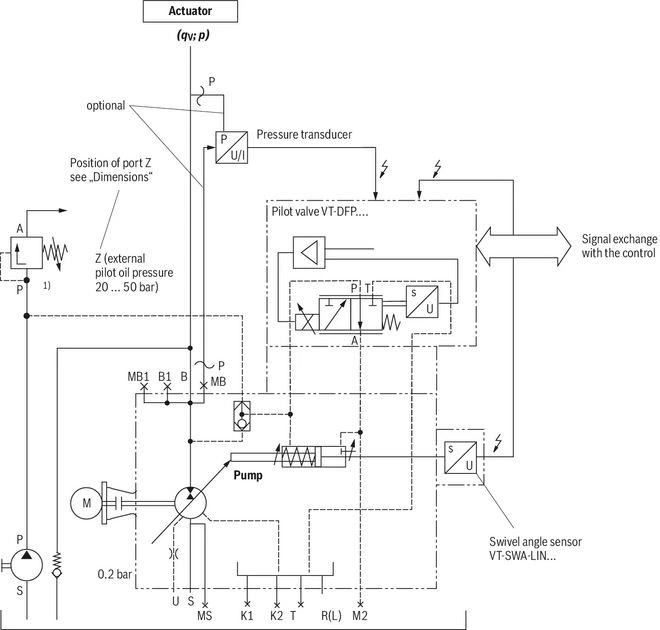

Schematic diagram : Actuating system supplied externally

1)	Maximum pressure limitation must be provided by the customer.

S	Suction port
K1, K2	Flushing port
T	Fluid drain
MB	Measuring port operating pressure (M14x1,5)
MS	Measuring port suction pressure
M1, M2	Measuring port control chamber pressure
R(L)	Fluid filling + bleeding (leakage connection)
U	Flushing port
B	Pressure port
B1	2nd Pressure port/additional port
MB1	Measuring port operating pressure NG250/355: G1/4 NG 40/71/125/180: Blind flange attached to B1 with pressure measuring port G1/4
Z	External pilot oil pressure (DIN 3852 M14 x 1.5; 12 deep (pmax(abs) = 50 bar)

Notes on external supply:

In the case of an actuating system with external supply, the pump adjustment will - in case of voltage failure - not switch to zero stroke but to the negative stop (displacement of 100 % flow from the system to the tank).

With an active fault message, it is imperative that the machine control reacts (e. g. switching off the drive motor of the pump, interrupting the external supply of the actuating system).

The command values for pressure and flow must always be greater than zero (pcommand ≥ 3 bar, αcommand ≥ 5 %) as due to drift or tolerances, there is no exact "zero" pressure or "zero" swivel angle. Under unfavorable conditions, smaller command value presettings can lead to cavitation.

The actual pressure value must not be less than 10 bar for more than 10 minutes (lubrication).

Port Z must be connected to tank level in case of non-use. Closing is not admissible.

Electrical connection

XH4, central connection

Assignment of connector or mating connector and cable set

Pin	Signal	Description	Signal direction	Type of signal	Allocation in the cable set (accessories)
1	+ UB	Voltage supply	IN	24 VDC	1	Supply line 3 x 1.0 mm2
2	0 V = L0	Reference potential for the voltage supply	–	–	2
PE	Earth	Earthing connection for the electronics	–	–	green/yellow
3	DO	Switching output 24 V max. 1.5 A Factory setting: Error signal	OUT	logic 24 V	white	Supply line 10 x 0.14 mm2 shielded (one end of the shield must be connected to the control)
4	M0	Reference potential for analog signals	–	–	yellow
5	AI2	Analog input 2 (or digital input, configuration via software)	IN	analog ±10 V (digital 24 V)	green
6	AO2	Analog output 2 Factory setting: Actual swivel angle value, normalized	OUT	analog ±10 V or 0 ... 20 mA 1)	Violet
7	AI1	Analog input 1 (or digital input, configuration via software)	IN	analog ±10 V (digital 24 V)	pink
8	AO1	Analog output 1 Factory setting: Actual pressure value, normalized	OUT	analog ±10 V or 0 ... 20 mA 1)	red
9	DI	Digital input (use freely configurable)	IN	logic 24 V	brown
10	Actual pressure value H	Actual pressure value input (analog input 8): Signal level depends on parameter setting. Factory setting dependent on pos. 15 of the ordering code: 0 … 10 V (V) or deactivated (F)	IN	analog 0 ... 10 V (freely configurable)	black
11	Actual pressure value L		–	analog	blue
n.c.					gray

1)	If the analog inputs AI1 and AI2 are not used, the analog outputs AO1 and AO2 may be parameterized as current outputs (e.g. if the command value presetting is realized via the field bus).

X7E1 and X7E2, Connector pin assignment for Ethernet interface (coding D), M12, 4-pole, socket

Pin	Assignment
1	TxD +
2	RxD +
3	TxD –
4	RxD –
5	Not assigned

X2M1 and X2M2, Analog configurable sensor interface (coding A), M12, 5-pole, socket

Pin	Assignment
1	+ 24 V voltage output (sensor supply) 1)
2	Sensor signal input current (4 … 20 mA) 2)
3	GND
4	Sensor signal input voltage (0 … 10 V) 2)
5	Negative differential amplifier input to pin 4 (optional)

1)	Maximum load capacity 50 mA, voltage output same as voltage supply connected to input XH4.
2)	Only one signal input configurable per interface.

Notices:

X2N, reserved (not used)

X8A, actual swivel angle value input (coding A), M12, 5-pole, socket M12

Mating connectors, separate order, see "Accessories"

LED displays

LED	Interface	Sercos	EtherNet/IP	EtherCAT	PROFINET	POWERLINK	VARAN
1	X7E1	Activity	Activity	not used	Activity	not used	Activity
2	X7E1	Link	Link	Link/Activity	Link	Link/Data Activity	Link
3	Electronic module	S	Network Status	Network Status	Network Status	Status/Error	Network Status
4	Electronic module	Module Status	Module Status	Module Status	Module Status	Module Status	Module Status
5	X7E2	Activity	Activity	not used	Activity	not used	not used
6	X7E2	Link	Link	Link/Activity	Link	Link/Data Activity	not used

Displays of the Status LEDs

Module status (LED 4)	Display status
Off	No voltage supply
Green-red, flashing	Self-test
Green, flashing	Drive ready for operation
Green	in control
Orange, flashing	Warning
Red, flashing	Error

Network Status (LED 3)	Display status
See firmware and software description 30338-FK

Notices:

For the connection to the M12 sockets, we recommend using self-locking mating connectors.

LEDs 1, 2, 5 and 6 relate to interfaces "X7E1" and "X7E2"
- Link: Cable plugged in, connection established (permanently lit)
- Activity: Data sent/received (flashing)

The network status LED 3 (NS) indicates the status of the control communication, see firmware and software description 30338-FK.

Module status LED 4 relates to the electronics module.

For a detailed description of the diagnosis LEDs, please refer to the functional description "Rexroth HydraulicDrive HDx".

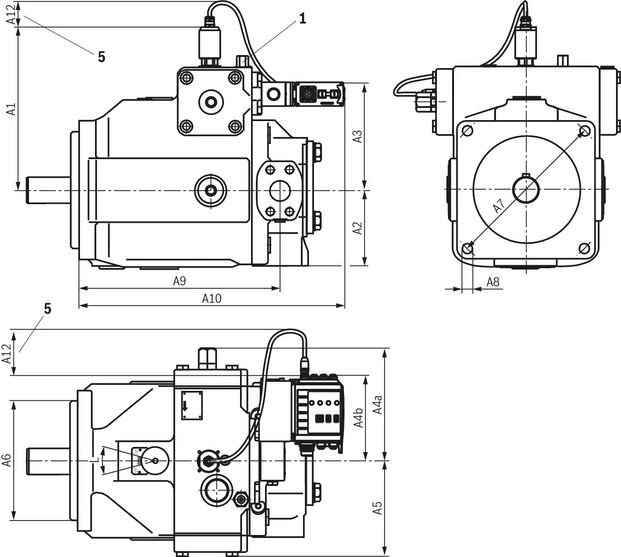

Dimensions

Installation orientation "0"

Dimensions in mm

Port Z (for version SYHDFE.-1X...0576)

(DIN 3852 M14 x 1.5; 12 deep (pmax(abs) = 50 bar)

Space required for the connection line

Size	A1	A2	A3	A4a	A4b	A5	A6	A7	A8	A9	A10	A12
Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40	212	80	127	130	167	104	125	160	15	227	348	100
71	229	92.5	141	149	167	127	140	180	15	254	375	100
125	264	112.5	171	177	167	147	160	200	20	310	444	100
180	264	116	171	177	167	147	160	200	20	318	444	100
250	312	144	207	212	167	179	224	280	24	380	506	100
355	312	144	207	212	167	179	224	280	24	393	598	100

Notice:

Dimensions base pump (axial piston variable displacement pump A4VSO) see data sheet 92050.

Installation orientation "1"

Dimensions in mm

Port Z (for version SYHDFE.-1X...0576)

(DIN 3852 M14 x 1.5; 12 deep (pmax(abs) = 50 bar)

Space required for the connection line

Size	A1	A2	A3	A4a	A4b	A5	A6	A7	A8	A9	A10	A12
Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40	212	80	241	130	167	104	125	160	15	227	235	100
71	250	92.5	255	149	167	127	140	180	15	254	262	100
125	264	112.5	285	177	167	147	160	200	20	310	331	100
180	264	116	285	177	167	147	160	200	20	318	331	100
250	312	144	321	212	167	179	224	280	24	380	393	100
355	312	144	321	212	167	179	224	280	24	393	485	100

Notice:

Dimensions base pump (axial piston variable displacement pump A4VSO) see data sheet 92050.

Shaft ends

Size	Shaft Ø	= P 1)	= Z 2)
Size	mm
40	32	AS 10 x 8 x 56	W 32 x 2 x 14 x 9 g
71	40	AS 12 x8 x 68	W 40 x 2 x 18 x 9 g
125	50	AS 14 x 9 x 80	W 50 x 2 x 24 x 9 g
180	50	AS 14 x 9 x 80	W 50 x 2 x 24 x 9 g
250	60	AS 18 x 11 x 100	W 60 x 2 x 28 x 9 g
355	70	AS 20 x 12 x 100	W 70 x 3 x 22 x 9 g

1)	Cylindrical with fitting key DIN 6885
2)	Splined shaft profile DIN 5480

Through-drives

"K99"

With through-drive shaft, without hub, without intermediate flange, closed operationally safe with end cover.

Dimensions in mm

1	Up to pump mounting face
2	Splined shaft profile DIN 5480

Size	A1	A2	A4		A5	A6		A7		A8	A9	A10	A11		⌀A12		⌀A13		⌀A14		⌀A15	A16	A17	Splined shaft profile DIN 5480	1) Seal ring for later attachment (separate order)
Size	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		mm	mm	mm	mm	mm		mm
40	263	280	51.3	± 1	M12; 25 mm deep	37	+ 0.2	37	+ 0.2	0	18	9	2.3	+ 0.1	118	H7	105	g6	97.6	- 0.4	52	44	14	W25 x 1,25 x 18 x 9 g	99 x 3
71	291	310	48	± 1	M12; 25 mm deep	42.3	+ 0.15	45	+ 0.15	15.4	18	9	2.7	+ 0.1	130	H7	116	g6	106.4	- 0.4	63	38	16	W30 x 1,25 x 22 x 9 g	110,72 x 3,53

Notice:

Left view, drawing without cover.

"U99"

With through-drive shaft, without hub, without intermediate flange, closed operationally safe with end cover.

Dimensions in mm

1	Up to pump mounting face
2	Splined shaft profile DIN 5480
3	Only NG250 and 355

Size	A1	A2	A4		A5	A6		A7	A8		A9		ØA10		A12	A13		ØA14		ØA15	A16	A17	A18		Splined shaft profile DIN 5480	1) Seal ring for later attachment (separate order)
Size	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm
125	347	368	49.7	± 1	M14; 15 deep	33.2	+ 0.15 0	M12; 18 deep	-	- -	79.2	+ 0.15 0	118	H7	9	2.8	+ 0.2 0	121	+ 0.1 + 0	70	46	22	-	- -	W35 x 1.25 x 26 x 9 g	118 x 2
180	371	392	49.7	± 1	M14; 15 deep	33.2	+ 0.15 0	M12; 18 deep	-	- -	79.2	+ 0.15 0	118	H7	9	2.8	+ 0.2 0	121	+ 0.1 + 0	70	46	25	-	- -	W35 x 1.25 x 26 x 9 g	118 x 2
250	431	455	61.4	± 1	M20; 22 deep	44.5	+ 0.15 0	M10; 15 deep	58.15	+ 0.15 0	86.2	+ 0.15 0	160	H7	9	2.8	+ 0.2 0	163	+ 0.1 + 0	87	64	30.5	86.2	+ 0.15 0	W42 x 1.25 x 32 x 9 g	160 x 2
355	460	487	61.4	± 1	M20; 22 deep	44.5	+ 0.15 0	M10; 15 deep	58.15	+ 0.15 0	86.2	+ 0.15 0	160	H7	9	2.8	+ 0.2 0	163	+ 0.1 + 0	87	64	34	86.2	+ 0.15 0	W42 x 1.25 x 32 x 9 g	160 x 2

Notice:

Left view, drawing without cover.

"UB3"

Flange ISO 3019-2 100, 2-hole Hub for splined shaft, 22-4 SAE B, 7/8˝, 16/32 DP; 13T 2) for attachment of an A10VSO 28/31 splined shaft "S" (see data sheet 92711)

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
125	369	20.5	24.9	10	M12
180	393	20.5	24.9	10	M12

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"UB4"

Flange ISO 3019-2 100, 2-hole

Hub for splined shaft, 25-4 SAE B-B, 1˝, 16/32 DP; 15T 2) for attachment of an A10VSO 45/31 splined shaft "S" (see data sheet 92711)

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
125	369	18.9	29.5	10	M12
180	393	18.9	29.5	10	M12
250	453	20.9	29.5	10	M12
355	482	20.9	29.5	10	M12

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"UB8"

Flange ISO 3019-2 160, 4-hole

Hub for splined shaft, 32-4 SAE C, 1 1/4˝, 12/24 DP; 14T 2) for attachment of an A10VSO 71/32 splined shaft "S" (see data sheet 92714)

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
250	453	20.9	38	9	M16

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"UB7"

Flange ISO 3019-2 180, 4-hole

Hub for splined shaft, 44-4 SAE D, 1 3/4˝, 8/16 DP; 13T 2) for attachment of an A10VSO 140/31(32) splined shaft "S" (see data sheet 92711, 92714)

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
180	406	10.6	62	9	M16
250	453	10.6	64	9	M16
355	482	10.6	4	9	M16

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U34"

Flange ISO 3019-2 160, 4-hole

Hub according to DIN 5480 N50 x 2 x 24 x 8H for attachment of an A4VSO/G 125 or 180 splined shaft

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
125	369	12.5	51.6	9	M16
180	393	12.5	51.6	9	M16
250	453	12.5	54	9	M16
355	482	12.5	54	9	M16

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U35"

Flange ISO 3019-2 224, 4-hole

Hub according to DIN 5480 N60 x 2 x 28 x 8H for attachment of an A4VSO/G or A4CSG 250 splined shaft

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
250	469	12.6	75	9	M20
355	498	12.6	75	9	M20

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U77"

Flange ISO 3019-2 224, 4-hole

Hub according to DIN 5480 N70 x 3 x 22 x 8H for attachment of an A4VSO/G or A4CSG 355 splined shaft

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
355	498	12.5	75	9	M20

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U01"

Flange ISO 3019-1 82-2 (SAE A)

Hub for splined shaft, 16-4 SAE A, 5/8˝, 16/32 DP; 9T 2) for attachment of an external gear pump AZ-PF-1X-004 ... 022 (see data sheet 10089); recommendation: special version of the gear pumps, please contact us.

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
125	369	16	19.4	13	M10
180	393	16	19.4	13	M10
250	453	16	19.4	13	M10
355	482	16	19.4	13	M10

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U68"

Flange ISO 3019-1 101-2 (SAE B)

Hub for splined shaft 22-4 SAE B, 7/8˝, 16/32 DP; 13T 2) for attachment of an external gear pump AZ-PN-1X020 ... 032 (see data sheet 10091) or A10VO 28/31 and 52(53); splined shaft "S" (see data sheet 92701 and 92703); recommendation: special version of the gear pumps, please contact us.

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face
2	Only NG125 and 180

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
125	369	28	25	13	M12
180	393	28	25	13	M12
250	453	19.5	23.1	13	M12
355	482	19.5	23.1	13	M12

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U04"

Flange ISO 3019-1 101-2 (SAE B)

Hub for splined shaft 25-4 SAE B-B, 1˝, 16/32 DP; 15T 2) for attachment of an A10VO 45/31 and 52 (53), splined shaft "S" (see data sheet 92701 and 92703) or an internal gear pump PGH4 (see data sheet 10223)

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face
2	Only NG125 and 180

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
125	369	18.9	29.4	13	M12
180	393	18.9	29.4	13	M12
250	453	18.9	29.4	13	M12
355	482	18.9	29.4	13	M12

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U24"

Flange ISO 3019-1 127-2 (SAE C)

Hub for splined shaft 38-4 SAE C-C, 1 1/2˝, 12/24 DP; 17T 2) for attachment of an A10VO 100/31 splined shaft, "S" (see data sheet 92701) or A10VO 85/52(53), splined shaft "S" (see data sheet 92703) or an internal gear pump PGH5 (see data sheet 10223)

Dimensions in mm

1)	2 mounting screws and seal ring included in the scope of delivery.
2)	According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1	Up to pump mounting face

Size	A1	A3	A4	A5	A6
Size	mm	mm	mm	mm
125	369	10.4	50	13	M16
180	393	10.4	50	13	M16
250	453	12.4	55	13	M16
355	482	12.4	55	13	M16

Notices:

Before determining the design, please request a binding installation drawing.

Thread according to DIN 13 (for maximum tightening torques, see "Installation").

Project planning information

Command values may only be switched via relays with gold-plated contacts (low voltage, low currents)

Always shield command and actual value cables.

The distance to aerial lines or radios must be at least 1 m.

Do not lay signal lines close to power lines.

Amending notes on the SYHDFE control system can be found in the operating instructions (See section “Further information about this control system”).

Through-drives : Size 40 … 71

The control systems of size 40 … 71 are partly supplied with through-drive "K99".

Their advantage is that the through-drive can be subsequently modified. By simply exchanging the intermediate flange and the hub, the through-drive can be adjusted to the on-site requirements.

The assemblies as exchange kits can be ordered separately, see "Accessories for through-drives" as well as data sheet 95581.

Small centering diameters are directly worked into the pump subplate. Subsequent modification is not possible. In this connection, observe the "Type codes" as well as "Accessories for through-drives". Hubs for through-drives can be ordered separately.

Through-drives : Size 125 … 355

The control systems of size 125 … 355 are supplied with universal through-drives "U99".

Their advantage is that the through-drive can be subsequently modified. By simply exchanging the intermediate flange and the hub, the through-drive can be adjusted to the on-site requirements.

The assemblies as exchange kits can be ordered separately, see "Accessories for through-drives" as well as data sheet 95581.

Mounting

Tightening torques

The tightening torques specified in this data sheet are maximum values and must not be exceeded (maximum values for screw-in threads). Manufacturer's specifications regarding the maximum admissible tightening torques of the fittings used are to be

For mounting screws according to DIN 13, we recommend checking the tightening torque case by case accordingto VDI 2230, version 2003.

Downloads

	Pressure and flow control system Manual \| RE30017-B \| 2021-11-09 \| English \| PDF \| 3.9MB Product Groups: Pump systems SY(H)DFED
	Druck- und Förderstrom-Regelsystem Manual \| RD30017-B \| 2021-11-09 \| German \| PDF \| 3.9MB Product Groups: Pump systems SY(H)DFED
	Druck- und Förderstrom-Regelsystem Data Sheet \| RD30035 \| 2021-10-01 \| German \| PDF \| 1.7MB Product Groups: Electro-hydraulic control systems Typ SYHDFEE, SYHDFED, SYHDFEF
	Pressure and flow control system Data Sheet \| RE30035 \| 2021-10-01 \| English, United States \| PDF \| 1.7MB Product Groups: Electro-hydraulic control systems Type SYHDFEE, SYHDFED, SYHDFEF
	Rexroth HydraulicDrive, HDx-20 pump control Manual \| RE30237-Z \| 2020-10-07 \| English \| PDF \| 6.5MB Product Groups: Axis control
	Rexroth HydraulicDrive HDS-16, HDx-17 to HDx-20 Parameters Reference Book \| RE30330-PA \| 2020-04-01 \| English \| PDF \| 12.6MB Product Groups: Axis control Reference Book
	Rexroth HydraulicDrive HDS-16, HDx-17 bis HDx-20 Parameter Reference Book \| RD30330-PA \| 2020-04-01 \| German \| PDF \| 12.7MB Product Groups: Axis control Referenz
	Rexroth HydraulicDrive HDx-20VRS Firmware for drive controllers Release Note \| RE30330-RN \| 2019-06-06 \| English \| PDF \| 2.9MB Product Groups: Axis control Firmware Release Notes
	Rexroth HydraulicDrive HDx-20VRS Firmware für Antriebsregelgeräte Release Note \| RD30330-RN \| 2019-06-06 \| German \| PDF \| 3MB Product Groups: Axis control Firmware Release Notes
	Rexroth HydraulicDrive HDS-16, HDx-17 to HDx-20, Diagnostic Messages Manual \| RE30330-WA \| 2020-04-01 \| English \| PDF \| 4.9MB Product Groups: Axis control Reference
	Rexroth HydraulicDrive HDS-16, HDx-17 bis HDx-20, Diagnosen Manual \| RD30330-WA \| 2020-04-01 \| German \| PDF \| 5MB Product Groups: Axis control Referenz
	Rexroth HydraulicDrive HDx-20 Functions Manual \| RE30338-FK \| 2020-04-01 \| English \| PDF \| 59.1MB Product Groups: Axis control
	Rexroth HydraulicDrive HDx-20 Funktionen Manual \| RD30338-FK \| 2020-04-01 \| German \| PDF \| 59.8MB Product Groups: Axis control

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.

Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.

Мы предлагаем следующие способы оплаты товара:

Оплата наличными

Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.

Безналичная оплата

Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.

Электронные способы

Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.

Если у вас возникнут вопросы по оформлению заказа, вы можете обратиться к нам, позвонив по телефону +7 495 137-07-02 или связавшись по электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Запрос цены или КП

Мы предоставляем официальную гарантию на всю поставляемую продукцию Bosch Rexroth.

Гарантийный сервис включает в себя:

Приемку продукции в сервисный центр для выполнения диагностики дефекта.
Ремонт продукции.
Доставку продукции до объекта заказчика.

Контакты гарантийного отдела:

Телефон: +7 495 137-07-02
E-mail: support@boschrexroth-russia.ru

Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

Окажет профессиональную консультацию.
Сообщит вашу цену на продукцию.
Сообщит информацию об актуальных акциях и скидках.
Подскажет ближайшее к вам отделение с наличием нужной продукции.
Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация

Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

НовостиВсе новости

Bosh Rexroth HED 5-3X: Надежный контроллер для современных систем

Гидроэлектрические реле давления поршневого типа HED 5-3X от производителя Bosh Rexroth завоевали признание среди специалистов благодаря своим выдающимся характеристикам и функциональности. Эти устройства обеспечивают надежный контроль давления в различных промышленных системах. Серия компонентов..

16 Ноября, 2024 Bosch Rexroth - новая эра измерения давления в гидравлических системах

В условиях современного производства всегда важно обеспечивать стабильность и безопасность работы гидравлических систем. Преобразователь давления HM20-2X становится эффективным решением для этой задачи. Среди ключевых характеристик HM20-2X стоит выделить следующие - Серия компонент..

14 Октября, 2024 Boschrexroth Датчик давления HED 8 OA-2X/100K14: надежность и точность в контроле давления

Датчик давления Boschrexroth HED 8 OA-2X/100K14 (арт. R901102706) используется в различных промышленных приложениях, обеспечивая высокую точность и надежность измерений давления. Он способен функционировать в строгих условиях, что делает его незаменимым инструментом для автоматизации и управления пр..

13 Сентября, 2024 Bosh Rexort - аккумуляторы HAD оптимизируют энергосистемы

В мире гидропневматических систем появилась новинка, которая уже привлекла внимание специалистов. Гидропневматические аккумуляторы серии HAD демонстрируют инновационный подход к управлению энергией и стабилизации давления в различных системах, как мобильных, так и стационарных. Высокая эффективно..

23 Августа, 2024 Bosh Rexort представило двухходовой патронный клапан!

Двухходовой патронный клапан с активным управлением LC2A Bosch Rexroth представляет собой прецизионное гидравлическое устройство, разработанное для контроля и регулирования потока рабочей жидкости в системах гидравлики. Этот клапан работает по принципу двухпозиционного управления потоком, обеспечива..

17 Июля, 2024 Bosch Rexroth - надежный партнер для вашего бизнеса в области гидравлики!

Компания Bosch Rexroth предлагает широкий спектр продукции, включая гидронасосы, гидромоторы, гидроклапана, гидроцилиндры, пневмоцилиндры, клапаны, регуляторы, датчики и многое другое. Благодаря высокому качеству продукции и многолетнему опыту работы в отрасли, Bosch Rexroth является предпочтит..

20 Июня, 2024 Как правильно выбрать насос от BOSCH REXROTH?

В мире мобильной и промышленной гидравлики, где надежность и качество стоят на первом месте, насосы Bosch Rexroth выделяются как эталон долговечности и технического совершенства. Эти изделия, зарекомендовавшие себя в России и за её пределами, стали символом немецкого качества и профессионального под..

30 Мая, 2024 Bosch Rexroth – гидравлические шестерённые насосы серии AZPF

Гидравлические шестерённые насосы серии AZPF - это оборудование, которое обеспечивает преобразование механической энергии в гидравлическую с высоким КПД. Они обладают длительным сроком службы благодаря уплотнению зазоров и высокоточной технологии производства. Приводные валы в соответствии с межд..

8 Апреля, 2024 Bosch Rexroth на выставке LogiMAT

На выставке LogiMAT компания Bosch Rexroth представила передовые компоненты, подсистемы и системные решения для автоматизации и оптимизации логистики. Среди предложений компании - практические решения для трансмиссии и рабочих функций промышленных грузовиков и автономных мобильных роботов (AMR), вкл..

22 Марта, 2024 Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024 Bosch Rexroth и TotalEnergies объединяют свои усилия для продвижения альтернативных и экологичных гидравлических жидкостей

Bosch Rexroth и TotalEnergies (французская нефтегазовая компания) 18 декабря 2023 года подписали соглашение сотрудничестве, направленном на разработку, внедрение и маркетинг гидравлических жидкостей на водной основе, с акцентом на экологичность, огнестойкость и производительность. Данный союз отр..

11 Января, 2024 Bosch Rexroth представляет Интеллектуальный функциональный набор для обработки данных Smart Function Kit for Handling

Компания Bosch Rexroth является одним из ведущих мировых производителей и поставщиков технологий и услуг в области промышленной автоматизации. Это производитель рад представить вам свой интеллектуальный функциональный набор для обработки данных. Это инновационное оборудование, с помощью которого п..

4 Декабря, 2023

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
