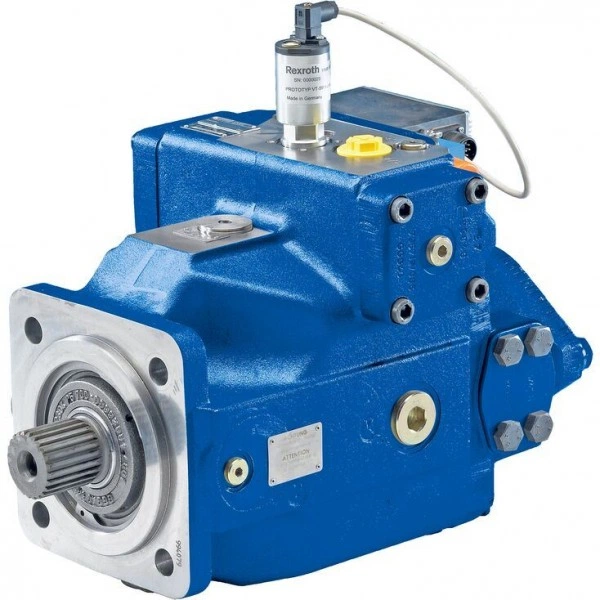

Pressure and flow control system SYHDFEE-1X

Доступно к заказу

Цена по запросу

Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Description

  • With axial piston variable displacement pump A4VSO
  • Size 40 … 355
  • Component series 1X
  • Maximum operating pressure 350 bar
  • Function: Swivel angle control, Pressure control,Torque limitation, Speed control function, Master-Slave
  • Communication: Sercos, PROFINET, EtherNET/IP, POWERLINK, VARAN, CAN over EtherCAT, ServoDrive over EtherCAT, analog

Features

  • The control system is used for the electro-hydraulic control of swivel angle, pressure and power (partially optional) of an axial piston variable displacement pump.
    It consists of the following components:
  • A4VSO axial piston variable displacement pump optimized for the operation in the control system
  • VT-DFP. proportional valve as pilot control valve with integrated electronics including inductive position transducer for valve position sensing.
  • Position transducer for sensing the swivel angle
  • Pressure transducer with suitable signal level and dynamics (optional)

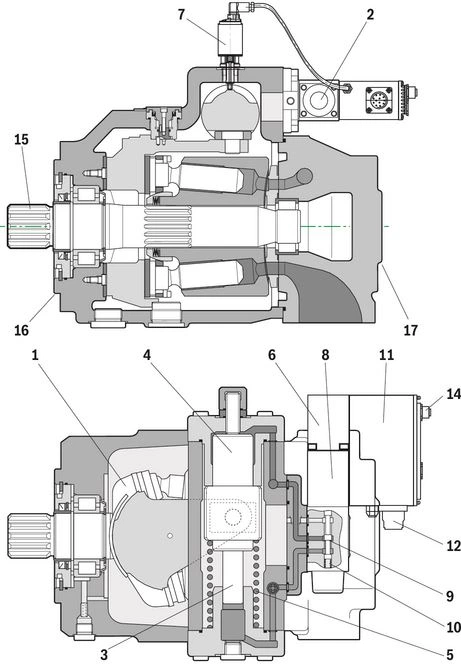

Product description

1

Swash plate

2

Pilot control valve

3

Counter piston

4

Actuating piston

5

Spring

6

Inductive position transducer for valve position

7

Swivel angle position sensor

8

Proportional solenoid

9

Valve spool

10

Spring

11

Integrated electronics

12

Connector X1

14

Connector X2 for connection of the pressure transducer HM 20, cable version (only with actual pressurevalue input "F")

15

Drive shaft

16

Connection flange

17

Subplate, optionally with through-drive

Type code

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

SYHDFEE

1X

/

B

25

*

Pump of the control system

Series

01

Control system with integrated analog electronics

SYHDFEE

Pump combinations (see below)

SY2HDFEE
SY3HDFEE

02

Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)

1X

Size

040

071

125

180

250

355

03

Displacement cm³

40

71

125

180

250

355

e.g. 071

Direction of rotation looking at the drive shaft

04

Right

R

Left

L

Hydraulic fluid

05

Mineral oil according to DIN 51524 (HL/HLP)

V

HFC

F

Drive shaft variant

06

Cylindrical with fitting key DIN 6885 (not in connection with through-drive)

P

Splined shaft profile DIN 5480

Z

Connection flange

07

ISO 4-hole

B

Port for working lines pressure port B and suction port S

08

Port B and S: SAE, laterally displaced by 90°, metric mounting thread, 2nd pressure port B1 vis-à-vis B – upon delivery closed by means of flange plate

25

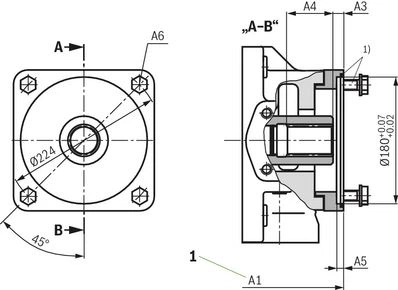

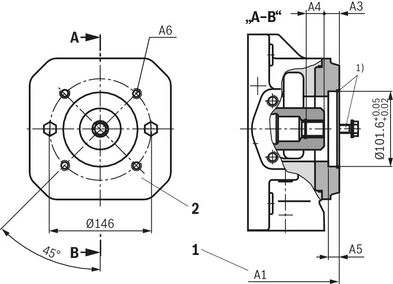

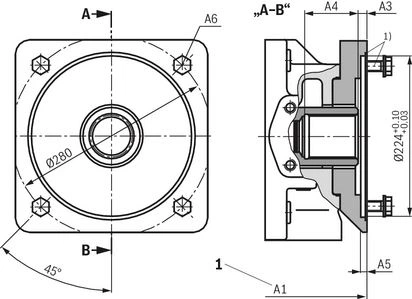

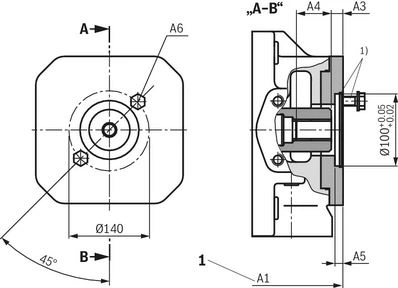

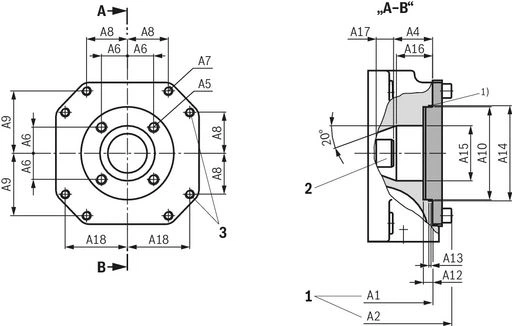

Through-drive (All through-drives with single pumps come without a hub and are operationally safe, provided with an end cover)

09

Without through-drive

N00

Universal through-drive, closed operationally safe with end cover at the factory; for components for the adaptation of more pump stages, see "Accessories".

U99

Through-drive, closed operationally safe with end cover at the factory; for components for the adaptation of more pump stages, see "Accessories".

K99

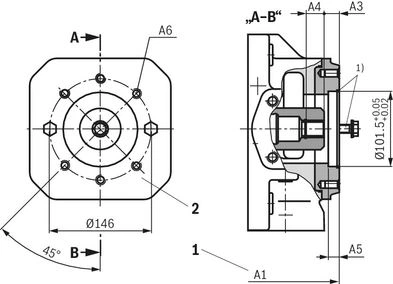

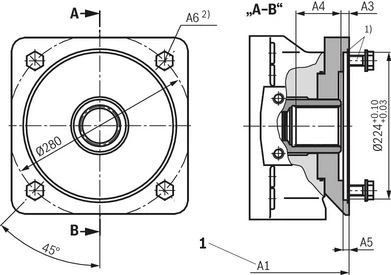

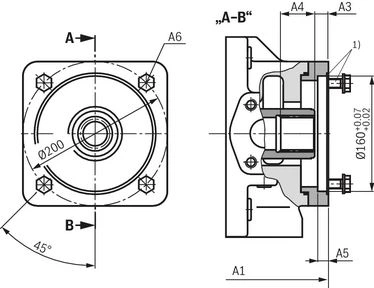

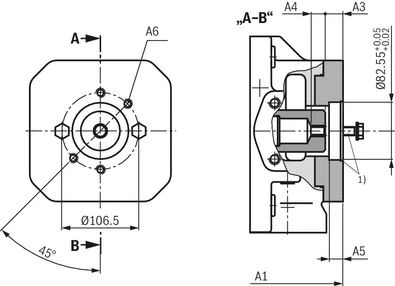

Centering: SAE ⌀82,55 mm
Attachment pump (examples): A10VSO..31 NG18, PGF2M, PGH2, PGH3, AZPF

1)

KC1

Base pump variant

10

Standard (internal pilot oil)

0000

External supply

0576

1)Observe the conditions for the attachment pumps.

Pilot control and preload valve

Control spool design

11

Standard

A

4 grooves

C

Installation orientation of the integrated electronics (see below and "Dimensions")

12

Parallel to the pump axis

0

Vertical to the pump axis

1

Additional functions: Closed-loop control

13

Switchable pressure controller (high signal)

A

Power limitation adjustable at the OBE valve

B

Power limitation adjustable via analog input

C

Pressure controller that can be switched off (high signal)

D

Electronics assembly

14

Standard electronics with leakage oil compensation

0

Standard electronics without leakage oil compensation

1

Actual pressure value input (see "Electrical connections")

15

Current input 4 … 20 mA

Port X1

C

Voltage input 0 … 10 V

Port X1

V

Voltage input 1 … 10 V

Port X1

E

Voltage input 0.5 … 5 V

Connection X2

F

Pressure transducer

16

HM 20-2X/315-F-C13-0.5, measurement range 315 bar (0.5 ... 5 V) with connection cable 0.5 m for direct connection to X2 (only version "F")

L

Without pressure transducer

X

17

Further details in the plain text

*

Installation orientation of the valve electronics

Clockwise direction of rotation

Installation orientation "0"

Installation orientation "1"

Pump combinations

(Material numbers or type designations are to be connected by means of "+")

01

02

03

04

05

06

SY2HDFEE

1X

/

/

+

01

Two-way pump

SY2HDFEE

02

Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)

1X

03

Size of the main pump

1)

04

Size of the attachment pump or pump abbreviation if the attachment pump is not SYHDFE (e.g. PGF)

1)

05

Material number without "R9" for the main pump or type designation if material number is not known

06

Material number without "R9" for the attachment pump or type designation if material number is not known

1)Detailed information see type key

01

02

03

04

05

SY3HDFEE

1X

/

+

+

01

Three-way pump

SY3HDFEE

02

Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)

1X

03

Material number without "R9" for the main pump or type designation if material number is not known

04

Material number without "R9" for the attachment pump or type designation if material number is not known

05

Material number without "R9" for the attachment pump or type designation if material number is not known

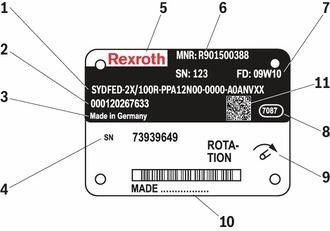

Example of name plate (single pump)

1

Material short text

2

Production order number

3

Designation of origin

4

Fabrication number

5

Word mark

6

Material number, serial number underneath

7

Date of production

8

Plant

9

Indication of direction of rotation

10

Production location

11

QR code

Notice:

Für Rückfragen zum Regelsystem sind Material-Nummer, Fertigungsauftragsnummer, Seriennummer und Fertigungsdatum notwendig.

Technical data

mechanic and hydraulic

Size

4071125180250355

Displacement

cm³

4071125180250355

Maximum speed 1)

Vg max

rpm

26002200180019001700

Vg max and HFC fluids

rpm

-220018001500

Minimum speed 2)

rpm

200

Maximum flow (displacement)

at n0 and Vg max

l/min

104156225324475604

with nE = 1500 min-1 and Vg max

l/min

60107186270375533

Maximum power (Δp = 350 bar)

at n0 and Vg max

kW

6191131189277352

with nE = 1500 min-1 and Vg max

kW

3562109158219311

Maximum torque (Δp = 350 bar)

Nm

223395696100213911976

Maximum drive torque

Fitting key

Nm

3807001392140023003557

Splined shaft "S" overall torque

Nm

4467901392200427823952

Maximum through-drive torque

Nm

223395696100213911976

Drive shaft load

Maximum axial force

N

6008001000140018002000

Maximum radial force 3)

N

10001200160020002200

Weight (without filling quantity)

kg

395388102184207

Moment of inertia around drive axis

kg·m²

0490.01210.030.0550.09590.19

Filling quantity of the housing

l

22.554108

Maximum operating pressure 4)

bar

350

Operating pressure, min. (without load)

bar

≥ 20

Admissible inlet pressure

bar

0.8 ... 30

Hydraulic fluid

Mineral oil (HL, HLP) according to DIN 51524; HFC optional

Hydraulic fluid temperature range

°C

-20 … +70

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c)

Class 18/16/13 (for particle size ≤ 4/6/14 μm)
1)The values apply at an absolute pressure of 1 bar at suction opening S. With a reduction of the displacement or an increase in the inlet pressure, the speed can be increased accordingto the following characteristic curve.
With a reduced inlet pressure, the speed is to be reduced.
2)Does not apply to HFC fluid, formula for determination of the minimum speed see below
3)In case of higher radial forces, please consult us. Not applicable for use of HFC fluids.
4)When using HFC fluids, also see data sheet 92053.

Determination of the minimum speed at HFC hydraulic fluid

Size

4071125180250355

Speed

n0

rpm

-750850600550450

Viscosity

ν0

mm²/s

25

Admissible load

Example 1:

The axial piston variable displacement pump A4VSO125 may be operated at ν = 16 mm2/s

as of n = 1328 rpm with nominal load

Example 2:

For the axial piston variable displacement pump A4VSO250, the admissible load with

n = 500 rpm and 10 mm2/s

x = 10/25*500/550 = 0.364 (= 127 bar at Vg max)

electrical

Operating voltage

VDC

24; –5 % +40 %

Operating range (short-time operation)

Upper limit value

V

35

Lower limit value

V

21

Current consumption (in static control operation)

Rated current

A

0.6

Maximum current

A

1.25

Inputs

Actual pressure value input X1;
pin 10 and 11

Determination by means of ordering code

Analog, current, load 1)

Ω

100

Analog, voltage

≥ 50

Digital

Logic 0

V

≤ 0,6

Logic 1

V

≥ 21

Outputs

pActual

V

0 ... 10

mA

1,5

αActual

V

± 10

mA

1,5

Digital

Logic 0

Ua < 1 V

Logic 1

Ua ≥ UB – 5 V; 10 mA (short-circuit-proof)

Ambient temperature range at the pump

°C

​0 … ​60

Storage temperature range (pump + electronics)

°C

​0 … ​70

Electronics design

Integrated at pilot control valve (OBE)

Protection class according to EN 60529

Pump incl. pilot control valve

IP65 (If a suitable and a correctly mounted mating connector are used.)
1)With configuration on current input: Maximum input current 30 mA

Notice:

For information on the environment simulation testing for the areas EMC (electromagnetic compatibility), climate and mechanical load see data sheet 29016 (declarations on environmental compatibility).

Bearing flushing

With the following operating conditions, bearing flushing is necessary for safe continuous operation:

  • Applications with special fluids (not mineral fluids) due to limited lubricity and tight operating temperature range
  • Operation with boundary conditions of temperature and viscosity with mineral oil operation

With vertical installation (drive shaft upwards), bearing flushing is recommended for lubrication of the front bearing and the shaft seal ring.

The bearing is flushed using port "U" in the area of the front flange of the variable displacement pump. The flushing fluid flows through the front bearing and exits with the pump leakage at the leakage connection.

Recommended flushing quantity

Size

4071125180250355

Recommended flushing quantity

l/min

34571015

The specified flushing quantities result in a pressure differential between port "U” (including fitting) and the leakage chamber of approx. 2 bar (series 1) and approx. 3 bar (series 3).

When using the external bearing flushing, the throttle screw in port U has to be screwed-in to the stop.

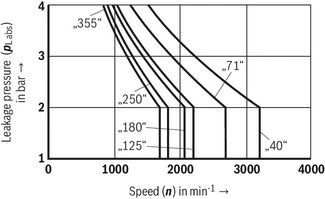

Leakage pressure

The admissible leakage pressure (housing pressure) depends on the speed (see diagram).

Maximum leakage pressure (housing pressure): 4 bar absolute

These specifications are guidelines; under special operating conditions, a limitation may become necessary.

Direction of flow: S → B

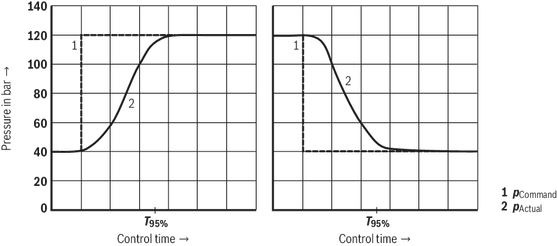

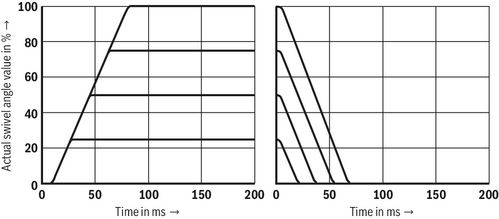

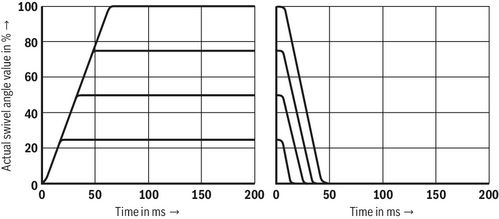

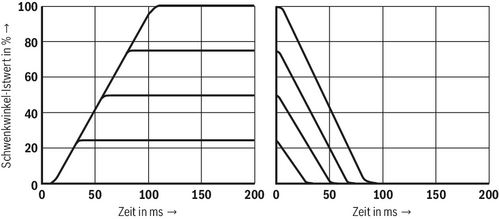

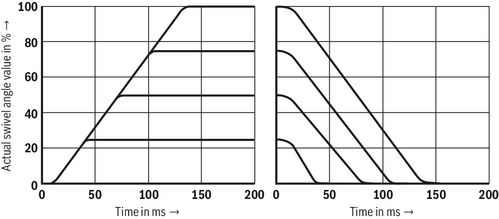

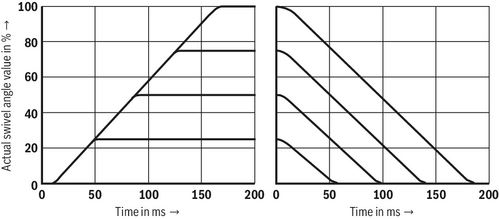

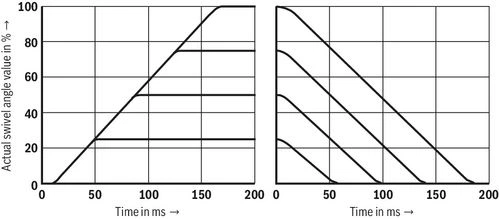

Control loop quality

Swivel angle control

Pressure control

1)

Linearity tolerance

≤1.0 %

≤1.5 % (≤1.0 %)

Temperature error

≤0.5 % / 10 K

≤0.5 % / 10 K

Hysteresis

≤0.2 %

≤0.2 %

Repetition accuracy

≤0.2 %

≤0.2 %

1)Without considering the pump pulsation.

Notices:

  • ●The specified values are only valid when using the system-related components (see "Accessories").
  • At pressures <20 bar, higher tolerances have to be anticipated due to lower actuating forces.

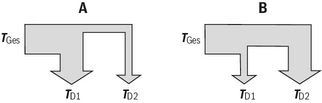

Through-drives : Drive and through-drive torques

Maximum drive and through-drive torques

Size

40

71

125

180

250

355

Splined shaft

Total drive torque at the shaft of pump 1 (pump 1 + pump 2)

TGes max

Nm

446

790

1392

2004

2782

3952

Through-drive torque A

TD1 max

Nm

223

395

696

1002

1391

1976

TD2 max

Nm

223

395

696

1002

1391

1976

Through-drive torque B

TD1 max

Nm

223

395

696

1002

1391

1976

TD2 max

Nm

223

395

696

1002

1391

1976

Fitting key

Total drive torque at the shaft of pump 1 (pump 1 + pump 2)

TGes max

Nm

380

700

1392

1400

2300

3557

Through-drive torque A

TD1 max

Nm

223

395

696

1002

1391

1976

TD2 max

Nm

157

305

696

398

909

1581

Through-drive torque B

TD1 max

Nm

157

305

696

398

909

1581

TD2 max

Nm

223

395

696

1002

1391

1976

Distribution of through-drive torques

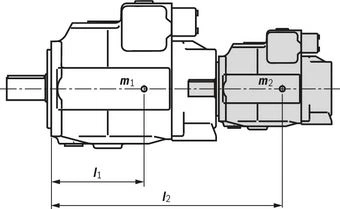

Mass torque (relates to mounting flange of main pump)

Size

40

71

125

180

250

355

Maximum mass torque

Tm zul.

Nm

1800

2000

4200

4200

9300

9300

Maximum mass torque with dynamic mass acceleration of 10 g = 98.1 m/s2

Tm zul.

Nm

180

200

420

420

930

930

Weight (SYHDFE or A4VSO...DR)

m

kg

39

53

88

102

184

207

Distance of the center of gravity

l1

mm

120

140

170

180

210

220

Tm​ ​[Nm]

Maximum mass torque

m1, m2 ​[kg]

Weight of the pump

l1, l2 ​[mm]

Distance of the center of gravity

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

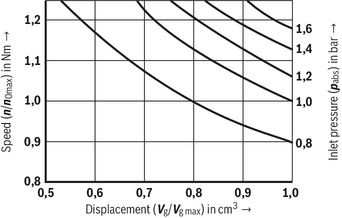

Transition function for pressure command value step (control spool version "A")

T95% in ms with a connected hydraulic fluid volume (lines and actuators)

Hydraulic fluid volume in l

T95% in ms

<​5

150

5 … 10

200

15 … 25

250

Notices:

  • For pressures up to 40 bar, the values of the response times are greater.
  • The specified curve shapes and control times refer to a drive speed of 1500 rpm and are only reached with an optimization of the pressure controller.

Transition function with swivel angle command value step (control spool version "A")

Size 40, 71 (p = 100 bar)

Size 125 (p = 100 bar)

Size 180 (p = 100 bar)

Size 250 (p = 100 bar)

Size 355 (p = 100 bar)

Symbols/Circuit diagrams

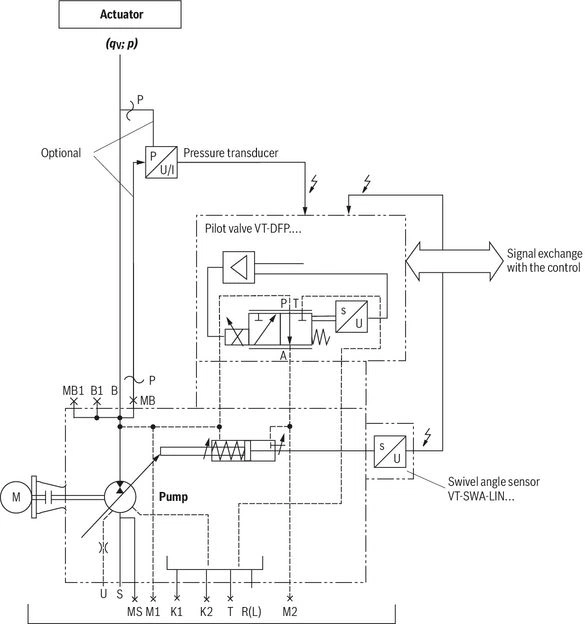

Schematic diagram : Actuating system supplied internally

S

Suction port

K1, K2

Flushing port

T

Fluid drain

MB

Measuring port operating pressure (M14x1,5)

MS

Measuring port suction pressure

M1, M2

Measuring port control chamber pressure

R(L)

Fluid filling + bleeding (leakage connection)

U

Flushing port

B

Pressure port

B1

2nd Pressure port/additional port

MB1

Measuring port operating pressure
NG250/355: G1/4
NG 40/71/125/180: Blind flange attached to B1 with pressure measuring port G1/4

Using the pressure transducer HM 20-2X/…C13

  • Installation in MB or MB1 (pump) in connection with electronic version for actual pressure value input "F"
  • For attachment of an HM20-2X/315-F-C13-0.5 in MB, an adapter from M14 x 1.5 to G1/4 (material no. R900695665) is required.
  • Due to the installation position, the HM20 cable version cannot be used for all sizes without restrictions (check use with M12 extension cable).

Using an external pressure transducer

Installation in line B (preferably close to the actuator) and electrical connection via central connection X1

Notice:

The actual pressure value at port B must not be less than 10 bar for more than 10 minutes (lubrication).

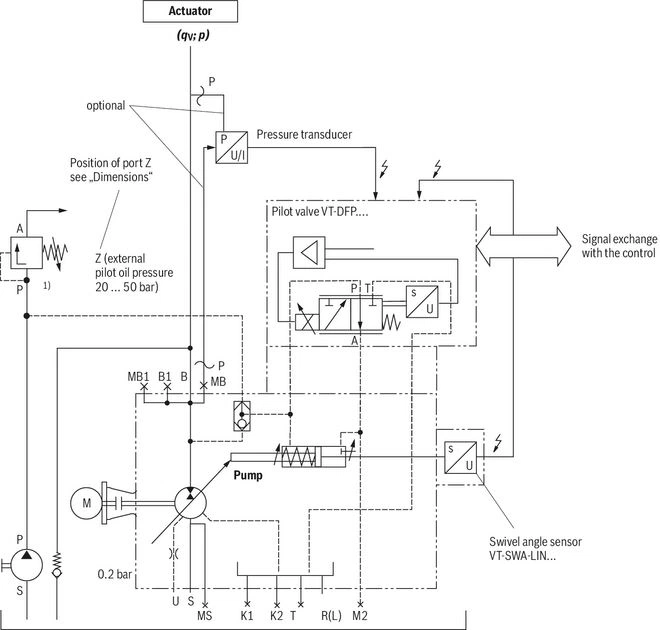

Schematic diagram : Actuating system supplied externally

1)Maximum pressure limitation must be provided by the customer.

S

Suction port

K1, K2

Flushing port

T

Fluid drain

MB

Measuring port operating pressure (M14x1,5)

MS

Measuring port suction pressure

M1, M2

Measuring port control chamber pressure

R(L)

Fluid filling + bleeding (leakage connection)

U

Flushing port

B

Pressure port

B1

2nd Pressure port/additional port

MB1

Measuring port operating pressure
NG250/355: G1/4
NG 40/71/125/180: Blind flange attached to B1 with pressure measuring port G1/4

Z

External pilot oil pressure
(DIN 3852 M14 x 1.5; 12 deep (pmax(abs) = 50 bar)

Notes on external supply:

  • In the case of an actuating system with external supply, the pump adjustment will - in case of voltage failure - not switch to zero stroke but to the negative stop (displacement of 100 % flow from the system to the tank).
  • With an active fault message, it is imperative that the machine control reacts (e. g. switching off the drive motor of the pump, interrupting the external supply of the actuating system).
  • The command values for pressure and flow must always be greater than zero (pcommand ≥ 3 bar, αcommand ≥ 5 %) as due to drift or tolerances, there is no exact "zero" pressure or "zero" swivel angle. Under unfavorable conditions, smaller command value presettings can lead to cavitation.
  • The actual pressure value must not be less than 10 bar for more than 10 minutes (lubrication).
  • Port Z must be connected to tank level in case of non-use. Closing is not admissible.

Electrical connection

X1, central connection

Assignment of connector or mating connector and cable set

Pin

Signal

Description

Signal direction

Type of signal

Allocation in the cable set (accessories)

1

+ UB

Voltage supply

IN

24 VDC

1

Supply line 3 x 1.0 mm2

2

0 V = L0

Reference potential for the voltage supply

2

PE

Earth

Earthing connection for the electronics

green/yellow

3

Fault

Signals faults, e.g. cable break command / actual values, controller monitoring (logic 0 = error)

OUT

logic 24 V

white

Supply line 10 x 0.14 mm2 shielded (one end of the shield must be connected to the control)

4

M0

Reference potential for analog signals

yellow

5

αCommand

Swivel angle command value

IN

analog ±10 V

green

6

αActual

Actual swivel angle value, normalized

OUT

analog ±10 V

Violet

7

pCommand

Pressure command value

IN

analog 0 … 10 V

pink

8

pActual

Actual pressure value, normalized

OUT

analog 0 … 10 V

1)​

red

9

Function dependent on electronic type and additional function, see below

brown

10

Actual pressure value H

Actual pressure value input: Signal level depends on pos. 15 in the ordering code. With version "F" (0.5 … 5 V) reserved

IN

analog

black

11

Actual pressure value L

analog

blue

n.c.

gray

Functions at pin 9

Pin

Additional function

Function dependent on pos. 7 of the ordering code (order, see ordering code)

Signal direction

Type of signal

9

"A"

Selecting a different oil volume adjustment (switch TD)

IN

logic 24 V

"B"

Power limitation active

OUT

logic 24 V

"C"

Command value of power limitation

IN

analog 0 … 10 V

"D"

Switch off pressure controller

IN

logic 24 V

1)When using a pressure transducer with raised zero point (e. g. 4 ... 20 mA), a voltage of –1 ... –2.5 V will be output in case of a cable break.

X2, connection of pressure transducer HM 20

Pin

Signal HM 20

1

OUT, +UB

2

n.c.

3

Reference L0

4

IN, analog, 0.5 … 5 VDC

5

n.c.

Notice:

Mating connectors, separate order, see "Accessories"

Dimensions

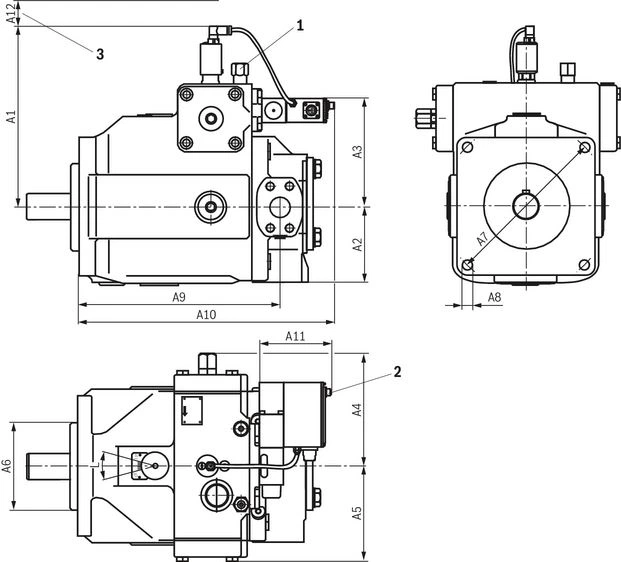

Installation orientation "0"

Dimensions in mm

1

Port Z (for version SYHDFE.-1X...0576)

(DIN 3852 M14 x 1.5; 12 deep (pmax(abs) = 50 bar)

2

Connection X2 (pressure transducer HM 16) with actual pressure value input "F"

3

Space required to remove the mating connector

A1

A2

A3

A5

A6

A7

A8

A9

A10

A11

A12

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

239801271041251601522732513725
25692.51411271401801525435213725
291112.51711471602002031042113725
2911161711471602002031842113725
3391442071792242802438048313725
3391442071792242802439357513725

Notice:

Dimensions base pump (axial piston variable displacement pump A4VSO) see data sheet 92050.

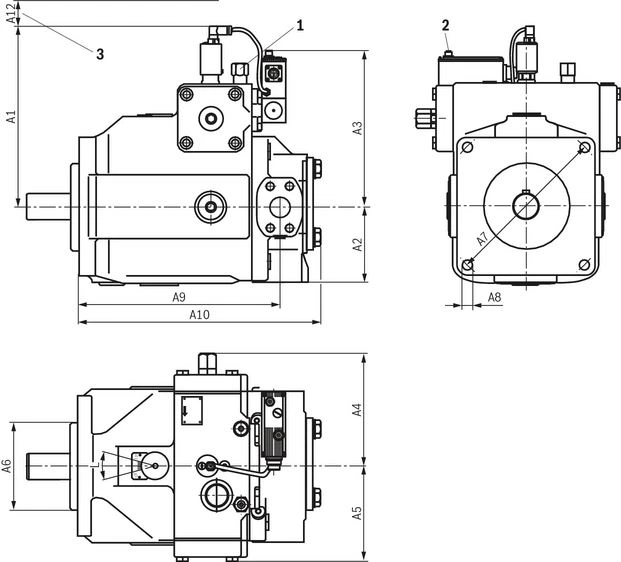

Installation orientation "1"

1

Port Z (for version SYHDFE.-1X...0576)

(DIN 3852 M14 x 1.5; 12 deep (pmax(abs) = 50 bar)

2

Connection X2 (pressure transducer HM 16) with actual pressure value input "F"

3

Space required to remove the mating connector

Size

A1

A2

A3

A5

A6

A7

A8

A9

A12

mm

mm

mm

mm

mm

mm

mm

mm

mm

40239802171041251601522725
7125692.52311271401801525425
125291112.52611471602002031025
1802911162611471602002031825
2503391442971792242802438025
3553391442971792242802439325

Notice:

Dimensions base pump (axial piston variable displacement pump A4VSO) see data sheet 92050.

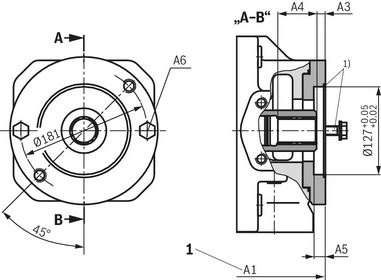

Through-drives

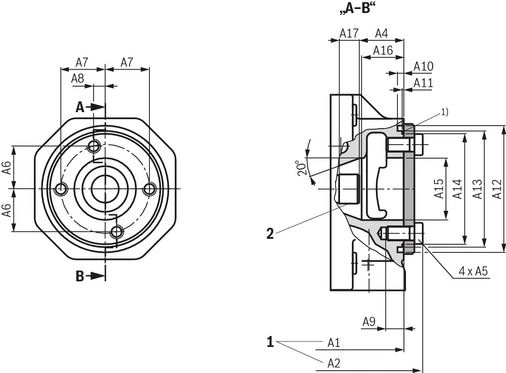

"K99"

With through-drive shaft, without hub, without intermediate flange, closed operationally safe with end cover.

Dimensions in mm

1

Up to pump mounting face

2

Splined shaft profile DIN 5480

Size

A1

A2

A4

A5

A6

A7

A8

A9

A10

A11

⌀A12

⌀A13

⌀A14

⌀A15

A16

A17

Splined shaft profile DIN 5480

1) Seal ring for later attachment
(separate order)

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

4026328051.3± 1M12; 25 mm deep37+ 0.237+ 0.201892.3+ 0.1118H7105g697.6- 0.4524414W25 x 1,25 x 18 x 9 g99 x 3
7129131048± 1M12; 25 mm deep42.3+ 0.1545+ 0.1515.41892.7+ 0.1130H7116g6106.4- 0.4633816W30 x 1,25 x 22 x 9 g110,72 x 3,53

Notice:

Left view, drawing without cover.

"U99"

With through-drive shaft, without hub, without intermediate flange, closed operationally safe with end cover.

Dimensions in mm

1

Up to pump mounting face

2

Splined shaft profile DIN 5480

3

Only NG250 and 355

Size

A1

A2

A4

A5

A6

A7

A8

A9

ØA10

A12

A13

ØA14

ØA15

A16

A17

A18

Splined shaft profile DIN 5480

1) Seal ring for later attachment
(separate order)

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

12534736849.7± 1M14; 15 deep33.2+ 0.15
0
M12; 18 deep--
-
79.2+ 0.15
0
118H7
92.8+ 0.2
0
121+ 0.1
+ 0
704622--
-
W35 x 1.25 x 26 x 9 g118 x 2
18037139249.7± 1M14; 15 deep33.2+ 0.15
0
M12; 18 deep--
-
79.2+ 0.15
0
118H7
92.8+ 0.2
0
121+ 0.1
+ 0
704625--
-
W35 x 1.25 x 26 x 9 g118 x 2
25043145561.4± 1M20; 22 deep44.5+ 0.15
0
M10; 15 deep58.15+ 0.15
0
86.2+ 0.15
0
160H7
92.8+ 0.2
0
163+ 0.1
+ 0
876430.586.2+ 0.15
0
W42 x 1.25 x 32 x 9 g160 x 2
35546048761.4± 1M20; 22 deep44.5+ 0.15
0
M10; 15 deep58.15+ 0.15
0
86.2+ 0.15
0
160H7
92.8+ 0.2
0
163+ 0.1
+ 0
87643486.2+ 0.15
0
W42 x 1.25 x 32 x 9 g160 x 2

Notice:

Left view, drawing without cover.

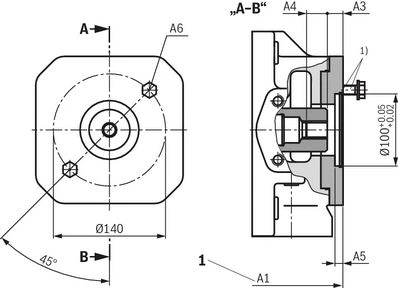

"UB3"

Flange ISO 3019-2 100, 2-hole Hub for splined shaft, 22-4 SAE B, 7/8˝, 16/32 DP; 13T 2) for attachment of an A10VSO 28/31 splined shaft "S" (see data sheet 92711)

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

12536920.524.910M12
18039320.524.910M12

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"UB4"

Flange ISO 3019-2 100, 2-hole

Hub for splined shaft, 25-4 SAE B-B, 1˝, 16/32 DP; 15T 2) for attachment of an A10VSO 45/31 splined shaft "S" (see data sheet 92711)

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

12536918.929.510M12
18039318.929.510M12
25045320.929.510M12
35548220.929.510M12

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"UB8"

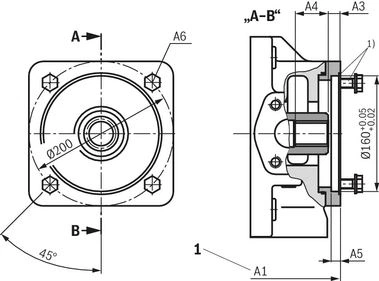

Flange ISO 3019-2 160, 4-hole

Hub for splined shaft, 32-4 SAE C, 1 1/4˝, 12/24 DP; 14T 2) for attachment of an A10VSO 71/32 splined shaft "S" (see data sheet 92714)

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

25045320.9389M16

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"UB7"

Flange ISO 3019-2 180, 4-hole

Hub for splined shaft, 44-4 SAE D, 1 3/4˝, 8/16 DP; 13T 2) for attachment of an A10VSO 140/31(32) splined shaft "S" (see data sheet 92711, 92714)

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

18040610.6629M16
25045310.6649M16
35548210.649M16

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U34"

Flange ISO 3019-2 160, 4-hole

Hub according to DIN 5480 N50 x 2 x 24 x 8H for attachment of an A4VSO/G 125 or 180 splined shaft

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

12536912.551.69M16
18039312.551.69M16
25045312.5549M16
35548212.5549M16

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U35"

Flange ISO 3019-2 224, 4-hole

Hub according to DIN 5480 N60 x 2 x 28 x 8H for attachment of an A4VSO/G or A4CSG 250 splined shaft

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

25046912.6759M20
35549812.6759M20

1

Up to pump mounting face

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U77"

Flange ISO 3019-2 224, 4-hole

Hub according to DIN 5480 N70 x 3 x 22 x 8H for attachment of an A4VSO/G or A4CSG 355 splined shaft

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

35549812.5759M20

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U01"

Flange ISO 3019-1 82-2 (SAE A)

Hub for splined shaft, 16-4 SAE A, 5/8˝, 16/32 DP; 9T 2) for attachment of an external gear pump AZ-PF-1X-004 ... 022 (see data sheet 10089); recommendation: special version of the gear pumps, please contact us.

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

1253691619.413M10
1803931619.413M10
2504531619.413M10
3554821619.413M10

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U68"

Flange ISO 3019-1 101-2 (SAE B)

Hub for splined shaft 22-4 SAE B, 7/8˝, 16/32 DP; 13T 2) for attachment of an external gear pump AZ-PN-1X020 ... 032 (see data sheet 10091) or A10VO 28/31 and 52(53); splined shaft "S" (see data sheet 92701 and 92703); recommendation: special version of the gear pumps, please contact us.

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

2

Only NG125 and 180

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

125369282513M12
180393282513M12
25045319.523.113M12
35548219.523.113M12

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U04"

Flange ISO 3019-1 101-2 (SAE B)

Hub for splined shaft 25-4 SAE B-B, 1˝, 16/32 DP; 15T 2) for attachment of an A10VO 45/31 and 52 (53), splined shaft "S" (see data sheet 92701 and 92703) or an internal gear pump PGH4 (see data sheet 10223)

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

2

Only NG125 and 180

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

12536918.929.413M12
18039318.929.413M12
25045318.929.413M12
35548218.929.413M12

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

"U24"

Flange ISO 3019-1 127-2 (SAE C)

Hub for splined shaft 38-4 SAE C-C, 1 1/2˝, 12/24 DP; 17T 2) for attachment of an A10VO 100/31 splined shaft, "S" (see data sheet 92701) or A10VO 85/52(53), splined shaft "S" (see data sheet 92703) or an internal gear pump PGH5 (see data sheet 10223)

Dimensions in mm

1)2 mounting screws and seal ring included in the scope of delivery.
2)According to ANSI B92.1a-1976, 30° pressure angle, flat root, side fit, tolerance class 5

1

Up to pump mounting face

Size

A1

A3

A4

A5

A6

mm

mm

mm

mm

12536910.45013M16
18039310.45013M16
25045312.45513M16
35548212.45513M16

Notices:

  • Before determining the design, please request a binding installation drawing.
  • Thread according to DIN 13 (for maximum tightening torques, see "Installation").

Project planning information

  • Command values may only be switched via relays with gold-plated contacts (low voltage, low currents)
  • Always shield command and actual value cables.
  • The distance to aerial lines or radios must be at least 1 m.
  • Do not lay signal lines close to power lines.
  • Amending notes on the SYHDFE control system can be found in the operating instructions (See section “Further information about this control system”).

Through-drives : Size 40 … 71

The control systems of size 40 … 71 are partly supplied with through-drive "K99".

Their advantage is that the through-drive can be subsequently modified. By simply exchanging the intermediate flange and the hub, the through-drive can be adjusted to the on-site requirements.

The assemblies as exchange kits can be ordered separately, see "Accessories for through-drives" as well as data sheet 95581.

Small centering diameters are directly worked into the pump subplate. Subsequent modification is not possible. In this connection, observe the "Type codes" as well as "Accessories for through-drives". Hubs for through-drives can be ordered separately.

Through-drives : Size 125 … 355

The control systems of size 125 … 355 are supplied with universal through-drives "U99".

Their advantage is that the through-drive can be subsequently modified. By simply exchanging the intermediate flange and the hub, the through-drive can be adjusted to the on-site requirements.

The assemblies as exchange kits can be ordered separately, see "Accessories for through-drives" as well as data sheet 95581.

Mounting

Tightening torques

  • The tightening torques specified in this data sheet are maximum values and must not be exceeded (maximum values for screw-in threads). Manufacturer's specifications regarding the maximum admissible tightening torques of the fittings used are to be
  • For mounting screws according to DIN 13, we recommend checking the tightening torque case by case accordingto VDI 2230, version 2003.

Accessories

Through-drives

The following conditions apply to the attachment pumps listed in the table:

  • Internal gear pump PGH with shaft "R", flange "U2", see data sheet 1022
  • Internal gear pump PGF3 with shaft "J", flange "U2", see data sheet 10213
  • External gear pump AZPF with shaft "R", front cover "R", see data sheet 10089

Observe that the through-drive of the main pump and the flange of the attachment pump (see type key pump) are identical. Check in the current data sheet of the gear pump whether the shaft ends have the specified dimensions.

Attachment kits for axial piston variable displacement pumps and SYHDFE control systems

Components universal through-drive

"U99"

Main pump SYHDFE.-1X

Attachment pump

NG125
NG180

NG250
NG355

Size and type

Through-drive

Centering

Hub

Flange designation

Mounting kit

R902447035

R902447037

NG18

SYDFE.-2X
A10VSO / BR31

Shaft "S" or "R"

U52
82,55 mm
3/4″

SAE
J744 82-1
(A-B)

Flange kit

R902446836

R902446850

Hub

R902446823

R902446843

Mounting kit

R902446996

R902446998

NG28

UB3
100 mm
7/8″

ISO 3019-2
100B2HW

Flange kit

R902446808

R902446809

Hub

R902446824

R902446844

Mounting kit

R902447001

R902447003

NG45

UB4
100 mm
1″

ISO 3019-2
100B2HW

Flange kit

R902446808

R902446809

Hub

R902446825

R902446845

Mounting kit

Upon request

Upon request

NG40

SYDFE.-3X
A10VSO / BR32

Shaft "S" or "R"

UE1
125 mm
1″

ISO 3019-2
125B4HW

Flange kit

Upon request

R902446813

Hub

R902446825

R902446845

Mounting kit

R902447014

R902447016

NG71

UB8
160 mm
1 1/4″

ISO 3019-2
160B4HW

Flange kit

R902446816

R902446817

Hub

R902446826

R902443227

Mounting kit

R902447021

R902447022

NG100

UB9
180 mm
1 1/2″

ISO 3019-2
180B4HW

Flange kit

R902446818

R902446820

Hub

R910943555

R910921237

Mounting kit

R902447025

R902447026

NG140

UB7
180 mm
1 3/4″

ISO 3019-2
180B4HW

Flange kit

R902446818

R902446820

Hub

R910904588

R902446849

Mounting kit

R902447010

R902447011

NG40

SYHDFE-1X
A4VSO / BR30

Shaft "Z"

U31
125 mm
W 32 x 2 x 14 x 9 g

ISO 3019-2
125B4HW

Flange kit

R902446812

R902446813

Hub

R902446828

R902446846

Mounting kit

R902447012

R902447013

NG71

U33
140 mm
W 40 x 2 x 18 x 9 g

ISO 3019-2
140B4HW

Flange kit

R902446814

R902446815

Hub

R902491155

R902446847

Mounting kit

R902447019

R902447020

NG125
NG180

U34
160 mm
W 50 x 2 x 24 x 9 g

ISO 3019-2
160B4HW

Flange kit

R902446816

R902446817

Hub

R902446848

R902446830

Mounting kit

R902447028

NG250

U35
224 mm
W 60 x 2 x 28 x 9 g

ISO 3019-2
224B4HW

Flange kit

R902446822

Hub

R910902972

Mounting kit

R902447029

NG355

U77
224 mm
W 70 x 3 x 22 x 9 g

ISO 3019-2
224B4HW

Flange kit

R902446822

Hub

R910941327

Mounting kit

R902447030

R902447032

PGF 2, PGH 2, PGH 3, AZPF

U01
82,55 mm
5/8″

SAE J744
82-2(A-B)

Flange kit

R902446836

R902446850

Hub

R902446831

R902497505

Mounting kit

R902447040

R902447042

PGF 3

U68
101,6 mm
7/8″

SAE J744
101-2(B

Flange kit

R902446837

R902446851

Hub

R902446824

R902446844

Mounting kit

R902447045

R902447047

PGH 4

U04
101,6 mm
1″

SAE J744
101-2(B)

Flange kit

R902446837

R902446851

Hub

R902446825

R902446845

Mounting kit

R902447052

R902447053

PGH 5

U24
127 mm
1 1/2″

SAE J744
127-2(B)

Flange kit

R902446838

R902446852

Hub

R910943555

R910921237

Attachment kits for axial piston variable displacement pumps and SYHDFE control systems

Components universal through-drive

"K99"

Main pump SYHDFE.-1X

Attachment pump

NG40

NG71

Size and type

Through-drive

Centering

Hub

Flange designation

Mounting kit

Upon request

R902546965 1)

NG18

SYDFE.-2X
A10VSO / BR31

Shaft "S" or "R"

K52
82,55 mm
3/4″

ISO 3019-1
82-2

Mounting kit

R902488855

R902566875

NG28

KB3
100 mm
7/8″

ISO 3019-2
100B2HW

Mounting kit

Upon request

R902450062

NG45

KB4
100 mm
1″

ISO 3019-2
100B2HW

Mounting kit

R902543215

NG45

SYDFE.-3X
A10VSO / BR32

Shaft "S" or "R"

KE1
125 mm
1″

ISO 3019-2
125B4HW

Mounting kit

R902543416

NG71

KB8
160 mm
1 1/4″

ISO 3019-2
160B4HW

Mounting kit

R902425118

R910904879

NG40

SYHDFE-1X
A4VSO / BR10

Shaft "Z"

K31
125 mm
W 32 x 2 x 14 x 9 g

ISO 3019-2
125B4HW

Mounting kit

R902403972

NG71

K33
140 mm
W 40 x 2 x 18 x 9 g

ISO 3019-2
140B4HW

1)Only with through-drive "K01"

Attachment kits for axial piston variable displacement pumps and SYHDFE control systems

Components through-drive

Main pump SYHDFE.-1X

Attachment pump

NG40

NG71

Size and type

Through-drive

Centering

Hub

Flange designation

Hub

Upon request

Upon request

PGF 2, PGH 2, PGH 3, AZPF

K01
82,55 mm
5/8″

ISO 3019-1
82-2

Notice:

The order numbers for the combination of pumps are contained in the table and in data sheet 95581.

Hubs for standard electric motor coupling

Coupling with gear rim for ambient temperatures up to 80 °C, e.g. for motor assemblies with IM V1 motor.

Motor

SYHDFE.-1X

Shaft "Z"

Frame size/characteristic

Shaft diameter

NG71

Shaft

W40 x 2 x 18 x 9 g

NG125/180

Shaft

W50 x 2 x 24 x 9 g

NG250

Shaft

W60 x 2 x 28 x 9 g

NG355

Shaft

W70 x 3 x 22 x 9 g

225/0

60

R900026054

R900026055

250/0

65

R900026058

R900026059

280/0

75

R900026062

R900026063

R900714636

315/0

80

R901037250

R901076760

R900088584 1)

R900210961 1)

315/1

80

R900026068

R900783295

R900210960

1)Up to 40 °C

Accessories

Material number

Data sheet

Mating connector 12-pole for central connection X1 without cable (assembly kit)

R900884671

08006

Mating connector 12-pole for central connection X1 with cable set 2 x 5 m

R900032356

Mating connector 12-pole for central connection X1 with cable set 2 x 20 m

R900860399

Pressure transducer HM 20-2X, measurement range 315 bar (4 ... 20 mA)

R901342029

30272

Pressure transducer HM 20-2X, measurement range 315 bar (0.1 ... 10 V)

R901342030

30272

Pressure transducer HM 20-2X, measurement range 315 bar (0.5 ... 5 V) with 0,5 m cable

R901342038

30272

Test device VT-PDFE-1-1X/V0/0

R900757051

29689-B

Compact power supply unit VT-NE32-1X

R900080049

29929

Mating connectors for valves with round connector, 11-pole + PE

12P N11

Mating connectors for valves with round connector, 11-pole + PE

12P N11

  • For valves with round connector according to EN 175201-804, 11-pole + PE

Mating connectors for valves with round connector, 11-pole + PE, shielded, with assembled connection line

12P N11 +

Mating connectors for valves with round connector, 11-pole + PE, shielded, with assembled connection line

12P N11 +

  • For valves with round connector according to EN 175201-804, 11-pole + PE

Downloads

Pressure and flow control system, Operating instructions
Manual | RE30012-B | 2010-09-13 | English | PDF | 2.3MB

Product Groups: Electro-hydraulic control systems
SYDFEE...2X, ...3X, SYHDFEE...1X
Druck- und Förderstrom-Regelsystem, Betriebsanleitung
Manual | RD30012-B | 2010-09-13 | German | PDF | 2.3MB

Product Groups: Electro-hydraulic control systems
SYDFEE...2X, ...3X, SYHDFEE...1X
Druck- und Förderstrom-Regelsystem
Data Sheet | RD30035 | 2021-10-01 | German | PDF | 1.7MB

Product Groups: Electro-hydraulic control systems
Typ SYHDFEE, SYHDFED, SYHDFEF
Pressure and flow control system
Data Sheet | RE30035 | 2021-10-01 | English, United States | PDF | 1.7MB

Product Groups: Electro-hydraulic control systems
Type SYHDFEE, SYHDFED, SYHDFEF

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.


Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

  • Окажет профессиональную консультацию.
  • Сообщит вашу цену на продукцию.
  • Сообщит информацию об актуальных акциях и скидках.
  • Подскажет ближайшее к вам отделение с наличием нужной продукции.
  • Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
НовостиВсе новости
Bosh Rexroth HED 5-3X: Надежный контроллер для современных систем

Гидроэлектрические реле давления поршневого типа HED 5-3X от производителя Bosh Rexroth завоевали признание среди специалистов благодаря своим выдающимся характеристикам и функциональности. Эти устройства обеспечивают надежный контроль давления в различных промышленных системах. Серия компонентов..

16 Ноября, 2024
Bosch Rexroth - новая эра измерения давления в гидравлических системах

В условиях современного производства всегда важно обеспечивать стабильность и безопасность работы гидравлических систем. Преобразователь давления HM20-2X становится эффективным решением для этой задачи. Среди ключевых характеристик HM20-2X стоит выделить следующие - Серия компонент..

14 Октября, 2024
Boschrexroth Датчик давления HED 8 OA-2X/100K14: надежность и точность в контроле давления

Датчик давления Boschrexroth HED 8 OA-2X/100K14 (арт. R901102706) используется в различных промышленных приложениях, обеспечивая высокую точность и надежность измерений давления. Он способен функционировать в строгих условиях, что делает его незаменимым инструментом для автоматизации и управления пр..

13 Сентября, 2024
Bosh Rexort - аккумуляторы HAD оптимизируют энергосистемы

В мире гидропневматических систем появилась новинка, которая уже привлекла внимание специалистов. Гидропневматические аккумуляторы серии HAD демонстрируют инновационный подход к управлению энергией и стабилизации давления в различных системах, как мобильных, так и стационарных. Высокая эффективно..

23 Августа, 2024
Bosh Rexort представило двухходовой патронный клапан!

Двухходовой патронный клапан с активным управлением LC2A Bosch Rexroth представляет собой прецизионное гидравлическое устройство, разработанное для контроля и регулирования потока рабочей жидкости в системах гидравлики. Этот клапан работает по принципу двухпозиционного управления потоком, обеспечива..

17 Июля, 2024
Bosch Rexroth - надежный партнер для вашего бизнеса в области гидравлики!

Компания Bosch Rexroth предлагает широкий спектр продукции, включая гидронасосы, гидромоторы, гидроклапана, гидроцилиндры, пневмоцилиндры, клапаны, регуляторы, датчики и многое другое. Благодаря высокому качеству продукции и многолетнему опыту работы в отрасли, Bosch Rexroth является предпочтит..

20 Июня, 2024
Как правильно выбрать насос от BOSCH REXROTH?

В мире мобильной и промышленной гидравлики, где надежность и качество стоят на первом месте, насосы Bosch Rexroth выделяются как эталон долговечности и технического совершенства. Эти изделия, зарекомендовавшие себя в России и за её пределами, стали символом немецкого качества и профессионального под..

30 Мая, 2024
Bosch Rexroth – гидравлические шестерённые насосы серии AZPF

Гидравлические шестерённые насосы серии AZPF - это оборудование, которое обеспечивает преобразование механической энергии в гидравлическую с высоким КПД. Они обладают длительным сроком службы благодаря уплотнению зазоров и высокоточной технологии производства. Приводные валы в соответствии с межд..

8 Апреля, 2024
Bosch Rexroth на выставке LogiMAT

На выставке LogiMAT компания Bosch Rexroth представила передовые компоненты, подсистемы и системные решения для автоматизации и оптимизации логистики. Среди предложений компании - практические решения для трансмиссии и рабочих функций промышленных грузовиков и автономных мобильных роботов (AMR), вкл..

22 Марта, 2024
Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024
Bosch Rexroth и TotalEnergies объединяют свои усилия для продвижения альтернативных и экологичных гидравлических жидкостей

Bosch Rexroth и TotalEnergies (французская нефтегазовая компания) 18 декабря 2023 года подписали соглашение сотрудничестве, направленном на разработку, внедрение и маркетинг гидравлических жидкостей на водной основе, с акцентом на экологичность, огнестойкость и производительность. Данный союз отр..

11 Января, 2024
Bosch Rexroth представляет Интеллектуальный функциональный набор для обработки данных Smart Function Kit for Handling

Компания Bosch Rexroth является одним из ведущих мировых производителей и поставщиков технологий и услуг в области промышленной автоматизации. Это производитель рад представить вам свой интеллектуальный функциональный набор для обработки данных. Это инновационное оборудование, с помощью которого п..

4 Декабря, 2023

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
