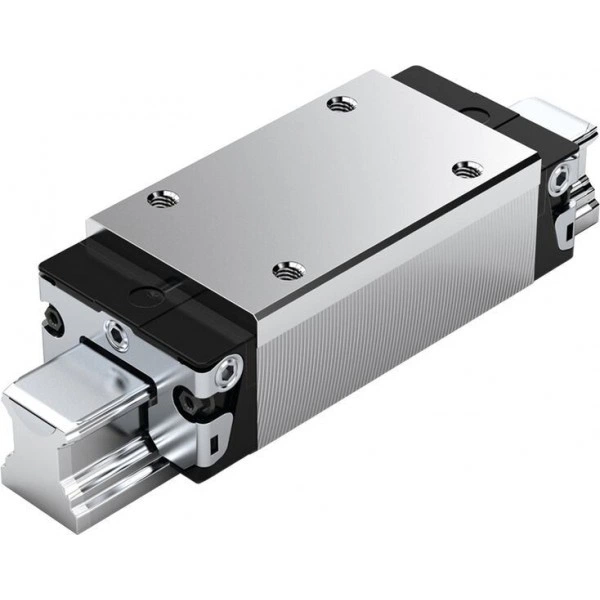

BSHP Ball Runner Block SLH, standard, steel, without ball chain R1624 … 2.

Description

• Area of application: For restricted space in transverse direction and high rigidity requirements
• Higher rigidity than SLS
• Significantly reduced frictional oscillations and low friction level, particularly under external load
• Maximum precision
• Patented entry zone increases the travel accuracy up to a factor of six

Features

• High rigidity in all load directions – permits applications with just one runner block per rail
• High torque capacity
• Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner Block versions within each accuracy class.
• Long-term lubrication is possible over several years
• End-face fastening thread for all attachments
• Smooth, quiet running thanks to optimally designed ball return and guidance
• Different preload classes
• Excellent dynamic characteristics
• Can be used on all SNS/SNO Ball Guide Rails
• Ball Runner Block pre-lubricated at the factory.

Product description

Technical data

Dimensions

Project planning information

Mounting

Maintenance

Certification

Safety Instructions

Downloads

	Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides
	Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF
