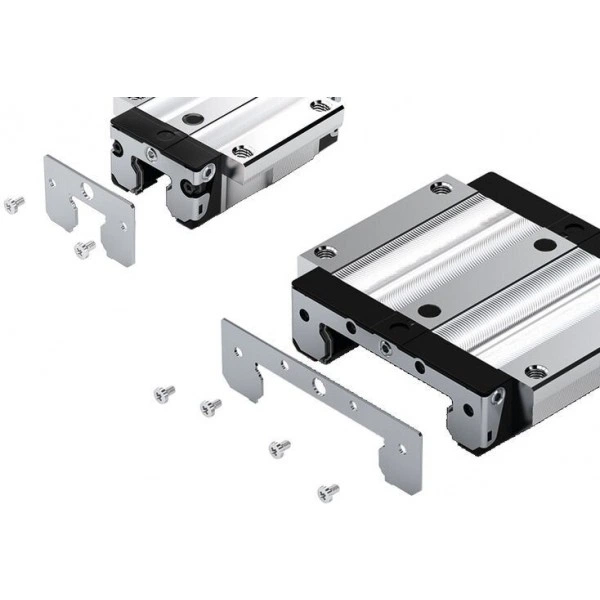

Scraper plates for Ball Rail Systems R16.0 .10 ..
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Material: Corrosion-resistant steel as per DIN EN 10088
- Design: bright
- Precision design with a maximum gap dimension of 0.1 to 0.3 mm
Dimensions

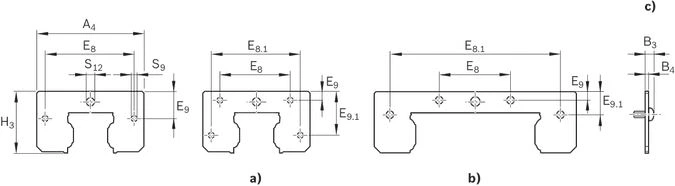

| a) | Scraper plate, size 65 |
| b) | Scraper plate, wide |
| c) | Fixing screw shown is an example |
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 1) 2) | 25/70 1) | 35/90 1) | |||||||
| Part number | R162011030 | R162081030 | R162081035 3) | R162021030 | R162021035 3) | R162071030 | R162031040 | R162031030 4) | R162041040 | R162041030 4) | R162051040 | R162051030 4) | R162061040 | R162061030 4) | R167051000 | R167021010 | R167031010 | |
| A4 | mm | 33 | 42 | 41 | 47 | 59 | 69 | 85 | 98 | 124 | 60 | 101 | 129 | |||||
| B3 | mm | 3.1 | 3.4 | 5.1 | 5.7 | 5.6 | 3.1 | 3.4 | ||||||||||
| B4 | mm | 1 | 2 | 2.5 | 1 | |||||||||||||
| E8 | mm | 24.55 | 32.4 | 30.5 | 38.3 | 48.4 | 58 | 69.8 | 80 | 76 | 18 | 35 | 79 | |||||
| E8.1 | mm | - | 100 | 53.4 | 83.5 | 116 | ||||||||||||
| E9 | mm | 6.3 | 6.8 | 5.1 | 11 | 8 | 14.1 | 17 | 20.5 | 21.8 | 10 | 2.65 | 4.35 | 5.6 | ||||
| E9.1 | mm | - | 52.5 | 7.35 | 10.75 | 28.7 | ||||||||||||
| H3 | mm | 19.2 | 24.8 | 22.8 | 29.5 | 26.5 | 34.7 | 40.1 | 50 | 56.4 | 74.7 | 21.7 | 29.1 | 40.8 | ||||
| Ø S9 | mm | 3,5 | 4 | 5 | 6 | 5 | 3,5 | 4 | ||||||||||
| Ø S12 | mm | 4,6 | 5,1 | 4 | 7 | 4 | 7 | 9 | 4 | 7 | ||||||||
| 1) | Wide ball rail system |
| 2) | Attention: Scraper plate is not combinable with Ball Guide Rail R167 . 8! |
| 3) | For Ball Runner Blocks F.N (flanged ... low profile) and S.N (slimline ... low profile) |
| 4) | For Ball Guide Rail without cover strip |
Mounting
Note for mounting
- Use in combination with two-piece front seal kit: See seal kit for material numbers
- The fastening screws are included.
- During assembly, ensure an even gap exists between the Ball Guide Rail and the scraper plate.
- Observe the minimum screw-in depth when connecting lube ports to end faces.
- Observe the mounting instructions.
Ordering codes
Material numbers
| Size | Part number | CAD data | Buy | for rail with/without cover strip | Mass |
| g | |||||
| 15 | R162011030 | With cover strip | 5 | ||
| 20 | R162081030 | 6 | |||
| R162081035 3) | 5 | ||||
| 25 | R162021030 | 8 | |||
| R162021035 3) | 7 | ||||
| 30 | R162071030 | 12 | |||
| 35 | R162031040 | 16 | |||
| R162031030 4) | |||||
| 45 | R162041040 | 50 | |||
| R162041030 4) | |||||
| 55 | R162051040 | 65 | |||
| R162051030 4) | |||||
| 65 | R162061040 | 140 | |||
| R162061030 4) | |||||
| 20/40 1) 2) | R167051000 | Without cover strip | 7 | ||
| 25/70 1) | R167021010 | 14 | |||
| 35/90 1) | R167031010 | 25 |
| 1) | Wide ball rail system |
| 2) | Attention: Scraper plate is not combinable with Ball Guide Rail R167 . 8! |
| 3) | For Ball Runner Blocks F.N (flanged ... low profile) and S.N (slimline ... low profile) |
| 4) | For Ball Guide Rail without cover strip |
