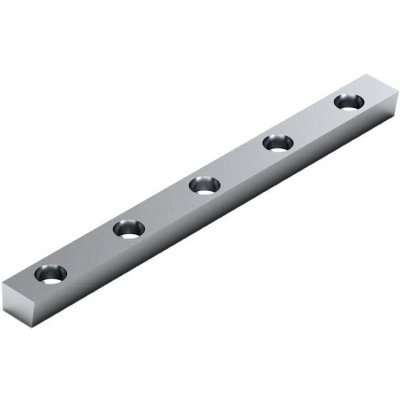

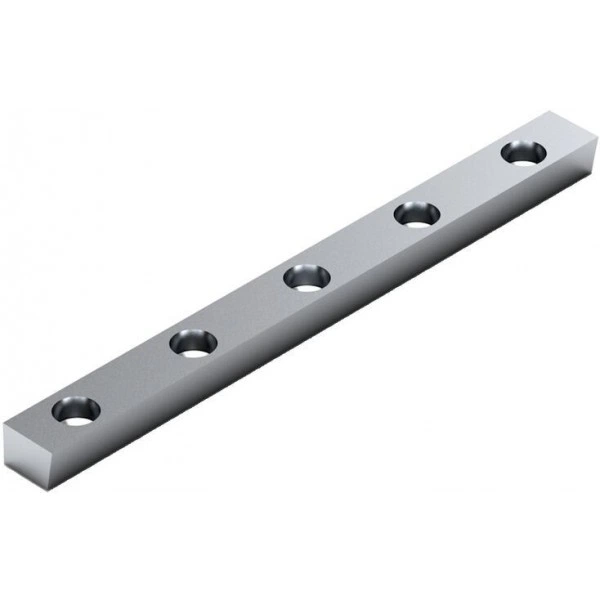

V-guide for lateral retention of Ball Guide Rails
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Mounting aid for lateral retention of ball guide rails
- Material: Steel
- Design: black finish

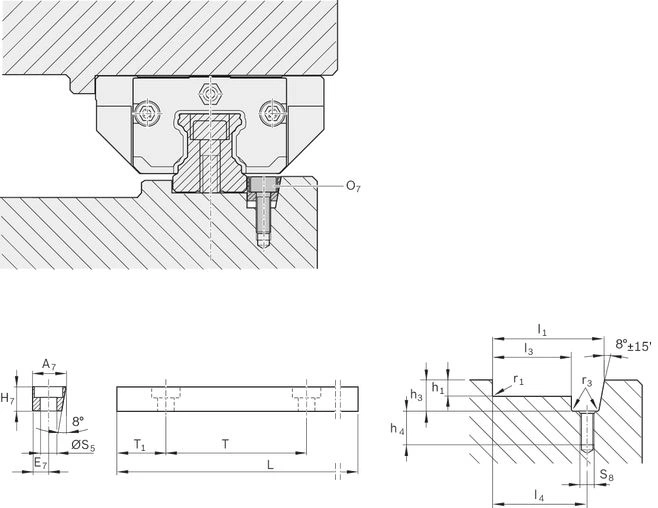

Dimensions
V-guide dimensions
| Part number | R161920001 1) | R161940001 2) | |
| A7 | mm | 12 | 19 |
| E7 | mm | 6 | 9 |
| H7 | mm | 10 | 16 |
| L | mm | 957 | 942 |
| O7 3) | M5x20 | M8x25 | |
| ØS5 | mm | 6 | 9 |
| T | mm | 60 | 105 |
| T1 | mm | 28.5 | 51 |
| 1) | Suitable for sizes 15 to 35 |
| 2) | Suitable for sizes 45 to 65 |
| 3) | Screw O7 as per DIN 6912 |
V-guide slot dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| h1 | 3.5 mm -0.2 | 4 mm -0.2 | 5 mm -0.2 | 6 mm -0.2 | 8 mm -0.2 | 10 mm -0.2 | |||
| h3 | 12.5 mm +1 | 19 mm +1 | |||||||
| h4 | 15 mm +2 | 16 mm +2 | |||||||
| l1 | 27 mm ±0.05 | 32 mm ±0.05 | 35 mm ±0.05 | 40 mm ±0.05 | 46 mm ±0.05 | 64 mm ±0.05 | 72 mm ±0.05 | 82 mm ±0.05 | |
| l3 | 14.9 mm -0.1 | 19.9 mm -0.1 | 22.9 mm -0.1 | 27.9 mm -0.1 | 33.9 mm -0.1 | 44.9 mm -0.1 | 52.9 mm -0.1 | 62.9 mm -0.1 | |
| l4 | 21 mm ±0.1 | 26 mm ±0.1 | 29 mm ±0.1 | 34 mm ±0.1 | 40 mm ±0.1 | 54 mm ±0.1 | 62 mm ±0.1 | 72 mm ±0.1 | |
| r1 max | mm | 0.4 | 0.5 | 0.8 | 1.2 | ||||
| r3 max | mm | 0.5 | |||||||
| S8 | M5 | M8 | |||||||
Ordering codes
Material numbers
| Size | Part number | CAD data | Buy | Mass |
| g | ||||
| 15 | R161920001 1) | 800 | ||
| 20 | R161920001 1) | |||
| 25 | R161920001 1) | |||
| 30 | R161920001 1) | |||
| 35 | R161920001 1) | |||
| 45 | R161940001 2) | 2000 | ||
| 55 | R161940001 2) | |||
| 65 | R161940001 2) |
| 1) | Suitable for sizes 15 to 35 |
| 2) | Suitable for sizes 45 to 65 |
Note
Observe the notes for mounting! Please request the "Mounting Instructions for Profiled Rail Systems".
Downloads
 | Profilschienenführungen Manual | R320103885 | 2016-09-01 | German | PDF | 11.4MB Product Groups: Linear guides |
| Sistema de guias lineares Manual | R320103885_PT | 2016-09-01 | Portuguese | PDF | 11.3MB Product Groups: Linear guides |
| Guide profilate Manual | R320103885_IT | 2016-09-01 | Italian | PDF | 11.4MB Product Groups: Linear guides |
| Guidages sur rails Manual | R320103885_FR | 2016-09-01 | French | PDF | 11.3MB Product Groups: Linear guides |
| 型轨导向系统 Manual | R320103885_ZH | 2016-09-01 | Chinese | PDF | 11.9MB Product Groups: Linear guides |
| Sistemas de guiado lineal Manual | R320103885_ES | 2016-09-01 | Spanish | PDF | 11.4MB Product Groups: Linear guides |
| Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
