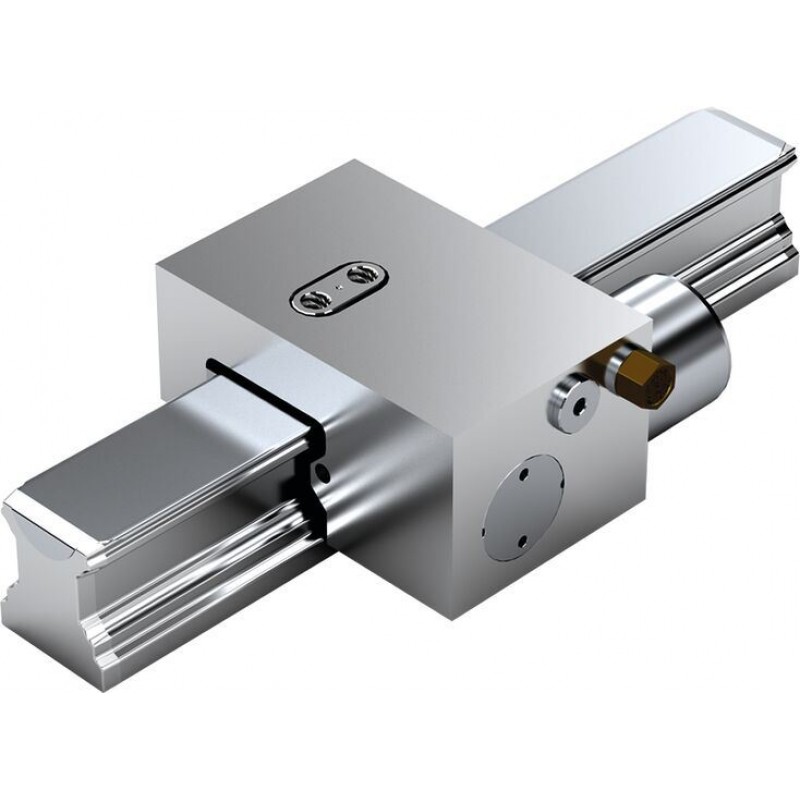

Description
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
- Easy mounting
- Clamps without pressurization (with spring energy) by means of mechanical gripping with a spring assembly (spring energy accumulator)
Features
- Chemically nickel-plated steel housing
- High axial and horizontal rigidity
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Pneumatic decompression Release pressure 5.5 - 8 bar
- Higher holding force due to the air-plus port
Product description
Functional principle
Clamping with air pressure or spring force
- Clamping profiles are pressed to the web surfaces of the Ball Guide Rail.
Decompression with air pressure or spring force
- The clamping profiles are held apart.
- Free movement is possible
Technical data
General technical data
| Size | 25 | |
| Spring energy holding force with standard air port 1) | N | 650 |
| Spring energy holding force with air-plus port 2) | N | 1050 |
| Air consumption (normal liter) standard air port | dm³/stroke | 0.015 |
| Air consumption (normal liter) air-plus port | dm³/stroke | 0.082 |
| Max. pneumatic operating pressure | bar | 8 |
| Release pressure min. | bar | 5.5 |
| Mass | kg | 0.35 |
| Operating conditions | ||
| Size | 25 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +60 °C | |
| 1) | Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| 2) | Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve. |
Symbols/Circuit diagrams
Circuit1) with standard air connection
1) Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air filter
1 Air connection
2 Working connection
3 Venting
Circuit1) for air-plus port
1) Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2- or 5/3-way directional control valve.
a) Air-plus port
1 Air connection
2 4 Working connections
3 5 Venting
Fields of application
- Pneumatic clamping of machine axes
- Table crossbars in the timber industry
- Positioning of lifting gear

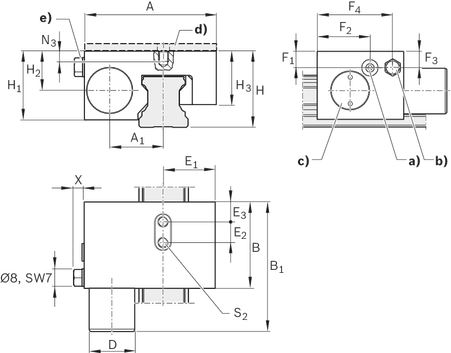

Dimensions
| a) | Air connection*) M5 on two sides for release pressure |
| b) | Connection*) M5 on two sides for air-plus port or air filter |
| c) | Adjusting screw on two sides |
| d) | Spacer plate (accessory) |
| e) | Air filter: connection M5 (possible on two sides) |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 25 | |
| A | mm | 61.4 |
| A1 | mm | 24.5 |
| B | mm | 41 |
| B1max | mm | 62.5 |
| D | mm | 22 |
| E1 | mm | 23.9 |
| E2 | mm | 9.5 |
| E3 | mm | 9.75 |
| F1 | mm | 6.5 |
| F2 | mm | 24.5 |
| F3 | mm | 6.5 |
| F4 | mm | 36 |
| H | mm | 36 |
| H1 1) | mm | 32.5 |
| H2 | mm | 20 |
| H3 | mm | 24.55 |
| N3 | mm | 7.7 |
| S2 | M5 | |
| X | mm | 6.5 |
| 1) | Ball runner block .H. (...high...) Spacer plate necessary. |
