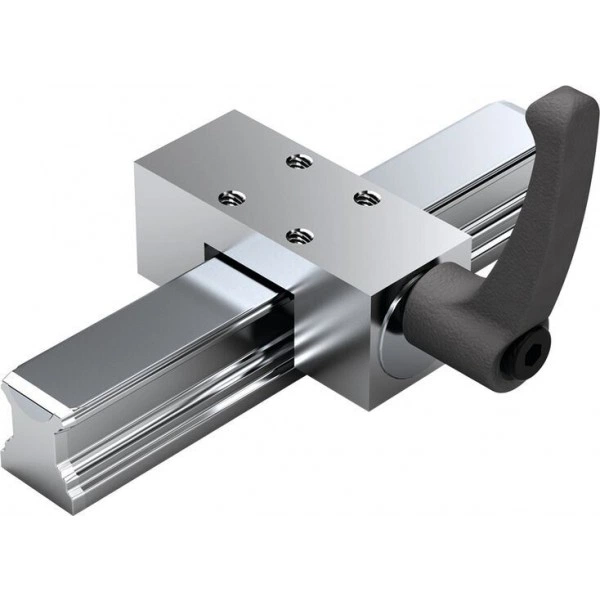

Manual clamping units HK R1619 .42 82
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Simple and safe design in compact format
- Manually operated clamping unit without auxiliary power
- Freely adjustable hand lever
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Manual clamping unit
Features
- 500,000 clamping cycles (B10d value)
- Symmetrical force application on ball guide rail via floating contact profiles
- Holding forces up to 2000 N
- Can be used on all SNS Ball Guide Rails
Product description
Functional principle
Clamps with manual pressure
The clamping profiles are pressed through the hand lever onto the web surfaces of the Ball Guide Rail.
Pressure via hand lever
Hand lever disengaged
Technical data
General technical data
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| Holding force 1) | N | 1200 | 2000 | ||||||
| Tightening torque | Nm | 4 | 5 | 7 | 15 | 22 | |||
| Mass | kg | 0.16 | 0.23 | 0.43 | 0.82 | 1.08 | 1.64 | 1.71 | 2.84 |
| Operating conditions | |||||||||
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | ||||||||
| 1) | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
Fields of application
- Table crossbars and carriage
- Width adjustment
- Stops
- Positioning on optical devices and measuring tables

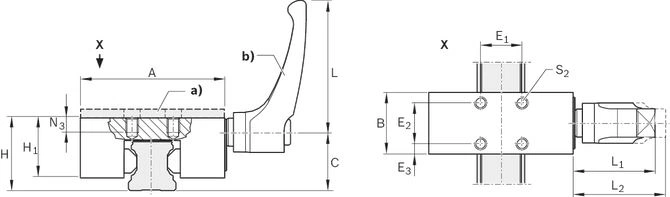

Dimensions
| a) | Spacer plate (accessory) |
| b) | Position of the hand lever can be changed. |
Dimensions
| Size | 15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | |
| A | mm | 47 | 60 | 70 | 90 | 100 | 120 | 140 | 160 |
| B | mm | 25 | 24 | 30 | 39 | 44 | 49 | 64 | |
| C | mm | 19 | 24.5 | 29.3 | 34 | 38 | 47 | 56.5 | 69.5 |
| E1 | mm | 17 | 15 | 20 | 22 | 24 | 26 | 30 | 35 |
| E2 | mm | 17 | 15 | 20 | 22 | 24 | 26 | 30 | 35 |
| E3 | mm | 4 | 4.5 | 5 | 8.5 | 7.5 | 9 | 9.5 | 14.5 |
| H | mm | 24 | 30 | 36 | 42 | 48 | 60 | 70 | 90 |
| H1 | mm | 19 1) | 23 1) | 29 2) | 33 2) | 41 2) | 48 2) | 51 2) | 66 2) |
| L | mm | 44 | 64 | 78 | 95 | ||||
| L1 | mm | 30 | 38.5 | 46.5 | 56.5 | ||||
| L2 3) | mm | 33 | 41.5 | 50.5 | 61.5 | ||||
| N3 | mm | 5 | 6 | 7 | 8 | 10 | 14 | 20 | |
| S2 | M4 | M5 | M6 | M8 | M10 | M14 | M16 | ||
| 1) | Ball runner block .H. (...high...) Spacer plate necessary. |
| 2) | Ball/Roller Runner Block .H. (...high...) Spacer plate necessary. |
| 3) | Hand lever disengaged |
Mounting
Note for mounting
- Make sure the connection structure is rigid.
- Observe the mounting instructions prior to commissioning.
Accessories
Spacer plate for clamping units HK
R1619 .42 .5
Spacer plate for clamping units HK
R1619 .42 .5
- Suitable for assembly with high ball runner blocks SNH R1621 and SLH R1624.
- Suitable for assembly with high roller runner blocks SNH R1821 and SLH R1824.
Ordering codes
Materialnummern
| Size | Part number | CAD data | Buy |
| 15 | R161914282 | ||
| 20 | R161984282 | ||
| 25 | R161924282 | ||
| 30 | R161974282 | ||
| 35 | R161934282 | ||
| 45 | R161944282 | ||
| 55 | R161954282 | ||
| 65 | R161964282 |
