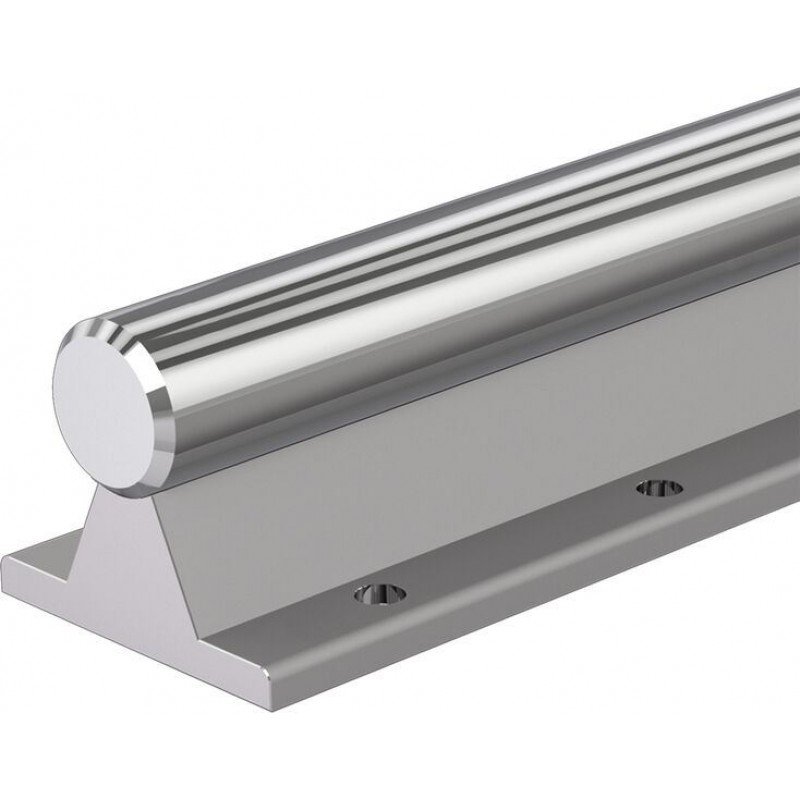

R1014, flanged type, low profile version, Type 2
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Shaft support rail material: Aluminum
- Combined with Linear Sets, these shaft support rails can be used to create linear guides with very low height.
- Extra rigidity. Carefully adapting the support rail to the Linear Bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.
Features
- For use with open Linear Bushings
- For long guides or high loads where self-supporting shafts cannot be used due to shaft warping
- Unlimited length when using interconnecting shafts
- Support rails for various requirements
- Additional degrees of freedom in circumferential direction compared to profiled guide rails.
- For applications where other linear guides tend to warp due to imprecise substructures.
Technical data
Technische Daten
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| m | kg/m | 1.75 | 2.65 | 3.95 | 5.6 | 7.9 | 12.8 | 19.4 |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| m | Mass | kg/m |

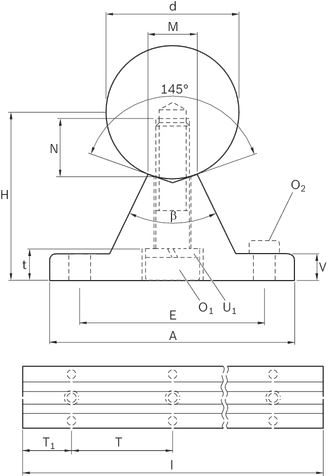

Dimensions
Dimensions
| Ød | mm | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| β | ° | 50 | 46 | |||||
| A | mm | 40 | 45 | 52 | 57 | 69 | 73 | 84 |
| E | mm | 29 | 33 | 37 | 42 | 51 | 55 | 63 |
| H 1) | 22 mm ±0.01 | 26 mm ±0.01 | 32 mm ±0.01 | 36 mm ±0.01 | 42 mm ±0.01 | 50 mm ±0.01 | 60 mm ±0.01 | |
| M | mm | 5.8 | 7 | 8.3 | 10.8 | 11 | 15 | 19 |
| N | mm | 8 | 9 | 11 | 15 | 17 | 19 | 21 |
| O1 2) | M4x20 | M5x20 | M6x25 | M8x30 | M10x35 | M10x40 | M12x45 | |
| O2 3) | M4x12 | M5x16 | M6x16 | M8x25 | M10x30 | |||
| T 4) | mm | 120 | 150 | 200 | 300 | |||
| t | mm | 4.5 | 7.6 | 8.6 | 9 | 10 | 9.5 | 11.5 |
| U1 5) | mm | 4 | 5 | 6 | 8 | 10 | 12 | |
| V | mm | 5 | 6 | 7 | 8 | 9 | ||
| 1) | Measured with gauging shaft, nominal dimension d and length about 50 mm. |
| 2) | DIN 6912-8.8 |
| 3) | DIN6912-8.8, only applicable for bolting with steel or cast iron threads. |
| 4) | For general requirements. |
| 5) | DIN 7980, discontinued. Spring washer commercially available. |
Project planning information
Life expectancy calculation
Design, ordering information, installation
Accessories
R1050, flanged type, low profile version, drilled, Type 2
R1050, flanged type, low profile version, drilled, Type 2
- Shaft support rail material: Aluminum
- Combined with Linear Sets, these shaft support rails can be used to create linear guides with very low height.
- Extra rigidity. Carefully adapting the support rail to the Linear Bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.
R11050, flanged type, low profile, without drilled holes
R11050, flanged type, low profile, without drilled holes
- Shaft support rail material: Aluminum
- Combined with Linear Sets, these shaft support rails can be used to create linear guides with very low height.
- Extra rigidity. Carefully adapting the support rail to the Linear Bushing size produces the ideal pressure angle for fitting the shaft which, along with the large fastening bolts, ensures extra rigidity.
Certification
Directives and standards
Safety Instructions
