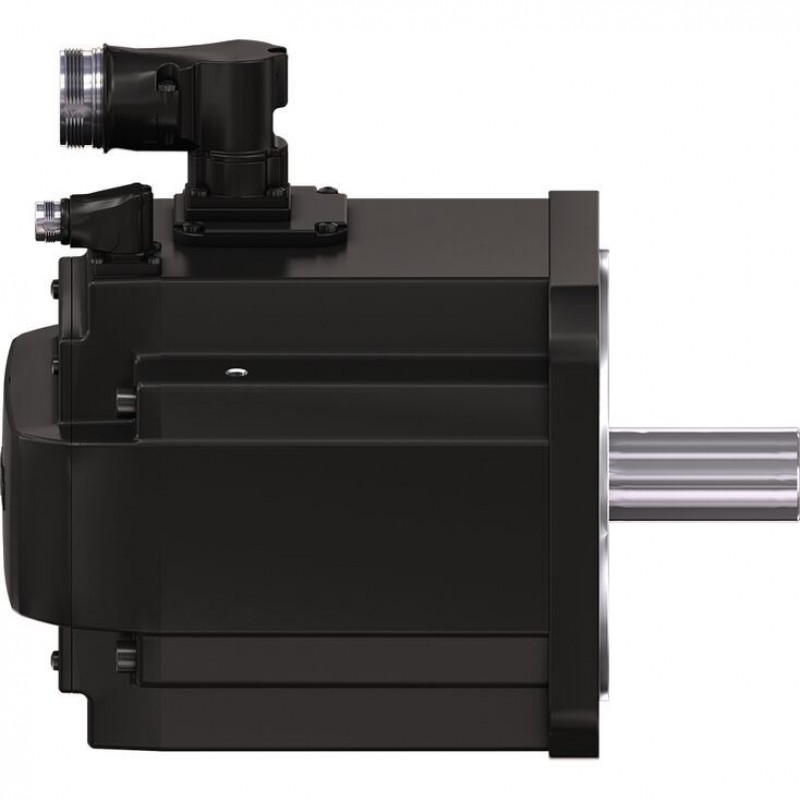

Synchronous servo motor with self-cooling MS2N10
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Maximum torque Mmax 360 Nm
- Maximum speed nmax 6000 rpm
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | ||||
| MS2N | 10 | - | - | - | - |
| 01 | MS2N synchronous servo motor | MS2N |
| 02 | Size | 10 |
| Length | ||
| 03 | B | |
| C | ||
| D | ||
| E | ||
| F | ||
| Rotor inertia | ||
| 04 | Low inertia | 0 |
| Medium inertia | 1 | |
| Winding | ||
| 05 | 1000 min-1 | BD |
| 1500 min-1 | BF | |
| 2000 min-1 | BH | |
| 3000 min-1 | BN | |
| 4000 min-1 | BQ | |
| Type of cooling | ||
| 06 | Self-cooling | N |
| Encoder performance | ||
| 07 | BASIC ‒ 16 signal periods, Hiperface® | A |
| STANDARD ‒ 128 signal periods, Hiperface®, SIL2, PL d | B | |
| ADVANCED ‒ digital 20 bits, ACURO®link, SIL2, PL d | C | |
| HIGH ‒ digital 24 bits, ACURO®link, SIL3, PL e | D | |
| Encoder design | ||
| 08 | Single-turn ‒ 1 revolution absolute | S |
| Multi-turn ‒ 4,096 revolutions absolute | M | |
| Electrical connection | ||
| 09 | M23 angle plug, rotatable | U |
| M40 angle plug, rotatable | V | |
| M58 angle plug, A side | A | |
| M58 angle plug, B side | B | |
| Shaft | ||
| 10 | Smooth, without shaft seal ring | H |
| Smooth, with shaft seal ring | G | |
| Keyway, without shaft seal ring | L | |
| Keyway, with shaft seal ring | K | |
| Holding brake | ||
| 11 | Without holding break | 0 |
| Holding brake, size 1 | 1 | |
| Holding brake, size 2 | 2 | |
| Holding brake, size 3 | 3 | |
| Flange accuracy | ||
| 12 | Standard | N |
| Increased precision | R | |
| Bearings | ||
| 13 | Standard bearings | N |
| Design | ||
| 14 | IM B5/IM 3001, PT1000 | N |
| Coating | ||
| 15 | Standard | N |
| Other version | ||
| 16 | None | N |
| Sealing air connection | P1) | |
| Auxiliary grounding connection | E | |
| Special version | ||
| 17 | None | NN |
| 1) | Other version “P” only available with shaft “G” or “K” |
Available combinations
| Electrical connection | Holding brake | ||||||||
| Length | Rotor inertia | Winding | U | V | A/B | 0 | 1 | 2 | 3 |
| B | 1 | BQ | ● | ● | – | ● | ● | – | – |
| C | 0 | BH | – | ● | – | ● | – | ● | – |
| BN | – | ● | – | ● | – | ● | – | ||
| 1 | BH | – | ● | – | ● | – | ● | – | |
| BN | – | ● | – | ● | – | ● | – | ||
| D | 0 | BH | – | ● | – | ● | – | ● | – |
| BN | – | ● | – | ● | – | ● | – | ||
| 1 | BF | – | ● | – | ● | – | ● | – | |
| BN | – | ● | – | ● | – | ● | – | ||
| E | 0 | BH | – | ● | – | ● | – | – | ● |
| BN | – | – | ● | ● | – | – | ● | ||
| 1 | BF | – | ● | – | ● | – | – | ● | |
| BN | – | – | ● | ● | – | – | ● | ||
| F | 0 | BD | – | ● | – | ● | – | – | ● |
| BH | – | – | ● | ● | – | – | ● | ||
| 1 | BD | – | ● | – | ● | – | – | ● | |
| BH | – | – | ● | ● | – | – | ● | ||
| R | 0 | BQ | – | – | ● | ● | – | – | ● |
| ● = Available | |
| – = Not available |

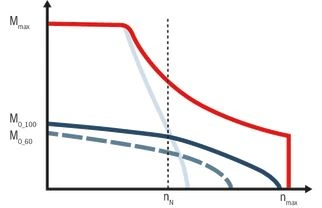

Technical data
Technical data – Self-cooling
| Type | Ratedspeed | Maximum speed | Standstill torque | Maximum torque | Continuous standstill current | Maximum current | Moment of inertia | |||||
| 60K | 100K | 60K | 100K | Ohne Bremse "0" | Mit Bremse "1" | Mit Bremse "2" | Mit Bremse "3" | |||||
| nN | nmax | M0_60 | M0_100 | Mmax | I0_60 | I0_100 | Imax | JR. w/o br. | JR. w. br. | |||
| rpm | rpm | Nm | Nm | Nm | A | A | A | kg·m² | kg·m² | kg·m² | kg·m² | |
| MS2N10‑B1BQN | 3520 | 6000 | 15.6 | 16.7 | 41.3 | 13.1 | 14.2 | 42 | 0.0052 | 0.00561 | 0.00561 | - |
| MS2N10‑C0BHN | 2000 | 4000 | 30.2 | 34 | 76.8 | 12.6 | 14.5 | 38.5 | 0.0048 | - | 0.00627 | - |
| MS2N10‑C0BNN | 2880 | 6000 | 30.2 | 34 | 76.8 | 16.8 | 19.3 | 51.3 | 0.0048 | - | 0.00627 | - |
| MS2N10‑C1BHN | 2000 | 4000 | 27.3 | 31 | 86.5 | 11.1 | 12.8 | 40.9 | 0.0092 | - | 0.01067 | - |
| MS2N10‑C1BNN | 3090 | 6000 | 27.3 | 31 | 86.5 | 16.5 | 19 | 60.8 | 0.0092 | - | 0.01067 | - |
| MS2N10‑D0BHN | 2000 | 4000 | 51 | 60.5 | 155 | 19.1 | 23.1 | 70 | 0.0081 | - | 0.00957 | - |
| MS2N10‑D0BNN | 2600 | 6000 | 51 | 60.5 | 155 | 28.2 | 34.1 | 102.5 | 0.0081 | - | 0.00957 | - |
| MS2N10‑D1BFN | 1600 | 3000 | 47.2 | 56 | 174 | 14.3 | 17.2 | 60.7 | 0.0171 | - | 0.01857 | - |
| MS2N10‑D1BNN | 2460 | 6000 | 47.2 | 56 | 174 | 28.6 | 34.3 | 121.5 | 0.0171 | - | 0.01857 | - |
| MS2N10‑E0BHN | 2000 | 4000 | 67.7 | 82.5 | 234 | 25 | 31 | 102.5 | 0.0114 | - | - | 0.0141 |
| MS2N10‑E0BNN | 2120 | 6000 | 67.7 | 82.5 | 234 | 34.5 | 42.8 | 140 | 0.0114 | - | - | 0.0141 |
| MS2N10‑E1BFN | 1500 | 3000 | 64 | 76 | 266 | 17.1 | 20.5 | 81 | 0.025 | - | - | 0.0277 |
| MS2N10‑E1BNN | 1970 | 6000 | 64 | 76 | 266 | 34.2 | 41 | 162 | 0.025 | - | - | 0.0277 |
| MS2N10‑F0BDN | 1000 | 2000 | 85 | 103 | 313 | 15.8 | 19.5 | 70 | 0.0147 | - | - | 0.0174 |
| MS2N10‑F0BHN | 2000 | 4000 | 85 | 103 | 313 | 32 | 39.4 | 140 | 0.0147 | - | - | 0.0174 |
| MS2N10‑F1BDN | 1000 | 2000 | 79.5 | 96.5 | 360 | 15.9 | 19.5 | 81 | 0.0329 | - | - | 0.0356 |
| MS2N10‑F1BHN | 2000 | 4000 | 79.5 | 96.5 | 360 | 31.8 | 38.9 | 162 | 0.0329 | - | - | 0.0356 |
| MS2N10‑R0BQN | 1300 | 6000 | 74.5 | 88 | 355 | 58.7 | 69.8 | 330 | 0.0147 | - | - | - |

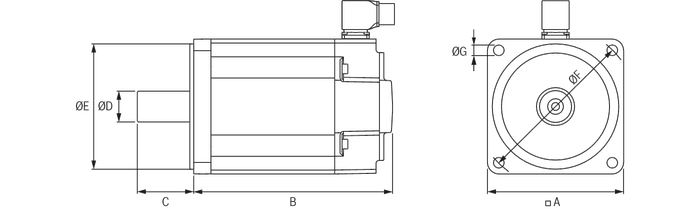

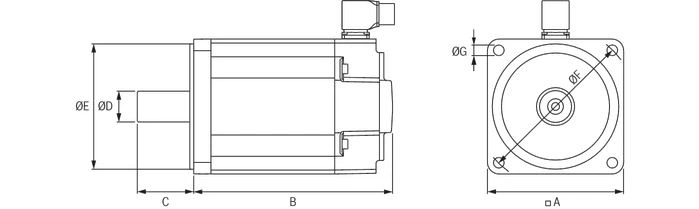

Dimensions
Dimensions – Self-cooling
| Type | A | B | C | ØD | ØE | ØF | ØG | Weight | ||||
| Flange | Length | Additional length | Shaft length | Shaft | Centering collar | Bolt circle | Mounting hole | Ohne Bremse "0" | Mit Bremse "1" | Mit Bremse "2" | Mit Bremse "3" | |
| Holding brake | ||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | kg | kg | kg | kg | |
| MS2N10‑B1BQN | 196 | 194 | + 51 | 80 | 38 | 180 | 215 | 14 | 17.5 | 21 | 21 | - |
| MS2N10‑C0BHN | 196 | 238 | + 60 | 80 | 38 | 180 | 215 | 14 | 23.5 | - | 28.5 | - |
| MS2N10‑C0BNN | 196 | 238 | + 60 | 80 | 38 | 180 | 215 | 14 | 23.5 | - | 28.5 | - |
| MS2N10‑C1BHN | 196 | 238 | + 60 | 80 | 38 | 180 | 215 | 14 | 24 | - | 29 | - |
| MS2N10‑C1BNN | 196 | 238 | + 60 | 80 | 38 | 180 | 215 | 14 | 24 | - | 29 | - |
| MS2N10‑D0BHN | 196 | 296 | + 60 | 80 | 38 | 180 | 215 | 14 | 34 | - | 39 | - |
| MS2N10‑D0BNN | 196 | 296 | + 60 | 80 | 38 | 180 | 215 | 14 | 34 | - | 39 | - |
| MS2N10‑D1BFN | 196 | 296 | + 60 | 80 | 38 | 180 | 215 | 14 | 36 | - | 41 | - |
| MS2N10‑D1BNN | 196 | 296 | + 60 | 80 | 38 | 180 | 215 | 14 | 36 | - | 41 | - |
| MS2N10‑E0BHN | 196 | 354 | + 60 | 80 | 38 | 180 | 215 | 14 | 45 | - | - | 52 |
| MS2N10‑E0BNN | 196 | 354 | + 60 | 80 | 38 | 180 | 215 | 14 | 45 | - | - | 52 |
| MS2N10‑E1BFN | 196 | 354 | + 60 | 80 | 38 | 180 | 215 | 14 | 47 | - | - | 54 |
| MS2N10‑E1BNN | 196 | 354 | + 60 | 80 | 38 | 180 | 215 | 14 | 47 | - | - | 54 |
| MS2N10‑F0BDN | 196 | 412 | + 60 | 80 | 38 | 180 | 215 | 14 | 55 | - | - | 62 |
| MS2N10‑F0BHN | 196 | 412 | + 60 | 80 | 38 | 180 | 215 | 14 | 55 | - | - | 62 |
| MS2N10‑F1BDN | 196 | 412 | + 60 | 80 | 38 | 180 | 215 | 14 | 59 | - | - | 66 |
| MS2N10‑F1BHN | 196 | 412 | + 60 | 80 | 38 | 180 | 215 | 14 | 59 | - | - | 66 |
| MS2N10‑R0BQN | 196 | 452 | + 60 | 80 | 38 | 180 | 215 | 14 | 56 | - | - | - |
Accessories
Servo planetary gearbox
GTM140
Servo planetary gearbox
GTM140
Servo planetary gearbox
GTM180
Servo planetary gearbox
GTM180
Certification
Norms and Standards
| Type | MS2N |
| Certifications | CE EAC RoHS RoHS China UL CSA |
Ordering codes
You still have questions, need more information, or would like to get help with the selection, configuration and installation of this product? Please contact your local Bosch Rexroth sales office.
Contact Locator
