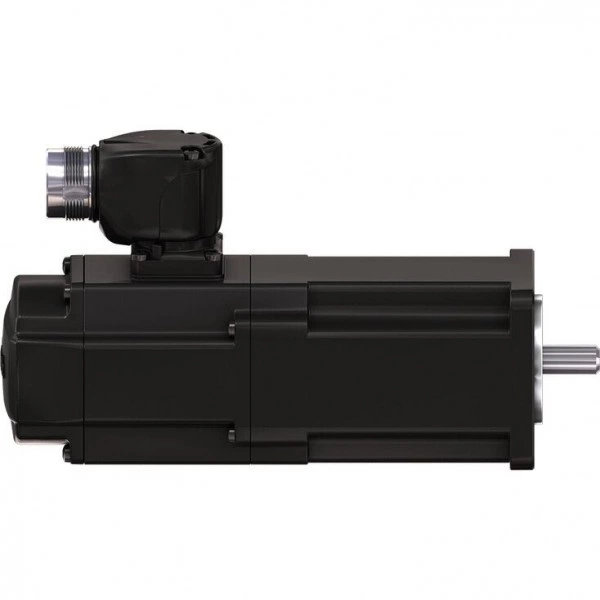

Description
- Maximum torque Mmax 7.4 Nm
- Maximum speed nmax 9000 rpm
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | ||||
| MS2N | 03 | - | - | - | - |
| 01 | MS2N synchronous servo motor | MS2N |
| 02 | Size | 03 |
| Length | ||
| 03 | A | |
| B | ||
| D | ||
| Rotor inertia | ||
| 04 | Low inertia | 0 |
| Winding | ||
| 05 | 9000 min-1 | BY |
| Type of cooling | ||
| 06 | Self-cooling | N |
| Encoder performance | ||
| 07 | BASIC ‒ 16 signal periods, Hiperface® | A |
| STANDARD ‒ 128 signal periods, Hiperface®, SIL2, PL d | B | |
| ADVANCED ‒ digital 20 bits, ACURO®link, SIL2, PL d | C | |
| ADVANCED ‒ digital 20 bits, ACURO®link, SIL3, PL e | H | |
| Encoder design | ||
| 08 | Single-turn ‒ 1 revolution absolute | S |
| Multi-turn ‒ 4,096 revolutions absolute | M | |
| Electrical connection | ||
| 09 | M17 double plug, rotatable | D |
| M17 single cable connection, rotatable | H1) | |
| M23 single cable connection, rotatable | S1) | |
| Shaft | ||
| 10 | Smooth, without shaft seal ring | H |
| Smooth, with shaft seal ring | G | |
| Keyway, without shaft seal ring | L | |
| Keyway, with shaft seal ring | K | |
| Holding brake | ||
| 11 | Without holding break | 0 |
| Holding brake, size 1 | 1 | |
| Flange accuracy | ||
| 12 | Standard | N |
| Bearings | ||
| 13 | Standard bearings | N |
| Design | ||
| 14 | IM B5/IM 3001, PT1000 | N |
| Coating | ||
| 15 | Standard | N |
| Other version | ||
| 16 | None | N |
| Sealing air connection | P2) | |
| Auxiliary grounding connection | E | |
| Special version | ||
| 17 | None | NN |
| 1) | Electrical connection “S” and “H” only available with encoder performance “C” and “H” |
| 2) | Other version "P" only available with electrical connection "S" and shaft "G" or "K" |
Available combinations
| Encoder performance | Electrical connection | ||||||||
| Length | Rotor inertia | Winding | A | B | C | H | D | S1) | H1) |
| A | 0 | BY | – | – | ● | ● | – | – | ● |
| B | 0 | BY | ● | ● | ● | ● | ● | ● | ● |
| D | 0 | BY | ● | ● | ● | ● | ● | ● | ● |
| 1) Electrical connection "S" and "H" only available with encoder performance "C" or "H" | |
| ● = Available | |
| – = Not available |

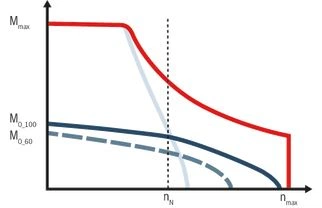

Technical data
Technical data – Self-cooling
| Type | Ratedspeed | Maximum speed | Standstill torque | Maximum torque | Continuous standstill current | Maximum current | Moment of inertia | |||
| 60K | 100K | 60K | 100K | Ohne Bremse "0" | Mit Bremse "1" | |||||
| nN | nmax | M0_60 | M0_100 | Mmax | I0_60 | I0_100 | Imax | JR. w/o br. | JR. w. br. | |
| rpm | rpm | Nm | Nm | Nm | A | A | A | kg·m² | kg·m² | |
| MS2N03‑A0BYN | 9000 | 9000 | 0.45 | 0.53 | 1.85 | 1.59 | 1.85 | 7.25 | 0002 | 00023 |
| MS2N03‑B0BYN | 6470 | 9000 | 0.73 | 0.9 | 3.75 | 1.31 | 1.61 | 7.25 | 00023 | 0003 |
| MS2N03‑D0BYN | 5700 | 9000 | 1.15 | 1.45 | 7.4 | 2.07 | 2.6 | 14.5 | 00037 | 00044 |
Dimensions

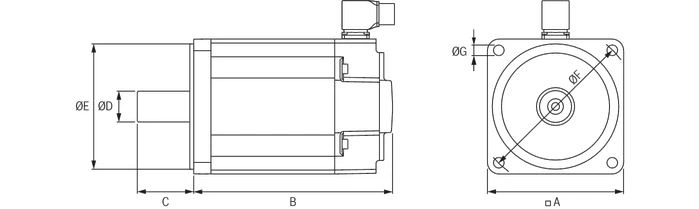

Dimensions – Self-cooling
| Type | A | B | C | ØD | ØE | ØF | ØG | Weight | |||||
| Flange | Length | Additional length | Shaft length | Shaft | Centering collar | Bolt circle | Mounting hole | Ohne Bremse "0" | Mit Bremse "1" | ||||
| Encoder performance | Holding brake | ||||||||||||
| A | B | C | H | ||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | kg | |
| MS2N03‑A0BYN | 58 | - | - | 143 | 143 | + 29 | 20 | 9 | 40 | 63 | 4.5 | 1.1 | 1.35 |
| MS2N03‑B0BYN | 58 | 148 | 163 | 163 | 163 | + 29 | 20 | 9 | 40 | 63 | 4.5 | 1.4 | 1.8 |
| MS2N03‑D0BYN | 58 | 188 | 203 | 203 | 203 | + 29 | 23 | 11 | 40 | 63 | 4.5 | 2 | 2.4 |
Accessories
Servo planetary gearbox
GTE060
Servo planetary gearbox
GTE060
Servo planetary gearbox
GTE080
Servo planetary gearbox
GTE080
Servo planetary gearbox
GTM060
Servo planetary gearbox
GTM060
Servo planetary gearbox
GTM075
Servo planetary gearbox
GTM075
Certification
Norms and Standards
| Type | MS2N |
| Certifications | CE EAC RoHS RoHS China UL CSA |
Ordering codes
