Open-type drive units with ball screw drive AOK-040-NN-1

Доступно к заказу

Цена по запросу

Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Description

    Product description

    Design

    1)With fixed and floating bearing
    2)With fixed bearing only

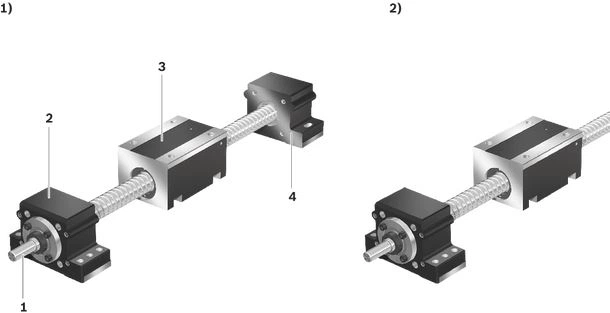

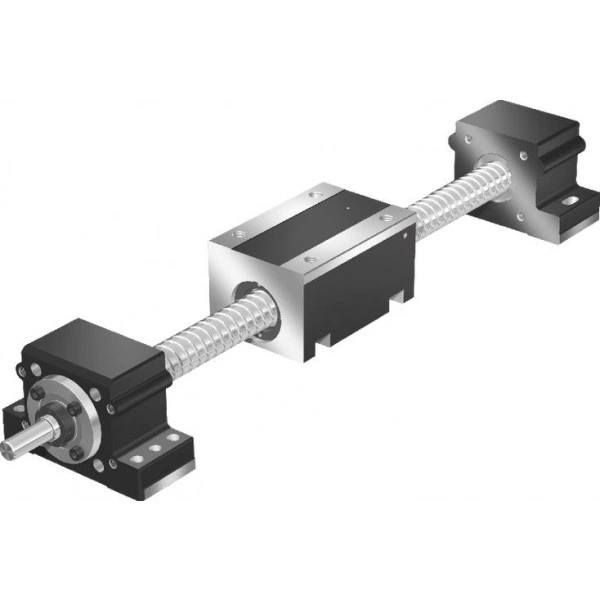

    1 Rexroth Ball Screw Assembly

    2 Pillow block fixed bearing end (drive side)

    3 Housing with nut

    4 Pillow block floating bearing end

    Nuts

    ZEM-E

    FEM-E-S / FEP-E-S

    FEM-E-C

    can be combined with1)

    Nut housing

    MGA

    MGS

    MGD

    1)The combination options according to the document "Configuration and ordering" in the section "Ordering information" are valid.

    Motor attachment

    1)Mount and coupling
    2)Timing belt side drive

    Attachments:

    1 Mount and coupling

    2 Timing belt side drive

    3 Motor

    Construction of mount and coupling

    For all Drive Units, a motor can be mounted via the mount and coupling.

    The mount secures the motor to the Drive Unit and serves as a closed housing for the coupling.

    The coupling transmits the motor drive torque to the Drive Unit's drive shaft without distortive stresses.

    Our standard couplings compensate for the system's thermal expansion.

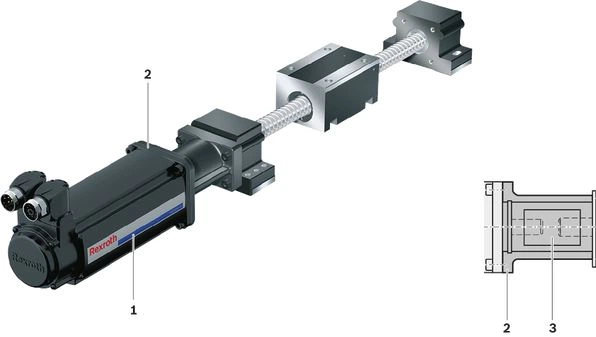

    1 Motor

    2 Mount

    3 Coupling

    Construction of timing belt side drive

    The motors of all Drive Units can be attached using a timing belt side drive.

    This makes the overall length shorter than when attaching the motor with a mount and coupling.

    The space-saving, closed pulley housing serves as protection for the belt and as a motor bracket.

    In addition, various gear ratios are also available (depending on size):

    • i = 1
    • i = 2

    The timing belt side drive can be mounted in four different directions:

    • bottom, top (RV01 and RV02)
    • left, right (RV03 and RV04)

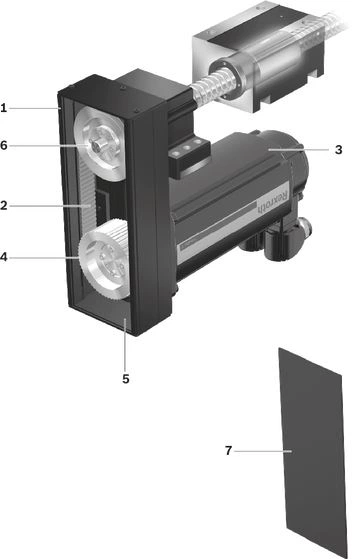

    1 Pulley housing made of anodized aluminum frame

    2 Timing belt

    3 Motor

    4 Timing belt pretensioned: Apply preload force Fpr to the motor (Fpr will be indicated on delivery)

    5 Cover

    6 Attaching the belt pulleys with tensioning units

    7 Cover plate for timing belt side drive

    Technical data

    Note: Observe the document "Calculation" in the section "Project planning notes".

    Load capacities and moments

    Size

    AOK-040

    d0 x P

    mm

    40 x 540 x 1040 x 2040 x 40

    Nuts

    ZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-C

    Nut housing

    MGAMGSMGDMGAMGSMGDMGAMGSMGDMGAMGSMGD

    C

    Nuts

    N

    314105400040950399602754039960

    Fixed-bearing

    N

    29000
    1)Nut version ZEM-E only available with housing MGA

    General technical data

    Size

    AOK-040

    d0 x P

    mm

    40 x 540 x 1040 x 2040 x 40

    Nuts

    ZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-C

    Nut housing

    MGAMGSMGDMGAMGSMGDMGAMGSMGDMGAMGSMGD

    Lc

    Nuts

    mm

    -54-70-88-102142

    Nuts and Nut Housings

    mm

    180759518080951808895180151142

    Lmax

    Fixed/floating bearing

    mm

    5000

    Fixed bearing only

    mm

    2000

    Lad

    Fixed/floating bearing

    mm

    160

    Fixed bearing only

    mm

    90

    smin 2)

    mm

    180

    mca

    Nuts

    kg

    -0.711.03-1.291.19-1.541.44-3.592.16

    Nuts and Nut Housings

    kg

    6.233.084.646.294.884.86.345.135.056.419.785.77

    kg fix

    Fixed/floating bearing

    Aluminum

    kg

    6.86

    Steel

    kg

    14.98

    Fixed bearing only

    Aluminum

    kg

    4.12

    Steel

    kg

    7.68

    kg var

    kg/mm

    088
    1)Nut version ZEM-E only available with housing MGA
    2)Minimum travel to ensure a reliable lubrication distribution.

    Calculation of the mass of the linear motion system

    (without motor attachment, without motor)

    Length calculation

    Effective stroke

    Drive data

    Size

    AOK-040

    d0 x P

    mm

    40 x 540 x 1040 x 2040 x 40

    Nuts

    ZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-C

    Nut housing

    MGAMGSMGDMGAMGSMGDMGAMGSMGDMGAMGSMGD

    kJ fix

    Nuts

    kg·mm²

    -374.8375-340.7340.4-353352-482.9425

    Nuts and Nut Housings

    kg·mm²

    378.3376.3377.3353.4349.8349.6401.7389.4388.6597.3733.7571.3

    kJ var

    kg·mm

    1.78271.6068

    kJ m

    mm²

    0.63332.53310.132140.5285

    MRs

    Fixed/floating bearing or fixed bearing only
    for preload class

    C1

    Nm

    1.71.91.8

    C2

    Nm

    2.12.52.3

    C3

    Nm

    2.12.52.3

    amax

    m/s²

    12.216.83350
    1)Nut version ZEM-E only available with housing MGA

    Note: For the max. drive torque Mp and max. speed vmax see section on "Diagrams / Characteristic curves".

    Note: Observe the document "Calculation" in the section "Project planning notes".

    Drive data for motor attachment using the timing belt side drive

    Size

    Motor

    d0 x P

    up to L2)

    Msd1)

    Jsd

    MRsd

    msd

    F

    Bt

    mm

    Fixed/floating bearing

    Fixed bearing only

    i = 1

    i = 2

    i = 1

    i = 2

    Nm

    kg

    mm

    i = 1

    i = 2

    mm

    mm

    Nm

    Nm

    10‑6 kgm2

    10‑6 kgm2

    AOK-040

    MS2N07

    40 x 5

    3500

    800

    25,6

    12,80

    7780

    1260

    0,6

    8,6

    160

    50 AT10

    50 AT10

    40 x 10

    3000

    700

    51,2

    25,60

    40 x 20

    3100

    99,3

    49,65

    40 x 40

    4400

    1100

    1)Values for Msd without making allowance for the motor torque.
    2)For greater lengths, the permissible drive torque is determined from the variable-length value Mp of the Drive Unit in accordance with the diagram. See "Project planning notes" section.

    Drive data for motor attachment via mount and coupling

    Size

    Motor

    Coupling

    Mount and coupling

    McN

    Jc

    mfc

    Nm

    10‑6 kgm2

    kg

    AOK-040

    MS2N07

    115

    390

    2,7

    Normal operating conditions

    Size

    AOK-040

    Permissible ambient temperature with Rexroth servo motor 1)

    ​0 °C ... +40 °C

    Permissible ambient temperature for mechanical system 2)

    -10 °C ... +60 °C

    smin 3)

    mm

    180
    1)Performance losses from 40°C
    2)No passing below the dew point
    3)Minimum travel to ensure a reliable lubrication distribution.

    Legend

    Symbol

    Description

    Unit

    amax

    Maximum acceleration travel

    m/s2

    Bt

    Belt type

    -

    C

    Dynamic load capacity

    N

    d0

    Nominal diameter of ball screw drive

    mm

    F

    Pulley housing width

    mm

    i

    Timing belt side drive gear ratio

    -

    Jc

    Mass moment of inertia of the coupling

    kgm2

    Jsd

    Reduced mass moment of inertia of timing belt side drive on the motor journal

    kgm2

    kg fix

    Constant for fixed portion of the mass

    kg

    kg var

    Constant for variable-length portion of the mass

    kg/mm

    kJ fix

    Constant for fixed-length portion of mass moment of inertia

    kgmm2​

    kJ m

    Constant for mass-specific portion of mass moment of inertia

    mm2

    kJ var

    Constant for variable-length portion of mass moment of inertia

    kgmm

    L

    Length

    mm

    Lad

    Additional length

    mm

    Lc

    Nut length/nut and housing length

    mm

    Lmax

    Maximum length

    mm

    mca

    Moved mass of system

    kg

    McN

    Rated torque of coupling

    Nm

    mfc

    Mass of mount and coupling

    kg

    Mp

    Input torque

    Nm

    MRs

    Frictional torque of the system

    Nm

    MRsd

    Frictional torque of timing belt side drive on the motor journal

    Nm

    msd

    Mass of timing belt side drive

    kg

    Msd

    Maximum permissible drive torque of the timing belt side drive

    Nm

    P

    Lead

    mm

    smin

    Minimum travel

    mm

    vmax

    Maximum speed

    m/s

    Maximum values for each size

    Size

    AOK-040

    amax

    m/s²

    12.216.83350

    Diagrams/characteristic curves

    Permissible drive torque MP

    The values shown for Mp are valid under the following conditions:

    • no radial load on the screw journals

    Permissible drive torque MP with fixed and floating bearing

    Permissible drive torque MP with fixed bearing only

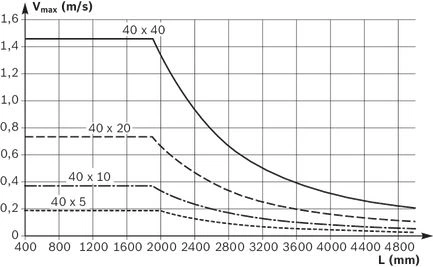

    Permissible speed vmax

    Maximum permissible speed vmax with fixed and floating bearing

    Maximum permissible speed vmax with fixed bearing only

    Fields of application

    Areas of application

    Drive Units can be used in many ways as a drive axis for linear motion and positioning tasks in the application areas and industries below.

    Possible applications

    • pick and place
    • handling systems
    • placers, palletizers
    • feeder units for machine tools
    • testing and analysis systems
    • feeder units in transfer lines
    • offset slide mechanisms

    Possible industries

    • handling and assembly
    • electronics and semiconductor industry
    • automotive suppliers and manufacturers
    • robotics and automation
    • special machinery
    • packaging technology
    • plastics processing
    • textile industry

    Application-related notes

    AOK and AGK Drive Units are designed for drive tasks only and can only absorb axial forces.

    When using a Drive Unit, always make sure to include adequate, separate linear guides that can handle the structure being moved as well as the resulting reaction forces and torques.

    This results in a linear motion unit (e.g. table top) that can be moved automatically thanks to an AOK or AGK Drive Unit.

    Examples

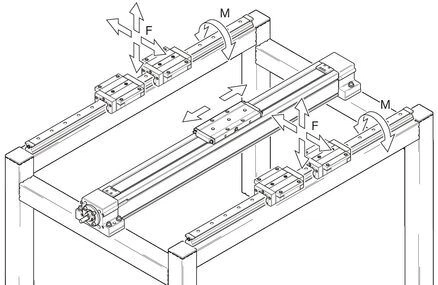

    Example of basic motion unit structure with table top and AOK Drive Unit

    In this example, two separate linear guides, each with two Runner Blocks, absorb forces and torques so that when moving the structure only axial forces act on the Drive Unit (here AGK).

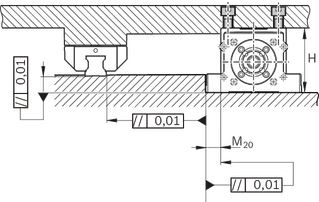

    Follow the assembly instructions and installation tolerances in the "Installation" section.

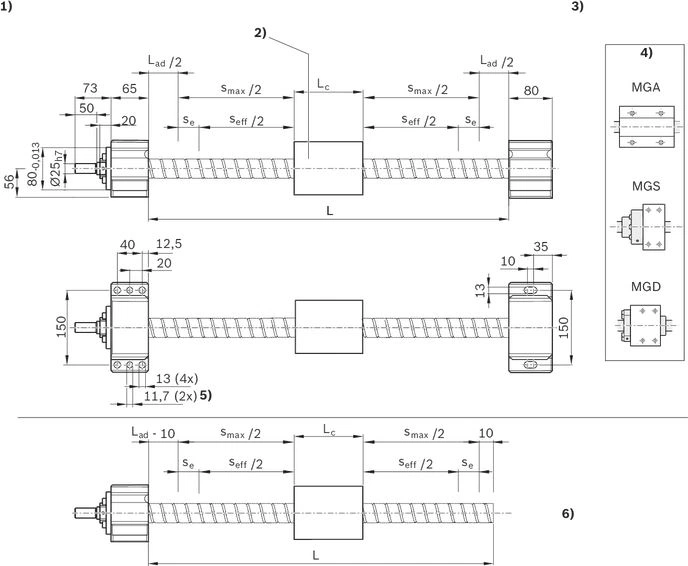

    Dimensions

    All dimensions in mm. Drawings not to scale.

    Straightness and flatness tolerance according to DIN EN 12020-02

    1)Fixed bearing end (motor attachment)
    2)Nut / nut and housing
    Selection see document "Configuration and ordering" in the section "Ordering information"
    Dimensions see corresponding dimensional drawings
    3)Floating bearing end
    4)Nut housing
    5)pre-drilled for pin hole
    6)No floating bearing
    1)M10 - 20 deep (4x)
    2)Reference edges (on two sides)

    Lad = Längenzuschlag (siehe Kapitel „Technische Daten“)

    Dimensions

    Size

    AOK-040

    d0 x P

    mm

    40 x 540 x 1040 x 2040 x 40

    Nuts

    ZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-C

    Nut housing

    MGAMGSMGDMGAMGSMGDMGAMGSMGDMGAMGSMGD

    B

    mm

    6052.5607060

    Tolerance for B

    mm

    ± 0.01

    H

    mm

    11598115106981151069811511498

    H12

    mm

    111

    Tolerance for H12

    mm

    ± 0.15

    HB

    mm

    101614108141081410114

    Lc

    mm

    180759518080951808895180151142
    1)Nut version ZEM-E only available with housing MGA

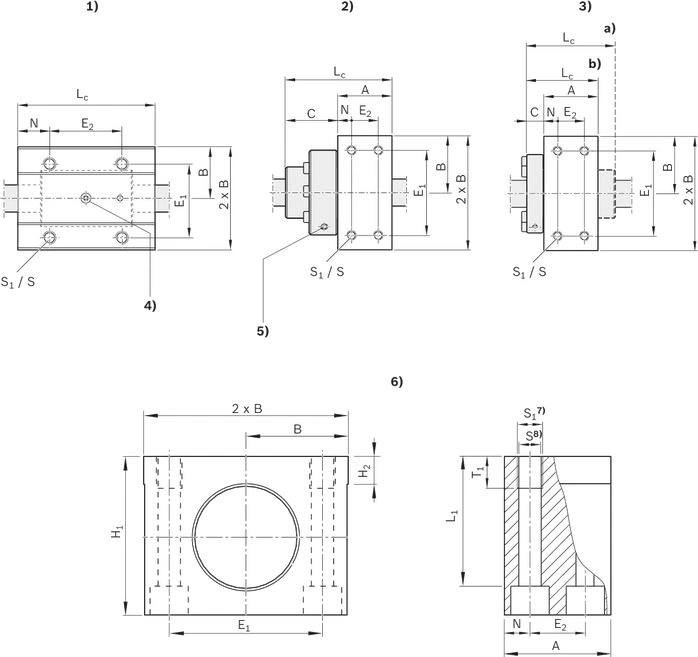

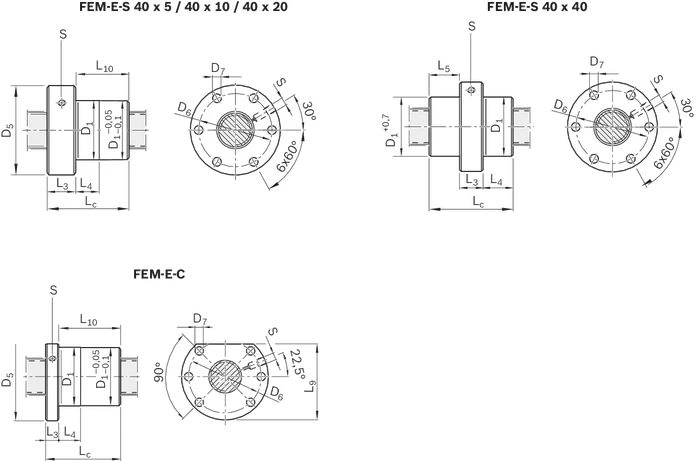

    dimensional drawings with nut and housing

    1)Figure 1 (MGA)
    2)Figure 2 (MGS, MGD)
    3)Figure 3 a) / Figure 3 b) (MGS, MGD)
    4)Countersink for O-ring 7 x 1.5
    5)Lube port at flange center
    6)Dimension drawing for all Nut Housings (Figure 1, 2, 3)
    7)S1 = 4x thread
    8)S = 4x drill hole

    Dimensions

    Size

    AOK-040

    d0 x P

    mm

    40 x 540 x 1040 x 2040 x 40

    Nuts

    ZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-C

    Nut housing

    MGAMGSMGDMGAMGSMGDMGAMGSMGDMGAMGSMGD


    13 b)13 b)13 a)3 b)123 a)

    A

    mm

    -6080-6580-6580-80

    B

    mm

    6052.5607060

    Tolerance for B

    mm

    ± 0.01

    C

    mm

    -13-13-1513-5413

    E1

    mm

    9082909390939010890

    Tolerance for E1

    mm

    -± 0.1-± 0.1-± 0.1-± 0.1

    E2

    mm

    120303512035120351204635

    Tolerance for E2

    mm

    -± 0.1-± 0.1-± 0.1-± 0.1

    H1

    mm

    10582841059884105988410511384

    H2

    mm

    12

    Lc

    mm

    180759518080951808895180151142

    L1

    mm

    866464.5867964.5867964.5869264.5

    N

    mm

    301531301531301531301731

    S1

    M16M18M16M18M16M18M16M20M18

    S

    mm

    14.5131514.51514.51514.51715

    T1

    mm

    24202524252425243025
    1)Nut version ZEM-E only available with housing MGA

    dimensional drawings with nut

    Dimensions

    Size

    AOK-040

    d0 x P

    mm

    40 x 540 x 1040 x 2040 x 40

    Nuts

    ZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-C

    D1

    g6

    mm

    -5663-63-63-7263

    D5

    mm

    -8093-9593-9593-11093

    D6

    mm

    -6878-78-78-9078

    D7

    mm

    -6.69-9-9-119

    Lc

    mm

    -54-70-88-102142

    L3

    mm

    -15-15-15-4015

    L4

    mm

    -10-16-25-3145

    L5

    mm

    -31-

    L9

    mm

    -81.5-81.5-81.5-81.5

    L10

    mm

    -39-55-73-127

    S

    -M8 x 1 2)-M8 x 1 2)-M8 x 1 2)-M8 x 1 2)
    1)Nut version ZEM-E only available with housing MGA
    2)Lube hole (S) (in flange center on FEM-E-S, FEM-E-C); lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm.

    Project planning information

    Mounting

    Mounting tolerances

    Parallelism of customer-built attachments, pillow blocks and rail guides

    Dimensions

    Size

    AOK-040

    d0 x P

    mm

    40 x 540 x 1040 x 2040 x 40

    Nuts

    ZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-CZEM-E 1)FEM-E-SFEM-E-C

    Nut housing

    MGAMGSMGDMGAMGSMGDMGAMGSMGDMGAMGSMGD

    H

    mm

    11598115106981151069811511498

    Tolerance for H

    mm

    ± 0.01

    M20

    mm

    3037.5302030

    Tolerance for M20

    mm

    ± 0.01
    1)Nut version ZEM-E only available with housing MGA

    Commissioning

    Parameterization (start-up)

    The nameplate contains reference information on the production of the linear motion system as well as technical start-up parameters.

    Position

    Symbol

    Description

    Unit

    1

    CNR

    Customer's part number

    -

    2

    TYP

    Type designation

    -

    3

    032

    Size

    -

    4

    CS

    Customer information

    -

    5

    MNR

    Part No.

    -

    6

    FD

    Manufacturing date

    -

    7

    7210

    Manufacturing location

    -

    8

    smax

    Maximum travel range

    mm

    9

    u

    Lead constant without motor attachment

    mm/U

    10

    vmax

    Maximum speed without gear

    m/s

    11

    amax

    Maximum acceleration without gear

    m/s2

    12

    M1max

    Maximum drive torque at motor journal

    Nm

    13

    d

    Direction of motor rotation to move in positive (+) direction

    CW = clockwise

    CCW = counter clockwise

    -

    14

    i

    Gear ratio

    -

    15

    QR code

    -

    Maintenance

    Delivery notes

    Condition on delivery

    Drive Units come ready-mounted.

    Motor attachment

    If a combination of motor and motor attachment has been selected, then the attachment of the components is done as shown in the figure which also shows the location of the motor connector.

    Motor attachments ordered without a motor must be assembled by the customer.

    All necessary instructions and parameters for professional assembly are included.

    AOK (example)

    Mount and coupling (MF01)

    Timing belt side drive (RV01–RV04)

    Selectable options

    switch and socket with plug are enclosed with the delivery.

    Lubrication

    Drive Units are delivered with initial greasing.

    For further information, see the "Maintenance" section.

    Documentation

    Each Drive Unit will be delivered with the corresponding documentation.

    Safety Instructions

    Required and supplementary documentation

    For further instructions and information, please refer to the documentation for this product.

    You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

    We would also be happy to send you the documents that you want.

    If you are unsure about using this product, please contact Bosch Rexroth.

    Motor attachment

    Version

    Abmessungen

    Version

    Motor code

    Lf

    ▢ E

    mm

    mm

    MF01

    MS2N07-B1BNN

    140

    see dimension ▢ A → "Motors" chapter

    MS2N07-C0BQN

    MS2N07-C1BRN

    MS2N07-D1BNN

    Abmessungen

    Version

    Motor code

    E

    F

    G

    K

    Lsd

    i = 1

    i = 2

    i = 1

    i = 2

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    RV01, RV02,

    RV03, RV04

    MS2N07-B1BNN

    240

    238

    160

    90

    77

    409

    409

    MS2N07-C0BQN

    MS2N07-C1BRN

    MS2N07-D1BNN

    Measurement and test reports

    load error

    Downloads

    Declaration of Incorporation for single axis Linear Motion Systems
    Certificate | R320103141 | 2020-06-01 | All languages | PDF | 409k

    Product Groups: Linear axes and electromechanical cylinders
    Safety Instructions for Linear Motion Systems
    Manual | R320103152_en | 2015-01-01 | English | PDF | 593k

    Product Groups: Linear axes and electromechanical cylinders
    Drive Units AOK
    Manual | R320103915 | 2007-10-01 | English, French, German, Italian | PDF | 2.9MB

    Product Groups: Drive Units
    Unidad de accionamiento AOK
    Manual | R320103916 | 2007-10-01 | Spanish | PDF | 2.6MB

    Product Groups: Drive Units
    Drive Units with Ball Screw Drives
    Catalog | R999001326 | 2017-06-01 | English | PDF | 13.8MB

    Product Groups: Drive Units

    Мы предлагаем следующие способы доставки товара:

    Самовывоз из пункта выдачи

    Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
    Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.


    Курьерская доставка по Москве

    Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

    Доставка транспортной компанией по России

    Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


    Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

    Специалист по решениям Bosch Rexroth:

    • Окажет профессиональную консультацию.
    • Сообщит вашу цену на продукцию.
    • Сообщит информацию об актуальных акциях и скидках.
    • Подскажет ближайшее к вам отделение с наличием нужной продукции.
    • Согласует с вами возможную дату и время доставки.

    Запрос цены или КП

    Запрос цен, наличия или консультация
    Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
    НовостиВсе новости
    Bosch Rexroth Bladder-type accumulators HAB сохраняют лидирующие позиции в промышленном энергоснабжении

    Баллонный аккумулятор Bosch Rexroth HAB2,5-350-6X/0G07G-2N111-CE+EAC (арт. R901451721) представляет собой электрохимический источник питания, созданный для эффективного хранения и выдачи электрической энергии. Его конструкция включает баллон с электродами и электролитом, что обеспечивает стабильную ..

    28 Декабря, 2025
    Bosch Rexorth Gerotor pumps with constant displacement PGZ — особенности и сферы применения

    Насосы Gerotor с постоянным рабочим объёмом PGZ представлены рамками размером 4 и 5, соответствующими размерам от 20 до 140 см³. Максимальное рабочее давление достигает 15 бар, а максимальный рабочий объём — 136,3 см³. Ключевые характеристики насосов PGZ включают в себя: - фикс..

    29 Ноября, 2025
    Bosch Rexort CDI+ VAC08 для эффективного управления двумя дисплеями в системах ctrlX IPC

    Разделитель CDI+ VAC08 обеспечивает подключение одной или двух панелей управления DR или DE к блочному ПК PR с интерфейсом CDI+. Устройство позволяет выводить идентичное видео на оба дисплея в режиме клона, что упрощает контроль и мониторинг информации в реальном времени. Особенность конструкции ..

    31 Октября, 2025
    Bosch Rexort Electrohydraulic pump EHP – особенности и эксплуатационные преимущества

    Electrohydraulic pump EHP представляет собой приводной агрегат с фиксированным насосом и электродвигателем, который широко применяется в транспортных средствах и системах для обработки грузов. Диапазон размеров насосов варьируется от 1.0 до 22, а номинальное напряжение составляет от 12 до 110 В, что..

    29 Сентября, 2025
    Bosch Rexroth CFL01.1-Q2: надёжная перекрёстная связь в системах автоматизации

    В сфере промышленной автоматизации стабильный обмен данными между системами управления и приводами играет ключевую роль. Модуль Bosch Rexroth Перекрёстная связь (Sercos II) CFL01.1-Q2 показывает, как продуманная инженерия способна повысить эффективность и гибкость технологических процессов. Оснащ..

    11 Августа, 2025
    Bosch Rexroth CDI+ VAC08: распределение видеосигнала с управлением правами доступа

    На производственных площадках и в распределительных шкафах всё чаще применяются устройства, позволяющие эффективно делить интерфейсы между несколькими дисплеями. Одним из таких решений стал разделитель CDI+ VAC08 из ассортимента Bosch Rexroth, работающий с системами ctrlX IPC. Устройство позволяе..

    10 Июля, 2025
    Bosch Rexroth Axial piston fixed motor A10FE series 52: высокая производительность и надежность в компактном решении

    Axial piston fixed motor A10FE серии 52 от Bosch Rexroth представляет собой высокоэффективное решение для интеграции в механические редукторы, предоставляя ряд характеристик, которые делают его особенно привлекательным для различных применений. С номинальным давлением 280 бар и максимальным давление..

    12 Июня, 2025
    Bosch Rexroth: оперативность и надежность в каждой детали

    Программа быстрой доставки многонасосов Bosch Rexroth демонстрирует высокую степень внимания к потребностям клиентов в быстром и качественном обслуживании. - Широкий ассортимент насосов позволяет выбрать оптимальное решение для различных промышленных приложений, удовлетворяя разнообразные пот..

    24 Мая, 2025
    Bosh Rexort: насосы PGZ справляются с задачами

    В промышленных и мобильных гидросистемах всё чаще обращают внимание на стабильность работы при низком давлении — особенно в контуре охлаждения, фильтрации и смазки. На этом фоне героторные насосы с постоянным объёмом, такие как тип PGZ, остаются незаменимыми участниками многих технологических ..

    19 Апреля, 2025
    Bosch rexroth панель управления для станков с экранами 15,6 дюймов

    В последнее время в производственной сфере наблюдается растущий интерес к специализированным панелям управления, которые способны удовлетворить индивидуальные требования пользователей. Одним из ярких примеров является панель управления от компании Boschrexroth, разработанная для устройств с диагонал..

    18 Марта, 2025
    BOSCH REXORT Z1S 6: эффективность и надежность в гидравлике

    Проверочный клапан BOSCH REXORT Z1S 6 вызывает интерес благодаря своим характеристикам, которые делают его ценным элементом в гидравлических системах. С размером 6 и компонентной серией 4X, этот клапан способен работать при максимальном давлении до 350 бар, что гарантирует его надежность даже в самы..

    22 Февраля, 2025
    Bosch Rexroth A4FO: надежность в условиях высокого давления

    Гидравлическое оборудование остается важной частью современных промышленных и строительных систем. Аксиально-поршневой насос Bosch Rexroth A4FO демонстрирует, как сочетание универсальности, долговечности и инженерной точности помогает решать сложные задачи, связанные с подачей гидравлической жидкост..

    17 Января, 2025

    Нет отзывов об этом товаре.

    Написать отзыв

    Рейтинг
