RKG 0057

Description

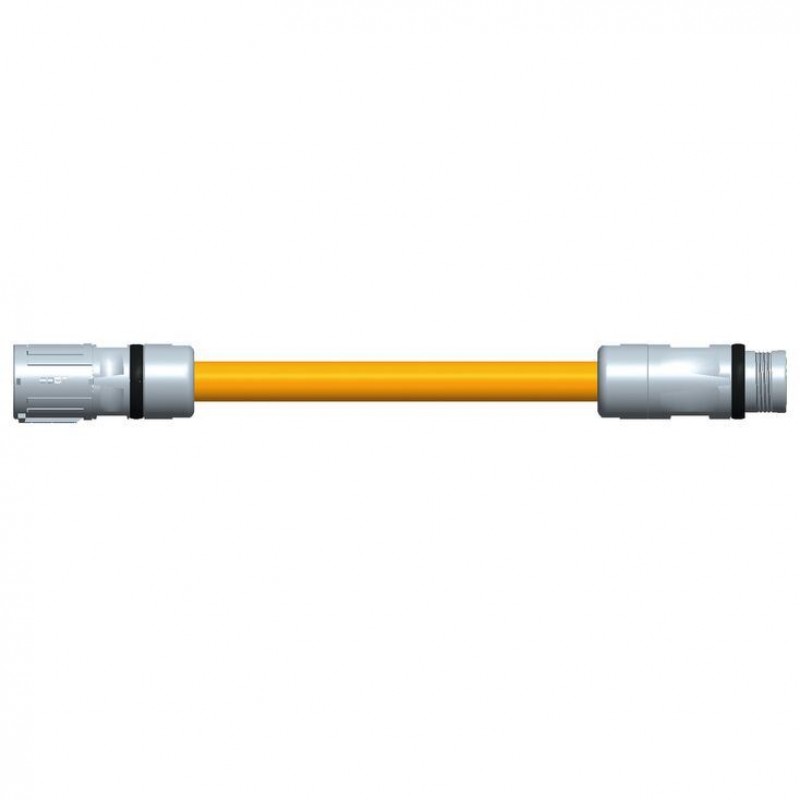

• Extension cable
• M17 -> M17

Technical data

Data for encoder cables REG0011

For more information on connectors and cables, see the documentation "Rexroth connection cable IndraDrive and IndraDyn" DOK-CONNEC-CABLE*INDRV-CA03-DE-P, R911322948 de-DE, 24.04.2013.

Cable for DRIVE-CLiQ

For IMS with the interface option "DQ" (DRIVE-CLiQ), we recommend MOTION-CONNECT DRIVE-CLiQ-lines with M12-connector for direct measuring systems from the Siemens accessories range.

Cable for FANUC αi

For IMS with the interface option “FN” (FANUC) we recommend the FANUC cable: LX660-4077-T321

Dimensions

Other cable lengths on request

For further technical data/cable description see the IMS R320103262 instructions

Cable lengths

Information

Maximum cable length IMS-I

For connection to Rexroth drive controller IndraDrive:

Encoder interface EC (12 VDC supply): maximum length is 75 m

Encoder interface EN2 interface (5 VDC supply): maximum length is 50 m

For connection to other evaluation electronics:

Signal type I1 (1 Vpp, current consumption 300 mA):

Voltage drop over 75 m cable length is 2.05 V, i.e., the encoder supply voltage for the evaluation electronics must be able to be set to at least 6.8 V (for example, by sense-control).

Signal type I2, I3, I4 (TTL, current consumption 350 mA):

Voltage drop over 75 m cable length is 2.30 V, that is, the encoder supply voltage for the evaluation electronics must be able to be set to at least 7.05 V (for example, by sense-control).

Maximal cable length for IMS-A

Please note that the cable length can additionally be limited by:

• Plug-and-socket connections (> two pieces)


• EMC behavior


Be sure to take note of the information in the project planning instructions for IndraDrive drive control units and the EMC project planning. The overall length of the pre-assembled cables is measured inclusive of the connectors.

Ordering codes
