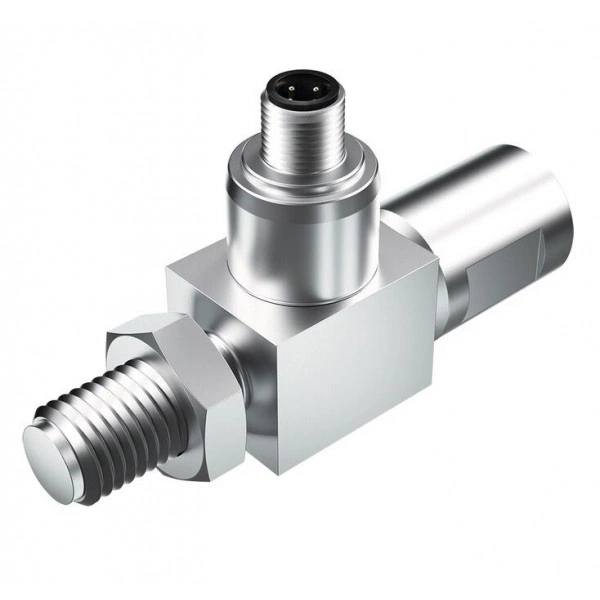

Description
Features
- Corrosion-resistant stainless steel version
- High reproducibility
- Easy mounting directly at the EMC piston rod
Technical data
Metrological specifications
| Smart Function Kit size | 002 | 004 | 007 | 012 | 019 | 030 | |
| Compressive force measuring range | kN | 3 | 6 | 10 | 15 | 20 | 40 |
| Traction force measuring range | kN | 0.3 | 0.6 | 1 | |||
| Protection type | IP67 | ||||||
| Operating load (of the measuring range) | % | 150 | |||||
| Breaking load (of the measuring range) | % | 300 | |||||
| Non-linearity (of the measuring range) | % | ± 0.3 | |||||
| Relative creeping (of measuring range) | % | 0.1 | |||||
| Hysteresis (of the measuring range) | % | 0.1 | |||||
| Temperature drift zero point (of the measuring range per Kelvin) | % | 0.02 | |||||
| Temperature drift above measuring range (of the measuring range per Kelvin) | % | 0.02 | |||||
| Compensated temperature (min ... max) | -20 °C ... +80 °C | ||||||
| Operating temperature (min ... max) | -30 °C ... +80 °C | ||||||
Electrical specifications
| Smart Function Kit size | 002 | 004 | 007 | 012 | 019 | 030 | |
| Output signal (0kN) | 0.909 V ±0.01 | 0.625 V ±0.01 | 0.476 V ±0.01 | 0.244 V ±0.01 | |||
| Output signal (measuring range) | 0 ... +10 V | ||||||
| Nominal rating | N/V | 330 | 660 | 1100 | 1600 | 2100 | 4100 |
| Power supply | 14 ... 30 V | ||||||
| Current consumption | 8 mA (24V) | ||||||
| Bandwidth | 1 kHz ±0.2 | ||||||
| Connection | Plug M12x1 4-pin | ||||||
Electrical connection
Connection diagram for load measuring pin
Force sensor
1 Supply (+)
2 -
3 GND
4 Output
Connection cable
1 brn
2 -
3 blu
4 blk
Dimensions
load errorOrdering codes
Order overview
| Smart Function Kit size | Part number |
| 002 | R156623001 |
| 004 | R156633001 |
| 007 | R156643001 |
| 012 | R156653001 |
| 019 | R156663001 |
| 030 | R156673001 |
