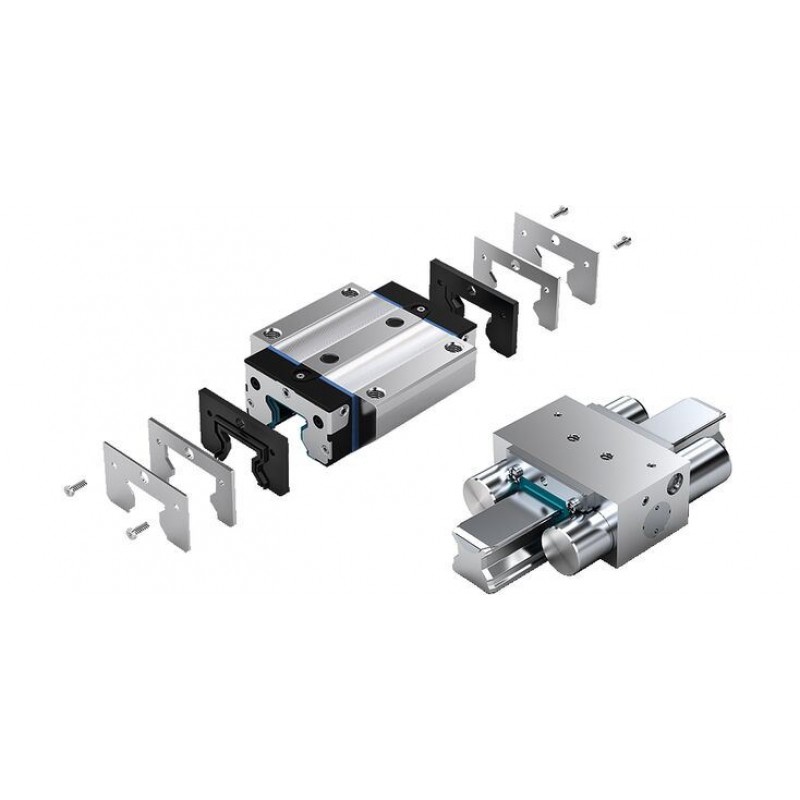

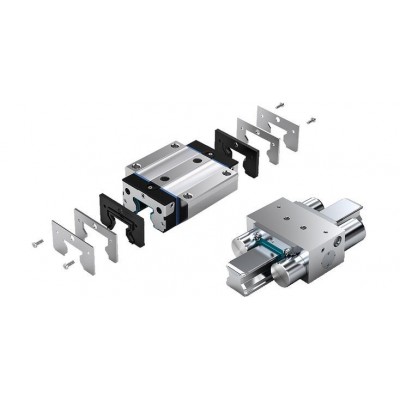

Mounting Runner Block SLH slimline, long, high R1829 .20 ..
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Dimensions
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A | mm | 48 | 70 | 86 | 100 | 126 |
| B1 | mm | 81.5 | 103.6 | 134 | 162.1 | 194 |
| B3 | mm | 115 | 145 | 183 | 216 | 264 |
| D | mm | 19 | 25 | 27 | 30 | |
| Mass | kg | 0.8 | 1.9 | 4 | 6 | 11.8 |
Project planning information
For all other dimensions, see Profiled Rail Systems - Roller Rail Systems - Roller Runner Blocks - Roller Runner Blocks SLH - SLH standard steel
Mounting

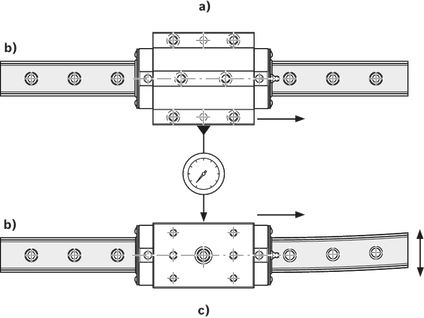

Assembly with mounting runner
a)Standard roller runner block
b) Immobile
c) Mounting runner SLH R1829
Note
Hole D is at the same time a key- and a screw hole. Use the middle hole D in the mounting runner to measure exactly in the center, then fasten the roller guide rail with the mounting runner.
Alignment
- Align and mount the first roller guide rail using a graduated straightedge.
- Set up a mounting bridge with dial gauge between the roller runner blocks.
- Move both roller runner blocks in parallel until hole D in the mounting runner block is positioned precisely above a mounting hole in the rail.
- Align the roller guide rail manually until the dial gauge shows the correct dimension.
- Then screw down the roller guide rail using the mounting runner block.
Ordering codes
Material numbers
| Size | Part number 1) | Buy |
| 25 | R182922090 | |
| 35 | R182932090 | |
| 45 | R182942090 | |
| 55 | R182952090 | |
| 65 | R182962090 |
| 1) | for preload class C3 |
