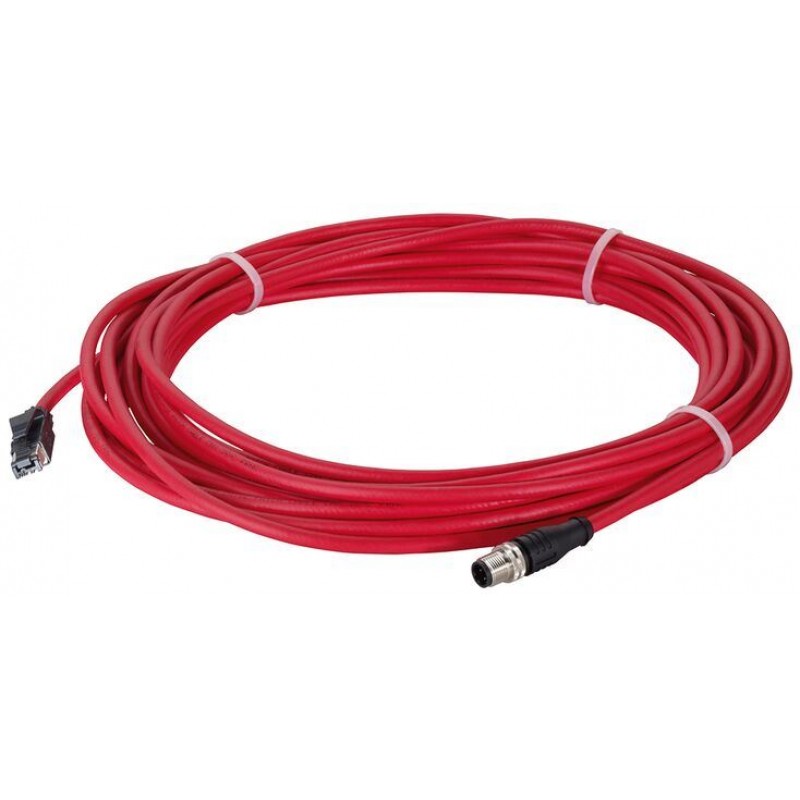

Cable set for Linear Motion Slides TKL
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Product description
Cable set for ball rail table TKL and IndraDrive servo controller consisting of power cable and feedback cable
Note: The power cables are assembled on the controller side with wire end ferrules or cable lugs.
Technical data
Technische Daten
| Size | TKL-225 | TKL-275 | TKL-325 | |
| Encoder cable Ø max. | mm | 10 | ||
| Power cable Ø max. | mm | 12.5 | 15.8 | 17.3 |
| Cable set weight | kg/m | 0.37 | 0.48 | 0.64 |
| Motor | MLP040 | MLP070 | MLP100 | |
Assembly
| Size | TKL-225 | TKL-275 | TKL-325 | |
| Motor side 1) | 1 | 2 | 3 | |
| Controller side 1) | HCS02.* – W0028 | 10 | ||
| HCS02.* – W0054 | 10 | |||
| HCS03.* – W0070 | 11 | |||
| HCS03.* – W0150 | 12 | |||
| 1) | Please also state the part number in your order |
Motor/controller combination
| Size | TKL-225 | TKL-275 | TKL-325 |
| Motor | MLP040 | MLP070 | MLP100 |
| Controller | HCS02.* – W0028 HCS02.* – W0054 | HCS03.* – W0070 HCS03.* – W0150 | HCS03.* – W0150 |
Cable data, power cable
| Size | TKL-225 | TKL-275 | TKL-325 | |
| Cross-section of power or supply wires | mm2 | 4 x 1,0 | 4 x 2,5 | 4 x 4,0 |
| Cross-section of control wires 1) | mm2 | 2x (2 x 0,75) | 2x (2 x 1,0) | 2x (2 x 1,0) + (2 x 1,5) |
| Diameter (D) | mm | 12 | 14.8 | 16.3 |
| Tolerance for diameter (D) | mm | ± 0.5 | ± 1 | |
| Min. Bending radius for fixed installation | mm | 6 x D | ||
| Min. Bending radius for flexing installation | mm | 10 x D | ||
| Bending cycles (in millions) | 5 | |||
| Specific cable weight | kg/m | 0.22 | 0.33 | 0.49 |
| Design | Designed for continuous alternating bending stress | |||
| Burning behavior | Complies with the requirements of DIN EN 50265-2-1and UL Sub. 758 AWM Section G, page 95 | |||
| Chemical properties | Largely resistant to mineral oils and greases, resistant to hydrolysis, silicon-free and halogen-free | |||
| Approbation | UL and CSA listed | |||
| Permissible ambient temperature for storage (min ... max) | -30 °C ... +80 °C | |||
| Operating temperature for fixed installation (min ... max) | -30 °C ... +80 °C | |||
| Operating temperature for flexing installation (min ... max) | -20 °C ... +80 °C | |||
| Cable sheath | Surface is matte and low adhesion | |||
| Cable sheath material | PUR | |||
| Cable sheath color | Orange | |||
| 1) | Holding brake, temperature monitoring or control voltage |
Cable data, encoder cable
| Size | TKL-225 | TKL-275 | TKL-325 | |
| Cross-section of supply wires | mm2 | 4 x 1,0 | ||
| Cross-section of control wires | mm2 | 4 x 2 x 0,14 x (4 x 0,14)StC) | ||
| Diameter (D) | mm | 9.7 | ||
| Tolerance for diameter (D) | mm | ± 0.3 | ||
| Min. Bending radius for fixed installation | mm | 6 x D | ||
| Min. Bending radius for flexing installation | mm | 10 x D | ||
| Bending cycles (in millions) | 5 | |||
| Specific cable weight | kg/m | 0.15 | ||
| Design | Designed for continuous alternating bending stress | |||
| Burning behavior | Complies with the requirements of DIN EN 50265-2-1and UL Sub. 758 AWM Section G, page 95 | |||
| Chemical properties | Largely resistant to mineral oils and greases, resistant to hydrolysis, silicon-free and halogen-free | |||
| Approbation | UL and CSA listed | |||
| Permissible ambient temperature for storage (min ... max) | -30 °C ... +80 °C | |||
| Operating temperature for fixed installation (min ... max) | -30 °C ... +80 °C | |||
| Operating temperature for flexing installation (min ... max) | -20 °C ... +80 °C | |||
| Cable sheath material | ||||
| Cable sheath color | ||||
