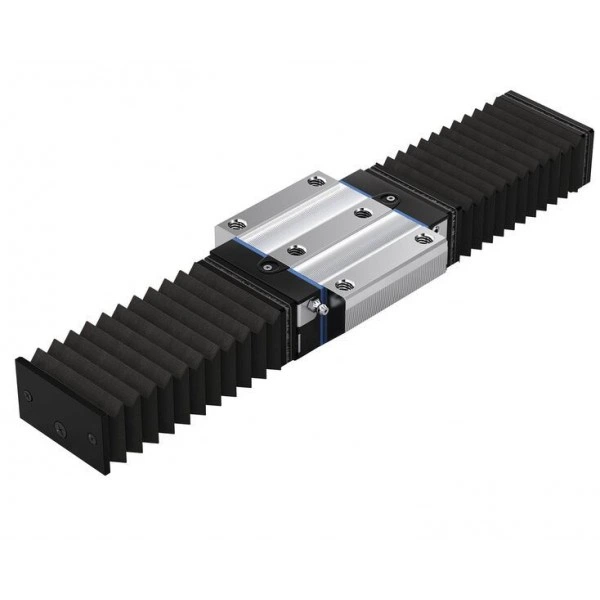

Standard bellows R1..0 .0. 00
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Material: Polyurethane-coated polyester fabric
Product description
- Size 25: Aluminum lubrication plate. The lube nipple of the roller runner block can be used.

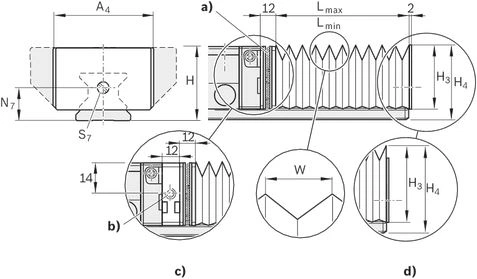

Dimensions
| a) | Hook and loop fastener |
| b) | Lube hole M6-5 deep |
| c) | Size 25 |
| d) | Heat resistant bellows |
| Representation not to scale | |
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A4 | mm | 45 | 64 | 83 | 96 | 120 |
| H | mm | 36 | 48 | 60 | 70 | 90 |
| H3 | mm | 28.5 | 39 | 49 | 56 | 75 |
| H4 | mm | 35 | 47 | 59 | 69 | 89 |
| N12 | mm | 15 | 22 | 30 | 40 | |
| S7 | M4 | |||||
| W | mm | 12.9 | 19.9 | 26.9 | 29.9 | 40.4 |
| U 1) | 1,32 | 1,18 | 1,13 | 1,12 | 1,08 | |
| 1) | Calculation factor (see project planning information) |
Project planning information

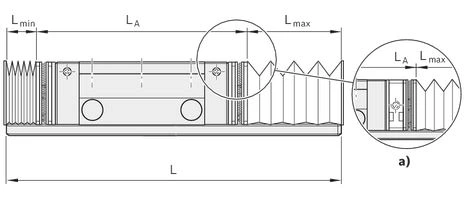

Bellows calculation
a) Size 25
Lmax = (stroke + 30 mm) · U
Lmin = Lmax – Stroke
Number of folds = Lmax/W + 2
Calculating the rail length
L = Lmin + Lmax + LA
Legend
| Symbol | Description | Unit |
| Lmax | Bellows, uncompressed | mm |
| Lmin | Bellows, compressed | mm |
| Stroke | Stroke | mm |
| U | Calculation factor | – |
| W | maximum bellows extraction | mm |
| L | Rail length | mm |
| LA | Roller runner block length with fastening frame | mm |
Mounting
Notes for mounting for bellows
The bellows is pre-assembled. The fastening screws are included. The lube nipple of the roller runner block can be used.
For type 1 and type 2, a thread M4‑10 deep, 2 x 45° must be countersunk and placed in the end face of the rail in each case.
For assembly, see "Mounting instructions for bellows".
Mounting instructions for bellows
Ordering codes
Material numbers
| Size | Part number | Buy | Type | Suitable for |
| 25 | R182024100 | Type 1 | RSHP | |
| R182020100 | - | |||
| R182020200 | Type 2 | |||
| R182024300 | Type 3 | RSHP | ||
| R182020300 | - | |||
| R182020400 | Type 4 | |||
| R182020500 | Type 5 | |||
| R160020900 | Type 9 | |||
| 35 | R182030200 | Type 2 | ||
| R182030400 | Type 4 | |||
| R160030900 | Type 9 | |||
| 45 | R182040200 | Type 2 | ||
| R182040400 | Type 4 | |||
| R160040900 | Type 9 | |||
| 55 | R182050200 | Type 2 | ||
| R182050400 | Type 4 | |||
| R160050900 | Type 9 | |||
| 65 | R182060200 | Type 2 | ||
| R182060400 | Type 4 | |||
| R160060900 | Type 9 |
| Mass on request |
Overview of bellows types
| Type | Version | Picture |
| Type 1 | with lubrication plate and end plate |  |
| Type 2 | with fastening frame and end plate |  |
| Type 3 | with 2 lubrication plates |  |
| Type 4 | with 2 fastening frames |  |
| Type 5 | with lubrication plate and fastening frame |  |
| Type 9 | loose bellows (spare part) |  |
Ordering example – bellows
- Size 35, type 2
- Number of folds: 36
Code:
Material number, fold count: R1820 302 00, 36 folds
