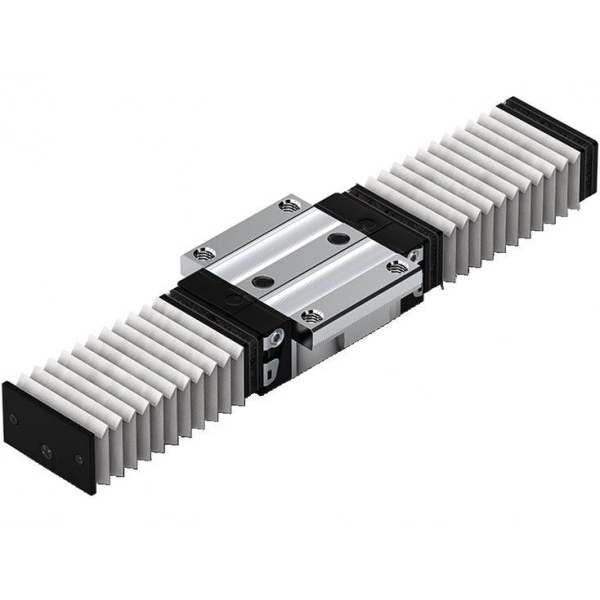

Heat-resistant bellows R16.0 .5. 00
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Material: Nomex fabric, metalized
- Temperature stability
- Non combustible, non flammable
- Resistant to sparks, welding spatter and hot chips.
Features
- The protective metal coating can withstand peak temperatures of up to 200 °C.
- Operating temperature for the entire bellows: max. 80 °C
Dimensions
| a) | Velcro fastener |
| b) | Heat-resistant bellows: Observe height (dimension H4 compared to dimension H) |
| Drawings not to scale |
Dimensions
| Size | 25 | 30 | 35 | 45 | 55 | 65 | |
| A4 | mm | 62 | 67 | 74 | 88 | 102 | 134 |
| B3 | mm | 12 | 14 | ||||
| H | mm | 36 | 42 | 48 | 60 | 70 | 90 |
| H3 | mm | 39 | 42 | 47 | 55 | 63 | 86 |
| H4 | mm | 44.5 | 47.5 | 54 | 64 | 75 | 99 |
| K3 | mm | 6 | 8 | 9 | 18 | ||
| N12 | mm | 15 | 18 | 22 | 30 | 40 | |
| S13 | M6 | M8x1 | |||||
| W | mm | 25.9 | 29.9 | 32.9 | 37.9 | 52.4 | |
| U 1) | 1,25 | 1,21 | 1,18 | 1,16 | 1,11 | ||
| 1) | Calculation factor (see project planning information) |
Project planning information
Calculation of the bellows
Lmax. = (stroke + 30) · U
Lmin. = Lmax. – stroke
Number of folds = Lmax./W + 2

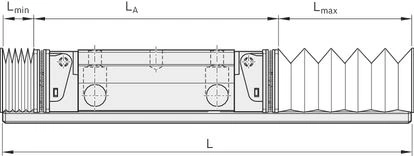

Calculation of rail length
L = Lmin. + Lmax. + LA
Legend
| Symbol | Description | Unit |
| Lmax | Bellows, elongated | mm |
| Lmin | Bellows, contracted | mm |
| Stroke | Stroke | mm |
| U | Calculation factor | – |
| W | maximum bellows extraction | mm |
| L | Ball guide rail length | mm |
| LA | Ball runner block length with fastening frame | mm |
Mounting
Note for mounting
- The bellows is pre-assembled.
- The fastening screws are included.
- Bellows with lube plate (type 1, 3 - 5) size 15 - 20: Funnel-type lube nipple with impact spigot is included. Size 25 - 65 and wide: The lube nipple of the Ball Runner Block can be used.
- For type 1 and type 2, a thread M4x10 with 2 x 45° countersink must be inserted and placed in the end face of the Ball Guide Rail. For Ball Guide Rail BNS: Insert two threads in each case.
- Observe the mounting instructions
Ordering codes
Material numbers
| Size | Part number | Buy | Type |
| 25 | R162025100 | Type 1 | |
| R162025200 | Type 2 | ||
| R162025300 | Type 3 | ||
| R162025400 | Type 4 | ||
| R162025500 | Type 5 | ||
| R162025600 | Type 6 | ||
| R162025700 | Type 7 | ||
| R162025800 | Type 8 | ||
| R160025900 | Type 9 | ||
| 30 | R162075100 | Type 1 | |
| R162075200 | Type 2 | ||
| R162075300 | Type 3 | ||
| R162075400 | Type 4 | ||
| R162075500 | Type 5 | ||
| R162075600 | Type 6 | ||
| R162075700 | Type 7 | ||
| R162075800 | Type 8 | ||
| R160075900 | Type 9 | ||
| 35 | R162035100 | Type 1 | |
| R162035200 | Type 2 | ||
| R162035300 | Type 3 | ||
| R162035400 | Type 4 | ||
| R162035500 | Type 5 | ||
| R162035600 | Type 6 | ||
| R162035700 | Type 7 | ||
| R162035800 | Type 8 | ||
| R160035900 | Type 9 | ||
| 45 | R162045100 | Type 1 | |
| R162045200 | Type 2 | ||
| R162045300 | Type 3 | ||
| R162045400 | Type 4 | ||
| R162045500 | Type 5 | ||
| R162045600 | Type 6 | ||
| R162045700 | Type 7 | ||
| R162045800 | Type 8 | ||
| R160045900 | Type 9 | ||
| 55 | R162055100 | Type 1 | |
| R162055200 | Type 2 | ||
| R162055300 | Type 3 | ||
| R162055400 | Type 4 | ||
| R162055500 | Type 5 | ||
| R162055600 | Type 6 | ||
| R162055700 | Type 7 | ||
| R162055800 | Type 8 | ||
| R160055900 | Type 9 | ||
| 65 | R162065100 | Type 1 | |
| R162065200 | Type 2 | ||
| R162065300 | Type 3 | ||
| R162065400 | Type 4 | ||
| R162065500 | Type 5 | ||
| R162065600 | Type 6 | ||
| R162065700 | Type 7 | ||
| R162065800 | Type 8 | ||
| R160065900 | Type 9 |
| Mass on request |
Overview of bellows types
| Type | Version | Picture |
| Type 1 | with lubrication plate and end plate (no lube plate necessary for ball runner blocks with side lube ports) |  |
| Type 2 | with fastening frame and end plate |  |
| Type 3 | with 2 lubrication plates (no lube plate necessary for ball runner blocks with side lube ports) |  |
| Type 4 | with 2 fastening frames |  |
| Type 5 | with lubrication plate and fastening frame (no lube plate necessary for ball runner blocks with side lube ports) |  |
| Type 6 | with front lube unit and end plate |  |
| Type 7 | with 2 front lube units |  |
| Type 8 | with front lube unit and fastening frame |  |
| Type 9 | loose bellows (spare part) |  |
Ordering example – heat-resistant bellows
- Size 35
- Type 6: with front lube unit and end plate
- Number of folds: 36
Ordering data:
Material number, fold count: R1620 356 00, 36 folds
