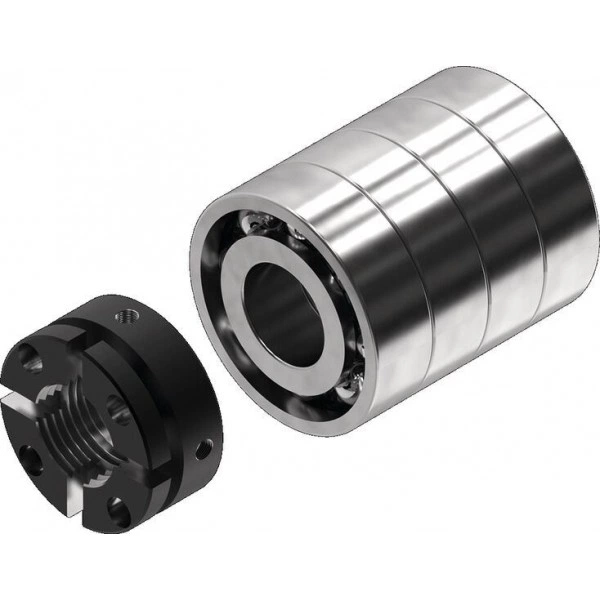

Bearing assembly LAS PLSA
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Product description
Fixed bearing with angular-contact thrust ball bearing LGS
Double-thrust,
series LAS-E ...
Technical data
Technical data for bearings
| Size | Part number | C | C0 | nmax 1) | Mass |
| d0 x P | N | N | rpm | kg | |
| 20 x 5R | R159A41501 | 37100 | 534600 | 9000 | 0.39 |
| R159A42001 | 39900 | 51500 | 8550 | 0.57 | |
| 25 x 5R/10R | R159A41702 | 45300 | 63800 | 9500 | 0.5 |
| R159A42501 | 74100 | 120000 | 7500 | 1.1 | |
| 30 x 5R/10R | R159A42002 | 54200 | 80000 | 8100 | 0.73 |
| 30 x 5R/10R; 39 x 5R/10R | R159A43001 | 98300 | 163100 | 5850 | 1.68 |
| 48 x 5R/10R | R159A43501 | 111200 | 188500 | 4950 | 2.19 |
| 39 x 5R/10R | R159A44001 | 140800 | 257700 | 4500 | 2.74 |
| 48 x 5R/10R | R159A45001 | 211200 | 392300 | 3600 | 4.95 |
| 60 x 5R/20R | R159A44501 | 172400 | 319200 | 4050 | 1.7 |
| R159A47001 | 339200 | 692300 | 2520 | 10.99 | |
| 75 x 5R/20R | R159A46001 | 272500 | 534600 | 3015 | 7.49 |
| R159A49001 | 470300 | 1123100 | 2025 | 21.45 |
| 1) | Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency |
Legend
| Symbol | Description | Unit |
| d0 | Nominal diameter | |
| P | Lead (R = right-hand) | |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| nmax | Limit speed (grease) | min⁻¹ |
Fields of application
Suitable for screw ends: Form
| 112 122 |  | 132 142 |  |
| 512 |  | 532 |  |
| 812 822 |  | 832 842 |  |
| 912 922 |  | 932 942 |  |

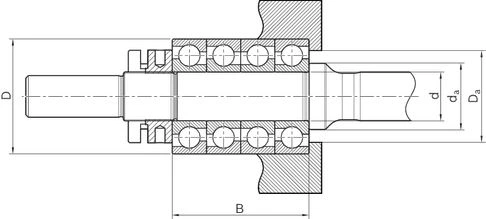

Dimensions
Dimensions
| Size | Part number | Dimensions | Connection dimensions | |||||
| d0 x P |
| d | D | B | Da min. | Da max. | da min. | da max. |
| mm | mm | mm | mm | mm | ||||
| 20 x 5R | R159A41501 | 15 mm -0.008 | 42 mm -0.011 | 52 | 33 | 36 | - | - |
| R159A42001 | 20 mm -0.01 | 47 mm -0.011 | 56 | 36 | 41 | 25.6 | 35 | |
| 25 x 5R/10R | R159A41702 | 17 mm -0.008 | 47 mm -0.008 | 36.2 | 41.4 | 22.6 | 35.2 | |
| R159A42501 | 25 mm -0.01 | 62 mm -0.013 | 68 | 48.1 | 55 | 32 | 47.1 | |
| 30 x 5R/10R | R159A42002 | 20 mm -0.01 | 52 mm -0.013 | 60 | 40 | 45 | - | - |
| 30 x 5R/10R; 39 x 5R/10R | R159A43001 | 30 mm -0.01 | 72 mm -0.013 | 76 | 56.5 | 65 | 37 1) | 55.5 1) |
| 48 x 5R/10R | R159A43501 | 35 mm -0.012 | 80 mm -0.013 | 84 | 63 | 71 | - | - |
| 39 x 5R/10R | R159A44001 | 40 mm -0.012 | 90 mm -0.015 | 92 | 72 | 81 | 49 | 71 |
| 48 x 5R/10R | R159A45001 | 50 mm -0.012 | 110 mm -0.015 | 108 | 89 | 100 | 61 | 88 |
| 60 x 5R/20R | R159A44501 | 45 mm -0.012 | 100 mm -0.015 | 100 | 81 | 91 | - | - |
| R159A47001 | 70 mm -0.015 | 150 mm -0.018 | 140 | 121 | 138 | 82 | 119 | |
| 75 x 5R/20R | R159A46001 | 60 mm -0.015 | 130 mm -0.018 | 124 | 106 | 118 | - | - |
| R159A49001 | 90 mm -0.02 | 190 mm -0.03 | 172 | 153 | 176 | 104 | 150 | |
| 1) | It applies to size 30 x 5R/10R |
Legend
| Symbol | Description |
| d0 | Nominal diameter |
| P | Lead (R = right-hand) |
Project planning information
Calculation
Downloads
 | Planetary Screw Assemblies Manual | R320103883 | 2011-06-01 | English, French, German, Italian | PDF | 974k Product Groups: Linear Screw Assemblies |
| Catalog screw assemblies Catalog | R999001185 | 2021-04-01 | English | PDF | 30.7MB Product Groups: Ball Screw Assemblies, Planetary Screw Assemblies Only available as PDF - Ball screw assemblies BASA/Planetary screw assemblies PLSA |
