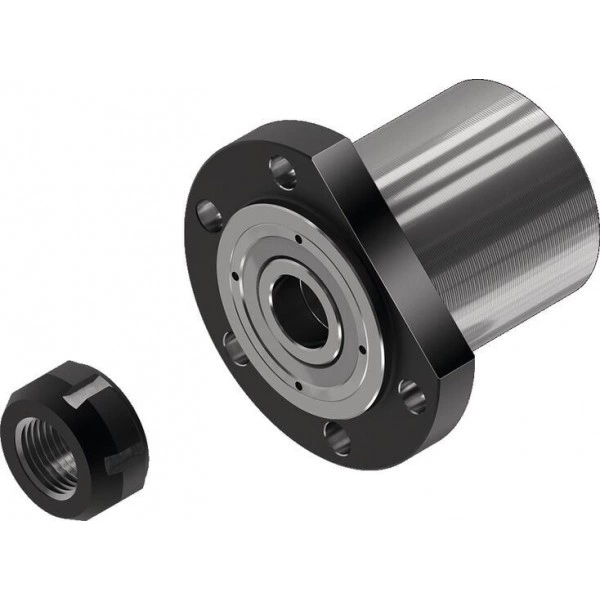

Bearing assembly FEC-F PLSA

Name: Bearing assembly FEC-F PLSA
Brand: Bosch Rexroth
SKU: RX7822

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Product description

Fixed bearing with angular-contact thrust ball bearing LGS

Technical data

Technical data for bearings

Size	C	C0	MA	MAG	MRb	Rfb	Rkl	nmax	Mass
d0 x P	N	N	Nm	Nm	Nm	N/μm	Nm/mrad	rpm	kg
20 x 5R; 25 x 5R/10R	74200	119200	38	8	1.1 1)	450	160	6900 2)	3.5
30 x 5R/10R	109400	188400	42	8	1.1 1)	600	715	4950 2)	6
39 x 5R/10R	208800	392300	70	18	1.5 1)	750	1000	3600 2)	11.8
48 x 5R/10R; 60 x 10R/20R	305300	615400	100	18	2 1)	1250	3200	2835 2)	27
75 x 10R/20R	473100	1123000	160	35	2.3 1)	1500	7500	2025 2)	53.4

1)	Measured at 50 min-1
2)	Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
	Values apply for bearing configuration 2 + 2.
	Bearing configurations 3 + 1 or 1 + 3 are possible. Please consult us.

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand)	mm
C	Dynamic load capacity	N
C0	Static load capacity	N
MA	Tightening torque for slotted nut	Nm
MAG	Tightening torque for set screw	Nm
MRb	Frictional torque of bearing with seal	Nm
Rfb	Rigidity of the bearing (axial)	N/μm
Rkl	Rigidity against tilting	Nm/mrad
nmax	Limit speed (grease)	min⁻¹

Fields of application

Suitable for screw ends: Form

132

142

532

832

842

932

942

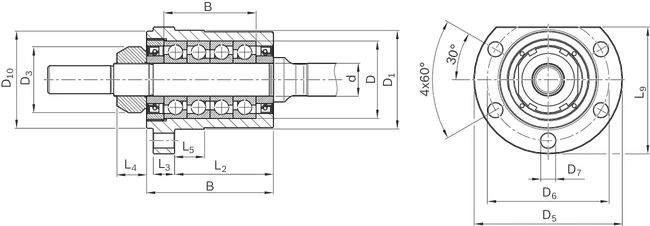

Dimensions

Size	Dimensions
d0 x P	d	D	B	L2	L3	L4	L5	L9	D1 h7	D3	D5	D6	D7	D10
			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
20 x 5R; 25 x 5R/10R	25 mm -0.01	62 mm -0.013	89	68	16	20	36	104	80	44	120	100	11	80
30 x 5R/10R	35 mm -0.012	80 mm -0.013	110	82	20	22	47	124	100	54	140	120	13	99
39 x 5R/10R	50 mm -0.012	110 mm -0.015	140	98.5	25	25	58.5	152.5	130	75	171	152	13	130
48 x 5R/10R; 60 x 10R/20R	65 mm -0.015	140 mm -0.018	180	133.5	30	28	53.5	199.5	170	95	225	198	17.5	170
75 x 10R/20R	90 mm -0.02	190 mm -0.018	235	174	35	32	99	257.5	219	125	285	252	22	219

Legend

Symbol	Description
d0	Nominal diameter
P	Lead (R = right-hand)

Project planning information

Calculation

Accessories

Form 132

Not product-specific documents
Catalog
Instructions
Configurator for Planetary Screw Assemblies
Service

Form 142

Not product-specific documents
Catalog
Instructions
Configurator for Planetary Screw Assemblies
Service

Form 532

Not product-specific documents
Catalog
Instructions
Configurator for Planetary Screw Assemblies
Service

Form 832

Not product-specific documents
Catalog
Instructions
Configurator for Planetary Screw Assemblies
Service

Form 842

Not product-specific documents
Catalog
Instructions
Configurator for Planetary Screw Assemblies
Service

Form 932

Not product-specific documents
Catalog
Instructions
Configurator for Planetary Screw Assemblies
Service

Form 942

Not product-specific documents
Catalog
Instructions
Configurator for Planetary Screw Assemblies
Service

Delivery notes

The slotted nut is delivered unmounted.

Ordering codes

Material numbers

Size	Part number	Ball bearing	Slotted nut		Buy
d0 x P	Complete assembly	Abbreviation	Abbreviation	Part number	Buy
20 x 5R; 25 x 5R/10R	R159B42501	LGS-E-2562	NMB 25x1,5	R159B42501
30 x 5R/10R	R159B43501	LGS-E-3580	NMB 35x1,5	R159B43501
39 x 5R/10R	R159B45001	LGS-E-50110	NMB 50x1,5	R159B45001
48 x 5R/10R; 60 x 10R/20R	R159B46501	LGS-E-65140	NMB 65x2	R159B46501
75 x 10R/20R	R159B49001	LGS-E-90190	NMB 90x2	R159B49001

Legend

Symbol	Description
d0	Nominal diameter
P	Lead (R = right-hand)

Downloads

	Planetary Screw Assemblies Manual \| R320103883 \| 2011-06-01 \| English, French, German, Italian \| PDF \| 974k Product Groups: Linear Screw Assemblies
