Bearing assembly LAS BASA
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- The fixed bearing consists of:
- Angular-contact ball bearing LGS as per DIN 628 (not available as a separate part)
- Slotted nut NMA
- Suitable for screw ends in Forms 81, 81A, 82, 82A
Product description

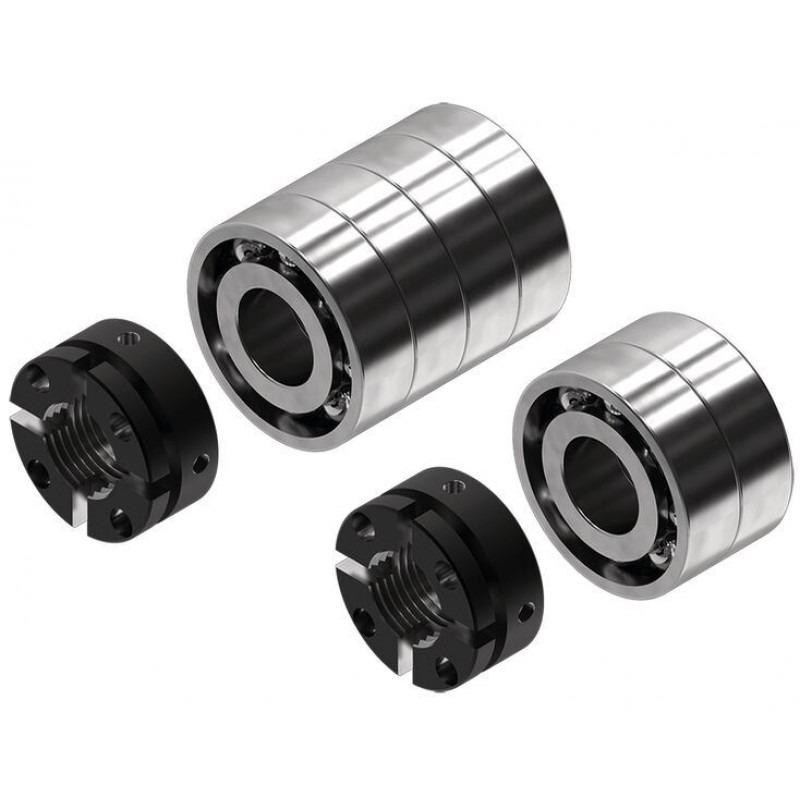

Fixed bearing with angular-contact thrust ball bearing LGS
Double-thrust,
series LAS-E ...
Technical data
Technical data for bearings
| Size | Part number | C | C0 | nmax | Mass |
| d0 x P | N | N | rpm | kg | |
| 16 x 5/10/16 | R159A41001 | 20000 | 25800 | 13500 | 0.13 |
| 20 x 5/10/20/40 | R159A41201 | 21700 | 29200 | 11700 | 0.16 |
| 25 x 5/10/25 | R159A41701 | 27900 | 31900 | 8550 | 0.29 |
| 32 x 5/10/20/32/64 | R159A42001 | 39900 | 63800 | 0.57 | |
| 40 x 5/10/12/16/20/25/30/40 | R159A43001 | 98300 | 163100 | 5850 | 1.68 |
| 50 x 5/10/12/16/20/25/30/40 | R159A43501 | 111200 | 188500 | 4950 | 2.19 |
| 63 x 10/20/40 | R159A44001 | 140800 | 257700 | 4500 | 2.74 |
| 80 x 10/20/40 | R159A45001 | 211200 | 392300 | 3600 | 4.95 |
Legend
| Symbol | Description | Unit |
| d0 | Nominal diameter | |
| P | Lead (R = right-hand) | |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| nmax | Limit speed (grease) | min⁻¹ |
Fields of application
Suitable for screw ends: Form
| 81 81A |  | 82 82A |  |

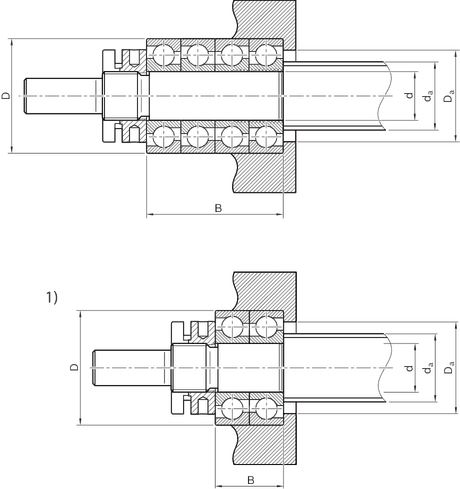

Dimensions
| 1) | version 1+1 |
Dimensions
| Size | Part number | Dimensions | Connection dimensions | |||||
| d0 x P |
| d | D | B | Da min. | Da max. | da min. | da max. |
| mm | mm | mm | mm | mm | ||||
| 16 x 5/10/16 | R159A41001 | 10 mm -0.008 | 30 mm -0.009 | 36 | 22.9 | 25.8 | 14.2 | 22 |
| 20 x 5/10/20/40 | R159A41201 | 12 mm -0.008 | 32 mm -0.011 | 40 | 25 | 27.8 | 16.2 | 24 |
| 25 x 5/10/25 | R159A41701 | 17 mm -0.008 | 47 mm -0.011 | 28 | 36.2 | 41.4 | 22.6 | 35 |
| 32 x 5/10/20/32/64 | R159A42001 | 20 mm -0.01 | 56 | 36 | 41 | 25.6 | ||
| 40 x 5/10/12/16/20/25/30/40 | R159A43001 | 30 mm -0.01 | 72 mm -0.013 | 76 | 56.5 | 65 | 37 | 55.5 |
| 50 x 5/10/12/16/20/25/30/40 | R159A43501 | 35 mm -0.012 | 80 mm -0.013 | 84 | 63 | 71 | 44 | 62 |
| 63 x 10/20/40 | R159A44001 | 40 mm -0.012 | 90 mm -0.015 | 92 | 72 | 81 | 49 | 71 |
| 80 x 10/20/40 | R159A45001 | 50 mm -0.012 | 110 mm -0.015 | 108 | 89 | 100 | 61 | 88 |
Legend
| Symbol | Description |
| d0 | Nominal diameter |
| P | Lead (R = right-hand) |
Project planning information
Calculation
Ordering codes
Material numbers
| Size | Part number | Ball bearing | Slotted nut | CAD data | Buy | |
| d0 x P | Complete assembly | Abbreviation | Abbreviation | Part number | ||
| 16 x 5/10/16 | R159A41001 | LGS-E-1030 | NMZ 10x1 | R344600204 | ||
| 20 x 5/10/20/40 | R159A41201 | LGS-E-1232 | NMZ 12x1 | R344600304 | ||
| 25 x 5/10/25 | R159A41701 | LGS-E-1747 | NMA 17x1 | R344601404 | ||
| 32 x 5/10/20/32/64 | R159A42001 | LGS-E-2047 | NMA 20x1 | R344601504 | ||
| 40 x 5/10/12/16/20/25/30/40 | R159A43001 | LGS-E-3072 | NMA 30x1,5 | R344601604 | ||
| 50 x 5/10/12/16/20/25/30/40 | R159A43501 | LGS-E-3580 | NMA 35x1,5 | R344601204 | ||
| 63 x 10/20/40 | R159A44001 | LGS-E-4090 | NMA 40x1,5 | R344601608 | ||
| 80 x 10/20/40 | R159A45001 | LGS-E-50110 | NMA 50x1,5 | R344601904 | ||
Legend
| Symbol | Description |
| d0 | Nominal diameter |
| P | Lead (R = right-hand) |
Downloads
 | Catalog screw assemblies Catalog | R999001185 | 2021-04-01 | English | PDF | 30.7MB Product Groups: Ball Screw Assemblies, Planetary Screw Assemblies Only available as PDF - Ball screw assemblies BASA/Planetary screw assemblies PLSA |
