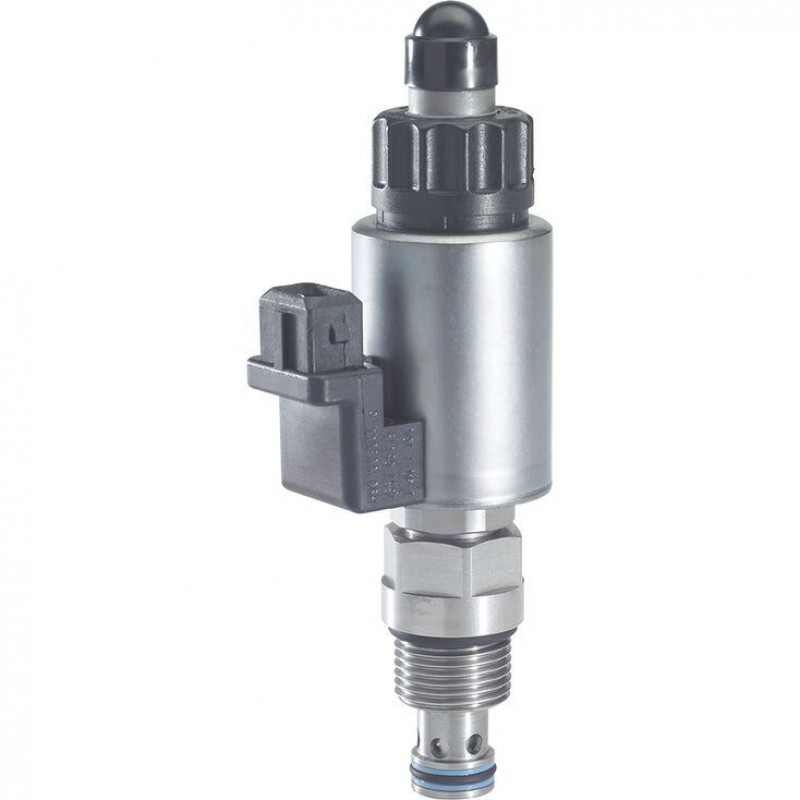

Proportional pressure relief valve, pilot-operated, rising characteristic curve KBVS.1A
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 1
- Component series A
- Max. operating pressure 420 bar
- Flow, max. 80 l/min
Features
- Cartridge valve
- Mounting cavity R/UNF10-01-0-06
- Pilot-operated proportional valve for system pressure limitation
- Suitable for mobile and industrial applications
- Actuation by proportional solenoid with central thread and detachable coil
- Solenoid coil can be rotated
- Via an adjustment screw, the valve is set to maximum pressure
- In case of power failure, the minimum pressure is set
- Fine adjustment of the command value pressure characteristic curve possible from the outside at the control electronics
Product description
Valves of type KBVS are pilot-operated proportional pressure relief valves in spool design and are used to limit the pressure in hydraulic systems. They mainly consist of the screwed in proportional pilot control valve and the main valve. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited. With a command value of 0 or in case of power failure, the minimum pressure is set.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | |
| KBVS | 1 | A | A | / | F | C | V | * |
| 01 | Proportional pressure relief valve, pilot-operated | KBVS |
| Pressure rating | ||
| 02 | Up to 50 bar | C |
| Up to 100 bar | F | |
| Up to 150 bar | H | |
| Up to 210 bar | L | |
| Up to 250 bar | N | |
| Up to 315 bar | P | |
| Up to 350 bar | R | |
| Up to 420 bar | T | |
| 03 | Component size | 1 |
| 04 | Minimum pressure with command value = 0 | A |
| 05 | Component series | A |
| 06 | High Performance and mounting cavity R/UNF-10-01-0-06 (see Mounting cavity) | F |
| 07 | Proportional solenoid, wet-pin | C |
| Power supply | ||
| 08 | Control electronics 12 V DC | G12 |
| Control electronics 24 V DC | G24 | |
| Electrical connection | ||
| 09 | Without mating connector, with connector according to DIN EN 175301-803, separate order | K4 |
| Without mating connector, with connector DT 04 - 2PA (Deutsch plug) | K40 | |
| Without mating connector, with connector AMP Junior-Timer | C4 | |
| Seal material | ||
| 10 | FKM seals | V |
| 11 | Standard version | no code |
| 800 mA coil | -8 | |
| 12 | Further details in the plain text | * |
Technical data
general
| Type | KBVS.1AA | |
| Size | 1 | |
| Component series | A | |
| Installation position | any - if it is ensured that no air can collect upstream of the valve. Otherwise, we recommend suspended installation of the valve. | |
| Earth | kg | 0.75 |
| Storage temperature range | °C | -20 … +80 |
| Ambient temperature range | °C | -40 … +120 |
hydraulic
| Size | 1 | ||
| Maximum operating pressure | bar | 420 | |
| Port P | bar | 420 | |
| Port T | bar | 210 | |
| Maximum flow | l/min | 80 | |
| Pilot flow | l/min | < 0.8 | |
| Hydraulic fluid temperature range | °C | -40 … +80 | |
| Viscosity range | mm²/s | 5 … 400 | |
| preferably | mm²/s | 10 … 100 | |
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Class 20/18/15 according to ISO 4406 (c) | ||
| Hysteresis 2) | % | < 4 | |
| Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing 2) | % | < 2 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | Of the maximum set pressure |
electrical
| Type | KBVS.1AA | |
| Voltage type | Direct voltage | |
Downloads
 | Proportional pressure relief valve, pilot operated, increasing characteristic curve Data Sheet | RE18160 | 2022-01-28 | English | PDF | 683k Product Groups: KBVS.1A Type KBVS.1A |
