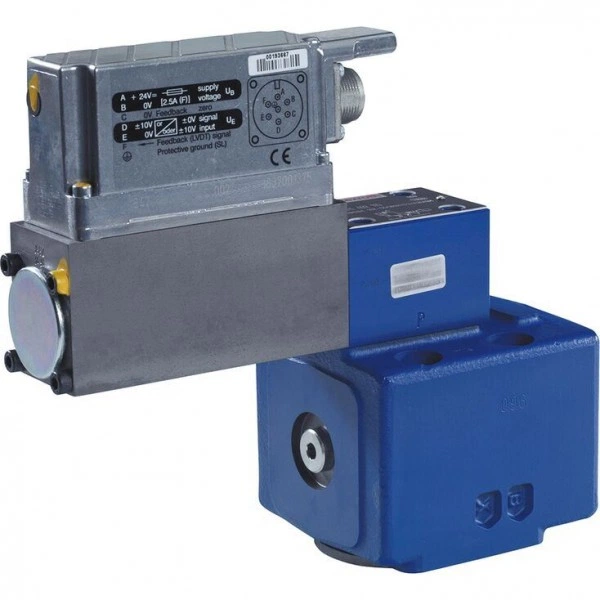

Proportional pressure relief valves, direct operated, with integrated electronics (OBE) and position feedback DBEBE10Z
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Size 10
- Component series 1X
- Max. operating pressure 315 bar
- Flow, max. 120 l/min
Features
- Pilot-operated valves with position feedback and integrated electronics for system pressure limitation (pilot oil only internally)
- Adjustable via the position of the solenoid armature in relation to the compression spring
- Position-controlled, minimum hysteresis < 1%, short actuating times
- Maximum pressure limitation, even with defective electronics
- For subplate mounting: porting pattern according to ISO 5781-AG-06-2-A
Product description
Proportional pressure relief valves of type DBEBE10Z are pilot-operated pressure relief valves and are used for system pressure limitation. They are actuated by a position-controlled proportional solenoid with integrated electronics. A logic element (seat valve) is located in the valve housing in the “normally closed” version, pilot-operated in poppet seat version.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | ||
| DBEB | E | 10 | Z | – | 1X | / | XY | G24 | K31 | A1 | M | * |
| 01 | Proportional pressure relief valve with inductive position transducer at the poppet | DBEB |
| 02 | With integrated electronics (OBE) | E |
| 03 | Size | 10 |
| 04 | Porting pattern according to ISO 5781-AG-06-2-A | Z |
| 05 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X |
| Maximum pressure rating | ||
| 06 | Up to 180 bar | 180 |
| Up to 315 bar | 315 | |
| 07 | Bleed port X, pilot oil port Y | XY |
| Supply voltage of the control electronics | ||
| 08 | Direct voltage 24 V | G24 |
| Electrical connection | ||
| 09 | Without mating connector, with connector according to DIN 43563-AM6, mating connector - separate order | K31 |
| Control electronics interface | ||
| 10 | Command value input 0 ... +10 V | A1 |
| 11 | NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 | M |
| 12 | Further details in the plain text | * |
Technical data
general
| Type | DBEBE10Z | |
| Size | 10 | |
| Component series | 1X | |
| Installation position | any | |
| Earth | kg | 7.8 |
| Ambient temperature range | °C | -20 … +50 |
hydraulic
| Size | 10 | ||
| Maximum operating pressure | bar | 315 | |
| Port X 1) | bar | 315 | |
| Port Y 2) | bar | 2 | |
| Maximum set pressure | Pressure rating 25 bar | bar | 315 |
| Maximum flow | l/min | 120 | |
| Pilot flow | l/min | ≤ 0.8 | |
| Hydraulic fluid temperature range | °C | -20 … +70 | |
| Viscosity range | mm²/s | 10 … 800 | |
| preferably | mm²/s | 20 … 100 | |
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 3) | Class 18/16/13 according to ISO 4406 (c) | ||
| Hysteresis | % | ≤ 1 | |
| Manufacturing tolerance of the command value pressure characteristic curve, related to the hysteresis characteristic curve, pressure increasing | % | < ± 5 | |
| 1) | Bleed port |
| 2) | Pilot oil return, external |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
electrical
| Type | DBEBE10Z | |
| Duty cycle | % | 100 |
| Power supply | V | 24 |
| Supply voltage range | V | 21 … 40 |
| Protection class according to DIN EN 60529 | IP65 | |
Diagrams/characteristic curves
(measured with HLP46, ϑOil = 40 ±5 °C)
Dimensions
| Size | 10 |
