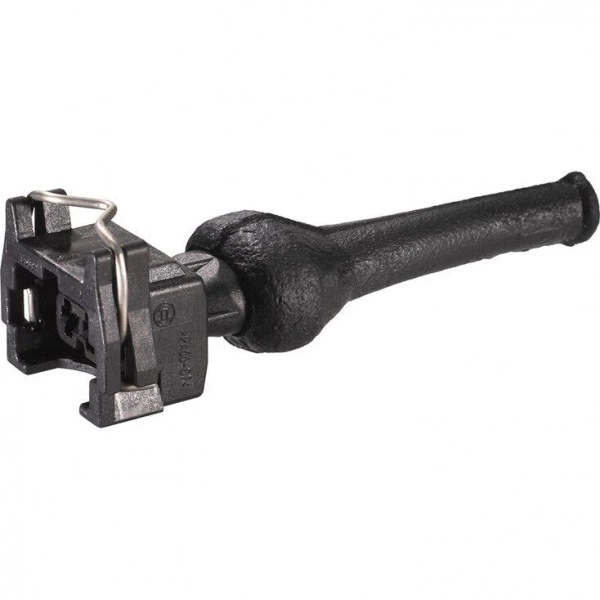

Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 1.2 mm to 2.1 mm 2P D1.2 JUNIOR

Артикул: RX7626

В наличии

Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 1.2 mm to 2.1 mm 2P D1.2 JUNIOR

Name: Mating connectors for directional valves with connector "C4" and "C4Z" (AMP Junior-Timer), litz wire outer diameter 1.2 mm to 2.1 mm 2P D1.2 JUNIOR
Brand: Bosch Rexroth
SKU: RX7626

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

For directional valves with connector "C4" and "C4Z" (AMP Junior-Timer)

Technical data

Mating connector	Short designation		2P D1.2 Junior
	Design		no code (see unit dimensions)
	Ambient temperature	°C	-20 … +125
	Protection class according to EN 60529		IP 66A with mating connector mounted and fitted
	Number of poles		2
	Terminal area for line diameter	mm	5.2 … 7
	Wire cross-section, max.	mm²	0.5 … 1
	Anschlussart		Crimping connection
	Standard		-
	Certification/conformity		-
	Derating		-
	As-delivered state		1 connector housing, 2 contacts, 2 individual conductor sealings, 1 rubber bushing in package, not mounted

(For applications outside these values, please consult us!)

Symbols/Circuit diagrams

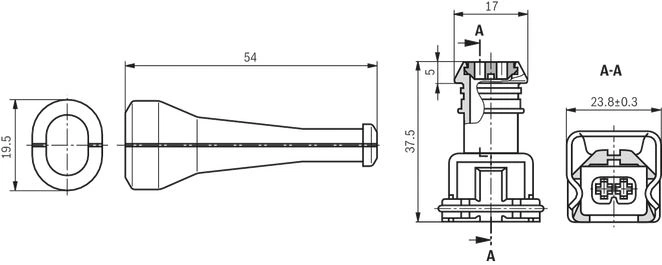

Dimensions

Housing AMP
Type 282189-1

Dimensions in mm

4/2 directional seat valve – version “D”

Dimensions in mm

Downloads

	Leitungsdosen und Kabelsätze für Ventile und Sensoren in der Hydraulik Data Sheet \| RD08006 \| 2021-05-01 \| German \| PDF \| 1.4MB Product Groups: Mating connectors and cable sets
	Mating connectors and cable sets for valves and sensors in hydraulics Data Sheet \| RE08006 \| 2021-05-01 \| English \| PDF \| 1.5MB Product Groups: Mating connectors and cable sets
