Directional control valve, pilot-operated, with integrated fieldbus (IFB-Multi Ethernet) 4WRLF

Доступно к заказу

Цена по запросу

Получи КП от 5 лучших поставщиков
С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Description

  • Size 10 … 27
  • Component series 4X
  • Maximum operating pressure 350 bar
  • Maximum flow 1850 l/min
  • Nominal flow 60 … 600 l/min

Features

  • Open
    - Integrated fieldbus (IFB Multi-Ethernet)
    - Bus connection/service interface (Sercos, EtherCAT, EtherNet/IP, PROFINET RT, POWERLINK, VARAN)
  • Scalable
    - 2 configurable analog pressure sensor inputs
  • Precise
    - Integrated pressure-force control
    - High response sensitivity and little hysteresis
  • Safe
    - Internal safety function (can be used up to category 4/PL e according to EN13849-1)
    - CE conformity according to EMC Directive 2014/30/EU

Product description

General information

The pilot-operated IFB Multi-Ethernet valve (Integrated Fieldbbus) is a digital directional control valve with integrated fieldbus:

  • The following operating modes are possible:
  • Standard:
    • Valve direct control
    • Flow control
  • Version "5" (with external pressure sensors):
    • Pressure/force control
    • Active damping
    • Substitutional control (flow - pressure/force); pQ function (flow-controlled)

  • Command value presetting is done via the Ethernet interface (X7E1 or X7E2)
  • The feedback information of the actual value signals to the superior control system is provided via the Ethernet interface (X7E1 or X7E2)
  • The controller parameters are set via the Ethernet interface (X7E1 or X7E2)

Set-up

The directional control valve with IFB Multi-Ethernet electronics mainly consists of:

  • Pilot control valve (1) with control spool and sleeve in servo quality
  • Main stage (2) with centering springs and position feedback
  • Integrated fieldbus (3) with:
    • connector, voltage supply, safety shut-down (XH1)
    • Ethernet interfaces (X7E1, X7E2)
    • analog sensor interfaces (X2N)
    • interface for the position transducer of the main stage (X8A)
1)Only version "5"

Function (symbol V, V1- and Q3-)

When the control solenoid of the pilot control valve is de-energized, its spring-operated control spool is in the "fail safe" position. The control spool of the main valve is in the spring-centered offset position at approx. 6% of the stroke in direction P→B/A→T.

The integrated electronics (OBE) compare the specified command value to the position actual value of the control spool of the main stage. In case of a control deviation, the control solenoid of the pilot control valve is activated and its control spool is adjusted.

The flow which is activated via the control cross-sections at the pilot control valve leads to an adjustment of the control spool of the main valve. The stroke/control cross-section of the main valve is regulated proportionally to the command value. In case of a command value presetting of 0%, the electronics adjust the control spool of the main valve to central position.

The pilot oil supply in the pilot control valve is either internal via port P or external via port X. The feedback can be internal via port T or external via port Y to the tank.

Switching off the release (symbol V and V1-)

The control spool of the main valve is not in a safe position after the release is switched off. The enable acknowledgement is not set (pin C). If the supply voltage fails or in case of cable break, the integrated electronics will de-energize the control solenoid, the pilot control spool will move to the fail-safe position and will unload the pilot oil chambers of the main valve. Operated by the spring, the control spool of the main valve will move to the offset position (approx. 6% P→B/A→T).

Function (symbol E. and W.)

When the control solenoid of the pilot control valve is de-energized, its spring-operated control spool is in the "fail safe" position. The control spool of the main valve is in spring-centered central position.

The integrated electronics (OBE) compare the specified command value to the position actual value of the control spool of the main stage. In case of a control deviation, the control solenoid of the pilot control valve is activated and its control spool is adjusted.

The flow which is activated via the control cross-sections at the pilot control valve leads to an adjustment of the control spool of the main valve. The stroke/control cross-section of the main valve is regulated proportionally to the command value.

The pilot oil supply in the pilot control valve is either internal via port P or external via port X. The feedback can be internal via port T or external via port Y to the tank.

Switching off the release (symbol E., W. and Q3-)

If the control spool of the main valve is in the safe position, the enable acknowledgement is set (pin C).

If the control spool of the main valve leaves the safe position or the release is set, the enable acknowledgement expires. If the supply voltage fails or in case of cable break, the integrated electronics will de-energize the control solenoid, the pilot control spool will move to the fail-safe position and will unload the pilot oil chambers of the main valve. Operated by the spring, the control spool

of the main valve will move to the central position.

Monitoring

The digital control electronics enable comprehensive monitoring functions/error detection including:

  • Undervoltage
  • Communication error
  • Cable break for analog sensor inputs
  • Monitoring of the microcontroller (watchdog)
  • Temperature of the integrated electronics

IndraWorks DS PC program

To implement the project planning task and to parameterize the valves, the user may use the IndraWorks DS engineering tool (see accessories):

  • Project planning
  • Parameterization
  • Commissioning
  • Diagnosis
  • Comfortable administration of all data on a PC
  • PC operating systems: Windows 7-10

Notice:

  • Symbol V and V1-:
    • Pilot-operated 4/3 directional control valves are only functional in the active control loop and do not have a locking basic position when deactivated. Consequently "external isolator valves" are required in many applications and must be taken into account regarding the switch-on/switch-off order.
    • While the electrical supply voltage is being switched off, the drive may be accelerated for a short time in functional direction P → B.
  • Symbol E. and W.:
    • Pilot-operated 4/3 directional control valves with positive overlap are functional in controlled or regulated axes. The overlap in the de-energized state is approx. 20% of the control spool stroke.
    • While the release is being switched off, the drive may be accelerated for a short time in functional direction P → B (see operating instructions 29391-B).

Pilot oil supply (schematic illustration)

Size 10

Size 16

Size 25

Size 27

Pilot oil supply

External

Internal

2, 3 closed

2, 3 open

Pilot oil return

External

Internal

1 closed

1 open

1

Plug screw M6 according to DIN 906, wrench size 3 - Pilot oil return

2

Plug screw M6 according to DIN 906, wrench size 3 - Pilot oil supply

3

Plug screw M12x1.5 according to DIN 906, SW6 - Pilot oil supply

6

Housing cover main stage (position transducer side)

Version “XY"

External pilot oil supply, external pilot oil return

In this version, the pilot oil is supplied from a separate control circuit (external). The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external).

Version “PY”

Internal pilot oil supply, external pilot oil return

With this version, the pilot oil is supplied from channel P of the main valve (internally). The pilot oil return is not directed into channel T of the main valve, but is separately directed to the tank via port Y (external). In the subplate, port X is to be closed.

Version “PT”

Internal pilot oil supply; internal pilot oil return

With this version, the pilot oil is supplied from channel P of the main valve (internally). The pilot oil is directly returned to channel T of the main valve (internally). In the subplate, ports X and Y are to be closed.

Version “XT”

External pilot oil supply, internal pilot oil return

In this version, the pilot oil is supplied from a separate control circuit (external). The pilot oil is directly returned to channel T of the main valve (internally). In the subplate, port Y is to be closed.

Type code

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

4

WRL

F

4X

/

00

/

24

D9

*

01

4 main ports

4

02

High-response directional valve, pilot operated

WRL

03

With integrated fieldbus

D

04

Size 10

10

Size 16

16

Size 25

25

Size 27

27

05

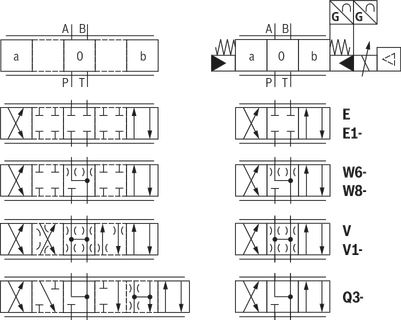

Symbols; for the possible version, see "Symbols/Circuit diagrams"

Rated flow (Δp = 5 bar/control edge)

06

Size 10

60 l/min (only symbol E, E1-, W6-, W8-, V and V1-)

60

100 l/min

100

Size 16

200 l/min (only symbol W6- and W8-)

200

250 l/min (only symbol E, E1-, V, V1- and Q3-)

250

Size 25

350 l/min (only symbol W6- and W8-)

350 1)

400 l/min (only symbol E, E1-, V, V1- and Q3-)

400

Size 27

430 l/min (only symbol W6- and W8-)

430 1)

600 l/min (only symbol E, E1-, V, V1- and Q3-)

600

Flow characteristic

07

Linear

L

Linear with fine control range (only NG10; other sizes on request)

P

Progressive with linear fine control range (only symbol Q3-)

M

08

Without overlap jump (only symbols V, V1- and Q3-)

no code

With overlap jump (opening point 5% with covered valve; only symbols E, E1-, W6-, W8-)

J

09

Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)

4X

Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")

10

NBR seals

M

FKM seals

V

Pilot oil flow

11

Pilot oil supply internal, pilot oil return internal

PT

Internal pilot oil supply, external pilot oil return

PY

External pilot oil supply, internal pilot oil return

XT

External pilot oil supply, external pilot oil return

XY

Sandwich plate shut-off valve

12

Without shut-off valve

no code

With shut-off valve

(Sandwich plate valve "Z4WE 6 E166-3X/EG24…", see data sheet 23193)

WL

13

Without internal pressure sensors

00

14

Supply voltage 24 V

24

Ethernet interface

15

EtherNet/IP

E

PROFINET RT

N

Sercos

S

EtherCAT (Profil CANopen)

T

POWERLINK (CANopen profile)

W

VARAN

V

Connector

16

Voltage supply, enable acknowledgement

D9

Pressure sensor interface

17

Without interface

0

Analog interface for a maximum of 3 external pressure sensors (0 ... 10 V)

5

18

Further details in the plain text

*

1)Higher rated flow upon request

Technical data

general

Type

4WRLF

Size

10162527

Component series

4X

Installation position

any

Earth

kg

9121921

Ambient temperature range

°C

-20 … +60

Storage temperature range

°C

+5 … +40

Maximum storage time 1)

yrs

1

Sine test according to DIN EN 60068-2-6

10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes

Noise test according to DIN EN 60068-2-64

20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min. / 3 axes

Transport shock according to DIN EN 60068-2-27

15 g / 11 ms / 3 axes

Maximum relative humidity 2)

%

95

Maximum surface temperature 3)

°C

120

MTTFD values according to EN ISO 13849 4)

Hydraulic (category 1)

Years

75

Hydraulic and electric (category 3 and 4, without power supply unit)

Years

70
1)If the storage conditions are observed; refer to the operating instructions 07600-B
2)No condensation
3)Individual operation
4)For further details, please refer to operating instructions 29391-B

hydraulic

Type

4WRLF

Size

10162527

Maximum operating pressure

Port P

External pilot oil supply

bar

350270

Anschluss A

bar

350270

Port B

bar

350270

Port P

Internal pilot oil supply

bar

280270

Anschluss A

bar

280270

Port B

bar

280270

Port T

bar

250210

Port Y

bar

250210

Port X

bar

280270

Minimum pilot pressure

Pilot control valve

bar

10

Maximum flow

l/min

30080012501850

Nominal flow 1)

l/min

60
100
200
250
350
400
430
600

Maximum leakage flow 2)

Symbol E, E1-

Main valve

l/min

0.060.130.17

Main valve + pilot control valve

l/min

0.140.280.42

Symbol W6-, W8-

Main valve

l/min

0.120.260.35

Main valve + pilot control valve

l/min

0.20.410.6

Maximum zero flow 2)

Symbol Q3-

Main valve

l/min

1.72.32.83.3

Main valve + pilot control valve

l/min

1.852.63.23.7

Pilot flow 3)

Symbol E

l/min

2.43.57.5

Symbol W

l/min

2.43.57.5

Symbol V

l/min

4.511.522

Symbol Q3-

l/min

4.511.522

Flow unloading central position

Symbol W6-

A → T

l/min

2.846

B → T

l/min

2.846

Symbol W8-

A → T

l/min

2.846

B → T

l/min

1.423

Hydraulic fluid

see table "Hydraulic fluid"

Hydraulic fluid temperature range

°C

-20 … +70

Viscosity range

Maximum admissible

mm²/s

20 … 380

Recommended

mm²/s

30 … 45

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 4)

Class 18/16/13
1)Δp = 5 bar/control edge; flow with deviating Δpsee formula.
2)Inlet pressure 100 bar
3)At port X and Y with stepped input signal from 0 to 100 % (pilot pressure 100 bar)
4)The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components.

Hydraulic fluid

Classification

Suitable sealing materials

Standards

Data sheet

Mineral oils

HL, HLP, HLPD, HVLP, HVLPD

NBR, FKM

DIN 51524

90220

Bio-degradable

Insoluble in water

HETG

NBR, FKM

ISO 15380

90221

HEES

FKM

Soluble in water

HEPG

FKM

ISO 15380

Flame-resistant

Water-free

HFDU (glycol base)

FKM

ISO 12922

90222

HFDU (ester base)

FKM

HFDR

FKM

Containing water

HFC (Fuchs: Hydrotherm 46M, Renosafe 500;
Petrofer: Ultra Safe 620;
Houghton: Safe 620;
Union: Carbide HP5046)

NBR

ISO 12922

90223

Important information on hydraulic fluids:

  • For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us.
  • There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).
  • The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature.
  • Bio-degradable and flame-resistant – containing water: If components with galvanic zinc coating (e.g. version "J3" or "J5") or parts containing zinc are used, small amounts of dissolved zinc may get into the hydraulic system and cause accelerated aging of the hydraulic fluid. Zinc soap may form as a chemical reaction product, which may clog filters, nozzles and solenoid valves - particularly in connection with local heat input.
  • Flame-resistant – containing water:
    • Due to increased cavitation tendency with HFC hydraulic fluids, the life cycle of the component may be reduced by up to 30% as compared to the use with mineral oil HLP. In order to reduce the cavitation effect, it is recommended - if possible specific to the installation - to back up the return flow pressure in ports T to approx. 20% of the pressure differential at the component.
    • Dependent on the hydraulic fluid used, the maximum ambient and hydraulic fluid temperature must not exceed 50 °C. In order to reduce the heat input into the component, the command value profile is to be adjusted for proportional and high-response valves.

static / dynamic

Size

10162527

Hysteresis

%

< 0.1

Response sensitivity

%

< 0.05

Range of inversion

%

< 0.08

Manufacturing tolerance

%

≤ 10

Actuating time for 0 … 100% at X =100 bar

Symbol E, E1-, W6-, W8-

ms

4060

Switch-off behavior 1)

Symbol E, E1-, W6-, W8-

Pilot control valve in “fail-safe” position, main valve moves to spring-centered, overlapped central position

Symbol V, V1-

Pilot control valve in “fail-safe” position, main valve moves to spring-centered “offset position” (approx. 6%, P-B/A-T)

Symbol Q3-

Pilot control valve in “fail-safe” position, main valve moves to spring-centered "offset position" (P blocked, A/B to port T open)

Temperature drift 2)

Zero shift < 0.25 %/10 °C

Zero point calibration 3)

%

± 1
1)After electric shut-off
2)Temperature range 20 °C ... 80 °C
3)ex works

electrical, integrated electronics (OBE)

Relative duty cycle 1)

100 %

Protection class according to EN 60529

IP65 (If a suitable and a correctly mounted mating connector are used.)

Power supply

Nominal voltage

VDC

24 2)

Lower limit value

VDC

18

Upper limit value

VDC

36

Maximum residual ripple 3)

Vpp

2.5

Current consumption

Maximum 4)

A

2.5

Impulse current

A

4

Maximum power consumption

W

40

AD/DA resolution 5)

Analog inputs

bits

12

Functional earth and screening

See connector pin assignment (CE-compliant installation), "Electrical connection"

Required fuse protection

4, time-lag

Adjustment

Calibrated in the plant, see "characteristic curves"

Conformity

CE according to EMC directive 2014/30/EU tested according EN 61000-6-2 and EN 61000-6-3

Parameterization interface

Ethernet

Scanning time 5)

Pressure and force controller (minimum)

ms

0.5

Booting time

s

< 15
1)Continuous operation
2)Supply voltage is used directly for sensor connection X8M (no internal voltage limitation). Voltage limit values must be observed directly at the connector of the valve (observe line length and cable cross-section).
3)Observe the absolute limit values of the supply voltage.
4)The maximum current consumption will increase when using the sensor inputs or the switching output according to the external load
5)Depending on valve and operating condition, see operating instructions 29391-B

electrical, integrated electronics (OBE)

Switching input Enable XH1

Quantity

1

Low level

V

-3 ... +5

High level

V

15 ... UB

Current consumption at high level

mA

< 1

Reference potential

Pin 5

Switching output Enable acknowledgment XH1

Quantity

1

Low level

V

0 ... 3

High level

V

15 ... UB

Current carrying capacity

mA

50 (short-circuit-proof)

Signal delay time

ms

0,2 … 210 1)

Reference potential

GND

Analog sensor X2N

Quantity (voltage inputs)

3 2)

Power supply

V

24 (corresponding to supply voltage applied to XH2)

Maximum supply current

mA

50

AD resolution

bit

12

Voltage inputs

Measurement range

V

0 ... +10

Input resistance

100 +10 %

Temperature drift

< 15 mV / 10 K

1)Depending on valve and operating condition, see operating instructions 29391-B
2)Only version "5"

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

Pressure amplification

Flow characteristic "L"

Flow/signal function

Symbol V, V1-

1)Step compensation (opening at 5%)

Flow/signal function

Symbol E, E1-, W6-, W8-

1)Step compensation (opening at 5%)

Flow characteristic "P"

Flow/signal function

Symbol V, V1-

1)Step compensation (opening at 5%)

Flow/signal function

Symbol E, E1-, W6-, W8-

1)Step compensation (opening at 5%)

Flow characteristic "M"

Symbol Q3, version "100"

Symbol Q3, version "250"

Symbol Q3, version "400"

Symbol Q3, version "600"

Size 10

Transition function with stepped electric input signals

Symbols V and Q3-

  • Pilot control valve, port X = 100 bar
  • Main valve, port P = 10 bar

Frequency response

Symbols V and Q3-

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 16

Transition function with stepped electric input signals

Symbol V

  • Pilot control valve, port X = 100 bar
  • Main valve, port P = 10 bar

Frequency response

Symbol V

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 25

Transition function with stepped electric input signals

Symbol V

  • Pilot control valve, port X = 100 bar
  • Main valve, port P = 10 bar

Frequency response

Symbol V

Flow/load function with maximum valve opening (tolerance ±10 %)

Size 27

Transition function with stepped electric input signals

Symbol V

  • Pilot control valve, port X = 100 bar
  • Main valve, port P = 10 bar

Frequency response

Symbol V

Flow/load function with maximum valve opening (tolerance ±10 %)

Symbols/Circuit diagrams

Symbol E1-, V1- and W8-:

P → A: qv max

P → B: qv/2

B → T: qv/2

A → T: qv max

Version

simple

Detailed

"XY"

"PY"

"PT"

"XT"

Notices:

  • Representation according to ISO 1219-1. Hydraulic interim positions are shown by dashes.
  • For information on the switch-off behavior, refer to "technical data".
  • Symbols V and V1- are not suitable for use in safety applications (no overlap).

Electrical connection

Block diagram / controller function block

1)Only version "5"
2)Not with "VARAN"

Detailed description of the safety function:

After the signal at the enable input has been removed, the output stage, and thus the solenoid of the valve, are internally separated from the available supply voltage. The enable acknowledgment will only be activated after the safe valve spool position has been achieved.

Connector pin assignment XH1, 6-pole + PE according to DIN 43563

Pin

Assignment of interface D9

A

24 VDC supply voltage

1)

B

GND

C

Enable acknowledgment 24 VDC (Imax 50 mA; high ≥ 15 V; low < 2 V)

2)

D

Enable input 24 VDC (high ≥ 15 V; low < 2 V)

E

Not assigned

F

Not assigned

PE

Functional ground (directly connected to the valve housing)

1)A load increases the current consumption on pin A
2)Enable acknowledgement is issued only if the valve has safely switched off according to EN 13849-1, see operating instructions 29391-B.

Connector pin assignment: M12 x 1, 4-pole, coding D, socket (for Ethernet interfaces "X7E1" and "X7E2")

Pin

Assignment

1

TxD +

2

RxD +

3

TxD -

4

RxD -

5

Not assigned

Analog configurable sensor interfaces, connection "X2N" (coding A), M12, 5-pole, socket

Pin

Assignment

1

+24 V voltage output

2

Analog sensor input 2 (0 ... 10 V)

3

GND

4

Analog sensor input 4 (0 ... 10 V)

5

Analog sensor input 3 (0 ... 10 V)

1)Only version "5"

Notices:

  • Reference potential for all signals : GND
  • We recommend connecting the shields on both sides via the metal housings of the plug-in connectors.

LED displays

LED

Interface

Sercos

EtherNet/IP

EtherCAT

PROFINET RT

POWERLINK

VARAN

MS

Electronic module

Module Status

Module Status

Module Status

Module Status

Module Status

Module Status

NS

S

Network status and others

Network status and others

Network status and others

Status/Error

Network status and others

L1

X7E1

Link and others

Link and others

Link/Activity

Link and others

Link/Data Activity

Link and others

S1

Activity and others

Activity and others

not used

Activity and others

not used

Activity and others

L2

X7E2

Link and others

Link and others

Link/Activity

Link and others

Link/Data Activity

not used

S2

Activity and others

Activity and others

not used

Activity and others

not used

not used

PWR

XH1

Power

Power

Power

Power

Power

Power

Displays of the Status LEDs

Module status

(LED MS)

Display status

Off

No voltage supply

Green-red, flashing

Initialization

Green, flashing

Drive ready for operation

Green

Drive active

Orange, flashing

Warning

Red, flashing

Error

Green, rapidly flashing

Firmware must be loaded

Power LED

(LED PWR)

Display status

Off

No voltage supply

Green

Operation

Link-LED

(LED L1)

Display status

Permanently lit

Cable plugged in, connection established

Activity-LED

(LED S1)

Display status

Flashing

Data sent/received

Notices:

  • For the connection to the M12 sockets, we recommend using self-locking mating connectors.
  • Module status LED MS relates to the electronics module.
  • The network status LED NS indicates the status of the control communication, see application description 30338-FK.
  • LEDs L1, S1, L2 and S2 relate to interfaces "X7E1" and "X7E2"
  • For a detailed description of the diagnosis LEDs, please refer to the functional description "Rexroth HydraulicDrive HDx".
  • Function is only available after start-up of the electronics.

Dimensions

Size 10

Dimensions in mm

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

10

Machined valve contact surface; porting pattern according to ISO 4401-05-05-0-05

11

Dimension () with version "WL"

12

Shut-off valve, optional (sandwich plate valve "Z4WE 6 E166-3X/EG24…", see data sheet 23193)

13

Port X2N (only version "5")

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

10

4

ISO 4762 - M6 x 45 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

Tightening torque MA = 13.5 Nm ±10 %

R913043777

or

4

ISO 4762 - M6 x 45 - 10.9

Tightening torque MA = 15.5 Nm ±10 %

Not included in the Rexroth delivery range

Notice:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure.

Size 16

Dimensions in mm

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; Porting pattern according to ISO 4401-07-07-0-05
Deviating from the standard: Ports P, A, B, T Ø20 mm
Minimum screw-in depth:
- Ferrous metal 1.5 x Ø
- Non-ferrous metal 2 x Ø

11

Dimension () with version "WL"

12

Shut-off valve, optional (sandwich plate valve "Z4WE 6 E166-3X/EG24…", see data sheet 23193)

13

Port X2N (only version "5")

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Size

Quantity

Hexagon socket head cap screws

Material number

16

2

ISO 4762 - M6 x 60 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

Tightening torque MA = 12.2 Nm ±10 %

R913043410

4

ISO 4762 - M10 x 60 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

Tightening torque MA = 58 Nm ±20 %

R913014770

or

2

ISO 4762 - M6 x 60 - 10.9

Tightening torque MA = 15.5 Nm ±10 %

Not included in the Rexroth delivery range

4

ISO 4762 - M10 x 60 - 10.9

Tightening torque MA = 75 Nm ±20 %

Notice:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure.

Size 25

Dimensions in mm

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; Porting pattern according to ISO 4401-08-08-0-05
Deviating from the standard: Ports X, Y - Ø14 mm
Minimum screw-in depth:
- Ferrous metal: 1.5 x Ø
- Non-ferrous metal: 2.0 x Ø

11

Dimension () with version "WL"

12

Shut-off valve, optional (sandwich plate valve "Z4WE 6 E166-3X/EG24…", see data sheet 23193)

13

Port X2N (only version "5")

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

25, 27

6

ISO 4762 - M12 x 60 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

Tightening torque MA = 100 Nm ±20 %

R913015613

or

6

ISO 4762 - M12 x 60 - 10.9

Tightening torque MA = 130 Nm ±20 %

Not included in the Rexroth delivery range

Notice:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure.

Size 27

Dimensions in mm

Required surface quality of the valve contact surface

1

Pilot control valve

2

Main valve

3

Integrated electronics (OBE)

4

Inductive position transducer (main valve)

5

Name plate

6

Identical seal rings for ports A, B, P, T

Identical seal rings for ports X and Y

7

Space required to remove the mating connector

8

Mating connectors, separate order, see "Accessories"

9

Locking pin

10

Machined valve contact surface; Porting pattern according to ISO 4401-08-08-0-05
Deviating from the standard: Ports A, B, T and P Ø32 mm
Minimum screw-in depth:
- Ferrous metal: 1.5 x Ø
- Non-ferrous metal: 2.0 x Ø

11

Dimension () with version "WL"

12

Shut-off valve, optional (sandwich plate valve "Z4WE 6 E166-3X/EG24…", see data sheet 23193)

13

Port X2N (only version "5")

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Valve mounting screws (separate order)

Size

Quantity

Hexagon socket head cap screws

Material number

25, 27

6

ISO 4762 - M12 x 60 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B

Tightening torque MA = 100 Nm ±20 %

R913015613

or

6

ISO 4762 - M12 x 60 - 10.9

Tightening torque MA = 130 Nm ±20 %

Not included in the Rexroth delivery range

Notice:

The tightening torque of the hexagon socket head cap screws refers to the maximum operating pressure.

Subplates (separate order) with porting pattern according to ISO 4401, see data sheet 45100.

Project planning information

Project planning and maintenance instructions

  • The supply voltage must be permanently connected, as otherwise bus communication is not possible.
  • If electro-magnetic interference is to be anticipated, suitable measures must be taken to ensure the function (depending on the application, e.g. shielding, filtration).
  • The devices have been tested in the plant and are supplied with default settings.
  • Only complete devices can be repaired. Repaired devices are returned with default settings. User-specific settings will not be applied. The machine end-user will have to retransfer the corresponding user parameters.

Accessories

Protective cap M12

Material number R901075563

Mating connectors for valves with round connector, 6-pole + PE

7P Z31

Mating connectors for valves with round connector, 6-pole + PE

7P Z31

  • For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328

Mating connectors for valves with round connector, 6-pole + PE, shielded, with assembled connection line

7P Z31 +

Mating connectors for valves with round connector, 6-pole + PE, shielded, with assembled connection line

7P Z31 +

  • For valves with round connector according to EN 175201-804, 6-pole + PE as well as 6-pole, compatible with VG 95328

Downloads

Directional control valve, pilot-operated, with integrated fieldbus (IFB-Multi Ethernet)
Data Sheet | RE29293 | 2019-06-01 | English | PDF | 1.1MB

Product Groups: Pilot-operated
Type 4WRLF
High-response/proportional valves with Multi-Ethernet interface
Manual | RE29391-B | 2021-10-04 | English | PDF | 1.6MB

Product Groups: Proportional, high-response and servo valves
4WRPD(H), 4WRPQ(H), 4WRPF(H), 4WRLD, 4WRLF, 4WRLQ, 5WRPF10, 5WRPQ10
Rexroth HydraulicDrive HDS-16, HDx-17 to HDx-20 Parameters
Reference Book | RE30330-PA | 2020-04-01 | English | PDF | 12.6MB

Product Groups: Axis control
Reference Book
Rexroth HydraulicDrive HDx-20VRS Firmware for drive controllers
Release Note | RE30330-RN | 2019-06-06 | English | PDF | 2.9MB

Product Groups: Axis control
Firmware Release Notes
Rexroth HydraulicDrive HDx-20VRS Firmware für Antriebsregelgeräte
Release Note | RD30330-RN | 2019-06-06 | German | PDF | 3MB

Product Groups: Axis control
Firmware Release Notes
Rexroth HydraulicDrive HDS-16, HDx-17 to HDx-20, Diagnostic Messages
Manual | RE30330-WA | 2020-04-01 | English | PDF | 4.9MB

Product Groups: Axis control
Reference
Rexroth HydraulicDrive HDx-20 Functions
Manual | RE30338-FK | 2020-04-01 | English | PDF | 59.1MB

Product Groups: Axis control

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.


Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.


Для расчета коммерческого предложения или получения счета на поставку оборудования и программного обеспечения Bosch Rexroth оставьте заявку в форме ниже или свяжитесь с отделом продаж по телефону +7 495 137-07-02 или электронной почте sale@boschrexroth-russia.ru. Мы гарантируем оперативный ответ на ваш запрос и предоставление наилучших условий от официального поставщика Bosch Rexroth.

Специалист по решениям Bosch Rexroth:

  • Окажет профессиональную консультацию.
  • Сообщит вашу цену на продукцию.
  • Сообщит информацию об актуальных акциях и скидках.
  • Подскажет ближайшее к вам отделение с наличием нужной продукции.
  • Согласует с вами возможную дату и время доставки.

Запрос цены или КП

Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
НовостиВсе новости
Bosch Rexroth открывает новые возможности в управлении машинами и подключении к IoT

Bosch Rexroth предлагает одну из самых производительных систем ЧПУ на рынке. Компания является лидером в области автоматизации и устанавливают стандарты в этой области. От датчиков и сервоприводов до революционной новой платформы, Bosch Rexroth предлагает широкий спектр решений для автоматизации. ..

16 Февраля, 2024
Bosch Rexroth и TotalEnergies объединяют свои усилия для продвижения альтернативных и экологичных гидравлических жидкостей

Bosch Rexroth и TotalEnergies (французская нефтегазовая компания) 18 декабря 2023 года подписали соглашение сотрудничестве, направленном на разработку, внедрение и маркетинг гидравлических жидкостей на водной основе, с акцентом на экологичность, огнестойкость и производительность. Данный союз отр..

11 Января, 2024
Bosch Rexroth представляет Интеллектуальный функциональный набор для обработки данных Smart Function Kit for Handling

Компания Bosch Rexroth является одним из ведущих мировых производителей и поставщиков технологий и услуг в области промышленной автоматизации. Это производитель рад представить вам свой интеллектуальный функциональный набор для обработки данных. Это инновационное оборудование, с помощью которого п..

4 Декабря, 2023
Бренд Bosch Rexroth представил миру свою разработку - оборудование IndraDrive CDB02 - BASIC для двухосевого блока управления

Bosch Rexroth, являясь ведущим производителем промышленного оборудования, не стоит на месте и разрабатывает новое оборудование. Одним из изобретений этой компании является IndraDrive CDB02 - BASIC. Это двухосевой блок управления, который предназначен для использования в различных промышленных сект..

1 Декабря, 2023
Bosch Rexroth: высокоскоростной асинхронный двигатель 1MB140

Производитель Bosch Rexroth представил свою разработку - высокоскоростной асинхронный двигатель 1MB140. Этот продукт обладает рядом уникальных характеристик и предназначен для различных применений в промышленности. Основным назначением двигателя 1MB140 является обеспечение высокой скорости вращ..

30 Ноября, 2023
Bosch Rexroth рассказывает о характеристиках электрогидравлических насосов

Bosch Rexroth представляет электрогидравлические насосы, которые объединяют в себе преимущества электрической и гидравлической технологий. Данные насосы могут использоваться в различных отраслях промышленности, включая машиностроении, автомобильной промышленности, энергетике и других. Основная ..

29 Ноября, 2023
Bosch Rexroth представил серию высокоэффективных синхронных моментных двигателей МВТ130

Синхронные моментные двигатели МВТ130 применяются в различных отраслях промышленности: машиностроение, автомобильной и энергетической промышленности. Это оборудование используют как дополнение к насосам, компрессорам, приводам конвейеров и другим механизмам, требующим точного управления и высокой ..

28 Ноября, 2023
Bosch Rexroth: надежные и эффективные героторные насосы подходят для решения для множества задач

Героторные насосы Bosch Rexroth — это инновационное оборудование, которое обеспечивает эффективную работу в различных областях промышленности. Они являются незаменимым компонентом в системах гидравлического привода и обеспечивают надежную и плавную работу механизмов. Принцип работы герото..

27 Ноября, 2023
Для эффективной работы гидравлических систем Bosch Rexroth представляет баллонный аккумулятор HAB2

Баллонный аккумулятор HAB2 производства компании Bosch Rexroth — это инновационное оборудование, предназначенное для оптимизации работы гидравлических систем и обеспечения более эффективного использования энергии. Баллонный аккумулятор HAB2 выполняет несколько важных функций. Во-первых, с..

24 Ноября, 2023
Bosch Rexroth: инновационное решение для удобства и эффективности работы - выдвижная клавиатура VAK40

Торговая марка Bosch Rexroth, является одним из мировых лидеров в области промышленной автоматизации, и представляет свою разработку - выдвижную клавиатуру VAK40. Это инновационное устройство, которое обеспечивает удобную и эффективную работу операторов в промышленных условиях. Установить выдви..

23 Ноября, 2023
Bosch Rexroth: инновационные функции и простая установка дисплея 19" VDP60

Бренд Bosch Rexroth рад представить свою разработку - дисплей 19" VDP60, который обещает стать настоящим прорывом в мире технологий. Этот дисплей не только показывает изображения высокого качества, но и предлагает ряд функций, которые помогут решить множество задач. Одним из главных свойст..

22 Ноября, 2023
Rexroth: Шестеренные насосы с внешним зацеплением – надежное решение для эффективной работы в различных отраслях

Компания Rexroth представляет шестеренные насосы с внешним зацеплением, которые являются необходимым прибором в области гидравлики. Они выполняют важную задачу – обеспечивают надежную и эффективную работу гидравлических систем в различных отраслях промышленности. Эти насосы нашли применен..

21 Ноября, 2023

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг
