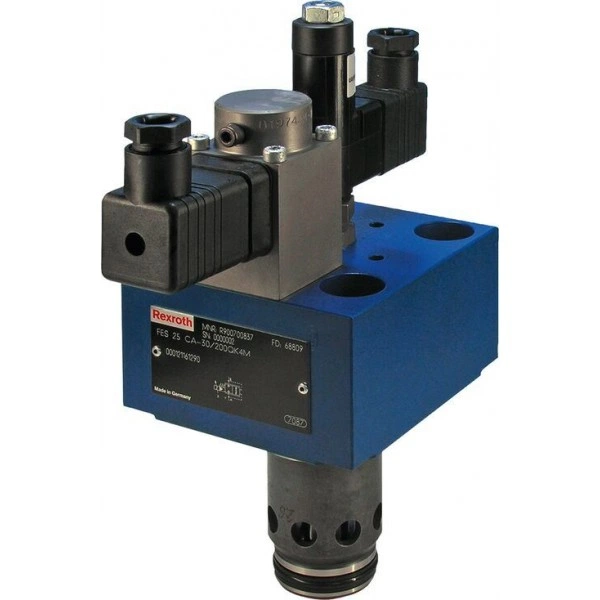

Proportional directional cartridge valve, pilot-operated FES
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 25, 32, 40, 50, 63
- Component series 3X
- Max. operating pressure 315 bar
Features
- Pilot-operated 2-way proportional throttle valve in block installation technology
- Installation dimensions according to DIN ISO 7368
- Orifice spool electrically position-controlled
- Flow in both directions
- In case of power failure or cable break, the orifice spool will automatically move into seat position and block the flow in both directions
- Can be used for pressure-compensated closed-loop flow control in conjunction with a pressure compensator
- For external analog electronics
Product description
Valves of type FES are pilot-operated 2-way proportional throttle valves for block installation for the continuous control of flows.

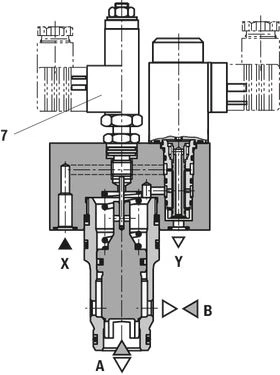

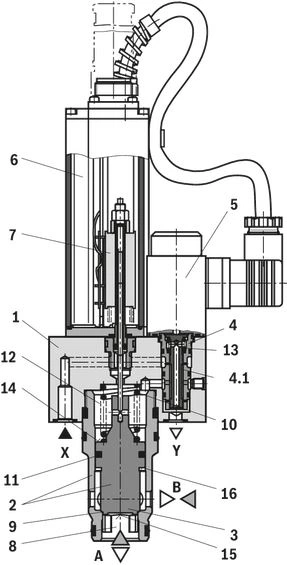

Technical set-up:
The valve consists of four main assemblies:
- Cover (1) with connection surface for pilot oil connections
- Main valve (2) with orifice spool (3)
- Pilot control valve (4) with proportional solenoid (5)
- Command value-dependent position control of the orifice spool (3) and thus defined opening of the orifice (8).
- The flow depends on the Δp across the orifice (8) and the position of the orifice spool (3).
- Actual value recording of the orifice spool (3) position by the position transducer (7); command/actual value comparison in the electronics (6); variations are prepared and forwarded as control output for correction of the orifice spool (3) position to the proportional solenoid (5) to the pilot control valve (4).
- Area ratio of area (14) to area (15) = 2 : 1 for NG25; 32; 40 and 1.6 : 1 for NG50; 63.
- Flow direction A → B (connect X to A);
- Flow direction B → A (connect X to B);
- External pilot oil supply possible via X.
- When the enable is disconnected, the orifice spool (3) will move onto the valve seat (9) and block the flow direction A → B in a leakage oil-free manner. The spool seal (11) seals port B to the control chamber (12) in a leakage oil-free manner; with internal pilot oil supply observe leakage oil from X via the pilot control valve to Y!
- Orifice spool position at command value 0 V or 4 mA already regulated, whereas the orifice (8) is still located in the positive overlap.
- The proportional solenoid (5) moves the pilot spool (4.1) against the spring (13) and opens the connection from control chamber (12) to Y; pressure reduction in the control chamber (12) and movement of orifice spool (3) in opening direction by the pressure in A on the area (15) plus the pressure n B on the annulus area (16).
- Flow reduction in the proportional solenoid (5); the spring (13) moves the pilot spool (4.1) against the proportional solenoid and opens the connection from X to the control chamber (12); pressure build-up in the control chamber (12); pressure on the areas (14) plus spring force (10) move the orifice spool (3) in closing direction
- Can be used in connection with a pressure compensator for the load-compensated control of a flow
- The integrated electronics de-energize the solenoid in case of supply voltage failure or cable break in the position transducer (7)
- The pressure applied to control port X plus the spring force (10) move the spool onto the valve seat (9) where it blocks the flow A → B.
General function:
Open orifice spool function:
(Assumption flow A → B and A connected to X)
Close orifice spool function:
(Assumption flow A → B and A connected to X)
Flow control function:
Supply voltage failure:
Notice;
Failure of the supply voltage will lead to an abrupt standstill of the control axis. The acceleration forces occurring in this connection may cause machine damage!
Type FESE..CA-3X/...
Type FES..CA-3X/...
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | ||
| FES | C | A | - | 3X | / | K4 | * |
| 01 | Electrically operated 2-way proportional throttle valve for block installation | FES |
| 02 | Size 25 | 25 |
| Size 32 | 32 | |
| Size 40 | 40 | |
| Size 50 | 50 | |
| Size 63 | 63 | |
| 03 | Installation kit | C |
| Flow direction | ||
| 04 | A to B (X connected to A) B to A (X connected to B) | A |
| 05 | Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) | 3X |
| Flow characteristic linear | ||
| 06 | NG25 | |
| Up to 315 l/min | 315L 1) | |
| NG32 | ||
| Up to 450 l/min | 450L 1) | |
| NG40 | ||
| Up to 670 l/min | 670L 1) | |
| NG50 | ||
| Up to 1400 l/min | 1400L 1) | |
| NG63 | ||
| Up to 1800 l/min | 1800L 1) | |
| Electrical connection | ||
| 07 | Without mating connector, with connector according to DIN EN 175301-803, separate order | K4 |
| Seal material | ||
| 08 | NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 | M |
| FKM seals | V | |
| 09 | Further details in the plain text | * |
| 1) | Rated flowat 10 bar valve pressure differential between port A and B | |
Technical data
general
| Type | FES | |||||
| Size | 25 | 32 | 40 | 50 | 63 | |
| Component series | 3X | |||||
| Installation position | Any | |||||
| Weight | kg | 3.8 | 5.5 | 8.2 | 12.5 | 21 |
| Storage temperature range | °C | -20 … +80 | ||||
| Ambient temperature range | °C | -20 … +70 | ||||
hydraulic
| Type | FES | ||||||
| Size | 25 | 32 | 40 | 50 | 63 | ||
| Maximum operating pressure | bar | 315 | |||||
| Maximum operating pressure | Anschluss A | bar | 315 | ||||
| Port B | bar | 315 | |||||
| Maximum pilot pressure | Port X | bar | 315 | ||||
| Return flow pressure | Port Y | depressurized to the tank | |||||
| Minimum inlet pressure | in port A (flow direction A → B) | bar | 12 | 15 | 20 | ||
| in port B (flow direction B → A) | bar | 15 | 20 | 25 | |||
| Pilot oil volume for switching process seat position | 0 → 100 % | cm³ | 3.9 | 7.6 | 12 | 23.4 | 52 |
| Maximum pilot oil flow | Port Y | l/min | 5 | 6.5 | 10 | 12 | 17 |
| Flow direction | Internal pilot oil supply A → B | Connect A to X | |||||
| Internal pilot oil supply B → A | Connect B to X | ||||||
| External pilot oil supply A → B | Pressure at X > pressure in A | ||||||
| External pilot oil supply B → A | Pressure at X > pressure in B | ||||||
| Zero flow | State: Enable inactive (solenoid de-energized) | A → B / B → A locked in a leak-free manner | |||||
| State: Command value 0 V or 4 mA from A → B / B → A | See characteristic curves | ||||||
| State: Command value 0 V or 4 mA from A → X / B → X | l/min | < 0.3 | |||||
| Hydraulic fluid temperature range | °C | -20 … +80 | |||||
| Viscosity range | mm²/s | 15 … 380 | |||||
| Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) | Pilot control valve | Class 17/15/12 according to ISO 4406 (c) | |||||
| Main valve | Class 20/18/15 according to ISO 4406 (c) | ||||||
| Hysteresis | % | < 0.2 | |||||
| Response sensitivity | % | < 0.1 | |||||
| Range of inversion | % | < 0.15 | |||||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| Hydraulic fluid | Classification | Suitable sealing materials | Standards |
| Mineral oils and related hydrocarbons | HL, HLP | NBR / FKM | DIN 51524 |
| For more information and data on the use of other hydraulic fluids please contact us. | |||
electrical
| Type | FES | ||
| Voltage type | Direct voltage | ||
| Rated current | mA | 1000 | |
| Solenoid coil resistance | Cold value at 20 °C | Ω | 12.7 |
| Maximum hot value | Ω | 19.3 | |
| Duty cycle | % | 100 | |
| Protection class according to DIN EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
electrical, inductive position transducer
| Type | FES | ||
| Coil resistance at 20°C | Total resistance between 1 and 2 | Ω | 31.5 |
| Total resistance between 2 and PE | Ω | 45.5 | |
| Total resistance between PE and 1 | Ω | 31.5 | |
| Type of protection according to EN 60529 | IP65 (If a suitable and a correctly mounted mating connector are used.) | ||
| Inductivity | mH | 6 ... 8 | |
| Oscillator frequency | kHz | 2.5 | |
| Electrical position measurement system | Differential throttle | ||
Diagrams/characteristic curves

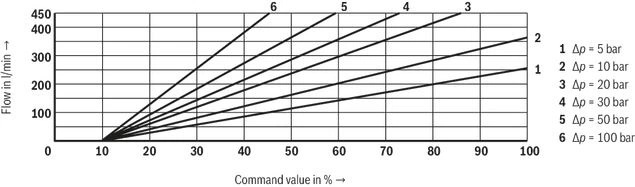

FES(E) 25 C.../315L... flow direction A → B
Flow characteristic linear

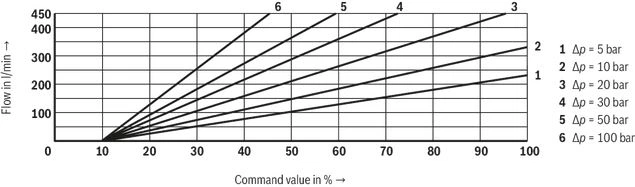

FES(E) 25 C.../315L... Flow direction B → A
Flow characteristic linear

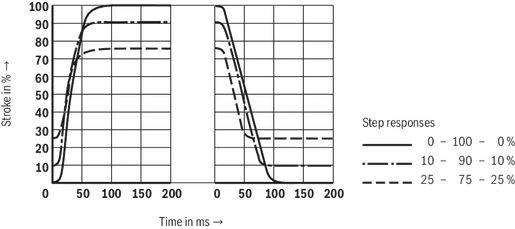

Transition function with stepped electric input signals
NG25
| 1) | Measuring conditions: pressure in A = 50 bar; actuator in B closed (pA = pB = 50 bar); pressure in A 50 bar → actuating time decreases; changes in the actuating time are influenced by the area ratio of the orifice spool as follows:→ command value 0 → 100 %: The actuating time decreases the higher the inlet pressure and the smaller the Δp across the valve is. → Command value 100 → 0 %: The actuating time decreases the higher the inlet pressure and the larger the Δp across the valve is. |

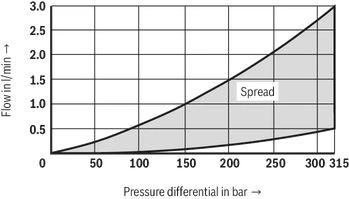

Zero flow from A → B and B → A dependent on the pressure differential Δp (command value 0 V and/or 4 mA)
NG25

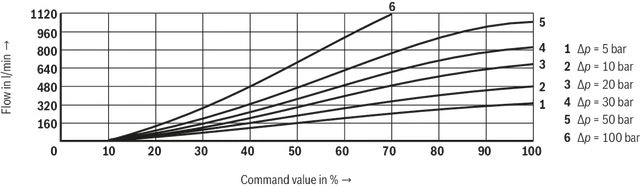

FES(E) 32 C.../450L... flow direction A → B

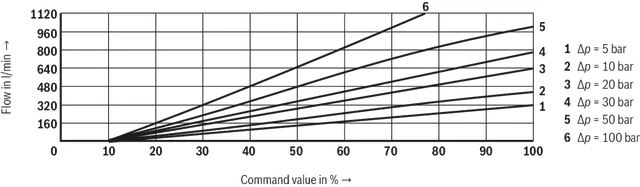

FES(E) 32 C.../450L... flow direction B → A

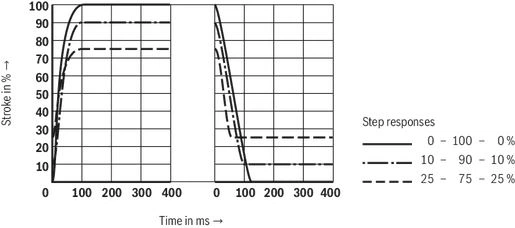

Transition function with stepped electric input signals
Size 32
| 1) | Measuring conditions: pressure in A = 50 bar; actuator in B closed (pA = pB = 50 bar); pressure in A 50 bar → actuating time decreases; changes in the actuating time are influenced by the area ratio of the orifice spool as follows:→ command value 0 → 100 %: The actuating time decreases the higher the inlet pressure and the smaller the Δp across the valve is. → Command value 100 → 0 %: The actuating time decreases the higher the inlet pressure and the larger the Δp across the valve is. |

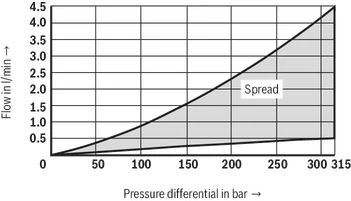

Zero flow from A → B and B → A dependent on the pressure differential Δp (command value 0 V and/or 4 mA)
Size 32

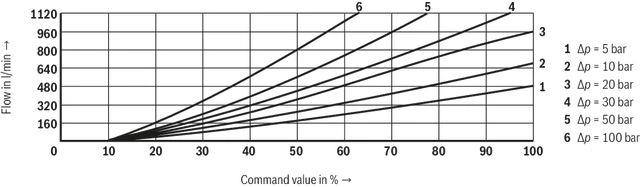

FES(E) 40 C.../670L... flow direction A → B

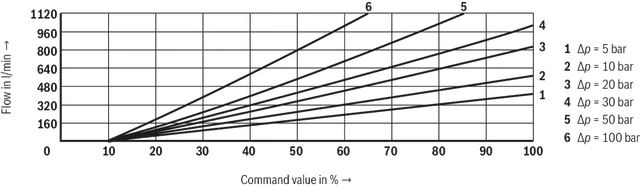

FES(E) 40 C.../670L... flow direction B → A
NG40
Transition function with stepped electric input signals
NG40
| 1) | Measuring conditions: pressure in A = 50 bar; actuator in B closed (pA = pB = 50 bar); pressure in A 50 bar → actuating time decreases; changes in the actuating time are influenced by the area ratio of the orifice spool as follows:→ command value 0 → 100 %: The actuating time decreases the higher the inlet pressure and the smaller the Δp across the valve is. → Command value 100 → 0 %: The actuating time decreases the higher the inlet pressure and the larger the Δp across the valve is. |

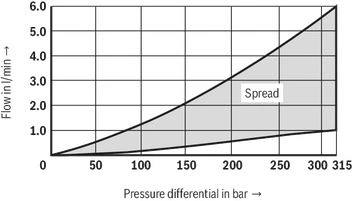

Zero flow from A → B and B → A dependent on the pressure differential Δp (command value 0 V and/or 4 mA)
NG40

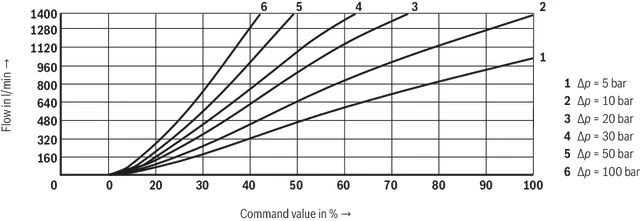

FES(E) 50 C.../1400L... flow direction A → B

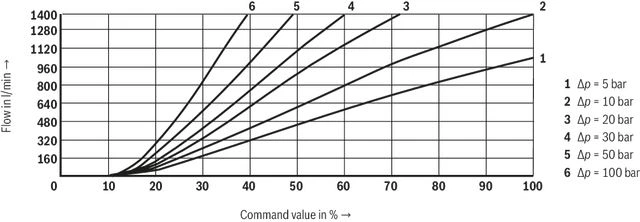

FES(E) 50 C.../1400L... flow direction B → A

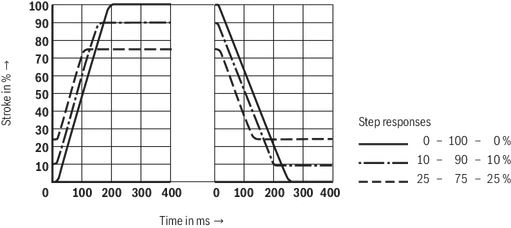

Transition function with stepped electric input signals
NG50
| 1) | Measuring conditions: pressure in A = 50 bar; actuator in B closed (pA = pB = 50 bar); pressure in A 50 bar → actuating time decreases; changes in the actuating time are influenced by the area ratio of the orifice spool as follows:→ command value 0 → 100 %: The actuating time decreases the higher the inlet pressure and the smaller the Δp across the valve is. → Command value 100 → 0 %: The actuating time decreases the higher the inlet pressure and the larger the Δp across the valve is. |

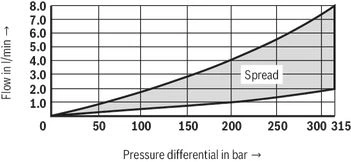

Zero flow from A → B and B → A dependent on the pressure differential Δp (command value 0 V and/or 4 mA)
NG50

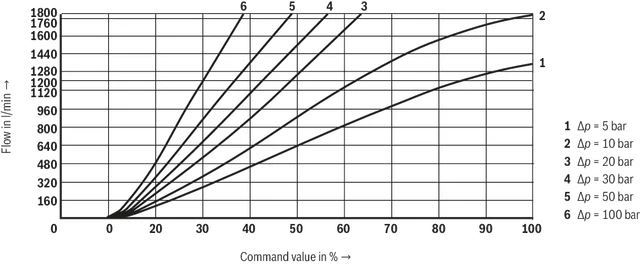

FES(E) 63 C.../1800L... flow direction A → B

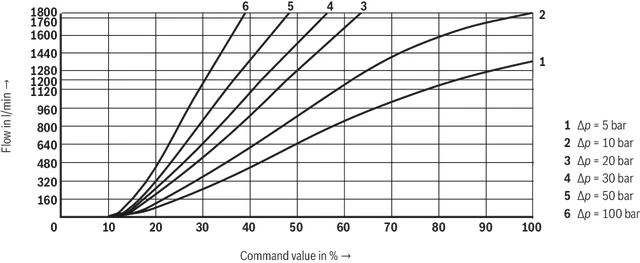

FES(E) 63 C.../1800L... flow direction B → A

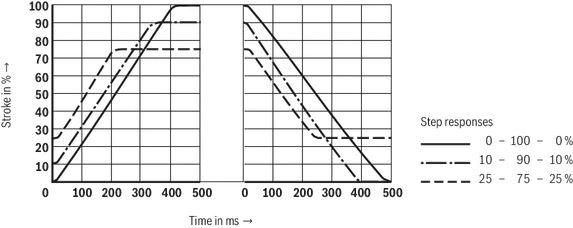

Transition function with stepped electric input signals
NG50
| 1) | Measuring conditions: pressure in A = 50 bar; actuator in B closed (pA = pB = 50 bar); pressure in A 50 bar → actuating time decreases; changes in the actuating time are influenced by the area ratio of the orifice spool as follows:→ command value 0 → 100 %: The actuating time decreases the higher the inlet pressure and the smaller the Δp across the valve is. → Command value 100 → 0 %: The actuating time decreases the higher the inlet pressure and the larger the Δp across the valve is. |

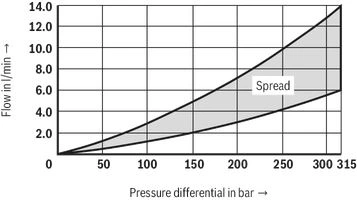

Zero flow from A → B and B → A dependent on the pressure differential Δp (command value 0 V and/or 4 mA)
NG63
Symbols/Circuit diagrams
| Simplified | Type FES..CA-3X/... | A working port B working port X pilot oil supply Y pilot oil return |
| Detailed | Type FES..CA-3X/... | |
| Flow direction A to B (X connected to A)Flow direction B to A (X connected to B) | ||
Electrical connection
Connection at the connector
Connection at mating connector

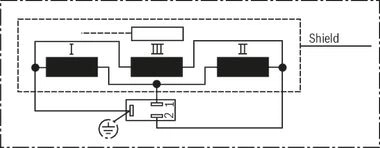

Inductive position transducer

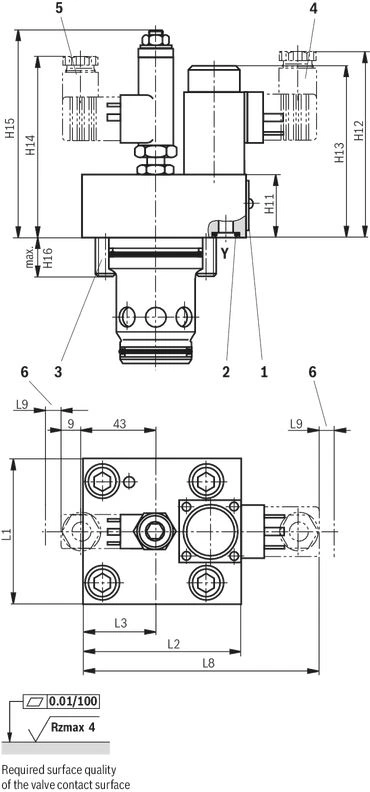

Dimensions
Dimensions in mm
Unit dimensions
| NG | 25 | 32 | 40 | 50 | 63 |
| H11 | 51 | 63 | 62 | 73 | 90 |
| H12 | 116 | 128 | 127 | 138 | 155 |
| H13 | 110 | 122 | 121 | 132 | 149 |
| H14 | 118 | 130 | 129 | 140 | 157 |
| H15 | 137,5 | 149,5 | 148,5 | 159,5 | 176,5 |
| H16 | 25 | 35 | 45 | 45 | 65 |
| L1 | 85 | 102,5 | 126 | 140 | 180 |
| L2 | 93,5 | 102,5 | 126 | 140 | 180 |
| L3 | 42,5 | 51,25 | 63 | 70 | 90 |
| L8 | 139 | 150 | 169 | 184 | 219 |
| L9 | 15 | 15 | 15 | 15 | 15 |
| 1 | Name plate |
| 2 | Identical seal rings for ports X and Y |
| 3 | 4 valve mounting screws according to ISO 4762 - 10.9 (included in the scope of delivery):NG25: M12 x 60, tightening torque MA = 75 Nm |
| 4 | Mating connector according to DIN EN 175301-803, separate order |
| 5 | Mating connector GM209N (Pg 9), Hirschmann, separate order |
| 6 | Space required to remove the mating connector |
| 7 | Port X |
| 8 | Port Y |
| 9 | Locating hole |
| 10 | Depth of fit |
| 11 | Control dimension |
| 12 | Port B may be positioned around the central axis of port A. However, it must be observed that the mounting bores and the control bores are not damaged. |
| 13 | If a different diameter is used for port B than indicated, the distance from the cover support surface to the bore center must be calculated. |

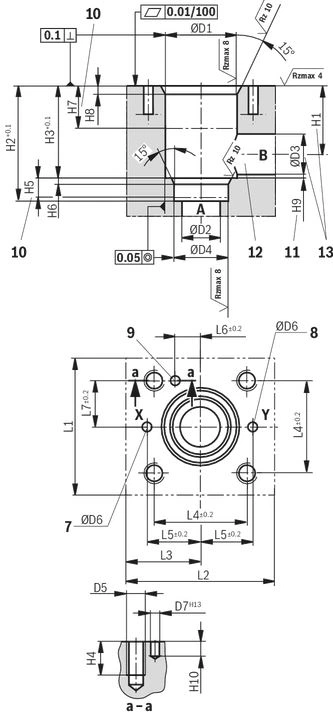

| Installation dimensions according to DIN ISO 7368 | |||||
| NG | 25 | 32 | 40 | 50 | 63 |
| ØD1H8 | 45 | 60 | 75 | 90 | 120 |
| ØD2 | 25 | 32 | 40 | 50 | 63 |
| ØD3 | 25 | 32 | 40 | 50 | 63 |
| ØD3 max. | 32 | 40 | 50 | 63 | 80 |
| ØD4H8 | 34 | 45 | 55 | 68 | 90 |
| D5 | M12 | M16 | M20 | M20 | M30 |
| ØD6 max. | 6 | 8 | 10 | 10 | 12 |
| ØD7H13 | 6 | 6 | 6 | 8 | 8 |
| H1 | 44 | 52 | 64 | 72 | 95 |
| H1 1) | 40,5 | 48 | 59 | 65,5 | 86,5 |
| H2 | 72 | 85 | 105 | 122 | 155 |
| H3 | 58 | 70 | 87 | 100 | 130 |
| H4 | 25 | 35 | 45 | 45 | 65 |
| H5 | 12 | 13 | 15 | 17 | 20 |
| H6 | 2,5 | 2,5 | 3 | 3 | 4 |
| H7 | 30 | 30 | 30 | 35 | 40 |
| H8 | 2,5 | 2,5 | 3 | 4 | 4 |
| H9 min. | 1 | 1,5 | 2,5 | 2,5 | 3 |
| H10 min. | 8 | 8 | 8 | 8 | 8 |
| L1 | 85 | 102,5 | 126 | 140 | 180 |
| L2 | 93,5 | 102,5 | 126 | 140 | 180 |
| L3 | 42,5 | 51,25 | 63 | 70 | 90 |
| L4 | 58 | 70 | 85 | 100 | 125 |
| L5 | 33 | 41 | 50 | 58 | 75 |
| L6 | 16 | 17 | 23 | 30 | 38 |
| L7 | 29 | 35 | 42,5 | 50 | 62,5 |
| 1) | Bore center with ØD3 max. | ||||
