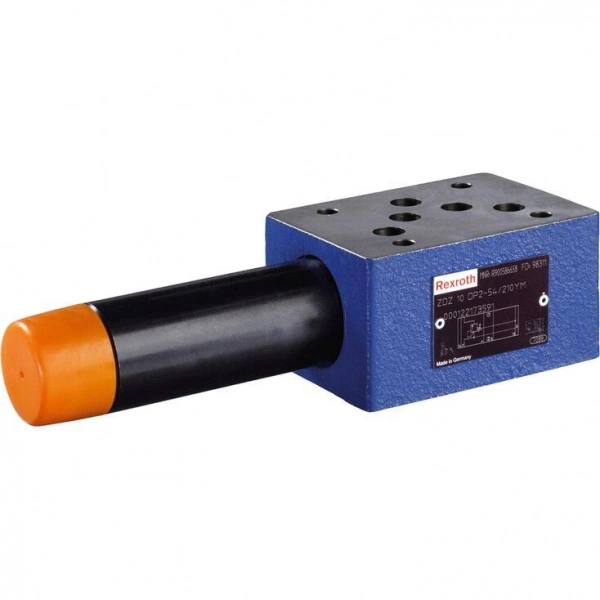

Pressure sequence valve, direct operated ZDZ 10 D
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Size 10
- Component series 5X
- Maximum operating pressure 210 bar
- Maximum flow 80 l/min
Features
- Sandwich plate valve
- Porting pattern according to ISO 4401-05-04-0-05
- Subplates (separate order)
- 4 pressure ratings
- 4 optional adjustment types:• Rotary knob• Threaded pin with hexagon and protective cap• Lockable rotary knob with scale• Rotary knob with scale
- With pressure gauge connection
Product description
Valve type ZDZ is a direct operated pressure sequence valve in sandwich plate design. It is applied for pressure-dependent connection of a second system. The sequencing pressure is set via the adjustment type (4).
Version "C"
The compression spring (3) holds the control spool (2) in initial position, the valve is blocked. The pressure in channel A② is applied via the control line (5) at the spool face of the control spool (2) opposite the compression spring (3).
If channel A➁ reaches the set value of the compression spring (3), the control spool (2) is moved to the left and the connection from A➁ to A➀ is opened. The system connected to A➀ is connected without a pressure drop in channel A②.
The leakage oil return from the spring chamber (7) is always realized externally via channel T (Y).
A pressure gauge connection (8) enables control of the sequencing pressure at the valve.
Version "A"
Here, pressure sequencing is realized in channel A. Control signal and pilot fluid are supplied internally from channel A➀.
Version "P"
With this version, pressure sequencing is realized in channel P. Control signal and pilot fluid are supplied internally from channel P➁.

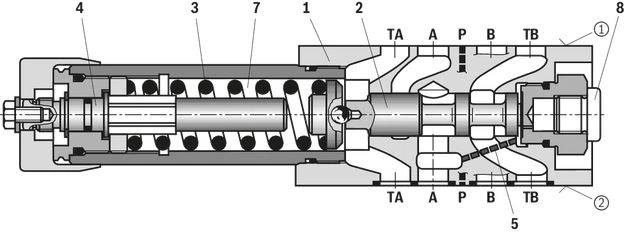

Type ZDZ 10 DC1–5X/.YM…
| ➀ | component side |
| ➁ | plate side |
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | ||
| Z | DZ | 10 | D | – | 5X | / | Y | M | * |
| 01 | Sandwich plate valve | Z |
| 02 | Sequence valve | DZ |
| 03 | Size 10 | 10 |
| 04 | direct operated | D |
| 05 | Pressure reduction in channel A (pilot oil from channel A➀) | A |
| Pressure reduction in channel A (pilot oil from channel A➁) | C | |
| Pressure limitation in channel P | P | |
| Adjustment type | ||
| 06 | Rotary knob | 1 |
| Grub screw with hexagon and protective cap | 2 | |
| Lockable rotary knob with scale 1) | 3 | |
| Rotary knob with scale | 7 | |
| 07 | Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions) | 5X |
| Pressure rating | ||
| 08 | Maximum sequencing pressure 25 bar | 25 |
| Maximum sequencing pressure 75 bar | 75 | |
| Maximum sequencing pressure 150 bar | 150 | |
| Maximum sequencing pressure 210 bar | 210 | |
| 09 | Internal pilot oil supply, external pilot oil return | Y |
| 10 | Without check valve | M |
| Seal material | ||
| 11 | NBR seals | no code |
| FKM seals (other seals upon request) | V | |
| Observe compatibility of seals with hydraulic fluid used. | ||
| 12 | Further details in the plain text | * |
| 1) H-key with material no. R900008158 is included in the scope of delivery. |
Technical data
general
| Size | 10 | ||
| Weight (approx.) | kg | 2.8 | |
| Installation position | any | ||
| Ambient temperature range | NBR seals | °C | -30 … +80 |
| FKM seals | °C | -20 … +80 | |
hydraulic
| Size | 10 | ||
| Maximum operating pressure | Port P | bar | 210 |
| Anschluss A | bar | 210 | |
| Port B | bar | 210 | |
| Port T (Y) | bar | 160 | |
| Maximum sequencing pressure | adjustable | bar | 25 75 150 210 |
| Maximum flow | l/min | 80 | |
| Hydraulic fluid | see table | ||
| Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 |
| FKM seals | °C | -20 … +80 | |
| Viscosity range | mm²/s | 10 … 800 | |
| Maximum admissible degree of contamination of the hydraulic fluid 1) | Class 20/18/15 according to ISO 4406 (c) | ||
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
| Mineral oil | HL, HLP | FKM, NBR | DIN 51524 1) | |
| Bio-degradable | Insoluble in water | HEES (synthetic esters) 2) | FKM | VDMA 24568 |
| HETG (rape seed oil) 1) | FKM, NBR | |||
| Soluble in water | HEPG (polyglycols) 2) | FKM | VDMA 24568 | |
| Other hydraulic fluids on request | ||||
| 1) suitable for NBR and FKM seals | |
| 2) suitable for FKM seals only |
(For applications outside these values, please consult us!)
Diagrams/characteristic curves
(measured with HLP46, ϑOil = 40 ±5 °C)

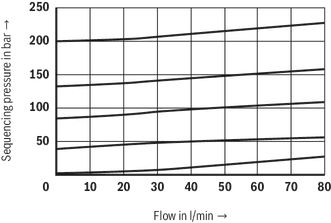

p-qV characteristic curves
Version "C"
Characteristic curve for version "A" and "P" upon request.
The characteristic curves apply for outlet pressure = zero in the entire flow range!
Symbols/Circuit diagrams

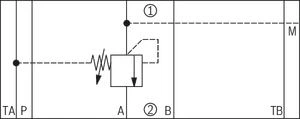

Version "A"

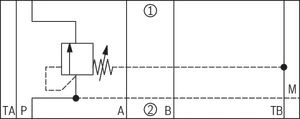

Version "P"

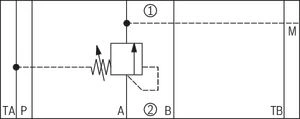

Version "C"

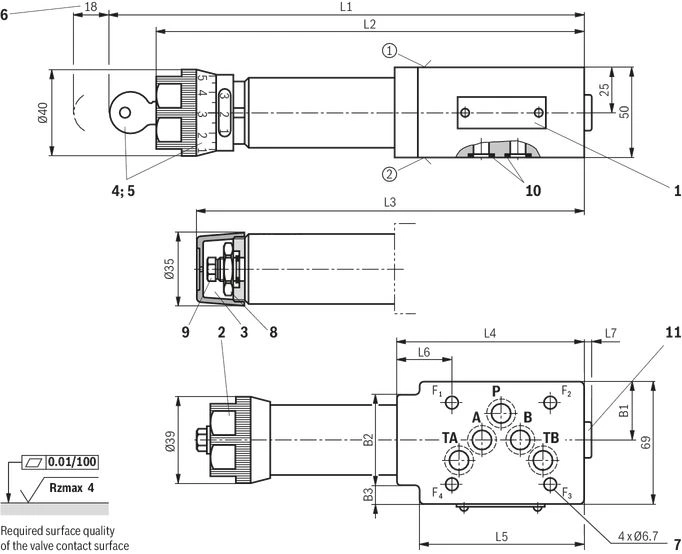

Dimensions
Dimensions in mm
| Version | L1 | L2 | L3 | L4 | L5 | L6 | L7 | B1 | B2 | B3 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| A, C | 255 | 231 | 210 | 104 | 93 | 31.5 | 4 | 32.9 | 51 | 12 |
| P | 242 | 218 | 198 | 91 | - | 16 | 34 | - | - |
| ➀ | component side – Porting pattern according to ISO 4401-05-04-0-05 |
| ➁ | plate side – Porting pattern according to ISO 4401-05-04-0-05 |
| 1 | Name plate |
| 2 | Adjustment type "1" |
| 3 | Adjustment type "2" |
| 4 | Adjustment type "3" |
| 5 | Adjustment type "7" |
| 6 | Dimensions required to remove the key |
| 7 | Valve mounting bores |
| 8 | Lock nut SW24 |
| 9 | Hexagon SW10 |
| 10 | Identical seal rings for ports A➁, B➁, P➁, TA➁ and TB➁; deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet. |
| 11 | Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9-flZn-240h-L
Notice!
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Ordering codes
Currently eShop is not available. Please try again later.Downloads
 | Pressure sequence valve, direct operated Data Sheet | RE26091 | 2009-12-01 | English | PDF | 631k Product Groups: Direct operated Type ZDZ |
