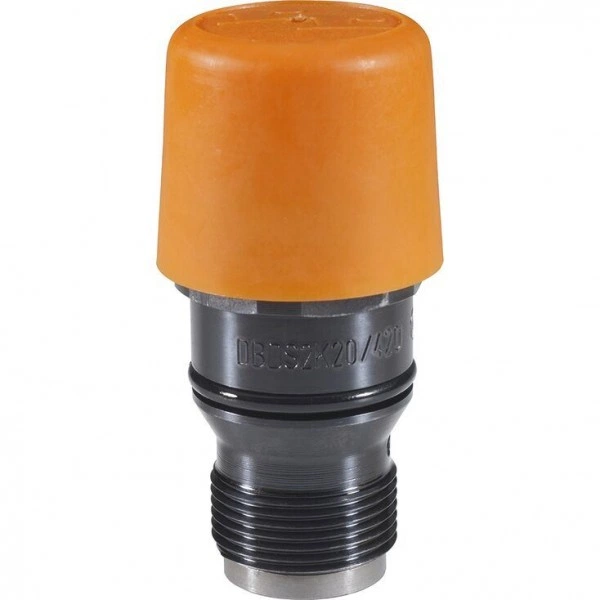

Pressure relief valve, direct controlled DBD.2K

Артикул: RX7492

В наличии

Pressure relief valve, direct controlled DBD.2K

Name: Pressure relief valve, direct controlled DBD.2K
Brand: Bosch Rexroth
SKU: RX7492

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Size 2
Component series 2X
Maximum operating pressure 420 bar
Maximum flow 2 l/min

Features

Screw-in cartridge valve
6 pressure ratings
4 adjustment types, optionally:
• Hexagon with protective cap
• Rotary knob with scale
• Lockable rotary knob with scale
• Hand wheel

Product description

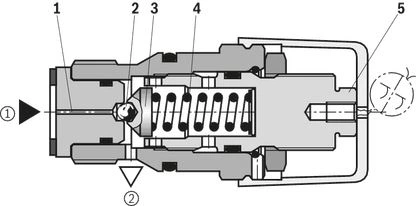

Function, section, symbol

Pressure valves of type DBD .. K are direct operated pressure relief valves to be installed in block designs. They are used for system pressure limitation. The system pressure can be set via the adjustment type (5).

In the initial position the valve is closed. Via control line (1) and ball (2), the pressure in the main port ① acts on the spring plate (3). If the pressure in the main port ① rises above the value set at the compression spring (4), the ball (2) opens and the hydraulic fluid flows into the main port ②.

➀	Main port 1 (P)
➁	Main port 2 (T)

Type code

01	02	03	04	05		06	07	08	09
DBD		2	K	2X	/			V	*

01	Pressure relief valve, direct controlled	DBD
Adjustment type
02	Hexagon with protective cap	S
	Rotary knob with scale	L
	Lockable rotary knob with scale	A
	Hand wheel	H
03	Size 2	2
04	Screw-in cartridge valve	K
05	Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions)	2X
Pressure rating
06	Set pressure up to 25 bar	25
	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
	Set pressure up to 420 bar	420
Sealed set pressure (adjustment type “S” only)
07	Unsealed	no code
07	Sealed – please specify set pressure (setting interval si]5 bar[/si][imp]75 psi[/imp] )	P...1)
Seal material
08	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
09	Further details in the plain text	*

1)	Order example: Set pressure 190 bar → DBDS 2 K2X/200P180V

Technical data

(For applications outside these values, please consult us!)

general

Size		2
Weight (approx.)	kg	0.3
Installation position		any
Ambient temperature range	°C	-20 … +80

hydraulic

Size			2
Maximum operating pressure	Inlet	bar	420
Maximum operating pressure	Outlet	bar	315
Maximum set pressure		bar	25 50 100 200 315 420
Maximum flow		l/min	2
Maximum flow	Recommended	l/min	1.5
Hydraulic fluid			see table
Hydraulic fluid temperature range		°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU, HFDR	FKM	ISO 12922	90222
Flame-resistant	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620 )	NBR	ISO 12922	90223
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum pressure differential per control edge 50 bar. Pressure pre-loading at the tank port >20 % of the pressure differential; otherwise, increased cavitation. Life cycle compared to operation with mineral oil HL, HLP 50 to 100 % Bio-degradable and flame-resistant: When using hydraulic fluids that are simultaneously zinc-solving, zinc may accumulate (per pole tube 0.7 g zinc).

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

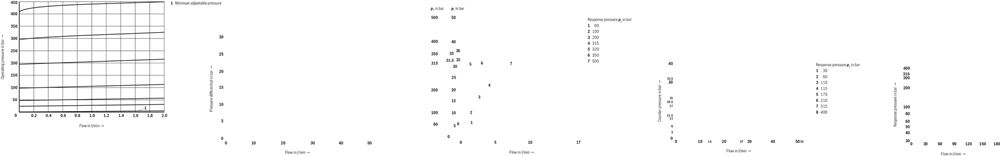

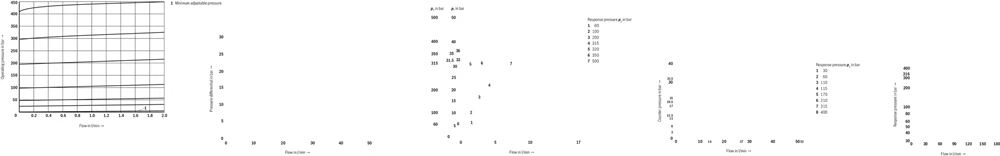

p-qV characteristic curves

Notice:

The characteristic curves apply to output pressure = zero in the entire volume flow range and were measured without housing resistance.

General information

Hydraulic counter pressures in the main port ➁ (T) add 1:1 to the response pressure of the valve set at the adjustment.

Example:

Pressure adjustment of the valve due to spring preloading (item 4 on product description) pspring = 200 bar

Hydraulic counter pressure in the main port ➁ (T): phydraulic = 50 bar

⇒ Response pressure = pspring + phydraulic = 250 bar

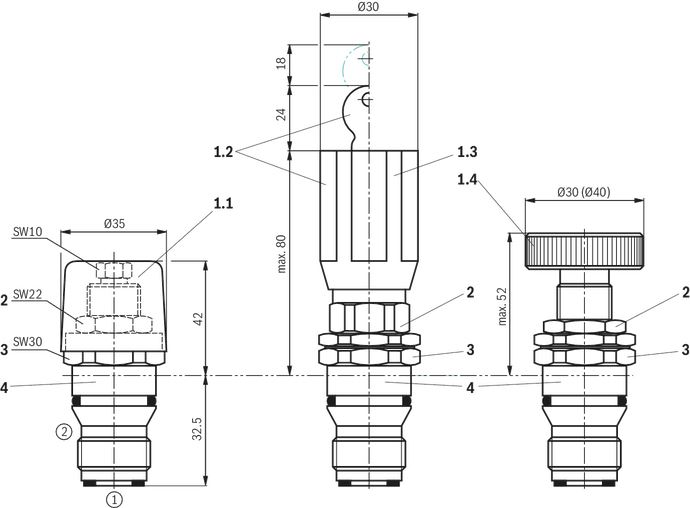

Dimensions

Dimensions in mm

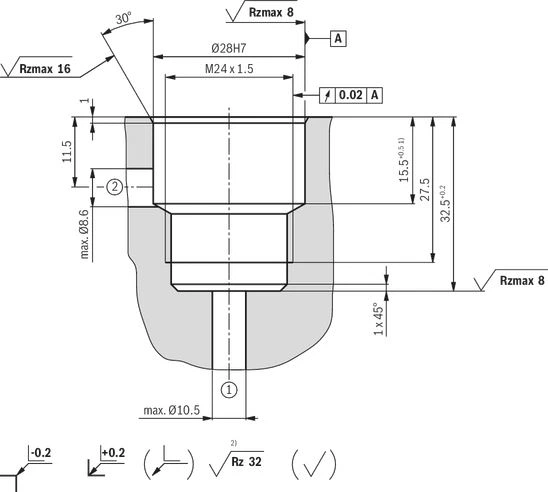

Mounting cavity: R/DBD . 2K; 2 main ports; thread M24 x 1.5

Dimensions in mm

1)	Depth of fit
2)	Visual inspection

Downloads

Pressure relief valve, direct operated
Data Sheet | RE25715 | 2015-06-01 | English | PDF | 677k
Product Groups: Direct operated, Relief and unloading valves
Type DBD..K
