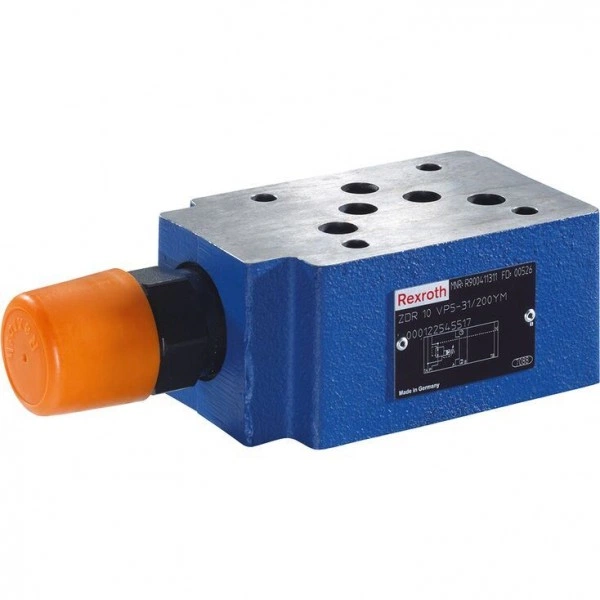

Pressure reducing valve, pilot-operated ZDR 10 V

Клапан ZDR 10 VP5-3X/315YM арт. R900438840 — это гидравлический клапан от производителя Bosch Rexroth, предназначенный для регулирования давления жидкости в гидросистемах.

Основные характеристики клапана ZDR 10 VP5-3X/315YM:

• максимальное давление - 315 бар;
• максимальный расход - 80 л/мин;
• максимальная температура жидкости - 80°C;
• напряжение питания - 24 В постоянного тока.

Клапан ZDR 10 VP5-3X/315YM изготавливается из высококачественных материалов, таких как сталь и латунь. Прибор компактного размера и легкий, это упрощает его установку и эксплуатацию.

Монтаж такого клапана производится на специальные фланцы или штуцеры гидросистемы. Перед установкой нужно проверить, чтобы все соединения были герметичными и не было посторонних частиц в жидкости.

Клапан ZDR 10 VP5-3X/315YM арт. R900438840 точно и надежно регулирует давление жидкости в гидросистемах, благодаря чему повышается эффективность и надежность работы оборудования.


Description

• Size 10
• Component series 3X
• Maximum operating pressure 315 bar
• Maximum flow 100 l/min

Features

• Sandwich plate valve
• Porting pattern according to ISO 4401-05-04-0-05
• 4 pressure ratings
• 4 optional adjustment types:
  • Rotary knob
  • Sleeve with hexagon and protective cap
  • Lockable rotary knob with scale
  • Rotary knob with scale
• Check valve, optional (versions "A" and "B")
• Pressure gauge connection

Product description

Pressure valves of type ZDR 10 V are pilot-operated pressure reducing valves in sandwich plate design. They are used for reducing a system pressure.

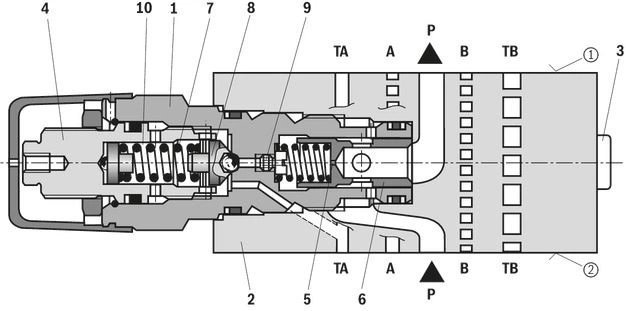

The pressure valves basically consist of pilot control valve (1) and housing (2). The secondary pressure is set via the adjustment type (4).

Pressure reduction in channel P➀ ("P")

In initial position, the valves are open. Hydraulic fluid can flow from channel P➁ to channel P➀ without restrictions.

The pressure in channel P➀ acts simultaneously at the main spool (6), via the bore (5) at the spring-loaded inside of the main spool (6) and via the nozzle (9) on the pilot poppet (8).

If the pressure in channel P➁ exceeds the value set at the compression spring (7), the pilot poppet (8) opens.

Hydraulic fluid flows from the spring-loaded inside of the main spool (6) via the nozzle (9) and the pilot poppet (8) into the spring chamber (10). The main spool (6) assumes its control position and keeps the value in channel P➀ set at the compression spring (7) constant. The pilot oil return from the spring chamber (10) is realized via port TA.

Pressure reduction in channel A➁ and B➁ ("A" and "B")

For free return flow from channel A➁ to A➀ / B➁ to B➀ , a check valve can be optionally installed (not possible with version "P").

A pressure gauge connection (3) enables control of the secondary pressure.

Type ZDR 10 VP5–3X/.YM…

Type code

Notice! Preferred types and standard units are specified in the EPS (standard price list).

Technical data

general

hydraulic

(For applications outside these values, please consult us!)

Diagrams/characteristic curves

(measured with HLP46, ϑOil = 40 ±5 °C)

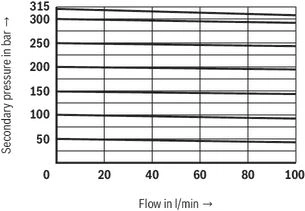

pA-qV characteristic curves

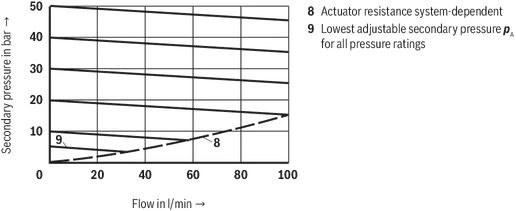

pA-qV characteristic curves (up to 50 bar)

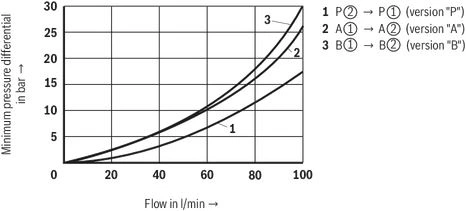

Δpmin-qV characteristic curves

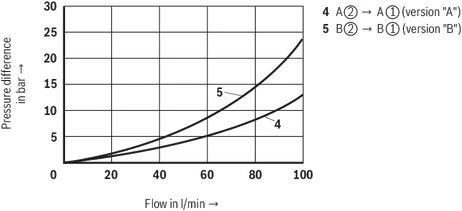

Δp-qV characteristic curves

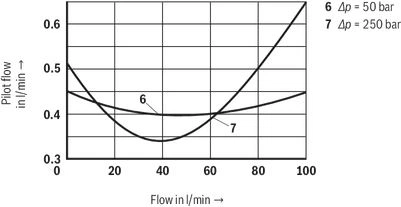

qV St-qV characteristic curves at Δp (pE – pA)

Symbols/Circuit diagrams

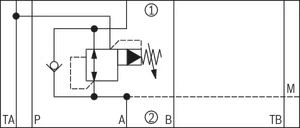

Pressure reduction in channel A➁ (“A”)

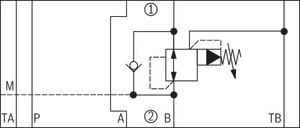

Pressure reduction in channel B➁ (“B”)

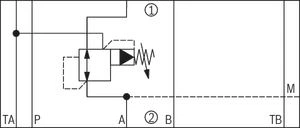

Pressure reduction in channel A➁ (“A…M”)

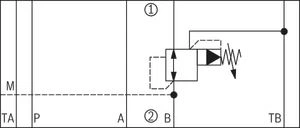

Pressure reduction in channel B➁ (“B…M”)

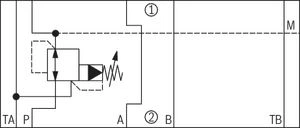

Pressure reduction in channel P➀ (“P…M”)

Notice!

Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.

Dimensions

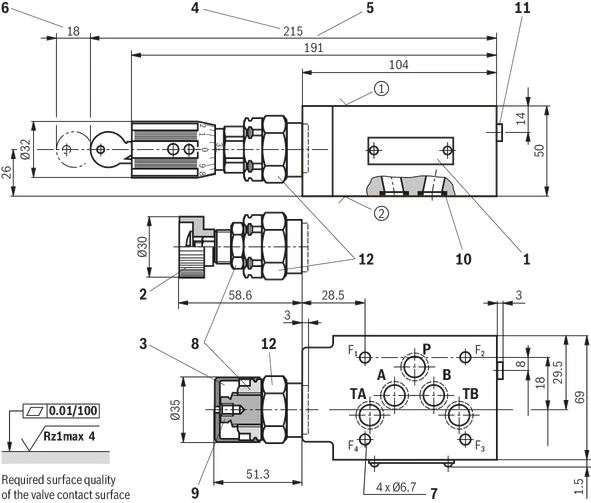

Versions "A" and "P"

Dimensions in mm

Valve mounting screws (separate order)

4 hexagon socket head cap screws ISO 4762 - M6 - 10.9-flZn-240h-L

Friction coefficient µtotal = 0.09 to 0.14,

Tightening torque MA = 12 Nm ± 10 %

Notices!

• Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.

• Bored for port X and Y (e. G. for pilot-operated directional valve NG10), version SO30 is applicable!

• The dimensions are nominal dimensions which are subject to tolerances.

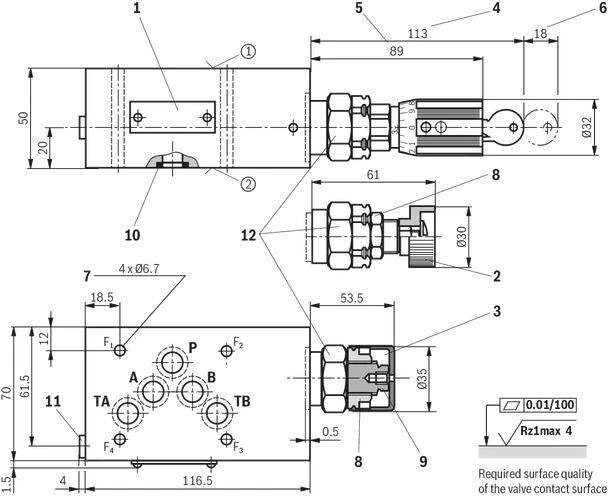

Version "B"

Dimensions in mm

Downloads

Pressure reducing valve, pilot operated Data Sheet | RE26861 | 2013-02-01 | English | PDF | 636k Product Groups: Pilot operated Type ZDR
