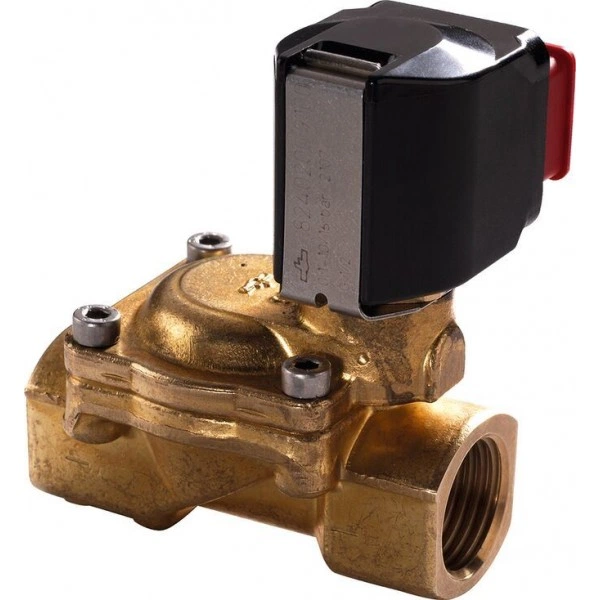

Description
- Nominal width 8 … 50
- Component series 1X
- Maximum operating pressure 16 bar, 10 bar
Features
- Water valves are suitable for cooling circuits of liquid fluids
- Electromagnetically indirectly operated
- Diaphragm valve with closing damping
- Simple, compact design
- Solenoid can be replaced without any tools
- Ideal for use as water valve to DIN EN 60730-2.8
Product description
Electromagnetically operated 2/2 directional water valves according to this standard are poppet valves with hydraulic positive stop damping, in which a diaphragm blocks the flow. The valves are actuated by a solenoid, the force of which is supported by the differential pressure between the valve inlet and the valve outlet (Δpmin = 0.1 bar).

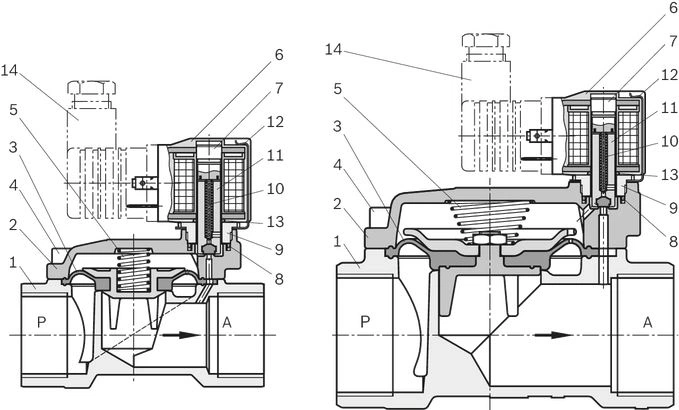

| Section DN 8 – 25 | Section DN 32 – 50 |
| 1 | Valve housing |
| 6 | Solenoid body |
| 11 | Armature |
| 2 | Valve housing cover | 7 | Solenoid sleeve | 12 | Spring bracket | ||
| 3 | Diaphragm | 8 | Seal ring | 13 | Seal ring | ||
| 4 | Hexagon socket head cap screw | 9 | Threaded piece | 14 | Mating connector (not included in the scope of supply) | ||
| 5 | Compression spring | 10 | Compression spring |
Type code
| 01 | 02 | 03 | 04 | 05 | ||
| ABZAW | – | – | K4 | * |
| Type | ||
| 01 | 2/2 directional valve (Water valve) | ABZAW |
| Nominal width | ||
| 02 | DN08 | G1/4 |
| N1/4 1) | ||
| DN10 | G3/8 | |
| N3/8 | ||
| DN12 | G1/2 | |
| N1/2 | ||
| DN20 | G3/4 | |
| N3/4 | ||
| DN25 | G1 | |
| N1 | ||
| DN32 | G11/4 | |
| N11/4 | ||
| DN40 | G11/2 | |
| N11/2 | ||
| DN50 | G2 | |
| N2 | ||
| Voltage | ||
| 03 | Direct voltage 24 V | G24 |
| Direct voltage 48 V | G48 | |
| Direct voltage 110 V | G110 | |
| Direct voltage 125 V | G125 | |
| Direct voltage 220 V | G220 | |
| Alternating voltage 110 V, 50 Hz | W110-50 | |
| Alternating voltage 220 V, 50 Hz | W220-50 | |
| Alternating voltage 230 V, 50 Hz | W230-50 | |
| Alternating voltage 100 V, 60 Hz | W100-60 | |
| Alternating voltage 110 V, 60 Hz | W110-60 | |
| Alternating voltage 115 V, 60 Hz | W115-60 | |
| Alternating voltage 120 V, 60 Hz | W120-60 | |
| Alternating voltage 220 V, 60 Hz | W220-60 | |
| Electrical connection | ||
| 04 | Without mating connector, individual connection with connector according to DIN EN 175301-803 | K4 2) |
| Additional details | ||
| 05 | Further details in the plain text | * |
| 1) | N1/4 = 1/4" NPT |
| 2) | Mating connectors, separate order, see "Accessories" |
Technical data
General
| Installation position | Optional, preferably with solenoid pointing upwards | |||
| Ambient temperature range | °C | 0 … +50 | ||
| Flow direction | Fixed | |||
| Permissible temperature of operating medium | °C | 0 … 90 | ||
| Permissible viscocity of operating medium | mm²/s | 1 | ||
| Density/specific weight | at 20° C | Operating medium (water) | kg/dm³ | 0.998 |
| Material | Housing | Brass | ||
| Internal parts | Stainless steel, PVDF or brass | |||
| Seal | NBR | |||
Resistance
| Supply/location | |||
| Municipal waterworks | Cooling tower circuit | Rivulets | Sea |
| Water quality | |||
| Potable water | Industrial water | Rivulet water | Seawater |
| Resistant | Resistant | Resistant | Not resistant |
Hydraulic
| DN | Port sizes 1) | Minimum pressure differential min. | Operating pressure max. | Q 3) | Q 4) |
| bar | bar | l/min | l/min | ||
| 8 | G1/4 | 0.1 | 16 | 1900 | 3300 |
| N1/4 2) | |||||
| 10 | G3/8 | 3000 | 5200 | ||
| N3/8 | |||||
| 12 | G1/2 | 3800 | 6600 | ||
| N1/2 | |||||
| 20 | G3/4 | 6100 | 10600 | ||
| N3/4 | |||||
| 25 | G1 | 9500 | 16500 | ||
| N1 | |||||
| 32 | G1 1/4 | 10 | 23000 | 39800 | |
| N1 1/4 | |||||
| 40 | G1 1/2 | 25000 | 43300 | ||
| N1 1/2 | |||||
| 50 | G2 | 41000 | 71000 | ||
| N2 |
| 1) | Female connection thread |
| 2) | N1/4 = 1/4" NPT |
| 3) | Water flow at +20 °C at Δp 1 bar |
| 4) | Water flow at +20 °C at Δp 3 bar |
Contamination note:
In the case of contaminated fluids, we recommend the use of a strainer according to AB 42-25.
Strainer PN16, filtration rating 0.250 mm.
Electric
| Type of protection according to EN 60529 | IP65 | |||
| Duty cycle | % | 100 | ||
| Direct voltage | VDC | 6 … 220 | ||
| AC voltage | VAC/Hz | 6...250/50 or 60 | ||
| Power consumption | Operation with AC current | Start-up | VA | 15 |
| Holding | VA | 12 | ||
| Operation with DC current | Start-up | W | 8 | |
| Holding | W | 8 | ||
Note on the EMC Directive:
A suitable electrical circuitry of the valves must ensure that the limit values of the harmonized standards EN 50081-1 and EN 50082-1 are adhered to and that Directive 89/336/EEC (electromagnetic compatibility) is complied with.
Notice regarding the acceptance classification:
Solenoid according to UL and CSA standard.
(For applications outside these values, please consult us!)
Diagrams/characteristic curves
Measured with water = 20 °C
| Medium: | Water |
| Temperature: | 20 °C |
| Density: | p = 0,998 kg/dm3 | Kinematic viscosity: | [si]1 mm2/s[/si][imp1 cSt[/imp] |

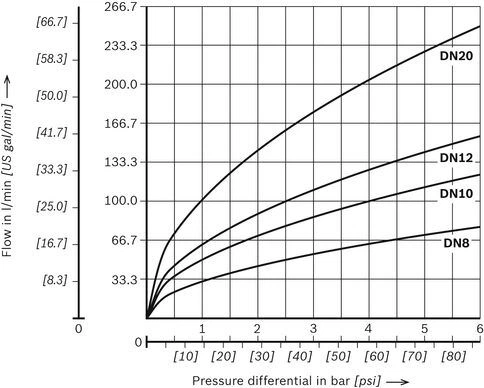

DN8 ... DN20

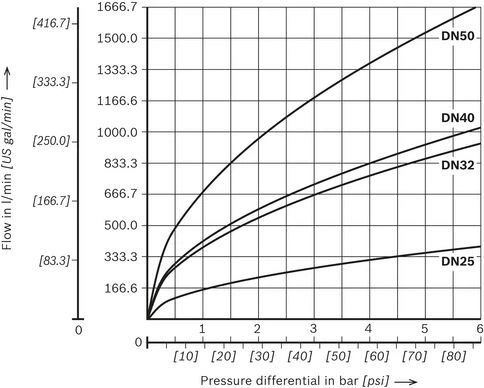

DN25 ... DN50
Symbols/Circuit diagrams
Blocked in rest position

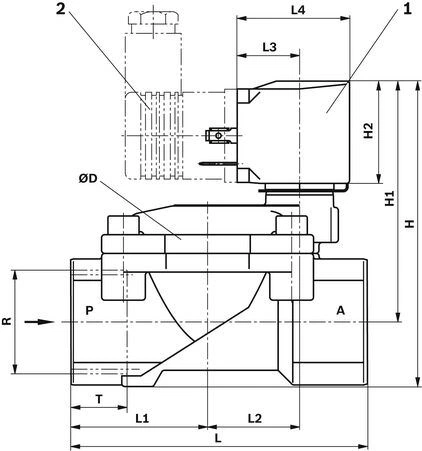

Dimensions
| 1 | Solenoid can be rotated around 360° | |
| 2 | Mating connectors can be replugged by 4 x 90° | (not included in the scope of supply) |
| DN | ⌀D | L | L1 | L2 | L3 | L4 | H | H1 | H2 | R 1) | T | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | ||
| 8 | 44 | 60 | 27.5 | 19.5 | 20 | 36 x 30 | 78.5 | 67 | 33 | G1/4 | 12 | 0.47 |
| N1/4 2) | 10 | |||||||||||
| 10 | G3/8 | 12 | 0.45 | |||||||||
| N3/8 | 10.5 | |||||||||||
| 12 | 67 | 31 | 81 | G1/2 | 14 | 0.5 | ||||||
| N1/2 | 13.5 | |||||||||||
| 20 | 50 | 80 | 36.5 | 24 | 88 | 71.5 | G3/4 | 16 | 0.65 | |||
| N3/4 | 14 | |||||||||||
| 25 | 62 | 95 | 44 | 29.5 | 97.5 | 77 | G1 | 18 | 0.95 | |||
| N1 | 17 | |||||||||||
| 32 | 92 | 132 | 60 | 44.5 | 124.5 | 95.5 | G1 1/4 | 20 | 2.73 | |||
| N1 1/4 | 17 | |||||||||||
| 40 | G1 1/2 | 22 | 2.53 | |||||||||
| N1 1/2 | 17 | |||||||||||
| 50 | 109 | 160 | 74 | 54.5 | 142.5 | 108 | G2 | 24 | 3.85 | |||
| N2 | 17.5 |
| 1) | Female connection thread |
| 2) | N1/4 = 1/4" NPT |
Mounting
Notes on the installation:
- Make sure that there is sufficient clearance around the valve. This simplifies checks during operation and maintenance work.
- The valve can heat up during operation. Never paint the solenoid coil and the housing of the solenoid. Never cover the valve with heat insulation material.
- Fluids may only be directed through the valve in the specified direction of flow. An arrow on the valve housing shows the direction of flow. A reversal of the direction of flow must be prevented by taking appropriate measures, e.g. installation of check valves.
Note!
The direction of flow indicated on the valve must be adhered to in order that the valve can perform its intended function.
Pipes must be connected to the valve stress-free and vibration-free.
After mounting, check the installation for leakage and function.
Maintenance, inspection and assembly work may only be carried out by authorized and qualified specialist personnel. Gener-ally, work on the solenoid valve may only be carried out when the system is depressurized and has cooled down. The solenoid must be disconnected from the power supply. Preventive maintenance is recommended in dependence on the operating con-ditions and in the case of perceivable changes in the switching times. The operator is responsible for determining reasonable testing and maintenance intervals depending on the operating conditions of the valve. Sediments, dirt, aged or worn out seals can lead to malfunction. The seals of solenoids must be included in the maintenance schedule to ensure that the specified type of protection is maintained.
Electrical connections:
- Work on electrical connections may only be carried out by specialists
- Before carrying out work on electrical parts, disconnect the power supply
- After having connected the circular plug-in connection M12 x 1 fasten it by means of screws
- Only plug the circular plug-in connection M12 x 1 when it is disconnected from the power supply
- Do not overload contacts (see technical data)
- In the case of inductive loads, provide suppressor circuit!
Accessories
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with connector “K4”, without circuitry, standard, with assembled connection line
3P Z4 +
Mating connectors for valves with connector “K4”, without circuitry, standard, with assembled connection line
3P Z4 +
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
- For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector”
- Mating connectors for valves with one or two solenoids (individual connection)
Certification
Use in explosive atmospheres according to Directive 94/9/EC (ATEX)
- Valves on request
Normative references
- EN 60076-11:2007
- EN 60079-0:2006
- EN 60079-14:2003
- EN 175201-804:2000
- EN 175301-803:2006
Downloads
 | Water valve 2/2 directional valve Data Sheet | RE50235 | 2008-05-01 | English | PDF | 713k Product Groups: Direct operated Type ABZAW |
| Wasserventil 2/2-Wegeventil Data Sheet | RD50235 | 2008-05-01 | German | PDF | 714k Product Groups: Direct operated Typ ABZAW |
| Soupape d´eau Distributeur 2/2 Data Sheet | RF50235 | 2008-05-01 | French | PDF | 718k Product Groups: Direct operated Type ABZAW |
| Válvula direccional para agua de 2/2 vías Data Sheet | RS50235 | 2008-05-01 | Spanish | PDF | 716k Product Groups: Direct operated Tipo ABZAW |
| Водяной клапан-распределитель типа 2/2 Data Sheet | R-RS50235 | 2008-05-01 | Russian | PDF | 359k Product Groups: Direct operated Тип ABZAW |
| Válvula de água Válvula direcional 2/2 Data Sheet | RP50235 | 2008-05-01 | Portuguese | PDF | 354k Product Groups: Direct operated Tipo ABZAW |
