2-way cartridge valves with spool position monitoring LFA..EM (control cover)
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Size 16 … 32
- Component series 7X
- Maximum operating pressure 400 bar
- Maximum flow 25000 l/min
- Size 16 … 32
- Component series 7X
Features
- Functional product design
- Modular set-up:• Cartridge valve with various options• Control cover in various variants for realization of selected functions• Electric monitoring of the spool position
- Power and flow-optimized design:• High flows• Low pressure drops• High switching velocities• Low leakage oil flows
- Robust design:• High reliability• Long life cycle
- Other features:• Small installation size, low weight• Easy to service
Product description
2-way cartridge valves are elements that have been designed for a compact block design. The power section with connections A and B is installed into the control block in a receiving hole standardized according to ISO 7368 and closed with a cover. In most cases, the cover is also the connection from the control side of the power section to the pilot control valves.
By control with respective pilot control valves, the power section can be applied for pressure, directional and throttle functions or a combination of these functions. Particularly efficient solutions are realized by adjustment of the size to various flows of the individual ways of an actuator. The application of power sections of elements for multiple functions is very cost-effective.
2-way cartridge valves generally consist of control cover (1) and installation kit (2). The control cover contains the control bores and optionally a stroke limitation function, a hydraulically controlled directional seat valve or a shuttle valve according to the required overall function. Additionally, electrically operated directional spool or seat valves can be installed at a control cover. The installation kit consists of a bushing (3), ring (4) (only up to NG32), valve poppet (5), optionally with damping nose (6) or without damping nose (7) as well as closing spring (8).
The function of 2-way cartridge valves is pressure-dependent. This way, three crucial pressurized areas A1, A2, A3 are realized for the function. The area at valve seat A1 is observed as 100 %. Depending on the version, the annulus area A2 realized by grading is 7 % or 50 % of area A1. The area ratio A1 : A2 is respectively either 14.3 : 1 or 2 : 1. The area A3 is identical to the sum of areas A1 + A2. Due to the different area ratios A1 : A2 and the resulting different annulus areas (A2), the area A3 is one time 107 % and another time 150 % of the area A1 at the seat, which is observed as 100 %.
In general, the following applies:
The areas A1 and A2 are effective in opening direction. The area A3 and the spring are effective in closing direction. The direction of action of the resulting force from the opening and closing forces determines the spool position of the 2-way cartridge valve.
The 2-way cartridge valves can be passed from A to B or from B to A. Pressurization of area A3 by pilot oil discharge from channel B or external pilot oil supply, channel A is blocked without leakage.
Type code
load errorTechnical data
| Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
| Mineral oils | HL, HLP, HLPD, HVLP, HVLPD | NBR, FKM | DIN 51524 | |
| Bio-degradable | Insoluble in water | HETG | NBR, FKM | ISO 15380 |
| HEES | FKM | |||
| Soluble in water | HEPG | FKM | ISO 15380 | |
| Containing water | Water-free | HFDU, HFDR | FKM | ISO 12922 |
| Containing water | HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) | NBR | ISO 12922 | |
| Important information on hydraulic fluids!
Flame-resistant – containing water:
| ||||
| Size of the annulus area | ||||
| Surface in cm2 | Version | Size | ||
| 16 | 25 | 32 | ||
| A1 | „CA“ | 1,89 | 4,26 | 6,79 |
| „CB“ | 2,66 | 5,73 | 9,51 | |
| A2 | „CA“ | 0,95 | 1,89 | 3,39 |
| „CB“ | 0,18 | 0,43 | 0,67 | |
| Spool form (damping nose) | ||||
| Size | ||||
| 16 | 25 | 32 | ||
| Stroke | cm | 0,9 | 1,17 | 1,4 |
| Pilot volume | cm3 | 2,56 | 7,21 | 14,3 |
| Theoretical pilot flow 1) | l/min | 15,4 | 43,3 | 86 |
| Cracking pressure in bar | ||||
| Version | Size | |||
| 16 | 25 | 32 | ||
| Direction of flow A to B | „CA10“ | 0,70 | 0,68 | 0,72 |
| „CA20“ | 2,03 | 2,18 | 2,12 | |
| „CA40“ | 3,50 | 3,90 | 3,80 | |
| „CB10“ | 0,49 | 0,50 | 0,51 | |
| „CB20“ | 1,44 | 1,62 | 1,52 | |
| „CB40“ | 2,48 | 2,90 | 2,70 | |
| Direction of flow B to A | „CA10“ | 1,38 | 1,53 | 1,42 |
| „CA20“ | 4,05 | 4,91 | 4,25 | |
| „CA40“ | 6,96 | 8,74 | 7,6 | |
| „CB10“ | 7,43 | 6,69 | 7,24 | |
| „CB20“ | 21,3 | 21,5 | 21,6 | |
| „CB40“ | 36,6 | 38,3 | 38,6 | |
| 1) Switching time = 10 ms |
general
| Size | 16 | 25 | 32 | ||
| Ambient temperature range | NBR seals | °C | -30 … +60 | ||
| FKM seals | °C | -20 … +60 | |||
| MTTFD values according to EN ISO 13849 1) | Years | 150 | |||
| 1) | For further details, see data sheet 08012 |
hydraulic
| Size | 16 | 25 | 32 | ||
| Maximum operating pressure | Without directional valve | bar | 400 | ||
| Anschluss A 1) | bar | 315 350 | |||
| Port B 1) | bar | 315 350 | |||
| Port X 1) | bar | 315 350 | |||
| Port Z1 1) | bar | 315 350 | |||
| Port Z2 1) | bar | 315 350 | |||
| Port Y | depending on the maximum tank pressure of the attached directional valve | ||||
| With electrically monitored spool position | bar | 400 | |||
| Maximum flow 2) | l/min | 25000 | |||
| Hydraulic fluid | see table | ||||
| Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 | ||
| FKM seals | °C | -20 … +80 | |||
| Viscosity range | mm²/s | 2.8 … 500 | |||
| Maximum admissible degree of contamination of the hydraulic fluid 3) | Class 20/18/15 according to ISO 4406 (c) | ||||
| 1) | dependent on the attached directional valve |
| 2) | NG-dependent; see characteristic curves |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
(For applications outside these values, please consult us!)
Diagrams/characteristic curves
(simulated with HLP46, ϑoil = 40±5 °C)
Size 16 (A → B)
Size 16 (B → A)
Size 25 (A → B)
Size 25 (B → A)
Size 32 (A → B)
Size 32 (B → A)
Notice:
The indicated characteristic curves have been determined without inserted springs.
| Orifices | |
| Thread | Orifice Ø in mm |
| M6 conical | 0,5 … 3,0 |
| M8 x 1 conical | 0,5 … 4,0 |
| G3/8 | 0,8 … 6,0 |
| G1/2 | 1,0 … 8,0 |
Other orifices upon request.
| Plug screws | |
| Thread | Tightening torqueMA in Nm |
| M6 | – |
| M8 x 1 | 7 |
| G3/8 | 55 |
| G1/2 | 80 |
| G3/4 | 135 |
| G1 | 225 |
| G1 1/4 | 360 |

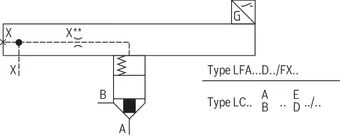

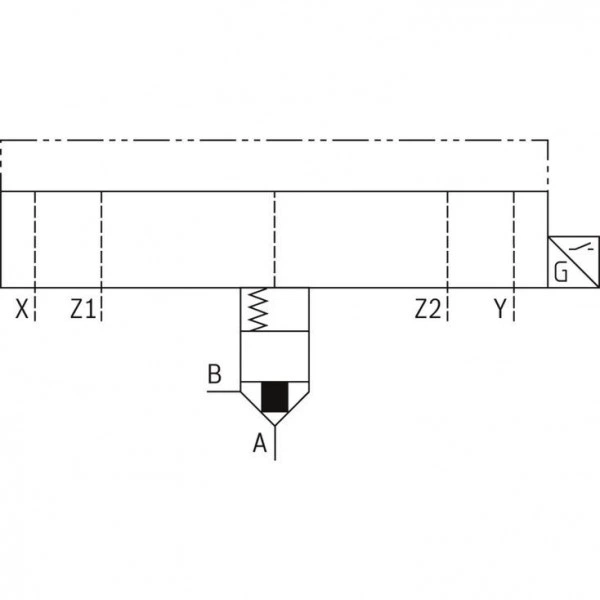

Symbols/Circuit diagrams
LFA . EM… (NG16 … 32)
Electrical connection
load errorComponents
load errorDimensions
load errorInformation
load errorDownloads
 | 2-way cartridge valves with spool position monitoring, passively controlled Data Sheet | RE21015 | 2019-07-01 | English | PDF | 2.3MB Product Groups: Logic elements - directional function |
