General information
One of the main tasks of hydro-pneumatic accumulators is e.g. to accept certain volumes of pressurized liquids of hydro-pneumatic installations and to return them to the system if required.
As the liquid is pressurized, the hydro-pneumatic accumulators are treated like pressure vessel and must be designed for the max. operating over pressure considering the acceptance standards of the country of installation.
In most hydro-pneumatic systems, hydro-pneumatic accumulators with separator element are used. The difference between bladder-type, piston and diaphragm-type accumulators lies in the type of separator element.
Hydro-pneumatic accumulators essentially consist of a fluid section and a gas section with a gas-tight separator element. The fluid section has a connection to the hydraulic circuit. During the pressure increase, the gas is compressed and liquid accepted in the hydro-pneumatic accumulator. When the pressure decreases, the compressed gas expands and displaces the accumulated fluid into the circuit.
Diaphragm type accumulator
Diaphragm-type accumulators consist of a pressureresistant steel vessel (1) which most commonly has a spherical to cylindrical form. Inside the accumulator, there is the separator element, namely a diaphragm (2) made of an elastic, flexible material (elastomer) with the closing button (3) and the plug screw (4). They correspond to Pressure Equipment Directive 2014/68/EU.

| 1 | Containers |
| 2 | Diaphragm |
| 3 | Closing button |
| 4 | Plug screw (gas filling screw) |
| 5 | Fluid connection |
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | ||||||
| HAD | - | - | / | - | 1 | 1 | 1 | - | - |
| Device designation | ||||||||||||||
| 01 | Diaphragm type accumulators | HAD | ||||||||||||
| Nominal capacity | ||||||||||||||
| 02 | 0,075 | 0,16 | 0,35 | 0,5 | 0,6 | 0,7 | 1,0 | 1,4 | 2,0 | 2,8 | 3,5 |
| ||
| Maximum operating pressure | ||||||||||||||
| 03 | 70 bar | ○ | 70 | |||||||||||
| 100 bar | ○ | ○ | 100 | |||||||||||
| 140 bar | ○ | 140 | ||||||||||||
| 160 bar | ○ | ○ | 160 | |||||||||||
| 180 bar | ○ | 180 | ||||||||||||
| 200 bar | ○ | 200 | ||||||||||||
| 210 bar | ○ | ○ | 210 | |||||||||||
| 250 bar | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 250 | |||
| 330 bar | ● | 330 | ||||||||||||
| 350 bar | ○ | ○ | ○ | ○ | ○ | 350 | ||||||||
| Component series | ||||||||||||||
| 04 | Component series 10 … 19 (only with these nominal volume/pressure combinations) | 250 | 250 | 160 210250 | 160 | 330 | 100 180210250 | 200 250 | 140 250 | 100 250 | 70 350 | 350 | 1X | |
| Component series 20 … 29 (only with these nominal volume/pressure combinations) | 250 | 350 | 350 | 350 | 250 | 250 | 2X | |||||||
| Preload pressure | ||||||||||||||
| 05 | 0 bar | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 0 | |
| 1 ... 250 bar | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | 1 ... 250 | ||
| Port size for hydraulic fluid 1) | ||||||||||||||
| 06 | M14x1.5 | ○ | Z04 | |||||||||||
| M18x1.5 | ○ | ○ | ○ | ○ | ○ | Z06 | ||||||||
| M22x1.5 | ○ | ○ | ○ | ○ | Z08 | |||||||||
| G1/2 | ● | ● | ● | ● | ● | ● | ● | ● | ○ | ○ | G04 | |||
| G3/4 | ● | ● | ● | G05 | ||||||||||
| Type of mounting (oil port form) 1) | ||||||||||||||
| 07 | Mounting cavity | ○ | ○ | ○ | A | |||||||||
| Mounting cavity with external hexagon | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | C | ||
| Screw-in stud | ○ | ○ | F | |||||||||||
| Screw-in stud M33x1.5 with internal thread | ○ | ○ | ○ | E | ||||||||||
| Screw-in stud M45x1.5 with internal thread | ○ | ○ | ○ | E5 | ||||||||||
| Gas port form 1) | ||||||||||||||
| 08 | Standard | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 1 | |
| Cannot be refilled, welded on the gas side | ○ | 4 | ||||||||||||
| Diaphragm material | ||||||||||||||
| 09 | NBR | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | N | |
| ECO | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | E | |||||
| Tank material | ||||||||||||||
| 10 | Steel | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 1 | |
| Surface of the tank inside | ||||||||||||||
| 11 | Steel | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 1 | |
| Surface of the connection side | ||||||||||||||
| 12 | Steel | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 1 | |
| Certification (acceptance) 2) | ||||||||||||||
| 13 | Operating instructions | EU | ● | ● | ● | ● | ● | ● | ● | BA | ||||
| PED 2014/68/EU | EU | ● | ● | ● | ● | CE | ||||||||
| Operating instructions and TR CU 032/2013 | EU + Eurasian customs union | ○ | ○ | ○ | ○ | ○ | ○ | ○ | BA+ EAC | |||||
| TR CU 032/2013 | EU + Eurasian customs union | ○ | ○ | ○ | ○ | CE+ EAC | ||||||||
| Additional details | ||||||||||||||
| 14 | Further details in the plain text, e.g. special versions | * | ||||||||||||
|
| ||||||||||||||
| ● | Preferred program | |||||||||||||
| ○ | Delivery range | |||||||||||||
|
| Upon request | |||||||||||||
| 1) | Other ports upon request |
| 2) | Other certifications upon request |
| Design | Diaphragm type accumulator, welded | |
| Installation position | Any, preferably with the fluid connection socket at the bottom | |
| Mounting type | With clamps or via stud end connectors | |
| Ambient temperature range | °C | -15 … +65 |
| Line connection | Screw-in thread | |
| Surface | Painted, color glossy black |
| Nominal capacity | VNenn | l | 0.075 | 0.16 | 0.35 | 0.5 | 0.6 | 0.7 | 1 | 1.4 | 2 | 2.8 | 3.5 |
| Effective gas volume | Veff | l | 0.075 | 0.16 | 0.32 | 0.48 | 0.6 | 0.75 | 1 | 1.4 | 1.95 | 2.7 | 3.5 |
| Maximum flow | qmax | l/min | 10 | 10 | 40 | 40 | 40 | 40 | 40 | 40 | 60 | 60 | 60 |
| Maximum operating pressure | pmax | bar | - | - | - | - | - | 100 | - | - | 100 | 70 | - |
| bar | - | - | 160 | 160 | - | 180 | - | 140 | - | - | - | ||
| bar | - | - | 210 | 207 | 330 | 210 | 200 | - | - | - | - | ||
| bar | 250 | 250 | 250 | 250 | - | 250 | 250 | 250 | 250 | 250 | 250 | ||
| bar | - | - | - | - | - | 350 | - | 350 | 350 | 350 | 350 | ||
| Maximum admissible pressure fluctuation range | Δpdyn | bar | - | - | - | - | - | 50 | - | - | - | 50 | - |
| bar | - | - | 90 | 90 | - | 93 | - | - | - | - | - | ||
| bar | - | - | 120 | - | - | 93 | 115 | - | - | - | - | ||
| bar | 140 | 140 | 120 | 90 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | ||
| bar | - | - | - | - | - | 140 | - | 140 | 140 | 140 | 140 | ||
| Hydraulic fluid 1) | Hydraulic oil according to DIN 51524 | ||||||||||||
| Hydraulic fluid temperature range 1) | NBR | °C | -10 … +80 | ||||||||||
| ECO | °C | -35 … +80 | |||||||||||
| 1) | Other hydraulic fluids upon request. |
| Charging gas | Nitrogen only, at least cleanliness class 4.0, use N2 = 99.99 vol. %! | |
| Gas filling pressure 1) | p0 | See preferred types, chapter "Dimensions" |
| 1) | at 20 °C room temperature |
| Hydraulic fluid | Material |
| Mineral oils | NBR 1) ECO 2) |
| HFC | NBR 1) |
| 1) | Acrylonitrile butadiene rubber |
| 2) | Epichlorohydrin rubber |
Pressures
For the calculation of an accumulator, the following pressures are of significance:
p0 = gas precharge pressure (at room temperature and drained fluid chamber)
p0T = gas precharge pressure (at operating temperature)
p1 = minimum operating pressure
p2 = maximum operating pressure
tmax = maximum operating temperature
To achieve the best possible utilization of the accumulator capacity and a long service life, it is recommended that the following values be adhered to:
p0, tmax ≈ 0,9 p1 (1)
The highest hydraulic pressure should not exceed the quadruple of the precharge pressure; otherwise, the elasticity of the diaphragm is overstressed and excessive variations in the compression result in strong heating up of the gas.
The smaller the difference between p1 and p2 the longer is the service life of the diaphragm. However, this also reduces the degree of utilization of the corresponding maximum accumulator capacity.
Diaphragm-type accumulators
p2 ≤ 4 • p0 (2)
On request
p2 ≤ 8 • p0
Note!
To achieve an increased pressure ratio (p0:p2 > 1:4) in the accumulator, a filling piece can be installed on the gas side of the accumulator.
This reduces the usable gas volume V1, but the diaphragm is protected against impermissible deformation.
Oil volume
Pressures p0 … p2 determine gas volumes V0 … V2.
Here, V0 is also the nominal capacity of the accumulator.
The available oil volume ΔV corresponds to the difference beween gas volumes V1 and V2:
ΔV ≤ V1 - V2 (3)
The gas volume, which is variable within a pressure differential, is determined by the following equations:
p0 • V0 = p1 • V1 = p2 • V2 (4.1)
p0 • Vχ0 = p1 • Vχ1 = p2 • Vχ2 (4.2)
χ = ratio of the specific heat of gases (adiabatic exponent), for nitrogen = 1.4
In practice, changes in state rather follow adiabatic laws. Charging is often isothermal, discharging adiabatic.
Taking account of equations (1) and (2), ΔV is 50 % to 70 % of the nominal accumulator capacity. The following can be applied as a rule of thumb:
V0 = 1.5 … 3 x ΔV

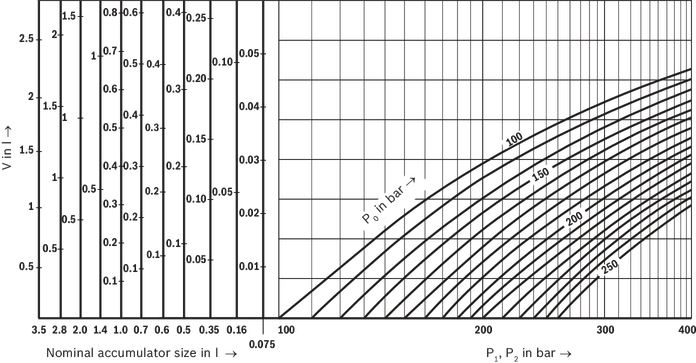

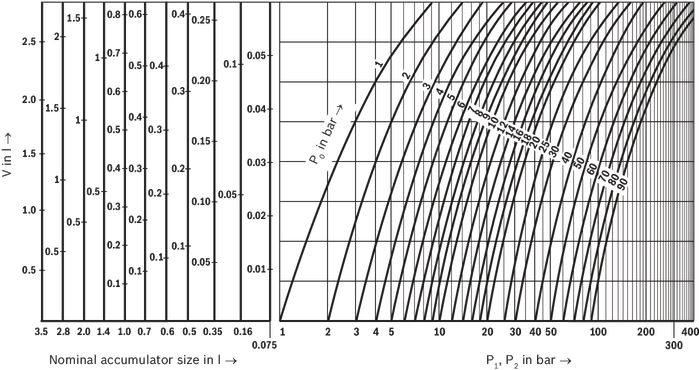

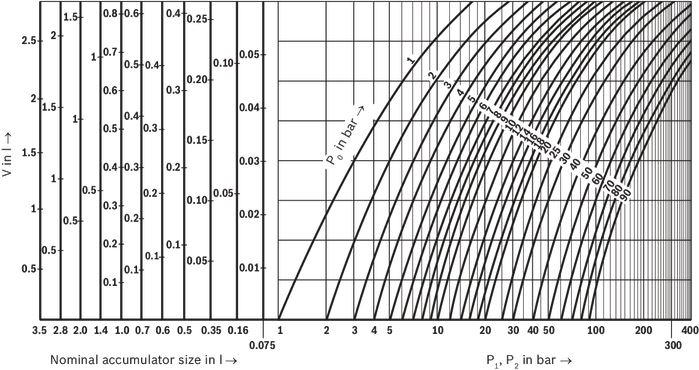

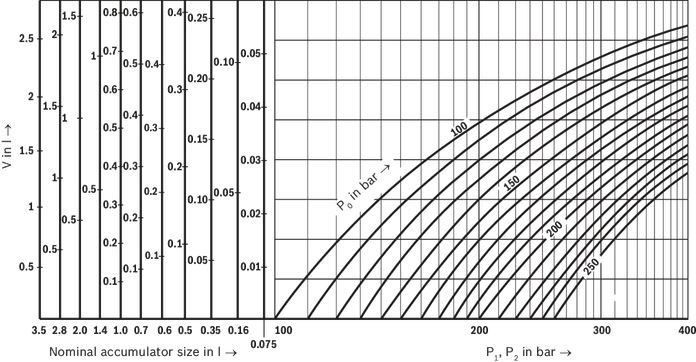

Calculation diagram
To allow a determination on the basis of a graphic representation, the formulas (4.1) and (4.2) were translated into diagrams. Depending on the task at hand, the available oil volume, the accumulator size or the pressures can be established.

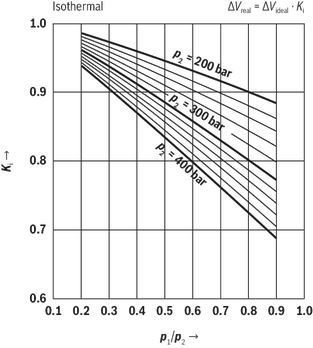

Correction factors Ki and Ka
Equations (4.1) and (4.2) are only valid for ideal gases. In the characteristics of real gases, significant deviations can be observed at operating pressures above 200 bar, which must be taken into account by applying correction factors. These are shown on the following diagrams. The correction factors which are to be multiplied by the ideal withdrawal volume ΔV are within the range of 0.6 … 1.






Applications
Various applications exist for hydro-pneumatic accumulators:
Mode of operation
Fluids are almost incompressible and therefore cannot store pressure energy. Hydro-pneumatic Rexroth accumulators use the compressibility of a gas for fluid storage. The used nitrogen must at least comply with cleanliness class 4.0:
N2 99.99 vol. %

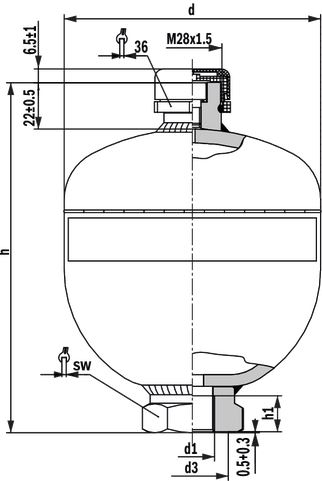

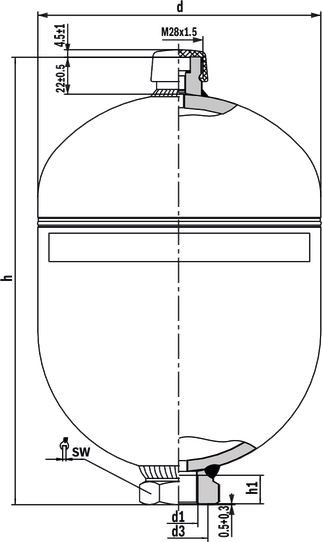

Dimensions in mm

| 1 | Lettering |
| 2 | Type of mounting E5 |
| 3 | Type of mounting C |
| 4 | Type of mounting A |
| 5 | Type of mounting F |
| 6 | Type of mounting E |
| Volume/pressure/series | Port size | Mounting type | h | h1 | h2 | Ød | d1 | d1 | Ød3 | SW | Weight | ||||
| min. | |||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | ||||||
| 0.075-250-1X | G04 | C | 110.5 | ± 1.5 | 14 | - | - | 64 | + 0.3 | G1/2 | - | 29 | + 0.4 | 32 | ≈ 0.9 |
| 0.075-250-1X | Z04 | F | 112 | ± 1.5 | - | 12 | ± 0.2 | 64 | + 0.3 | - | M14x1.5 | 19 | ± 0.2 | 19 | ≈ 0.7 |
| 0.16-250-1X | G04 | C | 119 | ± 1.5 | 14 | - | - | 75 | + 0.3 | G1/2 | - | 29 | + 0.4 | 32 | ≈ 0.9 |
| 0.16-250-1X | Z06 | F | 123 | ± 1.5 | - | 12 | ± 0.2 | 75 | + 0.3 | - | M18x1.5 | 23 | ± 0.2 | 27 | ≈ 0.9 |
| 0.35-160-1X | Z06 | A | 130 | ± 1.5 | 14 | - | - | 92.5 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | - | ≈ 1.3 |
| 0.35-160-1X | G04 | A | 130 | ± 1.5 | 14 | - | - | 92.5 | + 0.3 | G1/2 | - | 34 | + 0.4 | - | ≈ 1.3 |
| 0.35-210-1X | Z06 | C | 136 | ± 1.5 | 14 | - | - | 92.5 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | 41 | ≈ 1.4 |
| 0.35-210-1X | G04 | C | 136 | ± 1.5 | 17 | - | - | 92.5 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 1.4 |
| 0.35-250-1X | G04 | C | 141 | ± 1.5 | 17 | - | - | 95 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 1.7 |
| 0.5-160-1X | Z06 | C | 149 | ± 1.5 | 14 | - | - | 103 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | 41 | ≈ 1.6 |
| 0.5-160-1X | Z06 | A | 143 | ± 1.5 | 14 | - | - | 103 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | - | ≈ 1.5 |
| 0.5-160-1X | G04 | A | 143 | ± 1.5 | 14 | - | - | 103 | + 0.3 | G1/2 | - | 34 | + 0.4 | - | ≈ 1.6 |
| 0.5-250-2X | Z06 | C | 151 | ± 1.5 | 14 | - | - | 106.7 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | 41 | ≈ 2.1 |
| 0.5-250-2X | G04 | C | 151 | ± 1.5 | 17 | - | - | 106.7 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 2.1 |
| 0.6-330-1X | G04 | C | 170 | ± 1.5 | 17 | - | - | 110 | + 0.3 | G1/2 | - | 34 | + 0.4 | - | ≈ 2.9 |
| 0.7-100-1X | G04 | C | 161 | ± 1.5 | 14 | - | - | 117 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 1.7 |
| 0.7-100-1X | G04 | E | 172 | ± 1.5 | 24 | 18 | ± 0.2 | 117 | + 0.3 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 2 |
| 0.7-180-1X | G04 | C | 166 | ± 1.5 | 17 | - | - | 121.5 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 2.6 |
| 0.7-180-1X | Z06 | C | 166 | ± 1.5 | 14 | - | - | 121.5 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | 41 | ≈ 3 |
| 0.7-180-1X | Z06 | A | 160 | ± 1.5 | 14 | - | - | 121.5 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | - | ≈ 2.6 |
| 0.7-180-1X | G04 | A | 160 | ± 1.5 | 14 | - | - | 121.5 | + 0.3 | G1/2 | - | 34 | + 0.4 | - | ≈ 2.6 |
| 0.7-180-1X | G04 | E | 177 | ± 1.5 | 24 | 18 | ± 0.2 | 121.5 | + 0.3 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 2.6 |
| 0.7-210-1X | G04 | C | 166 | ± 1.5 | 14 | - | - | 121.5 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 2.6 |
| 0.7-210-1X | G04 | E | 177 | ± 1.5 | 24 | 18 | ± 0.2 | 121.5 | + 0.3 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 2.7 |
| 0.7-250-1X | G04 | C | 169 | ± 1.5 | 17 | - | - | 123.6 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 3.2 |
| 0.7-250-1X | Z06 | A | 163 | ± 1.5 | 14 | - | - | 123.6 | + 0.3 | M18x1.5 | - | 30 | + 0.4 | - | ≈ 2.9 |
| 0.7-250-1X | G04 | A | 163 | ± 1.5 | 14 | - | - | 123.6 | + 0.3 | G1/2 | - | 34 | + 0.4 | - | ≈ 2.9 |
| 0.7-350-2X | G04 | C | 173 | ± 1.5 | 14 | - | - | 128.5 | + 0.6 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 4 |
| 0.7-350-2X | G04 | E | 184 | ± 1.5 | 24 | 18 | ± 0.2 | 128.5 | + 0.6 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 4 |
| 1,0-200-1X | G04 | C | 180 | ± 1.5 | 14 | - | - | 136.2 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 3.5 |
| 1,0-200-1X | Z08 | C | 180 | ± 1.5 | 17 | - | - | 136.2 | + 0.3 | M22x1.5 | - | 34 | + 0.4 | 41 | ≈ 3.5 |
| 1,0-200-1X | G04 | E | 191 | ± 1.5 | 24 | 18 | ± 0.2 | 136.2 | + 0.3 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 3.6 |
| 1,0-250-1X | G04 | C | 181 | ± 1.5 | 17 | - | - | 137 | + 0.3 | G1/2 | - | 34 | + 0.3 | 41 | ≈ 3.8 |
| 1.4-140-1X | G04 | C | 191 | ± 1.5 | 14 | - | - | 147 | + 0.6 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 4.3 |
| 1.4-140-1X | G04 | E | 202 | ± 1.5 | 24 | 18 | ± 0.2 | 147 | + 0.6 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 4.2 |
| 1.4-250-1X | G04 | C | 195 | ± 1.5 | 14 | - | - | 152 | + 0.6 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 5.5 |
| 1.4-250-1X | Z08 | C | 195 | ± 1.5 | 14 | - | - | 152 | + 0.6 | M22x1.5 | - | 34 | + 0.4 | 41 | ≈ 5.5 |
| 1.4-250-1X | G04 | E | 206 | ± 1.5 | 24 | 18 | ± 0.2 | 152 | + 0.6 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 5.5 |
| 1.4-350-2X | G04 | C | 198 | ± 1.5 | 14 | - | - | 156 | + 0.6 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 6.8 |
| 1.4-350-2X | G04 | E | 209 | ± 1.5 | 24 | 18 | ± 0.2 | 156 | + 0.6 | G1/2 | M33x1.5 | 39 | ± 0.3 | 41 | ≈ 6.8 |
| 2.0-100-1X | G04 | C | 240 | ± 2 | 17 | - | - | 144.7 | + 0.5 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 4.1 |
| 2.0-100-1X | Z08 | C | 240 | ± 2 | 14 | - | - | 144.7 | + 0.5 | M22x1.5 | - | 34 | + 0.4 | 41 | ≈ 4.1 |
| 2.0-100-1X | G05 | E5 | 258 | ± 1.5 | 16 | 20 | ± 0.2 | 144.7 | + 0.5 | G3/4 | M45x1.5 | 49 | ± 0.3 | 50 | ≈ 4.3 |
| 2.0-250-1X | G04 | C | 251 | ± 1.5 | 14 | - | - | 156 | + 0.6 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 8.6 |
| 2.0-250-1X | Z08 | C | 251 | ± 1.5 | 14 | - | - | 156 | + 0.6 | M22x1.5 | - | 34 | + 0.4 | 41 | ≈ 8.6 |
| 2.0-250-1X | G05 | C | 251 | ± 0.5 | 16 | - | - | 156 | + 0.6 | G3/4 | - | 33 | + 0.4 | 41 | ≈ 8.6 |
| 2.0-250-1X | G05 | E5 | 269 | ± 1.5 | 16 | 20 | ± 0.5 | 156 | + 0.6 | G3/4 | M45x1.5 | 49 | ± 0.3 | 50 | ≈ 8.9 |
| 2.0-350-2X | G05 | C | 251 | ± 1.5 | 14 | - | - | 156 | + 0.6 | G3/4 | - | 33 | + 0.4 | 41 | ≈ 9.5 |
| 2.0-350-2X | G05 | E5 | 269 | ± 1.5 | 16 | 20 | ± 0.5 | 156 | + 0.6 | G3/4 | M45x1.5 | 49 | ± 0.3 | 50 | ≈ 8.9 |
| 2.8-70-1X | G04 | C | 266 | ± 2 | 17 | - | - | 160 | + 0.3 | G1/2 | - | 34 | + 0.4 | 41 | ≈ 10 |
| 2.8-70-1X | Z08 | C | 266 | ± 2 | 17 | - | - | 160 | + 0.3 | M22x1.5 | - | 34 | + 0.4 | 41 | ≈ 10 |
| 2.8-250-2X | Z08 | C | 267 | ± 1.5 | 17 | - | - | 168.5 | ± 1.5 | M22x1.5 | - | 34 | + 0.4 | 41 | ≈ 8 |
| 2.8-250-2X | G05 | C | 267 | ± 1.5 | 16 | - | - | 168.5 | ± 1.5 | G1/2 | - | 33 | + 0.4 | 41 | ≈ 8.3 |
| 2.8-250-2X | G05 | E5 | 286 | ± 1.5 | 16 | 20 | ± 0.5 | 168.5 | ± 1.5 | G3/4 | M45x1.5 | 49 | ± 0.3 | 50 | ≈ 9 |
| 2.8-350-1X | G05 | C | 264 | ± 1 | 16 | - | - | 180 | + 0.3 | G3/4 | - | 34 | + 0.4 | 55 | ≈ 13.1 |
| 2.8-350-1X | G05 | E5 | 285 | ± 1 | 16 | 20 | ± 0.5 | 180 | + 0.3 | G3/4 | M45x1.5 | 53 | - 0.8 | 55 | ≈ 13.3 |
| 3.5-250-2X | G05 | C | 312 | ± 1.5 | 16 | - | - | 168.5 | ± 1.5 | G3/4 | - | 33 | + 0.4 | 41 | ≈ 9.6 |
| 3.5-250-2X | G05 | E5 | 331 | ± 1.5 | 16 | 20 | ± 0.5 | 168.5 | ± 1.5 | G3/4 | M45x1.5 | 49 | ± 0.3 | 50 | ≈ 9.8 |
| 3.5-350-1X | G05 | C | 304 | ± 1 | 16 | - | - | 180 | + 0.3 | G3/4 | - | 34 | + 0.4 | 55 | ≈ 16.5 |
| 3.5-350-1X | G05 | E5 | 325 | ± 1 | 16 | 20 | ± 0.5 | 180 | + 0.3 | G3/4 | M45x1.5 | 53 | - 0.8 | 55 | ≈ 16.2 |
Dimensions in mm

| Ordering code/type | Volume/pressure/series | Material number | h | h1 | Ød | d1 | Ød3 | SW | Weight | |||
| min. | ||||||||||||
| mm | mm | mm | mm | mm | mm | mm | kg | |||||
| HAD0,075-250-1X/0G04C-1N111-BA | 0.075-250-1X | R901359266 | 110.5 | ± 1.5 | 14 | 64 | + 0.3 | G1/2 | 29 | + 0.4 | 32 | ≈ 0.9 |
| HAD0,16-250-1X/0G04C-1N111-BA | 0.16-250-1X | R901359268 | 119 | ± 1.5 | 14 | 75 | + 0.3 | G1/2 | 29 | + 0.4 | 32 | ≈ 0.9 |
| HAD0,35-250-1X/0G04C-1N111-BA | 0.35-250-1X | R901461019 | 141 | ± 1.5 | 17 | 95 | + 0.3 | G1/2 | 34 | + 0.4 | 41 | ≈ 1.7 |
| HAD0,5-250-2X/0G04C-1N111-BA | 0.5-250-2X | R901463743 | 151 | ± 1.5 | 17 | 106.7 | + 0.3 | G1/2 | 34 | + 0.4 | 41 | ≈ 2.1 |
| HAD0,6-330-1X/0G04C-1N111-BA | 0.6-330-1X | R901445989 | 170 | ± 1.5 | 17 | 110 | + 0.3 | G1/2 | 34 | + 0.4 | 41 | ≈ 2.9 |
| HAD0,7-250-1X/0G04C-1N111-BA | 0.7-250-1X | R901463745 | 169 | ± 1.5 | 17 | 123.6 | + 0.3 | G1/2 | 34 | + 0.4 | 41 | ≈ 3 |
| HAD1,0-250-1X/0G04C-1N111-BA | 1,0-250-1X | R901461023 | 181 | ± 1.5 | 17 | 137 | + 0.3 | G1/2 | 34 | + 0.4 | 41 | ≈ 3.8 |
Dimensions in mm

| Ordering code/type | Volume/pressure/series | Material number | h | h1 | Ød | d1 | Ød3 | SW | Weight | |||
| min. | ||||||||||||
| mm | mm | mm | mm | mm | mm | mm | kg | |||||
| HAD1,4-250-1X/0G04C-1N111-CE | 1.4-250-1X | R901463746 | 195 | ± 1.5 | 14 | 152 | + 0.6 | G1/2 | 34 | + 0.4 | 41 | ≈ 5.5 |
| HAD2,0-250-1X/0G05C-1N111-CE | 2.0-250-1X | R901463747 | 251 | ± 1.5 | 16 | 156 | + 0.6 | G3/4 | 33 | + 0.4 | 41 | ≈ 8.6 |
| HAD2,8-250-2X/0G05C-1N111-CE | 2.8-250-2X | R901463748 | 267 | ± 1.5 | 16 | 168.5 | ± 1.5 | G3/4 | 33 | + 0.4 | 41 | ≈ 8.3 |
| HAD3,5-250-2X/0G05C-1N111-CE | 3.5-250-2X | R901463764 | 312 | ± 1.5 | 16 | 168.5 | ± 1.5 | G3/4 | 33 | + 0.4 | 41 | ≈ 9.6 |
Diaphragm-type accumulators are usually delivered in condition ready for operation. The charging pressure (p0) is engraved on the accumulator housing.
Hydro-pneumatic accumulators must only be filled with nitrogen of class 4.0, pure N2 content of 99.99 vol. %.
In "standard version", Rexroth hydro-pneumatic accumulators are suitable for operating temperatures of –15 ... +80 °C.
For deviating temperatures, please contact Bosch Rexroth.
Diaphragm-type accumulators may be installed in any installation position.
Above the gas valve, an installation space of 200 mm must be provided for testing and charging devices.
When mounting the accumulator, make sure that possible forces, such as the ones created by vibrations or acceleration specific for that application, are absorbed safely. When using several mounting points, avoid stress caused by operational, elastic deformations or temperature expansions.
Bosch Rexroth offers corresponding mounting clamps (see chapter "Accessories" - section "Mounting clamps").
| Language | Operating instructions |
| German | RD 50150-B |
| English | RE 50150-B |
| Spanish | RS 50150-B |
| French | RF 50150-B |
| Italian | RI 50150-B |
| Russian | R-RS 50150-B |
| Czech | R-CZ 50150-B |
| Polish | R-PL 50150-B |
| Chinese | RC 50150-B |
| Turkish | RT 50150-B |
| Type | Declaration of conformity |
| HAD up to 1.0 | – |
| HAD1,4-140-1X | RA50835411 |
| HAD1,4-250-1X | RA50835430 |
| HAD1,4-350-1X | RA50835474 |
| HAD2,0-100-1X | RA50835499 |
| HAD2,0-250-1X | RA50835536 |
| HAD2,0-350-2X | RA50835604 |
| HAD2,8-70-1X | RA50835627 |
| HAD2,8-250-2X | RA50835731 |
| HAD2,8-350-1X | RA50835846 |
| HAD3,5-250-2X | RA50835875 |
| HAD3,5-350-1X | RA50835914 |
Please select the matching type according to data sheet 50131.
Dimensions in mm

| Accumulators | Block |
|
|
| D1 | D2 | ØD3 | Material number |
| mm | |||
| M22x1.5 | M33x1.5 | 12 | 1 533 359 012 |
| M18x1.5 | 8 | 1 533 359 013 | |
| G1/2 ISO 228 | 1 533 359 034 |

| Type | Material number | Denomination |
| HAD0,075-250-1X | - | |
| HAD0,16-250-1X | - | |
| HAD0,35-160-1X HAD0,35-210-1X HAD0,35-211-1X | 1531316017 | Mounting clamp 92 ... 97 mm |
| HAD0,5-160-1X HAD0,5-250-2X | 1531316018 | Mounting clamp 101 ... 111 mm |
| HAD0,6-330-1X | 1531316021 | Mounting clamp 110 ... 120 mm 1) |
| HAD0,7-100-1X | 1531316021 | Mounting clamp 110 ... 120 mm 1) |
| HAD0,7-180-1X HAD0,7-207-1X HAD0,7-210-1X HAD0,7-250-1X | 1531316015 | Mounting clamp 119 ... 128 mm |
| HAD0,7-350-2X | R901073992 | Mounting clamp 128 ... 136 mm |
| HAD1,0-200-1X | 1531316019 | Mounting clamp 135 ... 145 mm |
| HAD1,4-140-1X HAD1,4-207-1X HAD1,4-250-1X HAD1,4-350-2X | 1531316016 | Mounting clamp 145 ... 155 mm |
| HAD2,0-100-1X HAD2,0-207-1X HAD2,0-250-1X HAD2,0-350-2X | 1531316016 | Mounting clamp 145 ... 155 mm |
| HAD2,8-70-1X HAD2,8-250-2X | 1531316022 | Mounting clamp 160 ... 170 mm 1) |
| HAD2,8-350-1X | 1531316020 | Mounting clamp 170 ... 180 mm |
| HAD3,5-250-2X HAD3,5-350-1X | 1531316020 | Mounting clamp 170 ... 180 mm |
| 1) | Usable for HAD and HAB |

| Test case | Material number |
| for diaphragm-type accumulator (HAD) | 0538103012 |
| for bladder and diaphragm accumulator (HAB/HAD) | 0538103014 |
| Spare parts | |
| Case (wihout contents) | R901079781 |
| Charging and test valve HAB | 0538103005 |
| Charging and test valve HAD | 0538103006 |
| Pressure gauge 0 … 250 bar | 1537231001 |
| Hose l = 2.5 m with adapter piece form "D" | 1530712005 |
| Accessory parts to be ordered separately | Material number | |
| Pressure gauge 0 … 25 bar | R900033955 | |
| Pressure gauge 0 … 60 bar | 1537231002 | |
| Pressure gauge 0 … 400 bar | 1537231005 | |
| Adapter piece | Form "F" | 1533391010 |
| Form "GB" | 1533391011 | |
| Form "USA" | 1533391012 | |
| Form "KR" | 1533391013 | |
| Form "J" | R900216133 | |
| Form "RUS" | 1533391015 | |
| Hose l = 5 m with transition socket form “D” | 1530712006 | |

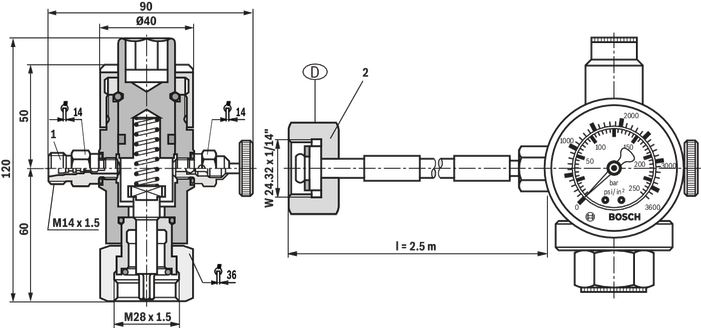

Dimensions in mm

| 1 | Spare part, material number: 1537410065 |
| 2 | Adapter, see tables "Adapter for nitrogen bottle to cap nut" |
Material no. 1533391010 | Material no. 1533391013 | Material no. R900034782 |
Material no. 1533391011 | Material no. R900216133 | Material no. R900708208 |
Material no. 1533391012 | Material no. 1533391015 | Material no. R901070776 |
| Country 1) | Material number | ||||||||
| 1533391010 | 1533391011 | 1533391012 | 1533391013 | R900216133 | 1533391015 | R900034782 | R900708208 | R901070776 | |
| Brazil | x | ||||||||
| Bulgaria | x | ||||||||
| China | x | ||||||||
| France | x | ||||||||
| Greece | x | ||||||||
| Great Britain | x | ||||||||
| India | x | ||||||||
| Italy | x | ||||||||
| Japan | x | ||||||||
| Canada | x | ||||||||
| Korea North | x | ||||||||
| Korea South | x | ||||||||
| Malaysia | x | ||||||||
| Mexico | x | ||||||||
| Romania | x | ||||||||
| Russia | x | ||||||||
| Spain | x | ||||||||
| Saudi Arabia | x | ||||||||
| Singapore | x | ||||||||
| Taiwan | x | ||||||||
| Turkey | x | ||||||||
| USA | x | ||||||||
| 1) | Other countries on request. |

| 1) | The warning sign can be directly attached at the accumulator as of nominal volume 0.35 l. |
| 2) | The warning sign is available for order as of a batch size of 100 units. |
| Warning sign | Material number |
| for diaphragm-type accumulator (HAD) | R901441614 |
Rexroth diaphragm-type accumulators type HAD..-1X/2X are intended for the set-up of hydraulic drive systems in stationary mechanical engineering and plant construction.
In mobile applications or applications in which acceleration forces are applied to the diaphragm-type accumulator during intended use, its use is permitted only following release by the competent Rexroth product manager. Please contact technical sales for this.
Rexroth diaphragm-type accumulators type HAD..-1X/2X are not intended for private use.
Diaphragm-type accumulators have to be safely and permanently fastened to the machine or system using mounting elements. The fastening is intended to keep the oil port tension-free. Particularly, no tension forces or static or dynamic inertia forces should be applied to the oil port.
Thermal expansion of the supporting structure and vibrations originating from the environment should be considered in the selection of suitable mounting points.
The machine end-user is required to enclose operating instructions RE 50150-B for the machine or system and the CE Declaration of Conformity for containers > 1 liters.
General information for hydro-pneumatic accumulators in hydraulic system can be found in DIN EN ISO 4413.
Keep all documents included in the delivery in a safe place. They will be required by the expert in recurring tests.
Hydro-pneumatic accumulators are pressure vessels and subject to the application national provisions and/or regulations valid at the place of installation.
In Germany, the Ordinance on Industrial Safety and Health (BetrSichV) applies.
In special applications, additional regulations for shipbuilding, aircraft construction or mining may apply.
According to Ordinance on Industrial Safety and Health (BetrSichV), only authorized persons may carry out tests. Authorized persons are such persons having obtained the required expert knowledge through professional training, experience and recent professional activity.
Hydro-pneumatic accumulators have to be secured against operation outside of the admissible limits according to Pressure Equipment Directive 2014/68/EU.
In order not to exceed the maximum operating pressure, Bosch Rexroth recommends the use of an accumulator shut-off block type ABZSS according to data sheet 50131.
AMounting cavity
CMounting cavity with external hexagon
EScrew-in stud M33x1,5 with internal thread
E5Screw-in stud M45x1,5 with internal thread
FScrew-in stud
Gas port formStandardFurther implementations on request1StandardDiaphragm materialFurther implementations on requestAcrylonitrile-Butadiene-RubberNNBREpichlorhydrin-RubberEECOFluor-RubberFFKMApprovalFurther implementations on requestBAOperating instruction (EU)CEPED 2014/68/EU (EU)You have successfully finished your selection.DocumentationAdd to basketProduct descriptionData sheetRequest CADType code:HAD--/-1111-
Material number:| The following data were selected. | ||
|---|---|---|
| Gas port form | 1 | Standard |
Официальный поставщик Bosch Rexroth
Продажи на территории России
Оптовые и розничные продажи
Снижение логистических расходов
Индивидуальные условия
Выгода без посредников
Единая система поставок
Весь ассортимент на складе
