Forms 931, 93, 93A
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Product description
Product overview
Technical data
Technical notes
Fields of application

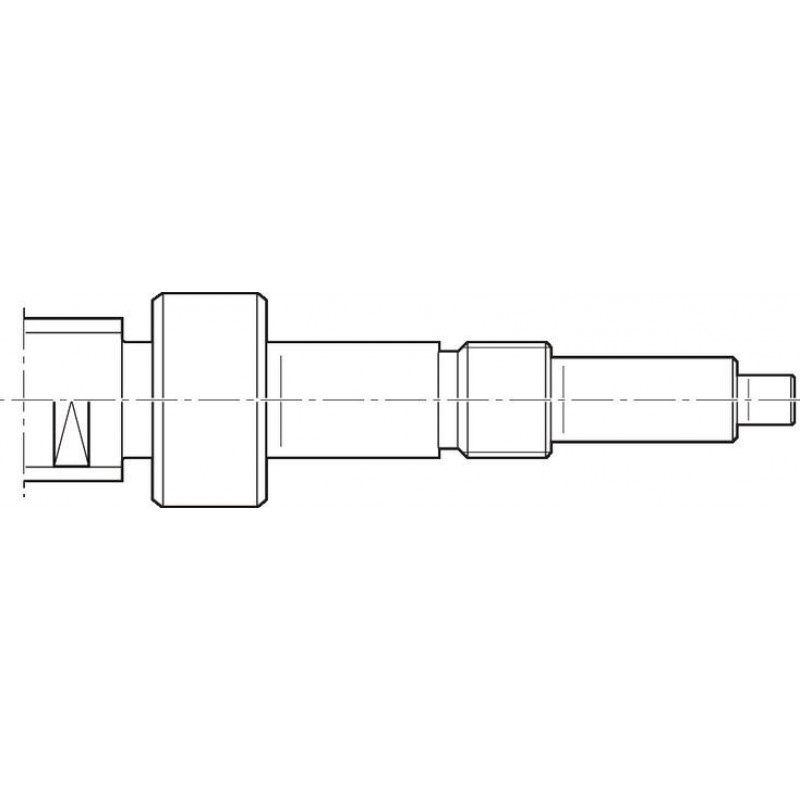

End bearings for screw ends in Forms 931, 93, 93A, 941, 94, 94A
| Pillow Block Unit SEB-F assembly | ||
 | ||
| Application | Bearing assembly LAF | Bearing assembly LAN |
 |  Shown with slotted nut NMA |  Shown with slotted nut NMZ |
Components
End bearings for screw ends
| Form | Version 1) | Size | Pillow block unit assembly | Bearing assembly | ||
| SEB-F | LAF | LAN | ||||
| d0 | P | Part number | Part number | Part number | ||
| 931 | 060 | 8 | 1/2/2,5/5 | R159110620 | - | R159010600 |
| 120 | 12 | 2/5/10 | R159111220 | R159011200 | ||
| 170 | 16 | 5/10/16 | R159111730 | R159001730 | R159011730 | |
| 93/93A | 200 | 20 | 5/10/20 | R159112030 | R159002030 | R159012030 |
| 250 | 25 | 5/10/25 | - | - | - | |
| 300 | 32 | 5/10/20/32 | R159113030 | R159003030 | R159013030 | |
| 400 | 40 | 5/10/12/16/20 | R159114030 | R159004030 | R159014030 | |
| 500 | 50 | 10/12/20 | R159115030 | R159005030 | R159015030 | |
| 1) | The allocation of screw ends to the bearing assemblies is clearly defined by the version. |
Legend
| Symbol | Description |
| d0 | Nominal diameter |
| P | Lead |
Slotted nuts NMA for fixed bearings
Slotted nuts NMA for fixed bearings
- For maximum vibratory loads
- For new designs
Slotted nuts NMZ for fixed bearings
Slotted nuts NMZ for fixed bearings
- For existing designs
- For timing belt side drive
- For driven nuts

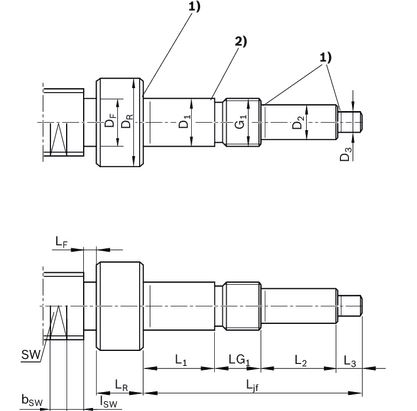

Dimensions
| 1) | Undercut form E DIN 509 |
| 2) | Thread undercut 76 short |
Dimensions and technical data
| Form | Version 1) | Rexroth Ball Screw Assembly size | Dimensions | Wrench size | |||||||||||||||
| d0 | P | Ljf | D1 | L1 | D2 | L2 | D3 | L3 | G1 | LG1 | DR | LR | DF | LF max | SW | bsw | lsw | ||
| h11 | h7 | h7 | |||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||||
| 931 | 060 | 8 | 1/2/2,5/5 | 50 | 6 | 14 | 5 | 16 | 4 | 10 | M6x0,5 | 10 | 12 | 15 | 6 | 1 | - | - | - |
| 120 | 12 | 2/5/10 | 75 | 12 | 23 | 10 | 25 | 6 | 15 | M12x1 | 12 | 16 | 8 | ||||||
| 170 | 16 | 5/10/16 | 90 | 17 | 15 | 30 | M17x1 | 22 | 23 | 17 | 12 | ||||||||
| 93/93A | 200 | 20 | 5/10/20 | 103 | 20 | 26 | 18 | 40 | M20x1 | 25 | 15 | 16.5 | 8 | 15 | 10 | 8.5 | |||
| 250 | 25 | 5/10/25 | 117 | 25 | 22 | 50 | M25x1,5 | 26 | 32 | 21 | 19 | 10.5 | |||||||
| 300 | 32 | 5/10/20/32 | 116 | 30 | 25 | 25 | M30x1,5 | 40 | 20 | 28 | 24 | 15 | |||||||
| 400 | 40 | 5/10/12/16/20 | 147 | 40 | 44 | 36 | 60 | M40x1,5 | 28 | 50 | 33.5 | 30 | 12.5 | ||||||
| 500 | 50 | 10/12/20 | 169 | 50 | 52 | 40 | 70 | M50x1,5 | 32 | 60 | 43.5 | 41 | 22 | 15.5 | |||||
| 1) | The allocation of screw ends to the bearing assemblies is clearly defined by the version. |
Legend
| Symbol | Description |
| d0 | Nominal diameter |
| P | Lead |
Project planning information
Separate technical size selection of the permissible drive torque is essential in all cases.
Calculation
Mounting
load errorAccessories
Pillow Block Unit SEB-F assembly
Pillow Block Unit SEB-F assembly
- The pillow block unit consists of:
- Precision pillow block housing made of steel with reference edges on both sides
- Angular-contact thrust ball bearing LGN
- Slotted nut NMA or NMZ
- Threaded Rings GWR
Bearing assembly LAN
BASA
Bearing assembly LAN
BASA
- The fixed bearing consists of:
- Angular-contact thrust ball bearing LGN
- Slotted nut NMA or NMZ
- Suitable for screw ends in Forms 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931
Assembly tool for slotted nut
Assembly tool for slotted nut
- General-purpose socket wrench insert for slotted nuts NMA / NMZ
- Available on request
Certification
load errorSafety Instructions
load errorDownloads
 | Ball Screw Assemblies Manual | R320103992 | 2011-06-01 | English, French, German, Italian | PDF | 2MB Product Groups: Linear Screw Assemblies |
| Ball Screw Assemblies Manual | R320103993 | 2011-06-01 | English, German, Spanish, Portuguese | PDF | 2MB Product Groups: Linear Screw Assemblies only PDF |
| Catalog screw assemblies Catalog | R999001185 | 2021-04-01 | English | PDF | 30.7MB Product Groups: Ball Screw Assemblies, Planetary Screw Assemblies Only available as PDF - Ball screw assemblies BASA/Planetary screw assemblies PLSA |
