Forms 52, 52A
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
Product description
Product overview
Technical data
Technical notes
Components
Legend
| Symbol | Description |
| d0 | Nominal diameter |
| P | Lead |

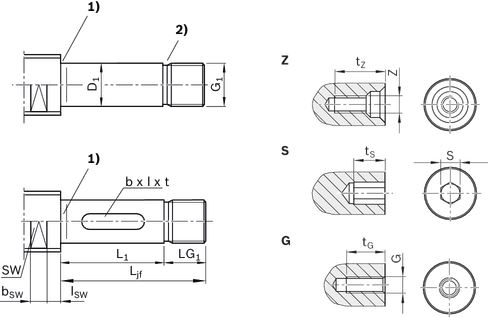

Dimensions
Dimensions and technical data
| Form | Version 1) | Rexroth Ball Screw Assembly size | Dimensions | Keyway as per DIN 6885 | Centering hole | Hex socket | Thread | Wrench size | ||||||||||||
| d0 | P | Ljf | D1 | L1 | G1 | LG1 | b | l | t | Z | tz | S | ts | G | tG | SW | bsw | lsw | ||
| h11 | P9 | |||||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||||||
| 52/52A | 080 | 12 | 2/5/10 | 30 | 8 | 20 | M8x0,75 | 10 | 2 | 14 | 1.2 | M3 | 9 | - | - | M3 | 5 | 9 | 10 | 8.5 |
| 100 | 16 | 5/10/16 | 37 | 10 | 25 | M10x1 | 12 | 3 | 20 | 1.8 | 4 | 4 | M4 | 6 | 11 | |||||
| 120 | 20 | 5/10/20/40 | 12 | M12x1 | 4 | 2.5 | M4 | 10 | M5 | 8 | 15 | |||||||||
| 170 | 25 | 5/10/25 | 52 | 17 | 30 | M17x1 | 22 | 5 | 25 | 3 | M6 | 16 | 5 | 5 | M6 | 9 | 19 | 10.5 | ||
| 200 | 32 | 5/10/20/32/64 | 62 | 20 | 40 | M20x1 | 6 | 28 | 3.5 | M8 | 12 | 24 | 15 | |||||||
| 250 | 40 | 5/10/12/16/20/25/30/40 | 76 | 25 | 50 | M25x1,5 | 26 | 8 | 36 | 4 | M10 | 22 | 8 | 8 | M10 | 15 | 30 | 12.5 | ||
| 300 | 30 | M30x1,5 | 10 | 10 | M12 | 18 | ||||||||||||||
| 350 | 50 | 5/10/12/16/20/25/40 | 78 | 35 | M35x1,5 | 28 | 10 | 40 | 5 | M12 | 28 | 12 | 12 | 41 | 22 | 15.5 | ||||
| 400 | 63 | 10/20/40 | 88 | 40 | 60 | M40x1,5 | 12 | 50 | M16 | 36 | M16 | 24 | 50 | 27 | 16.5 | |||||
| 500 | 80 | 112 | 50 | 80 | M50x1,5 | 32 | 14 | 63 | 5.5 | 19 | 19 | M20 | 30 | 60 | 18.5 | |||||
| 1) | The allocation of screw ends to the bearing assemblies is clearly defined by the version. |
