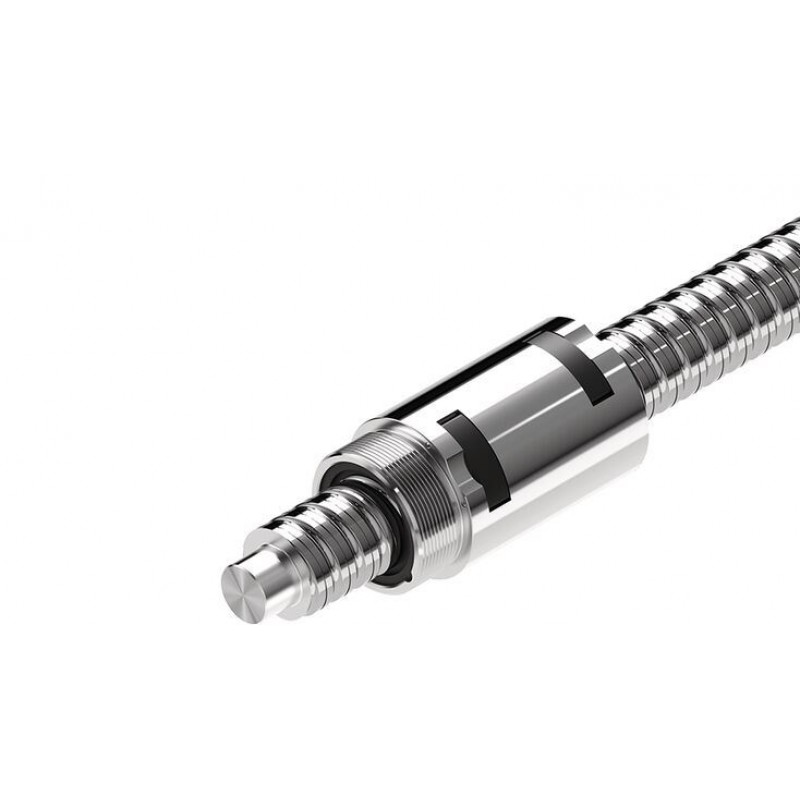

Screw-in nut ZEV-E-S
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Description
- Rexroth connection dimensions
- With low-friction seal
- Preload class: C0, C00, C1
- Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7
Product description
Product overview
Technical data
Technical data for nuts
| Size | C | C0 | vmax | Mass |
| d0 x P x Dw - i | N | N | m/min | kg |
| 16 x 5R x 3 - 3 | 11300 1) | 11800 1) | 30 2) | 0.14 |
| 16 x 10R x 3 - 3 | 11500 1) | 12300 1) | 60 2) | 0.21 |
| 20 x 5R x 3 - 4 | 17200 1) | 21500 1) | 30 2) | 0.25 |
| 25 x 5R x 3 - 7 | 31400 1) | 48700 1) | 24 2) | 0.36 |
| 25 x 10R x 3 - 5 | 23200 1) | 34200 1) | 48 2) | 0.45 |
| 32 x 5R x 3,5 - 5 | 31700 1) | 50600 1) | 18.8 2) | 0.58 |
| 32 x 10R x 3,969 - 5 | 38000 1) | 58300 1) | 37.5 2) | 0.88 |
| 1) | The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| 2) | See "characteristic speed d0 • n" (see General Technical Notes and Information "Technical Data" (Technical Notes), and "Critical Speed ncr" (see General Technical Notes and Information, "Project planning notes") |
Operating conditions
| Size | Admissible operating temperature (min ... max) 1) | Admissible storage temperature (min ... max) |
| d0 x P x Dw - i | ||
| 16 x 5R x 3 - 3 | -10 °C ... +80 °C | -15 °C ... +80 °C |
| 16 x 10R x 3 - 3 | ||
| 20 x 5R x 3 - 4 | ||
| 25 x 5R x 3 - 7 | ||
| 25 x 10R x 3 - 5 | ||
| 32 x 5R x 3,5 - 5 | ||
| 32 x 10R x 3,969 - 5 |
| 1) | Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut). |
Legend
| Symbol | Description | Unit |
| d0 | Nominal diameter | mm |
| P | Lead (R = right-hand) | |
| Dw | Ball diameter | mm |
| i | Number of ball track turns | |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| vmax | Maximum permissible speed | m/min |
Technical notes
Dimensions
| 1) | Lube port |
| 2) | Bore for assembly wrench |

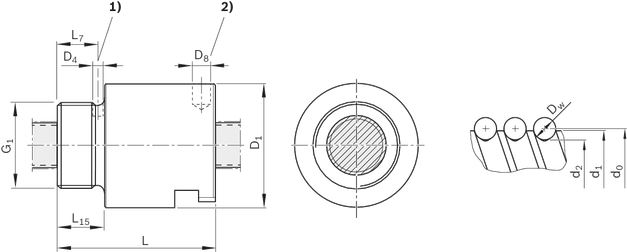

Dimensions
| Size | d1 | d2 | D1 | D4 | D8 | G1 | L | L7 | L15 |
| h10 | |||||||||
| mm | mm | mm | mm | mm | mm | mm | |||
| 16 x 5R x 3 - 3 | 15 | 12.9 | 32.5 | 2.7 | 4.2 | M26x1,5 | 40 mm ±0.3 | 10.5 | 12 |
| 16 x 10R x 3 - 3 | 54 mm ±0.3 | ||||||||
| 20 x 5R x 3 - 4 | 19 | 16.9 | 38 | 8 | M35x1,5 | 50 mm ±0.3 | 12.5 | 14 | |
| 25 x 5R x 3 - 7 | 24 | 21.9 | 43 | 1.5 | M40x1,5 | 60 mm ±0.3 | 17.5 | 19 | |
| 25 x 10R x 3 - 5 | 2 | 74 mm ±0.3 | 17.7 | ||||||
| 32 x 5R x 3,5 - 5 | 31 | 28.4 | 54 | 2.7 | M48x1,5 | 69 mm ±0.3 | 17.5 | ||
| 32 x 10R x 3,969 - 5 | 27.9 | 95 mm ±0.3 |
Legend
| Symbol | Description | Unit |
| d0 | Nominal diameter | mm |
| P | Lead (R = right-hand) | |
| Dw | Ball diameter | mm |
| i | Number of ball track turns |
Project planning information
Calculation
Mounting
Installation
Maintenance
Lubrication
Certification
load errorSafety Instructions
load errorDownloads
 | Ball Screw Assemblies Manual | R320103992 | 2011-06-01 | English, French, German, Italian | PDF | 2MB Product Groups: Linear Screw Assemblies |
| Ball Screw Assemblies Manual | R320103993 | 2011-06-01 | English, German, Spanish, Portuguese | PDF | 2MB Product Groups: Linear Screw Assemblies only PDF |
| Catalog screw assemblies Catalog | R999001185 | 2021-04-01 | English | PDF | 30.7MB Product Groups: Ball Screw Assemblies, Planetary Screw Assemblies Only available as PDF - Ball screw assemblies BASA/Planetary screw assemblies PLSA |
