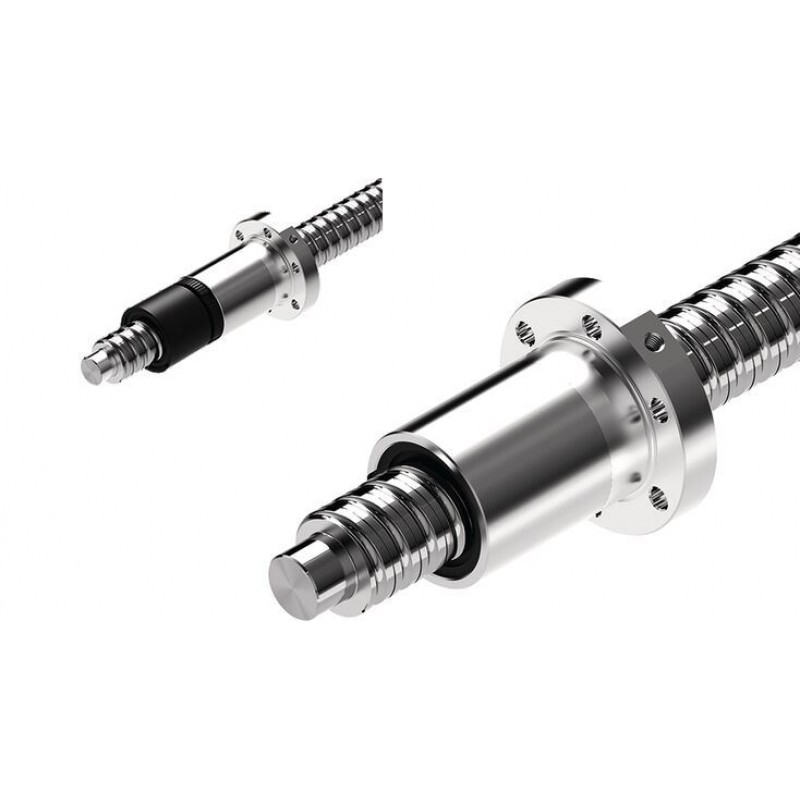

Flanged single nut FEM-E-S

Name: Flanged single nut FEM-E-S
Brand: Bosch Rexroth
SKU: RX8891

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@boschrexroth-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 137-07-02

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Description

Rexroth connection dimensions
With seals
With left-hand version in some cases
Preload class: C0, C00, C1, C2, C3
Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, “Product description”), T5, T7, T9

Product description

Product overview

Technical data

Technical data for nuts

Size	C	C0	vmax	Mass
d0 x P x Dw - i	N	N	m/min	kg
16 x 5R x 3 - 4	14800 1)	16100 1)	30 2)	0.24
16 x 10R x 3 - 3	11500 1)	12300 1)	60 2)	0.25
16 x 16R x 3 - 2	7560 1)	7600 1)	96 2)	0.39
20 x 5R x 3 - 4	17200 1)	21500 1)	30 2)	0.28
20 x 10R x 3 - 4	16900 1)	21300 1)	60 2)	0.36
20 x 20R x 3,5 - 2	10900 1)	12100 1)	120 2)	0.6
25 x 5R x 3 - 4	19100 1)	27200 1)	30 2)	0.35
25 x 10R x 3 - 4	18800 1)	27000 1)	60 2)	0.44
25 x 25R x 3,5 - 2	12100 1)	15100 1)	150 2)	1.09
32 x 5R x 3,5 - 4	25900 1)	40000 1)	23 2)	0.54
32 x 10R x 3,969 - 5	38000 1)	58300 1)	47 2)	0.72
32 x 20R x 3,969 - 2	16200 1)	21800 1)	94 2)	1.02
32 x 32R x 3,969 - 2	16100 1)	22000 1)	150 2)	1.4
40 x 5R x 3,5 - 5	34900 1)	64100 1)	19 2)	0.71
40 x 10R x 6 - 4	60000 1)	86400 1)	38 2)	1.29
40 x 10R x 6 - 6	86500 1)	132200 1)	38 2)	1.59
40 x 20R x 6 - 3	45500 1)	62800 1)	75 2)	1.54
40 x 40R x 6 - 2	30600 1)	40300 1)	150 2)	3.59
50 x 5R x 3,5 - 5	38400 1)	81300 1)	15 2)	1.02
50 x 10R x 6 - 6	95600 1)	166500 1)	30 2)	2.02
50 x 16R x 6 - 6	95300 1)	166000 1)	48 2)	2.58
50 x 20R x 6,5 - 3	57500 1)	87900 1)	60 2)	3.4
50 x 40R x 6,5 - 2	38500 1)	55800 1)	120 2)	3.87
63 x 10R x 6 - 6	106600 1)	214300 1)	24 2)	2.62
63 x 20R x 6,5 - 3	63800 1)	112100 1)	48 2)	3.71
63 x 40R x 6,5 - 2	44300 1)	74300 1)	95 2)	4.21
80 x 10R x 6,5 - 6	130100 1)	291700 1)	19 2)	3.78
80 x 20R x 12,7 - 6	315200 1)	534200 1)	30 2)	11
16 x 5L x 3 - 4	14800 1)	16100 1)		0.24
20 x 5L x 3 - 4	17200 1)	21500 1)		0.28
25 x 5L x 3 - 4	19100 1)	27200 1)		0.35
32 x 5L x 3,5 - 4	25900 1)	40000 1)	23 2)	0.54
40 x 5L x 3,5 - 5	34900 1)	64100 1)	19 2)	0.71
40 x 10L x 6 - 4	60000 1)	86400 1)	38 2)	1.29

1)	The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
2)	See "characteristic speed d0 • n" (section Technical notes) and "critical speed n"cr" (section Calculation and examples)

Operating conditions

Size	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
d0 x P x Dw - i	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
16 x 5R x 3 - 4	-10 °C ... +80 °C	-15 °C ... +80 °C
16 x 10R x 3 - 3
16 x 16R x 3 - 2
20 x 5R x 3 - 4
20 x 10R x 3 - 4
20 x 20R x 3,5 - 2
25 x 5R x 3 - 4
25 x 10R x 3 - 4
25 x 25R x 3,5 - 2
32 x 5R x 3,5 - 4
32 x 10R x 3,969 - 5
32 x 20R x 3,969 - 2
32 x 32R x 3,969 - 2
40 x 5R x 3,5 - 5
40 x 10R x 6 - 4
40 x 10R x 6 - 6
40 x 20R x 6 - 3
40 x 40R x 6 - 2
50 x 5R x 3,5 - 5
50 x 10R x 6 - 6
50 x 16R x 6 - 6
50 x 20R x 6,5 - 3
50 x 40R x 6,5 - 2
63 x 10R x 6 - 6
63 x 20R x 6,5 - 3
63 x 40R x 6,5 - 2
80 x 10R x 6,5 - 6
80 x 20R x 12,7 - 6
16 x 5L x 3 - 4
20 x 5L x 3 - 4
25 x 5L x 3 - 4
32 x 5L x 3,5 - 4
40 x 5L x 3,5 - 5
40 x 10L x 6 - 4

1)	Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut).

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand, L = left-hand)
Dw	Ball diameter	mm
i	Number of ball track turns
C	Dynamic load capacity	N
C0	Static load capacity	N
vmax	Maximum permissible speed	m/min

Technical notes

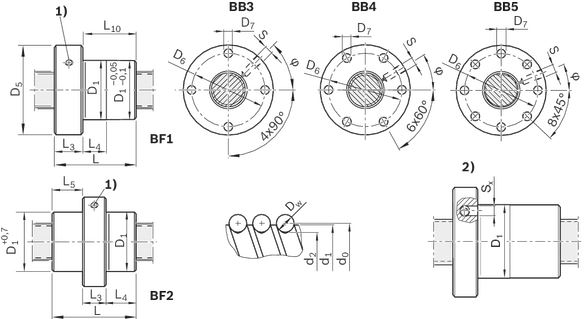

Dimensions

1)	Lube port at flange center (lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm)
2)	Nut rework: Axial lube port

Dimensions

Size	d1	d2	D1	D5	Hole pattern	D6	D7	Design type	L	L3	L4	L5	L10	S 1)	Sx	φ
d0 x P x Dw - i	d1	d2	g6	D5	Hole pattern	D6	D7	Design type	L	L3	L4	L5	L10	S 1)	Sx	φ
d0 x P x Dw - i	mm	mm	mm	mm		mm	mm		mm	mm	mm	mm	mm	mm	mm	°
16 x 5R x 3 - 4	15	12.9	28	53	BB3	40	6.6	BF1	38	12	10	-	26	M6	4	315
16 x 10R x 3 - 3			28	53	BB3	40		BF1	45	12	16	-	33			315
16 x 16R x 3 - 2			33	58	BB4	45		BF2	45	15	15	15	-			30
20 x 5R x 3 - 4	19	16.9						BF1	40	12	10	-	28
20 x 10R x 3 - 4		16.9						BF1	60	12	16	-	48
20 x 20R x 3,5 - 2		16.7	38	63		50		BF2	57	20	18.5	18.5	-
25 x 5R x 3 - 4	24	21.9						BF1	45	12	10	-	33
25 x 10R x 3 - 4		21.9						BF1	64	12	16	-	52
25 x 25R x 3,5 - 2		21.4	48	73		60		BF2	70	25	22.5	22.5	-			18
32 x 5R x 3,5 - 4	31	28.4						BF1	48	13	10	-	35			30
32 x 10R x 3,969 - 5		27.9							77	13	16		64
32 x 20R x 3,969 - 2			56	80		68			64	15	25		49
32 x 32R x 3,969 - 2								BF2	88	20	34	34	-
40 x 5R x 3,5 - 5	39	36.4						BF1	54	15	10	-	39	M8x1	5
40 x 10R x 6 - 4	38	33.8	63	95		78	9		70		16		55
40 x 10R x 6 - 6									90		16		75
40 x 20R x 6 - 3									88		25		73
40 x 40R x 6 - 2			72	110		90	11	BF2	102	40	31	31	-			19
50 x 5R x 3,5 - 5	49	46.4	68	98		82	9	BF1	54	15	10	-	39			30
50 x 10R x 6 - 6	48	43.8	72	110		90	11		90	18	16		72
50 x 16R x 6 - 6		43.8	72	110		90			128	18	25		110
50 x 20R x 6,5 - 3		43.4	85	125		105			92	22	25		70
50 x 40R x 6,5 - 2		43.4							109		45		87
63 x 10R x 6 - 6	61	56.8							90		16		68
63 x 20R x 6,5 - 3		56.4	95	140		118	14		92		25		70
63 x 40R x 6,5 - 2		56.4	95	140		118			109		45		87
80 x 10R x 6,5 - 6	78	73.3	105	150		125			95		16		73
80 x 20R x 12,7 - 6	76	67	125	180	BB5	152	18		170	25	25		145			22.5
16 x 5L x 3 - 4	15	12.9	28	53	BB3	40	6.6		38	12	10		26	M6		45
20 x 5L x 3 - 4	19	16.9	33	58	BB4	45			40				28			30
25 x 5L x 3 - 4	24	21.9	38	63		50			45				33
32 x 5L x 3,5 - 4	31	28.4	48	73		60			48	13			35
40 x 5L x 3,5 - 5	39	36.4	56	80		68			54	15			39	M8x1
40 x 10L x 6 - 4	38	33.8	63	95		78	9		70	15	16		55	M8x1

1)	Lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm

Legend

Symbol	Description
d0	Nominal diameter
P	Lead (R = right-hand, L = left-hand)
Dw	Ball diameter
i	Number of ball track turns

Project planning information

Calculation

Mounting

Installation

Commissioning

Attention: When setting up applications, do not allow components to collide with the front lube unit.

Maintenance

load error

Certification

load error

Safety Instructions

load error

Downloads

	Ball Screw Assemblies Manual \| R320103992 \| 2011-06-01 \| English, French, German, Italian \| PDF \| 2MB Product Groups: Linear Screw Assemblies
	Ball Screw Assemblies Manual \| R320103993 \| 2011-06-01 \| English, German, Spanish, Portuguese \| PDF \| 2MB Product Groups: Linear Screw Assemblies only PDF
	Catalog screw assemblies Catalog \| R999001185 \| 2021-04-01 \| English \| PDF \| 30.7MB Product Groups: Ball Screw Assemblies, Planetary Screw Assemblies Only available as PDF - Ball screw assemblies BASA/Planetary screw assemblies PLSA
